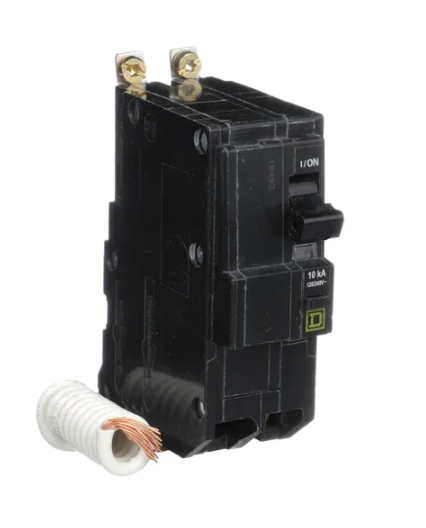

QOB250EPD2100 - Square D 50A 2-Pole 120/240V Bolt-On Circuit Breaker 10kA Interrupt Rating

QOB250EPD2100

QOB250EPD2100 is a Square D 2-pole miniature circuit breaker rated for 50 amps and 120/240 volts AC with bolt-on mounting.

This circuit breaker features a thermal magnetic trip unit providing reliable protection with a 10 kA interrupt rating at 120/240 V AC. It is designed for use in residential and commercial electrical panels, offering a compact footprint and lug terminal connections. The breaker is HACR rated and UL and CSA certified, ensuring compliance with safety standards.

Key Specifications
• Amperage: 50 A
• Voltage Rating: 120/240 V AC
• Number of Poles: 2
• Mounting Type: Bolt-On
• Interrupt Rating: 10 kA at 120/240 V AC
• Trip Unit: Thermal Magnetic
• Connection Type: Lug Terminals
• Series/Frame: QO
• Certifications: UL Listed, CSA Certified
• HACR Rated
• Wire Size Range: AWG 8 to AWG 2 Copper or Aluminum
• Dimensions (H x W x D): 3.12 x 1.5 x 2.91 inches

At Essential Parts, we offer fast shipping, lowest price, a(more...)

Specifications

• Part Number: QOB250EPD2100
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : QOB Series
• Type : QOB
• Voltage : 120/240VAC
• Amperage : 50
• Phase : 1
• Poles : 2
• AIC rating : 10kA@120V
• Connection : Bolt-On
• Functions : LI - Long-Time and Instantaneous
• Terminal Connection : Pressure Plate
• Protection : Thermal Magnetic

Product Data

• UPC : 3606486144947
• GTIN : 03606486144947
• Country of Origin : Mexico
• Dimensions : 4.1 in (105 mm) x 2.2 in (57 mm) x 2.9 in (74 mm) (Height x Width x Depth)
• Weight : 1.21
• Standards : CSA, UL Listed
• Certification : UL Listed
