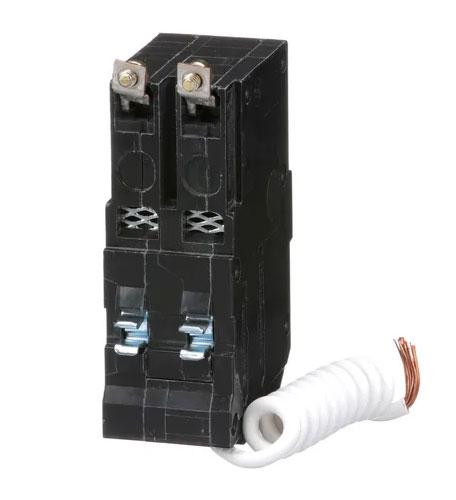

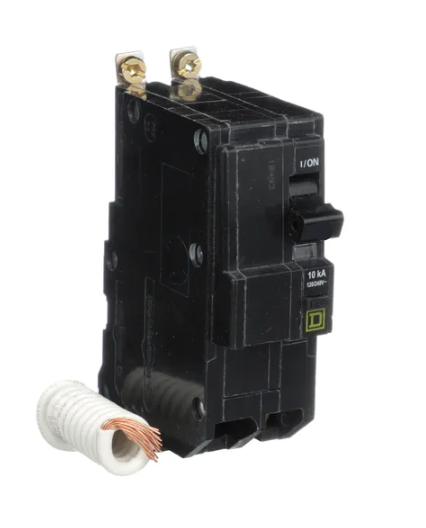

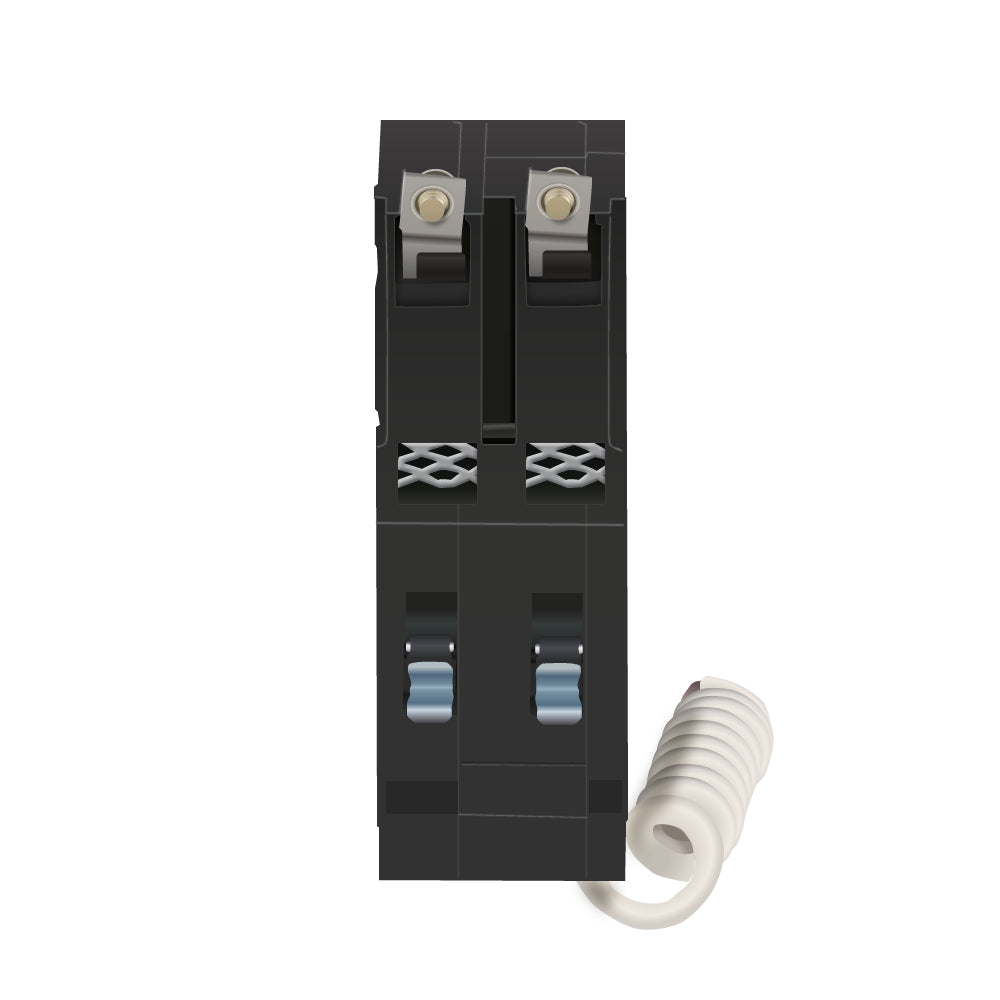

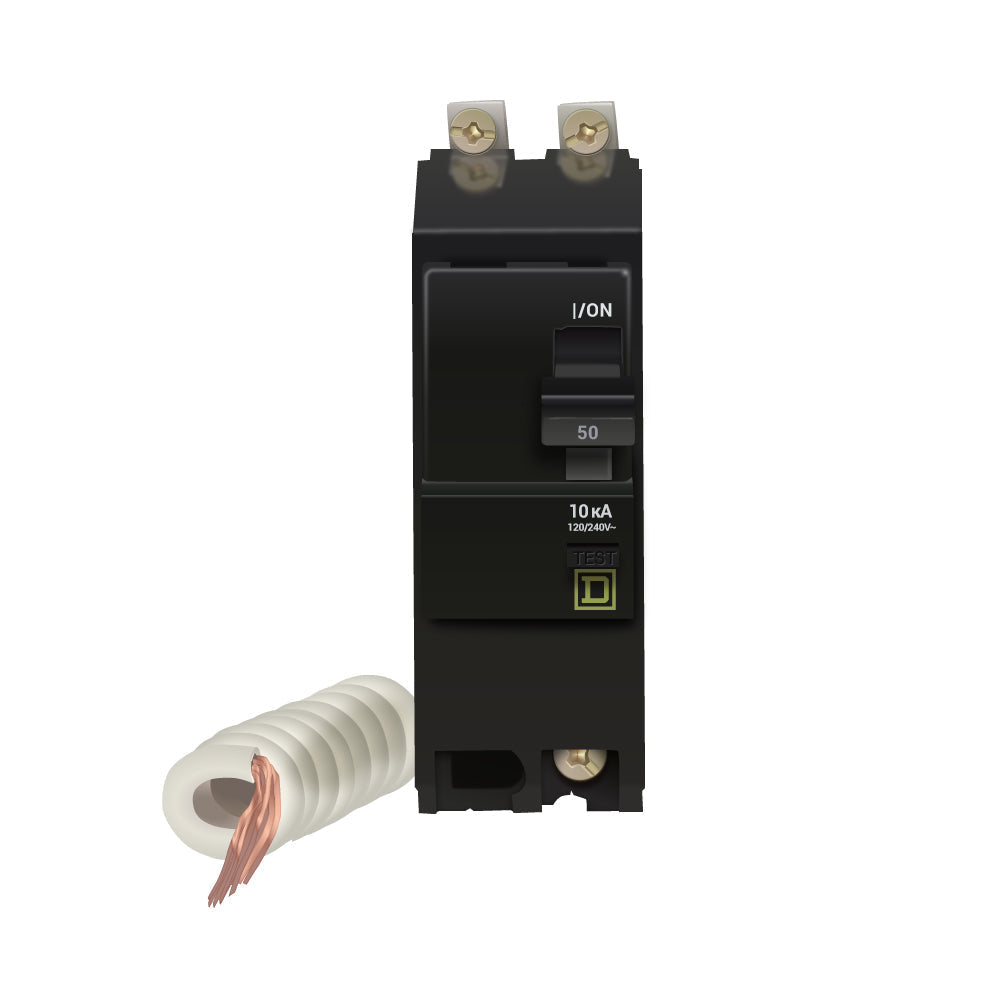

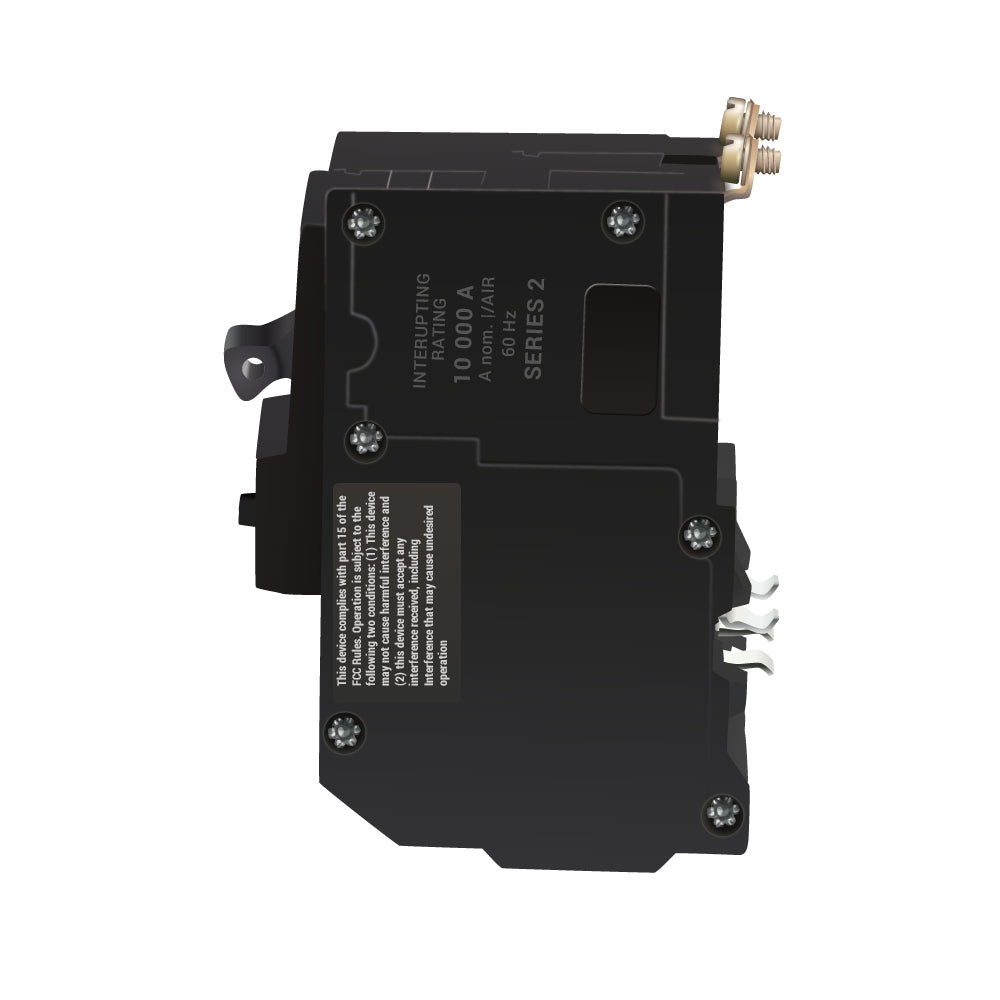

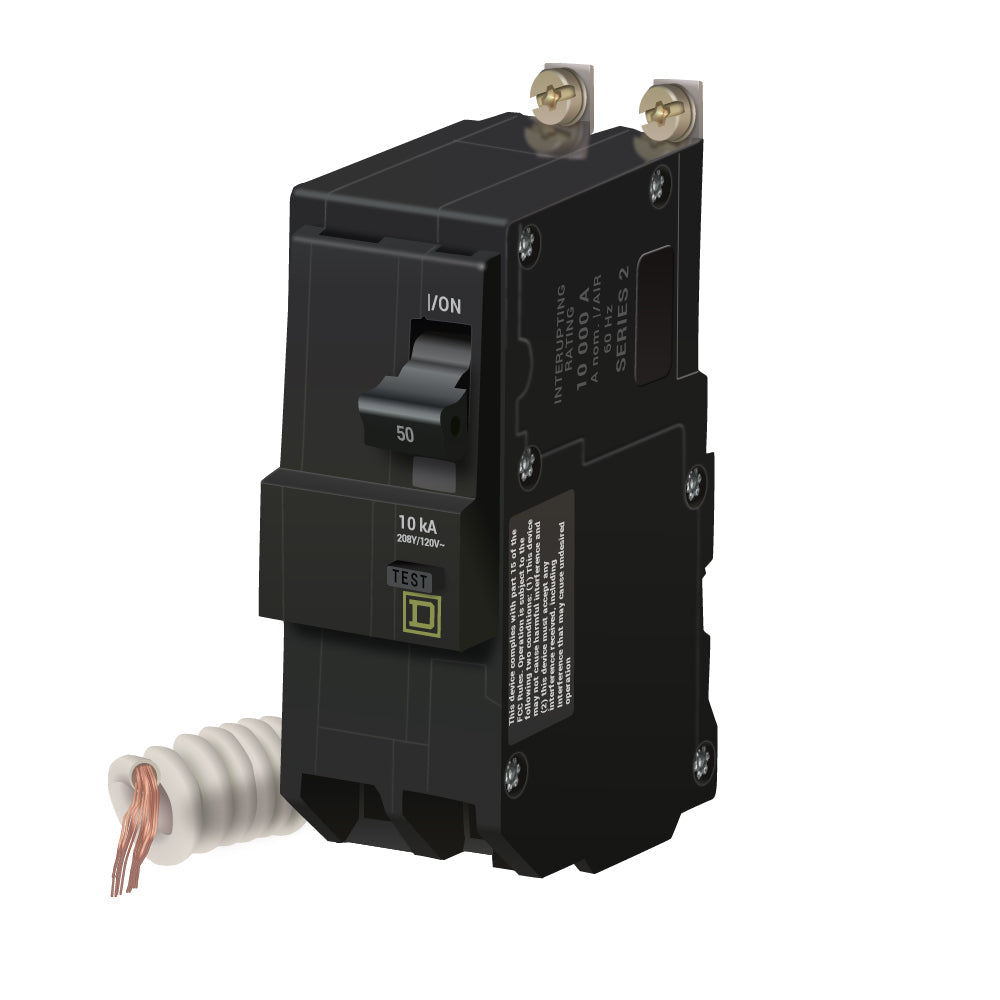

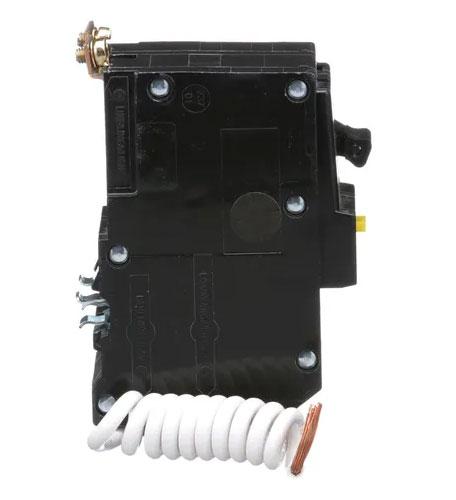

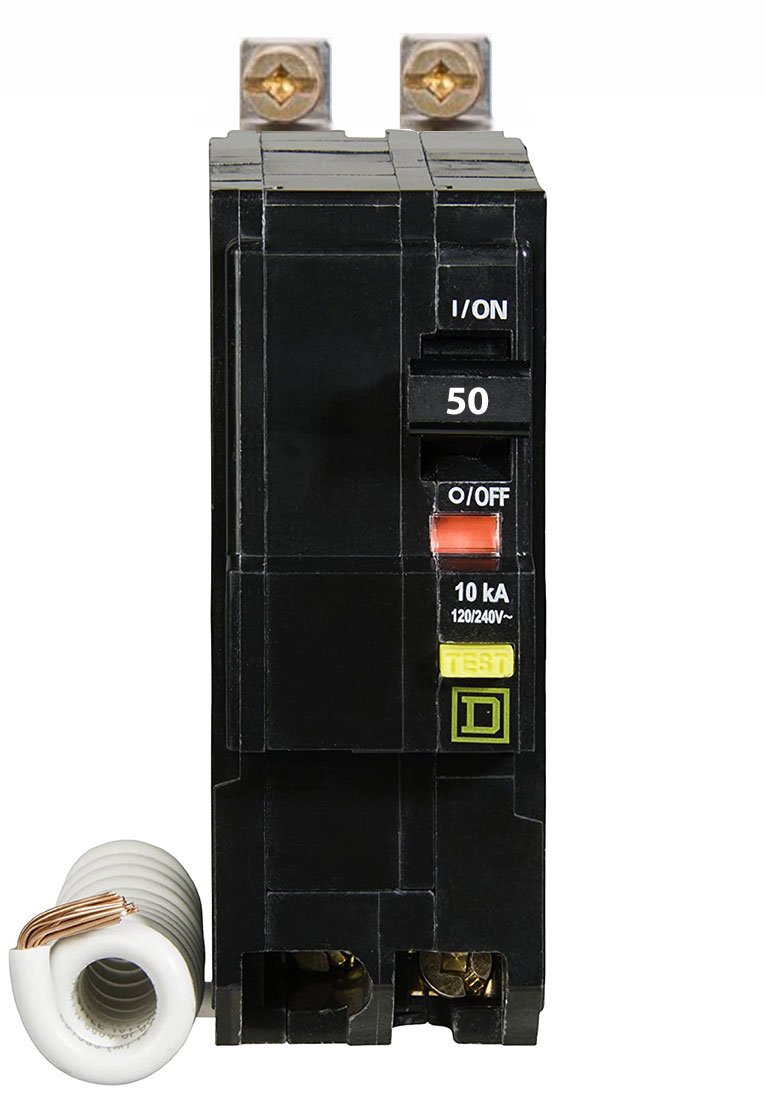

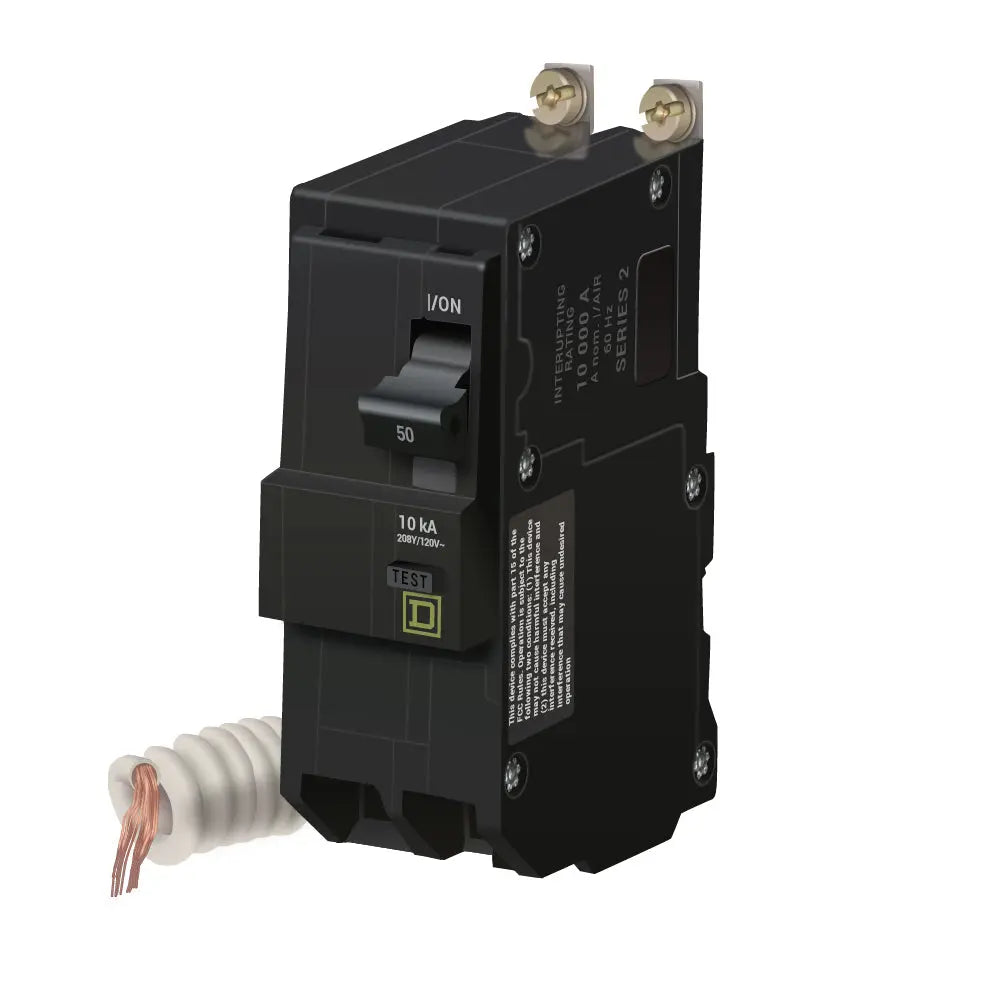

QOB250EPD - Square D 50A 2-Pole 120/240V Bolt-On Circuit Breaker with 30mA Ground Fault

QOB250EPD

QOB250EPD is a 50 amp, 2-pole circuit breaker from Square D designed for reliable circuit protection with ground fault interruption.This thermal magnetic QOB series breaker features a bolt-on mounting type, 120/240V AC voltage rating, and a 10kA interrupt rating. It includes a 30mA Class B ground fault protection trip unit and is UL and CSA certified for safety and performance.

• Amperage: 50 A
• Voltage Rating: 120/240 V AC
• Number of Poles: 2
• Mounting Type: Bolt-On
• Interrupt Rating: 10 kA
• Trip Unit: Thermal Magnetic with 30mA Ground Fault
• Series/Frame: QOB
• Phase: Single
• Connection Type: Box Lugs
• Wire Size: AWG 12-4 Aluminum, AWG 14-6 Copper
• Certifications: UL, CSA

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: QOB250EPD
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : QOB Series
• Type : QOB
• Voltage : 120/240VAC
• Amperage : 50
• Phase : 1
• Poles : 2
• AIC rating : 10kA@120V
• Connection : Bolt-On
• Functions : LI - Long-Time and Instantaneous
• Terminal Connection : Pressure Plate
• Frame Size : 100A/QO
• Temp Rating : Minimum Operating Temp 104 Degrees F Max. Operating Temp.104 Degrees F
• MCM Size : Min. Wire Size 12 AWG (Al), 14 AWG (Cu) Max. Wire Size 4 AWG (Al), 6 AWG (Cu)
• Breaker Type : Ground Fault Equipment Protection
• Protection : Thermal Magnetic

Product Data

• UPC : 785901168799
• GTIN : 00785901168799
• Country of Origin : Mexico
• Dimensions : 4.1 in (105 mm) x 1.5 in (38 mm) x 2.9 in (74 mm) (Height x Width x Depth)
• Weight : 1.06
• Panel Type : QO Load Centers and NQ Panelboards
• Standards : CSA, UL Listed
• Certification : UL Listed
• Wire Size : AWG 12, AWG 4 Aluminium, AWG 14, AWG 6 Copper
