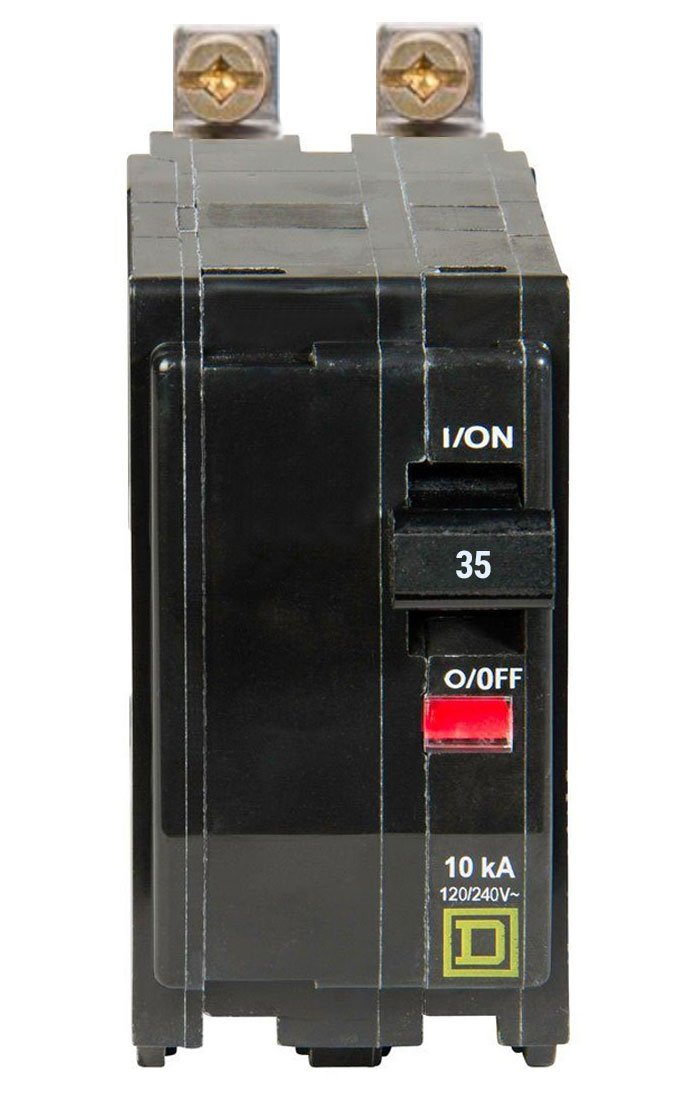

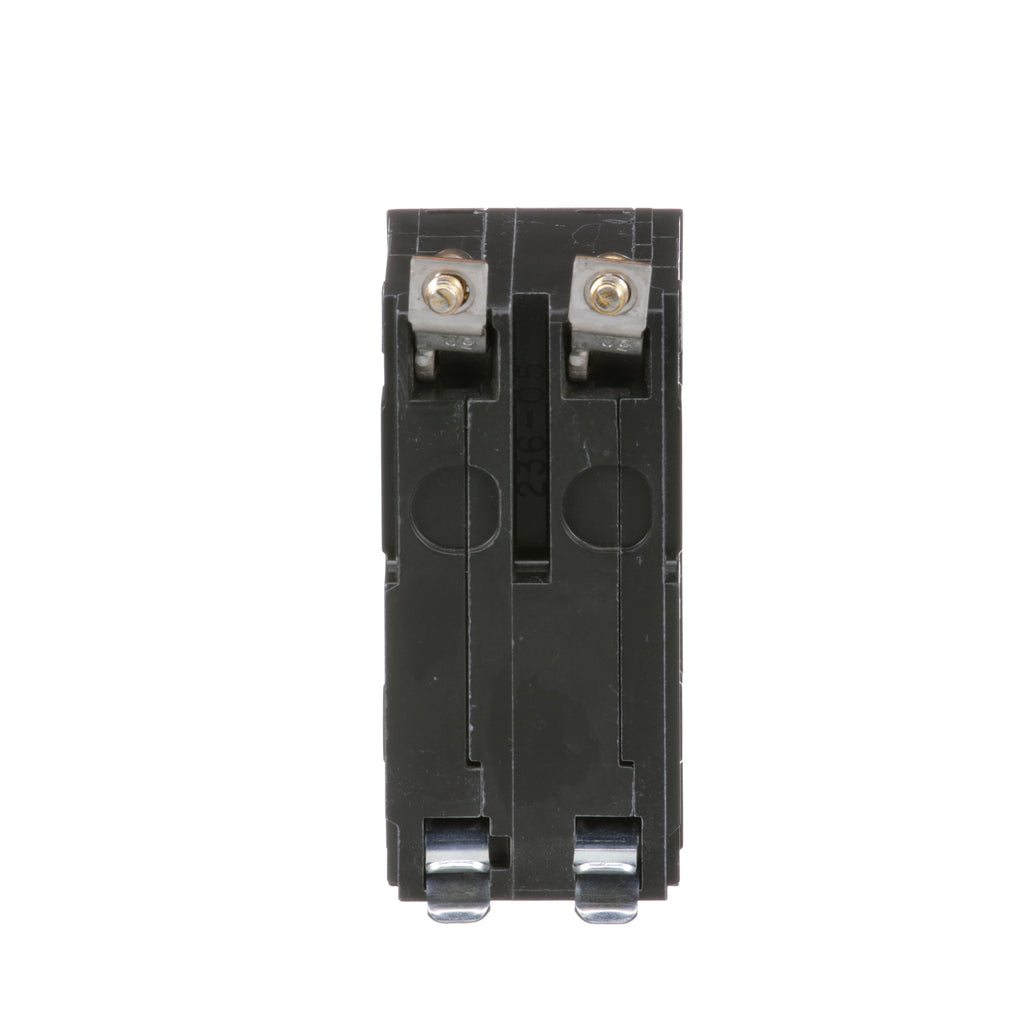

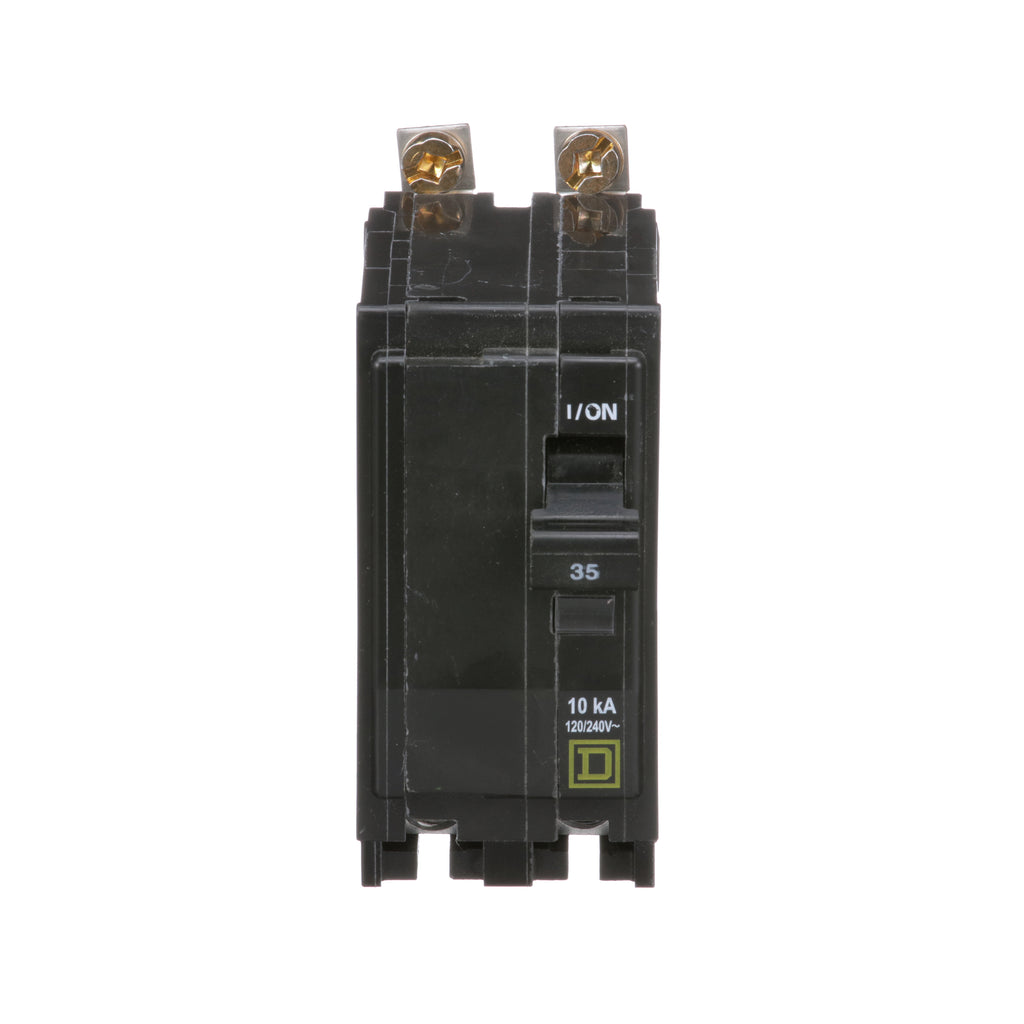

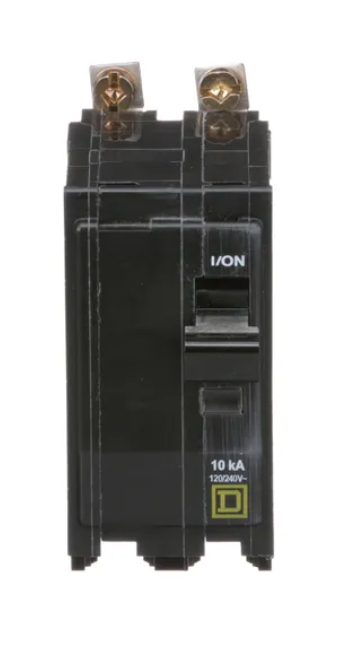

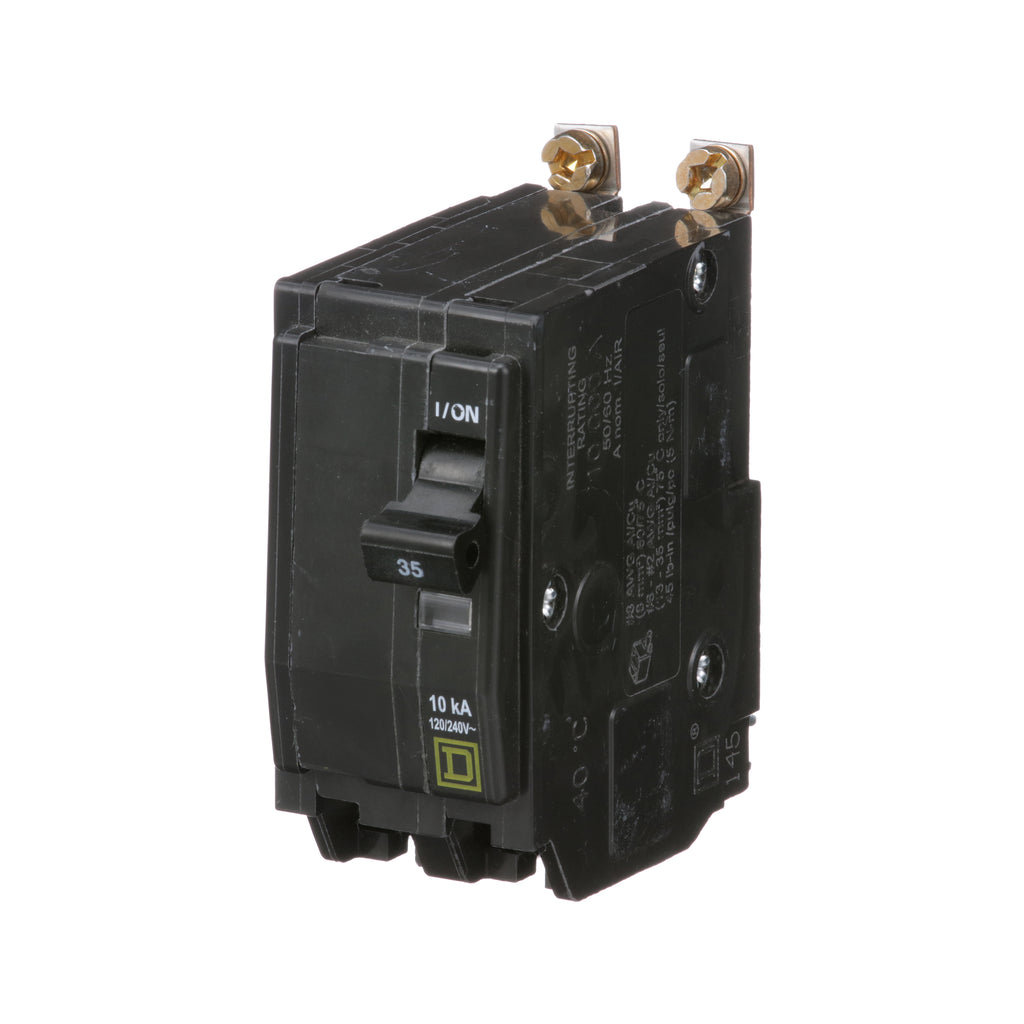

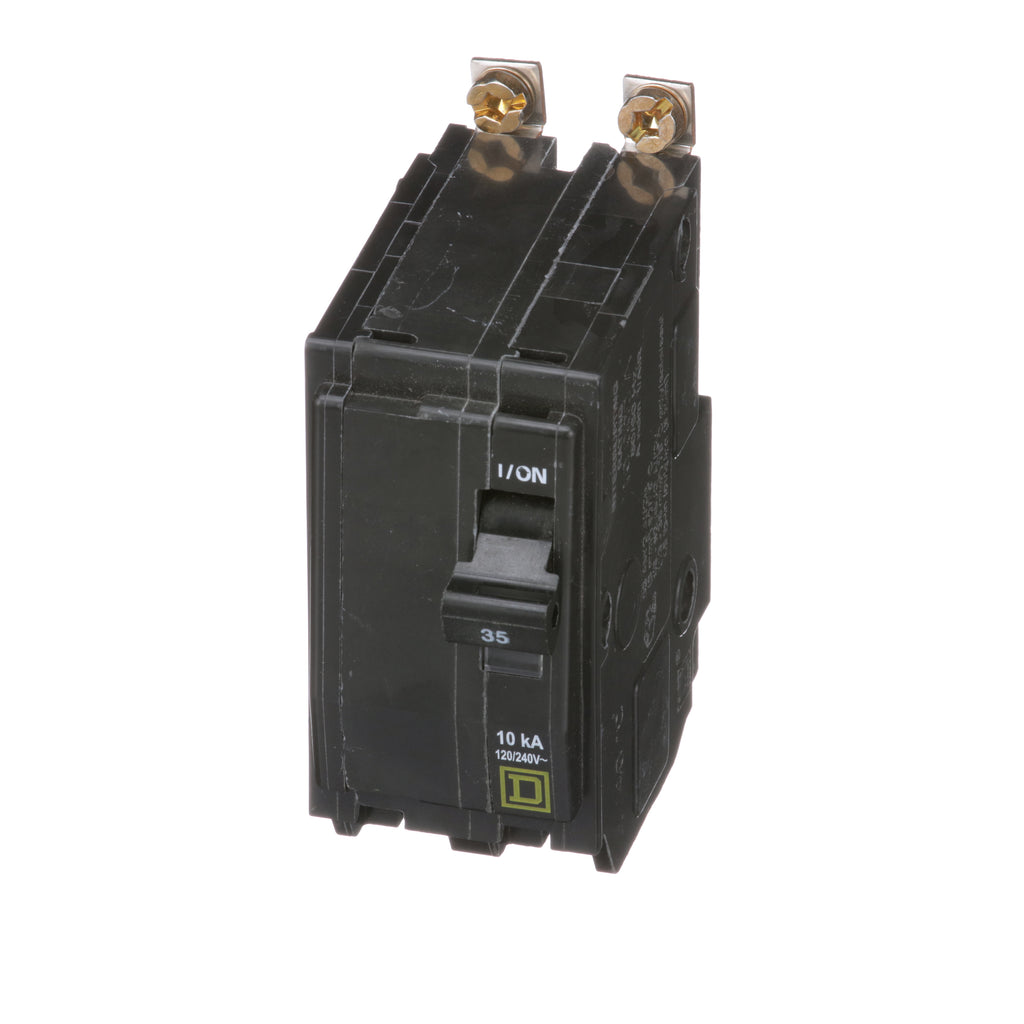

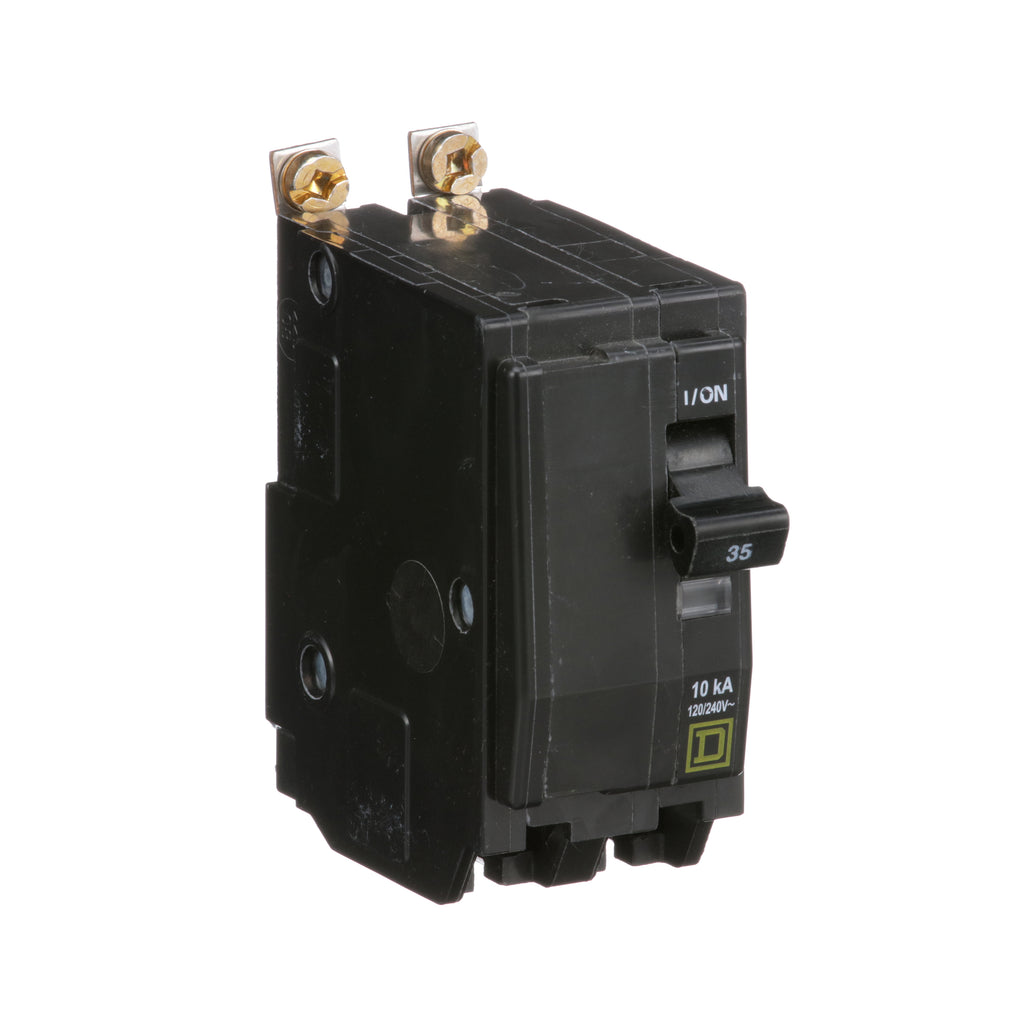

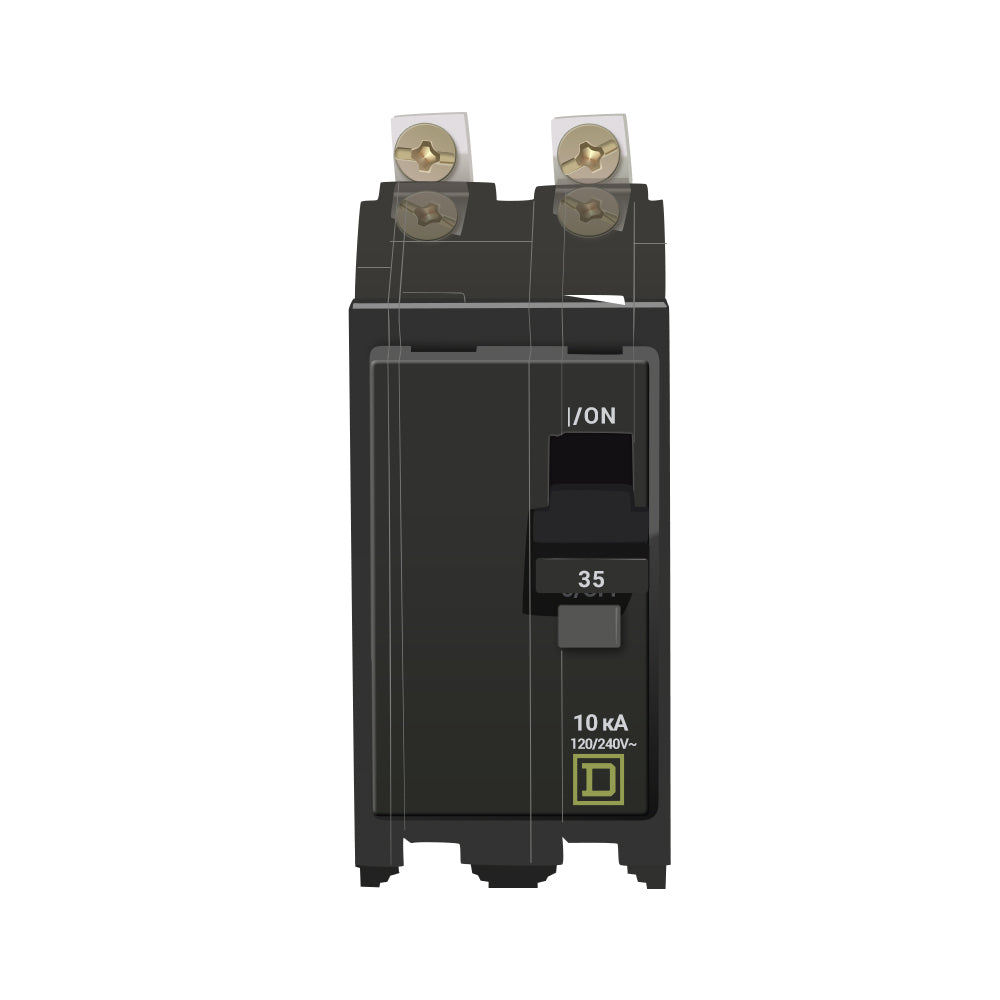

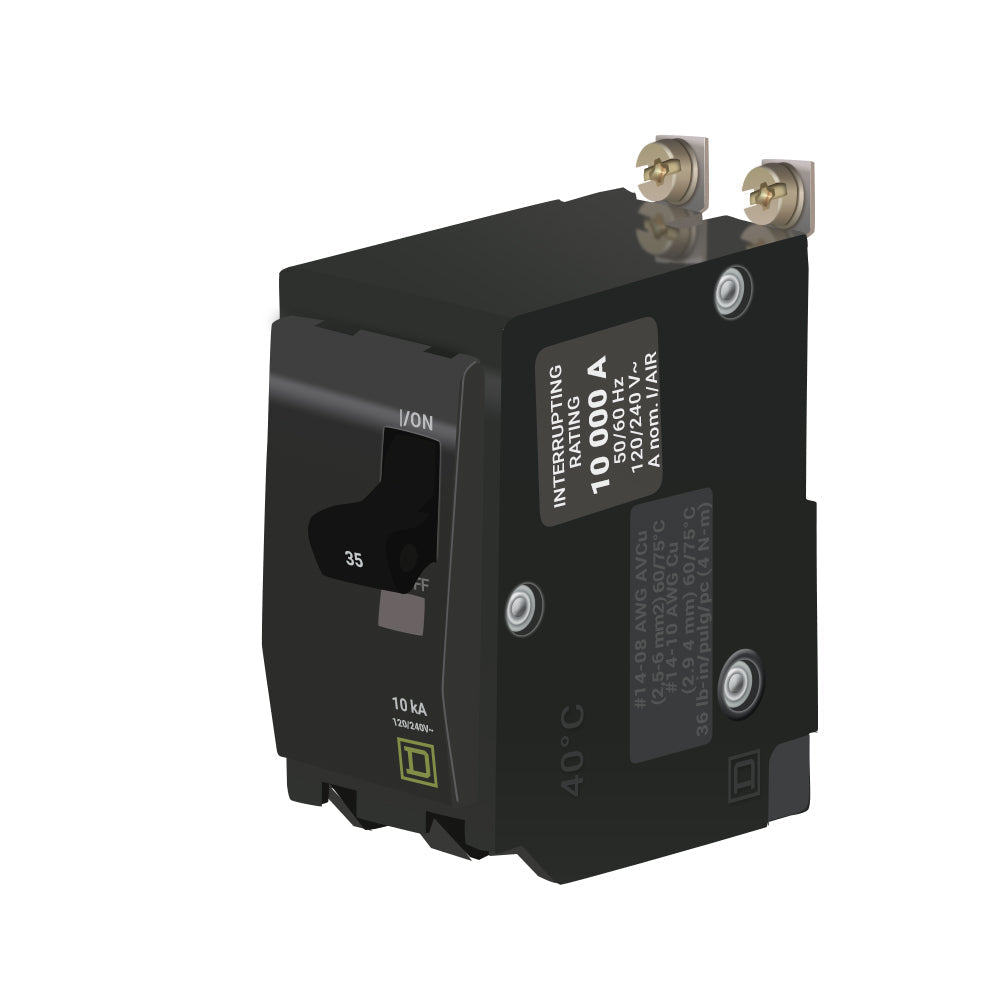

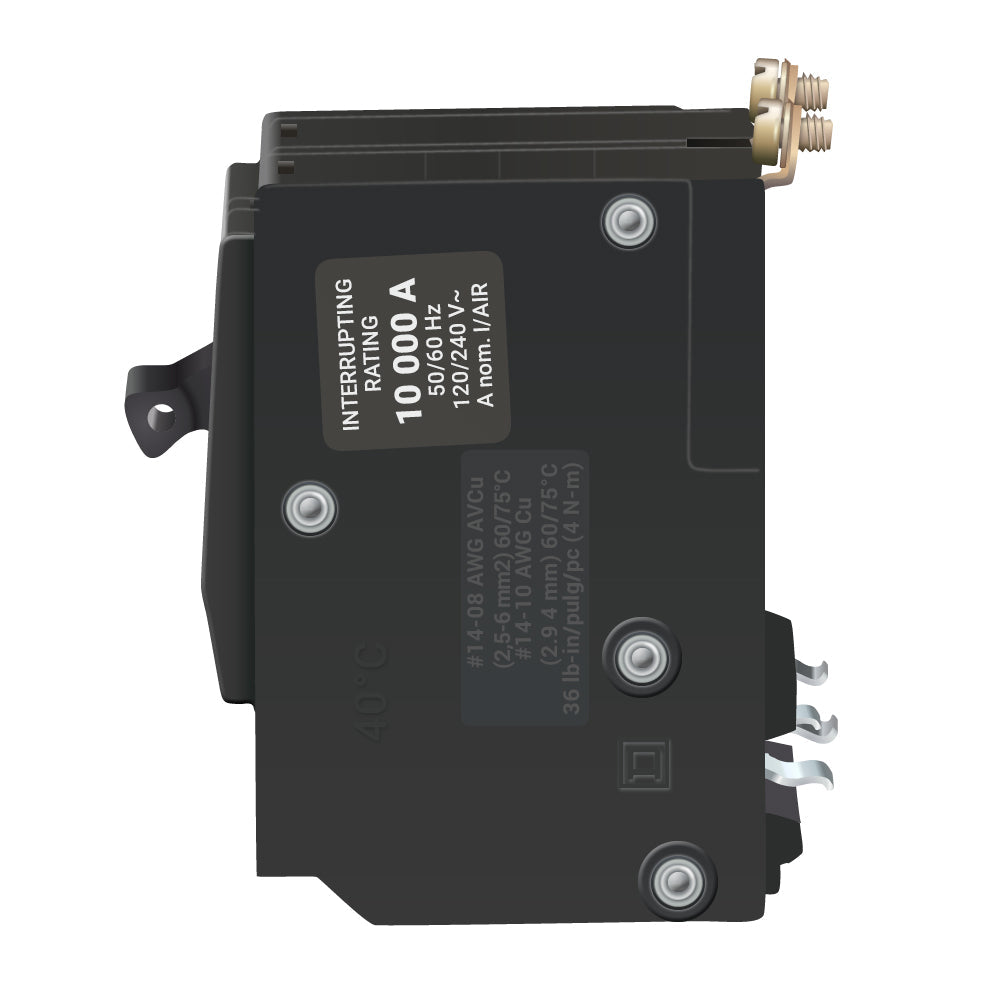

QOB235 - Square D 35 Amp 2 Pole Bolt-On Circuit Breaker, 120/240VAC, 10kAIC, QOB Series, Thermal Magnetic Trip, UL/CSA

QOB235

QOB235 is a Square D 2 pole, 35 amp, bolt-on circuit breaker designed for reliable protection in residential and commercial applications.

This thermal magnetic miniature circuit breaker features a 120/240VAC voltage rating, 10kA interrupting capacity, and is part of the QOB series. It is UL and CSA certified, HACR rated, and suitable for use with copper or aluminum conductors. The QOB235 offers both long-time and instantaneous trip functions for overload and short circuit protection, with a compact design for easy panel installation.

Key Specifications
• Amperage: 35A
• Voltage: 120/240VAC, 48VDC
• Poles: 2
• Mounting Type: Bolt-on
• Interrupt Rating: 10kAIC at 120/240VAC
• Series/Frame: QOB
• Trip Unit: Thermal magnetic (LI - long-time and instantaneous)
• Certifications: UL, CSA, HACR
• Terminal Connection: Box lugs (screw clamp)
• Wire Size: 8 AWG to 2 AWG (copper or aluminum)
• Ambient Rating: 40¡C (104¡F)
• Dimensions: 3.1" H x 1.5" W x 2.9" D

At Essential Parts(more...)

Specifications

• Part Number: QOB235
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : QOB Series
• Type : QOB
• Voltage : 120/240VAC
• Amperage : 35
• Phase : 1
• Poles : 2
• AIC rating : 10kA@120V
• Connection : Bolt-On
• Functions : LI - Long-Time and Instantaneous Trip
• Terminal Connection : Pressure Plate
• Frame Size : 100A/QO
• Temp Rating : -13‰ÛÒ158 å¡F (-25‰ÛÒ70 å¡C)
• MCM Size : Min. Wire Size 8 AWG Max. Wire Size 2 AWG
• Breaker Type : Standard
• Protection : Thermal Magnetic

Product Data

• UPC : 785901368298
• GTIN : 00785901368298
• Country of Origin : Mexico
• Dimensions : 3.1 in (79 mm) x 1.5 in (38 mm) x 2.9 in (74 mm) (Height x Width x Depth)
• Weight : 0.6
• Panel Type : Square D NQOD Panelboards
• Standards : CSA, UL Listed
• Certification : UL Listed
• Wire Size : AWG 8 to AWG 2, Copper/Aluminum
