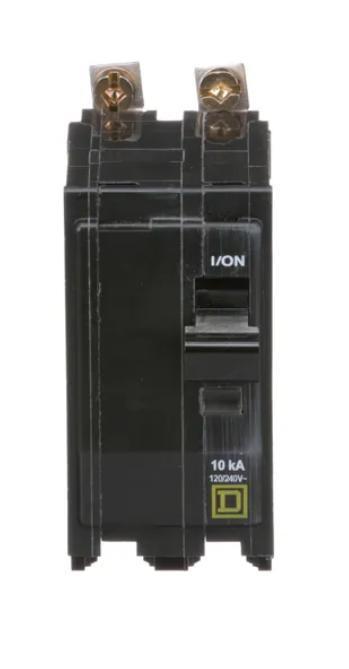

QOB230HID - Square D QO Series 30A 2-Pole 120/240VAC Bolt-On Miniature Circuit Breaker, 10kA Interrupt, Thermal Magnetic Trip

Save $1,760.53
SKU: QOB230HID-New
Condition: New
Price:
$138.47 $1,899.00
Stock:
Low inventory, please call for stock check

Same-Day Shipping

Most items ship same-day if ordered by 12:30 PM PST.

2 Year Warranty Guaranteed

All items both Re-Certified, and New sold by Essential Electric include a 30 day return policy and a 2-year full warranty. This means that they are guaranteed to be free from defects for a full 2 years from the date that the product was shipped from our warehouse.

Product Questions? Contact Us

Product Info

QOB230HID - Essential Electric Supply
Roll over image to zoom in Click on image to zoom Images are for reference only
QOB230HID - Essential Electric Supply

Description

QOB230HID


QOB230HID is a Square D QO Series miniature circuit breaker designed for reliable circuit protection in residential and light commercial applications.

This 2-pole, 30A breaker features a thermal magnetic trip unit, bolt-on mounting, and a compact, high-density design for easy installation in compatible panelboards. It is rated for 120/240VAC and 48VDC operation, with a 10kA interrupt rating at 120/240VAC, ensuring robust protection against overloads and short circuits. The QOB230HID is commonly used in NQ and NQOD panelboards and is known for its durability and straightforward diagnostics.

    Key Specifications
  • Part Number: QOB230HID
  • Manufacturer: Square D
  • Amperage: 30A
  • Voltage: 120/240VAC, 48VDC
  • Poles: 2
  • Mounting Type: Bolt-on
  • Interrupt Rating: 10kA @ 120/240VAC
  • Series/Frame: QO (QOB)
  • Trip Unit: Thermal magnetic
  • Certifications: Not specified in available data
  • Wire Size: 14-8 AWG
  • Terminal Type: Pressure plate
  • Application: NQ, NQOD panelboards

At (more...)

Specifications

  • Part Number: QOB230HID
  • Manufacturer : Schneider Electric
  • Brand : Square D
  • Category : Circuit Breaker
  • Item Subcategory : Molded Case
  • Family : QOB Series
  • Type : QOB
  • Voltage : 120/240VAC
  • Amperage : 30
  • Phase : 1
  • Poles : 2
  • AIC rating : 10kA@120V
  • Connection : Bolt-On
  • Functions : Long Time and Instantaneous Trip
  • Terminal Connection : Pressure Plate
  • Frame Size : 100A/QO
  • Temp Rating : -13‰ÛÒ158 å¡F (-25‰ÛÒ70 å¡C)
  • MCM Size : Min. Wire Size 14 AWG Max. Wire Size 8 AWG
  • Breaker Type : High Intensity Discharge
  • Protection : Thermal Magnetic

Product Data

  • UPC : 785901362944
  • GTIN : 00785901362944
  • Country of Origin : Mexico
  • Dimensions : 3.0 in (76 mm) x 1.5 in (38 mm) x 2.9 in (74 mm) (Height x Width x Depth)
  • Weight : 0.56
  • Panel Type : Square D NQOD Panelboards
  • Standards : CSA, UL Listed
  • Certification : UL Listed
  • Wire Size : AWG 14 to AWG 8, Copper or Aluminum
