QOB2301021 - Square D 30 Amp 2 Pole 120/240VAC Bolt-On Miniature Circuit Breaker with Shunt Trip, 10kA Interrupt, QO Series, Thermal Magnetic Trip, UL/CSA Listed

Save $77.22
SKU: QOB2301021-New
Condition: New
Price:
$200.78 $278.00
Stock:
100+ in stock, ready to be shipped

Same-Day Shipping

Most items ship same-day if ordered by 12:30 PM PST.

2 Year Warranty Guaranteed

All items both Re-Certified, and New sold by Essential Electric include a 30 day return policy and a 2-year full warranty. This means that they are guaranteed to be free from defects for a full 2 years from the date that the product was shipped from our warehouse.

Product Questions? Contact Us

Product Info

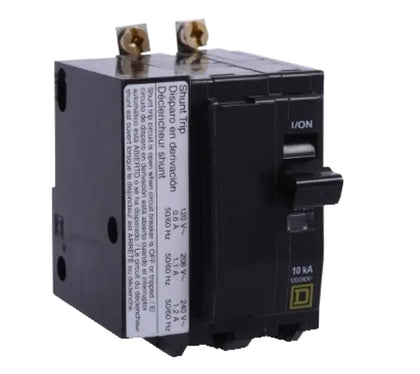

QOB2301021 - Essential Electric Supply
Roll over image to zoom in Click on image to zoom Images are for reference only
QOB2301021 - Essential Electric Supply

Description

QOB2301021


QOB2301021 is a Square D 30 Amp, 2 pole, bolt-on miniature circuit breaker with shunt trip, designed for reliable branch circuit protection in commercial and industrial applications.

This thermal magnetic trip circuit breaker is rated for 120/240VAC and 48VDC, fits NQ series panels, and features a 10kA interrupt rating. It is suitable for appliance and lighting circuits, and includes a Visi-Trip indicator for easy diagnostics. The bolt-on mounting ensures secure installation, and the unit is HACR rated for HVAC applications.

    Key Specifications
  • Part Number: QOB2301021
  • Manufacturer: Square D (Schneider Electric)
  • Amperage: 30A
  • Voltage: 120/240VAC, 48VDC
  • Poles: 2
  • Mounting Type: Bolt-on
  • Interrupt Rating: 10kA
  • Series/Frame: QO, NQ panelboard compatible
  • Trip Unit: Thermal magnetic
  • Certifications: UL, CSA listed
  • Shunt Trip: Operates with 120V
  • Wire Size: AWG 14 to AWG 8 copper or aluminum
  • Application: Branch circuits, appliance, lighting, emergency stops

Specifications

  • Part Number: QOB2301021
  • Manufacturer : Schneider Electric
  • Brand : Square D
  • Category : Circuit Breaker
  • Item Subcategory : Molded Case
  • Family : QOB Series
  • Type : QOB
  • Voltage : 120/240VAC
  • Amperage : 30
  • Phase : 1
  • Poles : 2
  • AIC rating : 10kA@120V
  • Connection : Bolt-On
  • Functions : LI - Long-Time and Instantaneous
  • Terminal Connection : Pressure Plate
  • Frame Size : 100A/QO
  • Temp Rating : Minimum Operating Temp 104 Degrees F Max. Operating Temp.104 Degrees F
  • MCM Size : Min. Wire Size 14 AWG Max. Wire Size 8 AWG
  • Breaker Type : Shunt Trip
  • Protection : Thermal Magnetic

Product Data

  • UPC : 785901494300
  • GTIN : 00785901494300
  • Country of Origin : Mexico
  • Dimensions : 3.0 in (76 mm) x 2.2 in (57 mm) x 2.9 in (74 mm) (Height x Width x Depth)
  • Weight : 0.9
  • Panel Type : Square D NQOD Panelboards
  • Standards : CSA, UL Listed
  • Certification : UL Listed
