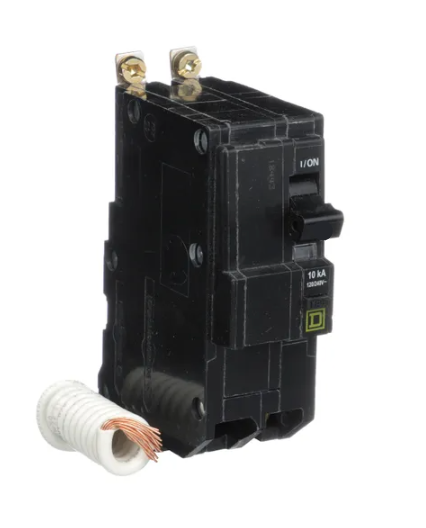

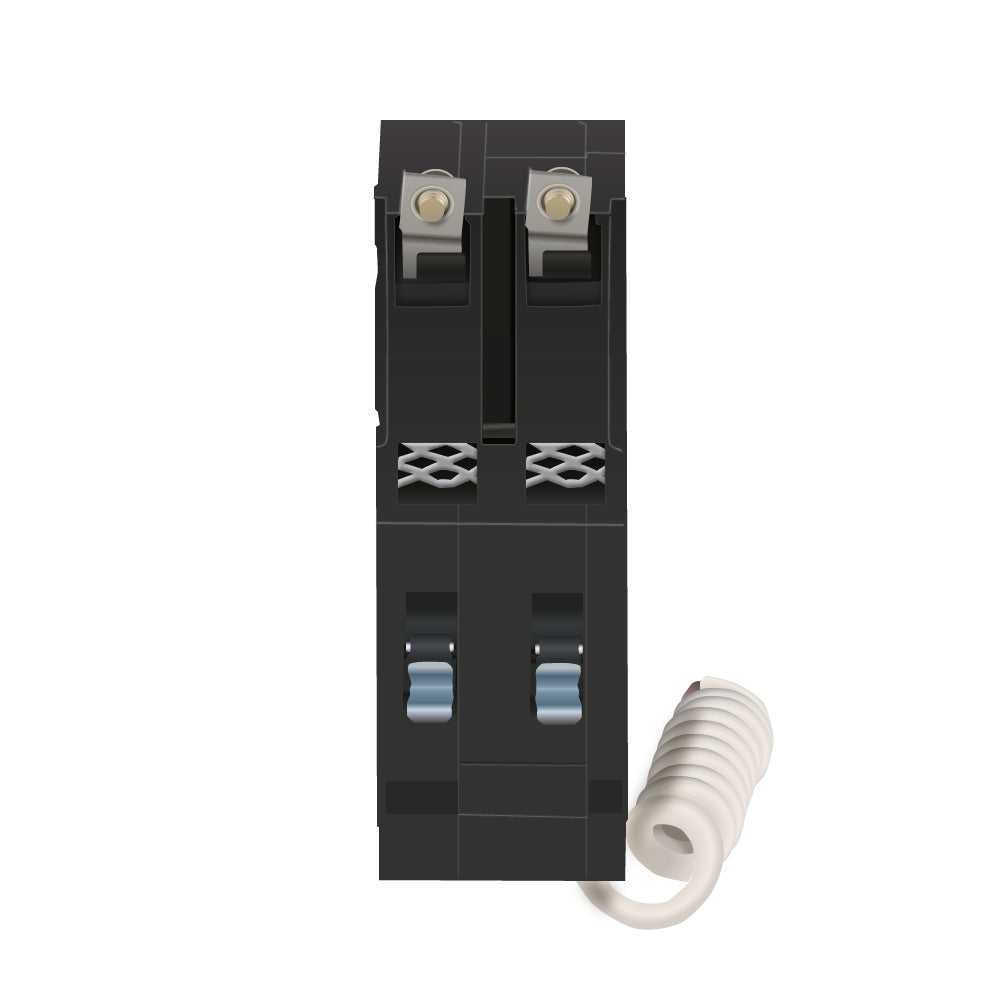

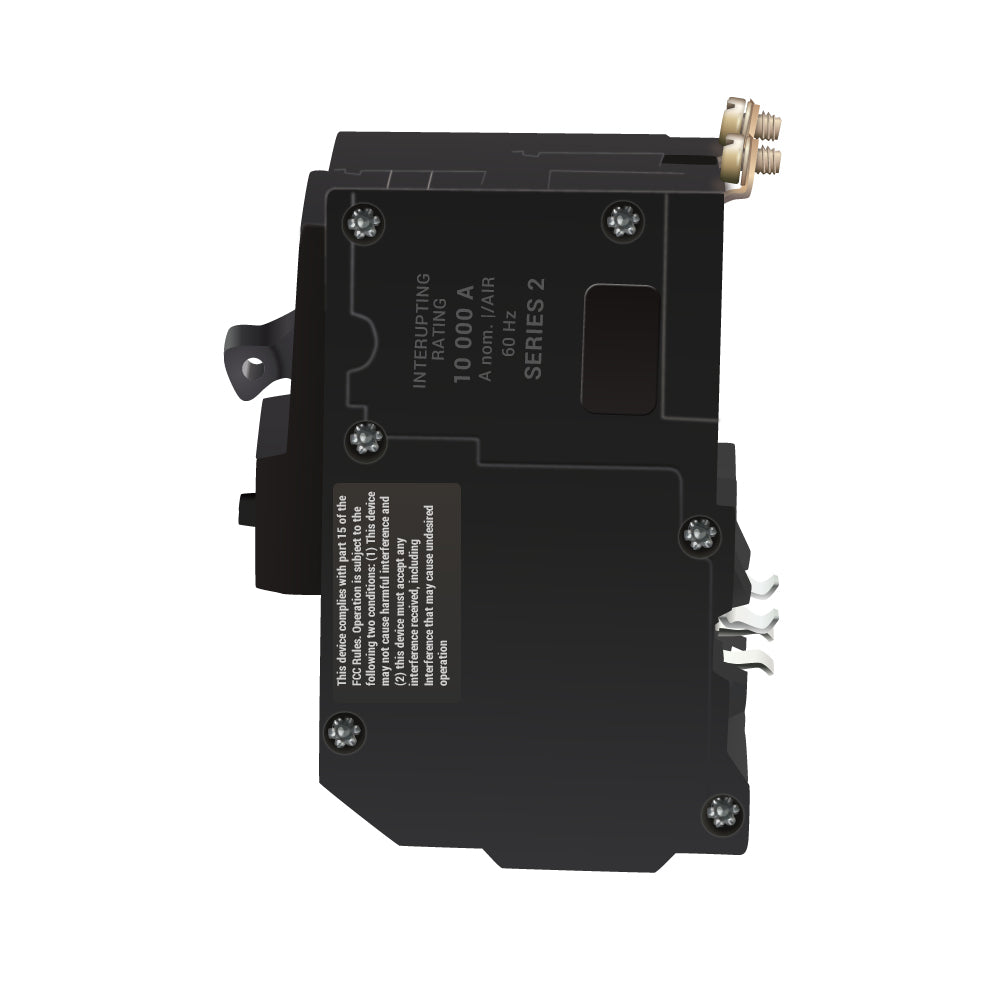

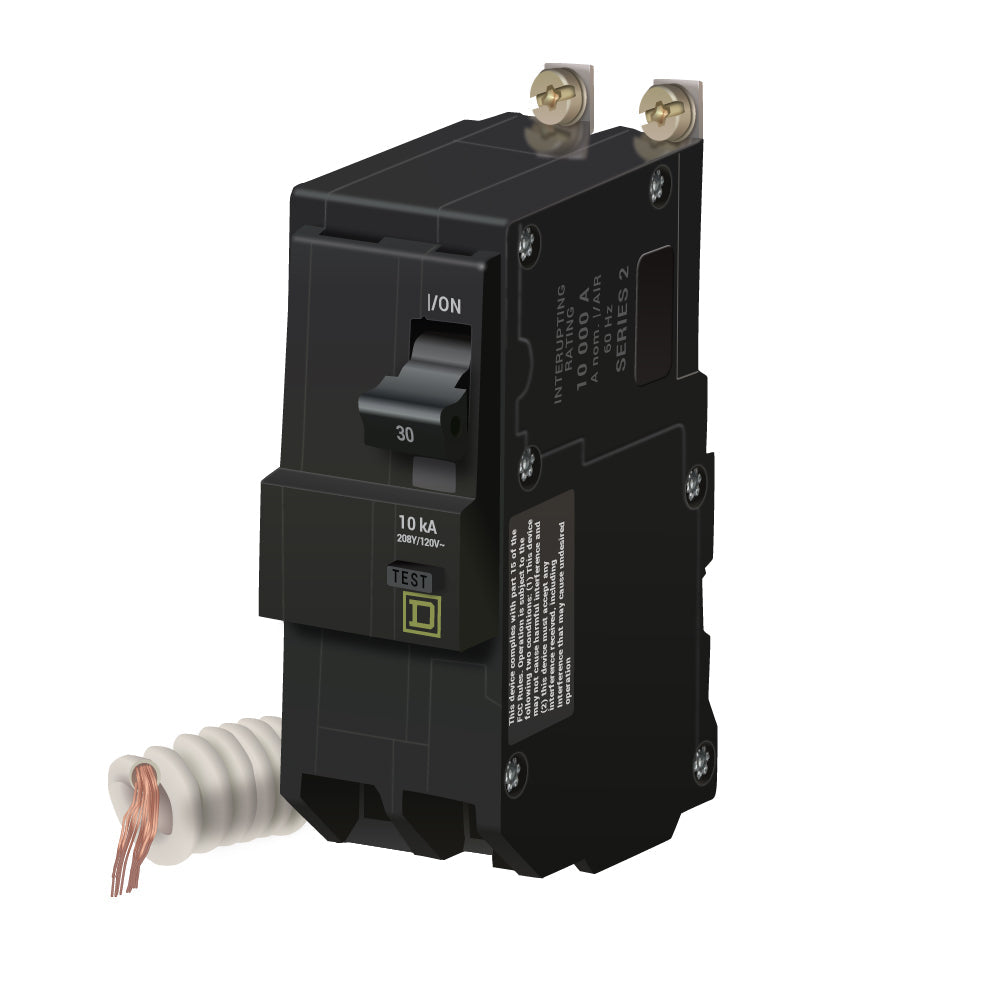

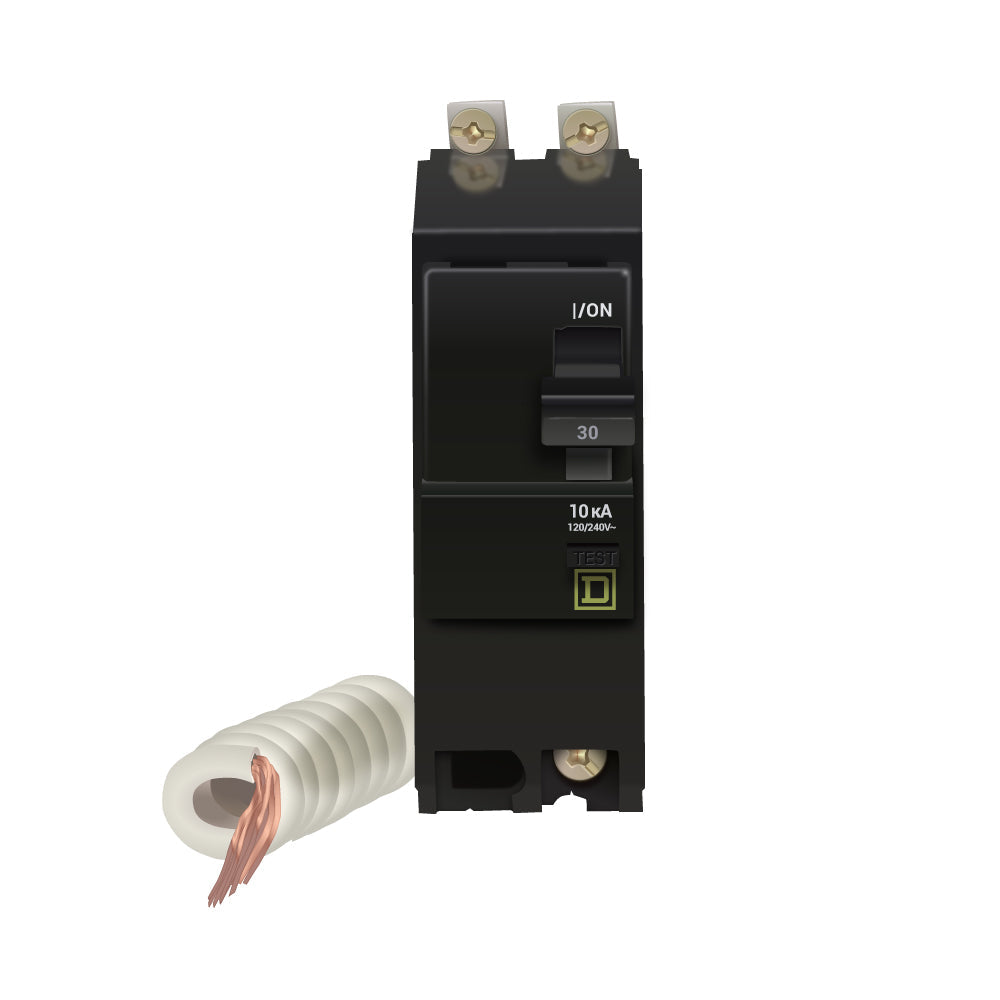

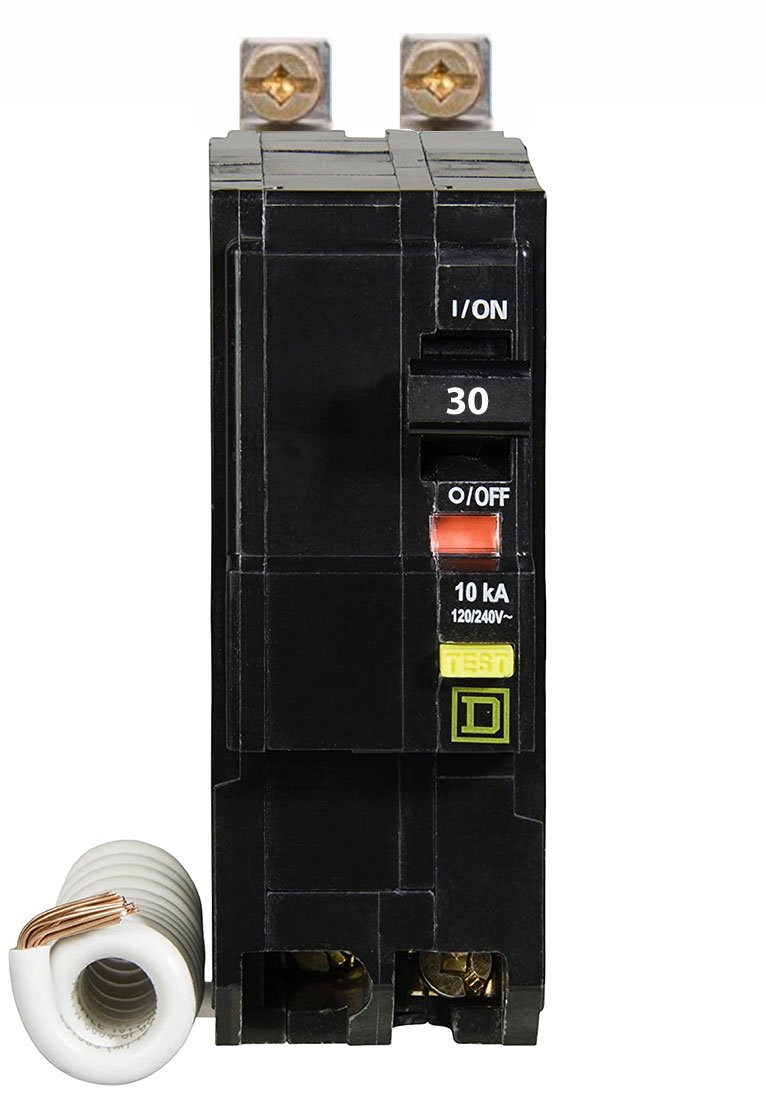

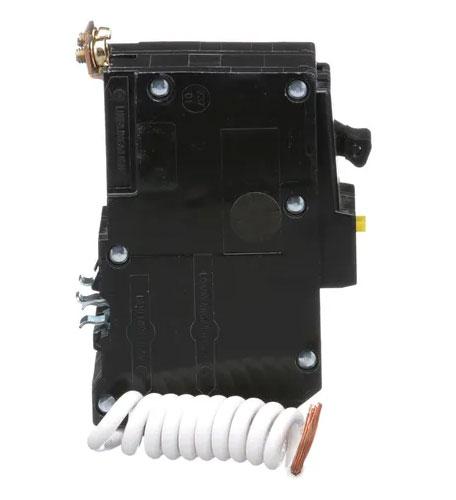

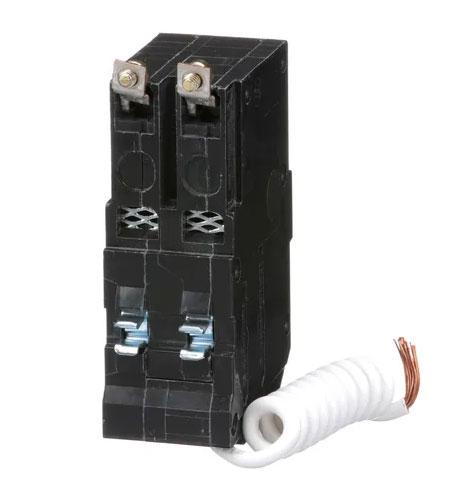

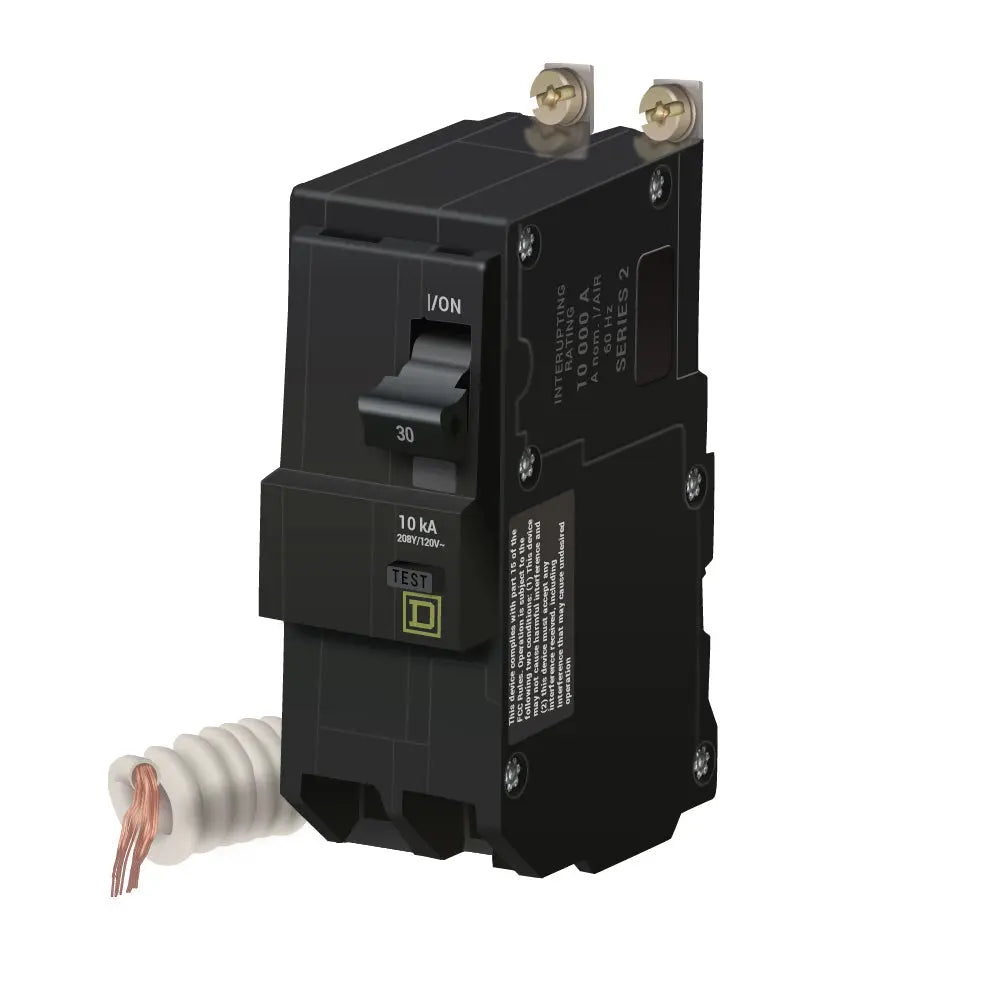

QOB230EPD - Square D 30 Amp 120/240V 2 Pole Molded Case Ground Fault Circuit Breaker

QOB230EPD

QOB230EPD is a Square D 2 Pole molded case ground fault circuit breaker rated for 30 Amps and 120/240 Volts AC.This miniature thermal magnetic circuit breaker features a common trip type and is designed for bolt-on mounting in NQ panelboards. It supports wire sizes from 12 to 8 AWG aluminum and 14 to 8 AWG copper. The breaker has a 10 kA interrupting rating and is UL and CSA certified for safety and reliability.

• Amperage: 30 Amps
• Voltage: 120/240 VAC
• Poles: 2
• Mounting Type: Bolt-on
• Interrupt Rating: 10 kA
• Series/Frame: NQ Panelboard
• Trip Unit: Thermal Magnetic, Common Trip
• Wire Size: 12-8 AWG Aluminum, 14-8 AWG Copper
• Certifications: UL, CSA
• Dimensions: 1.5" W x 2.91" D x 4.12" H

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: QOB230EPD
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : QOB Series
• Type : QOB
• Voltage : 120/240VAC
• Amperage : 30
• Phase : 1
• Poles : 2
• AIC rating : 10kA@120V
• Connection : Bolt-On
• Functions : LI - Long-Time and Instantaneous Trip
• Terminal Connection : Pressure Plate
• Frame Size : 100A/QO
• Temp Rating : -13‰ÛÒ158 å¡F (-25‰ÛÒ70 å¡C)
• MCM Size : Min. Wire Size 12 AWG (Al), 14 AWG (Cu) Max. Wire Size 8 AWG
• Breaker Type : Ground Fault Equipment Protection
• Protection : Thermal Magnetic

Product Data

• UPC : 785901120780
• GTIN : 00785901120780
• Country of Origin : Mexico
• Dimensions : 4.1 in (105 mm) x 1.5 in (38 mm) x 2.9 in (74 mm) (Height x Width x Depth)
• Weight : 0.519
• Panel Type : QO Load Centers and NQ Panelboards
• Standards : CSA, UL Listed
• Certification : UL Listed
• Wire Size : AWG 14 to AWG 8, Copper, AWG 12 to AWG 8, Aluminum
