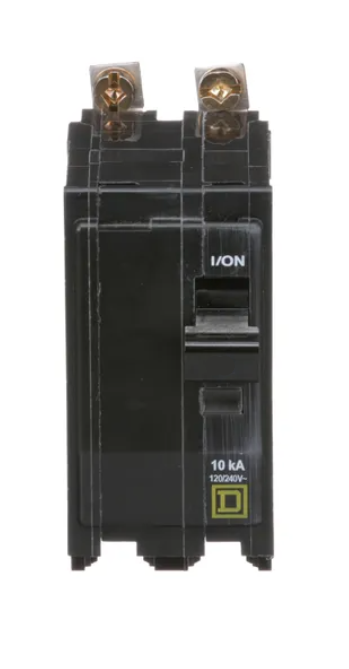

QOB230H - Square D 30 Amp 2 Pole 120/240 VAC Bolt-On Miniature Circuit Breaker 10kA Interrupt

QOB230H

QOB230H is a Square D 2 pole miniature circuit breaker rated for 30 amps and 120/240 VAC voltage with bolt-on mounting.

This thermal magnetic molded case circuit breaker features a 10,000 amp interrupt rating at both 120 and 240 volts AC. It is designed for bolt-on installation and provides reliable overcurrent protection in residential and commercial electrical systems. The breaker is UL and CSA certified, ensuring compliance with safety standards.

• Amperage: 30 Amps
• Voltage Rating: 120/240 VAC
• Number of Poles: 2
• Mounting Type: Bolt-On
• Interrupt Rating: 10 kA at 120/240 VAC
• Type: Miniature Circuit Breaker
• Trip Unit: Thermal Magnetic
• Certifications: UL, CSA

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: QOB230H
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : QOB Series
• Type : QOB
• Voltage : 120/240VAC
• Amperage : 30
• Phase : 1
• Poles : 2
• AIC rating : 10kA@120V
• Connection : Bolt-On
• Functions : Long Time and Instantaneous Trip
• Terminal Connection : Pressure Plate
• Temp Rating : -13‰ÛÒ158 å¡F (-25‰ÛÒ70 å¡C)
• MCM Size : Min. Wire Size 14 AWG (Cu/Al) Max. Wire Size 8 AWG (Cu/Al)
• Breaker Type : Standard
• Protection : Thermal Magnetic

Product Data

• UPC : 785901341802
• GTIN : 00785901341802
• Country of Origin : Mexico
• Dimensions : 3.0 in (76 mm) x 1.5 in (38 mm) x 2.9 in (74 mm) (Height x Width x Depth)
• Weight : 0.55
• Standards : CSA, UL Listed
• Certification : UL Listed
• Wire Size : AWG 14 to AWG 8, Copper/Aluminum
