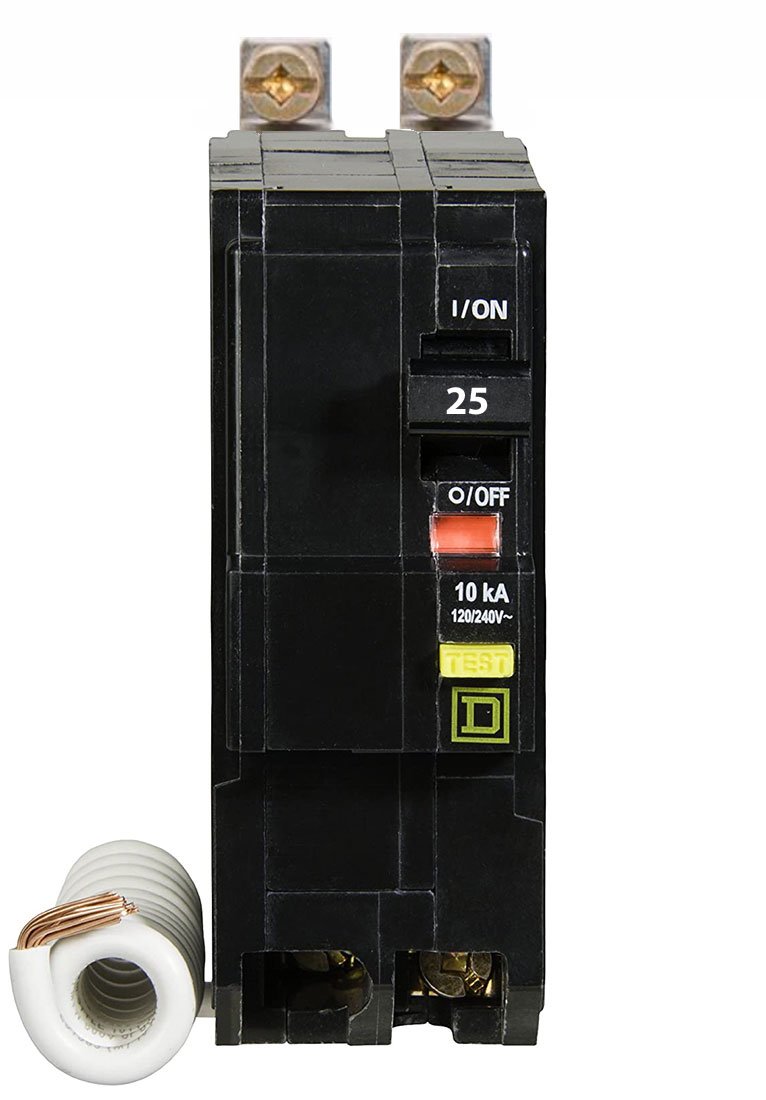

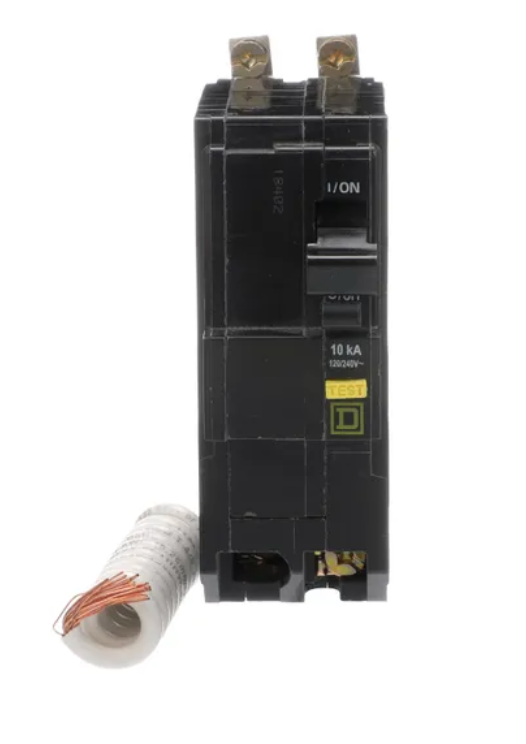

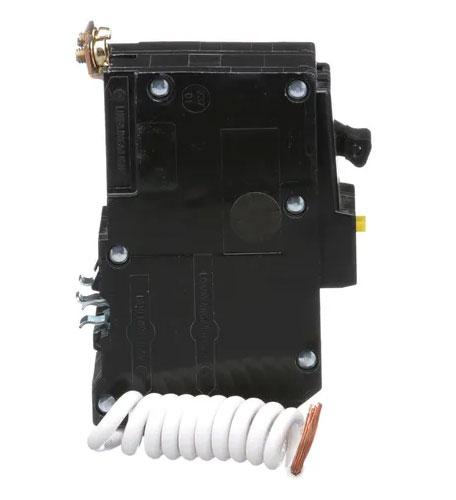

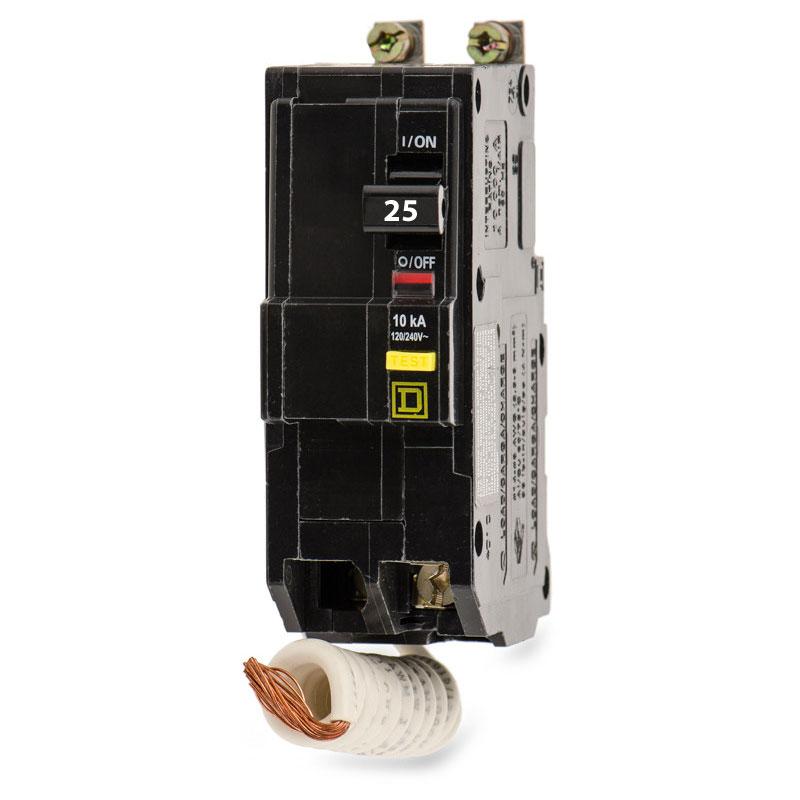

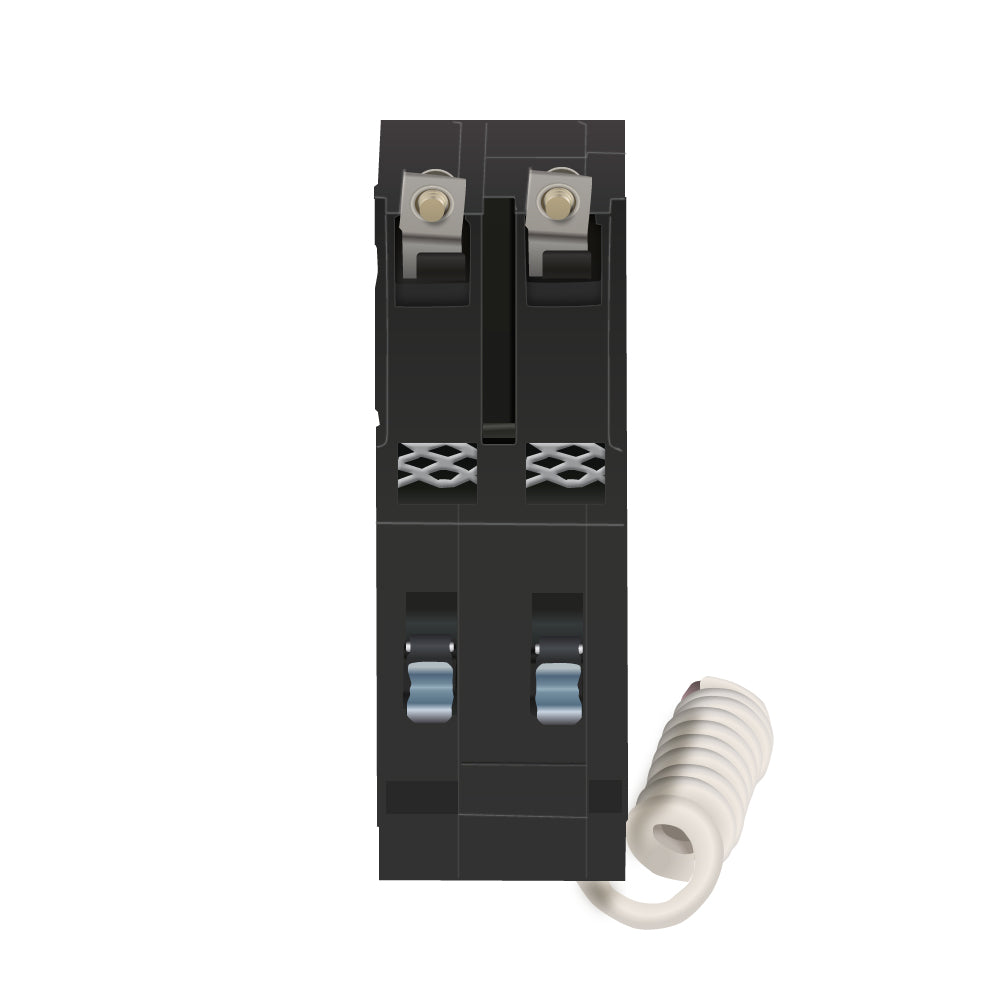

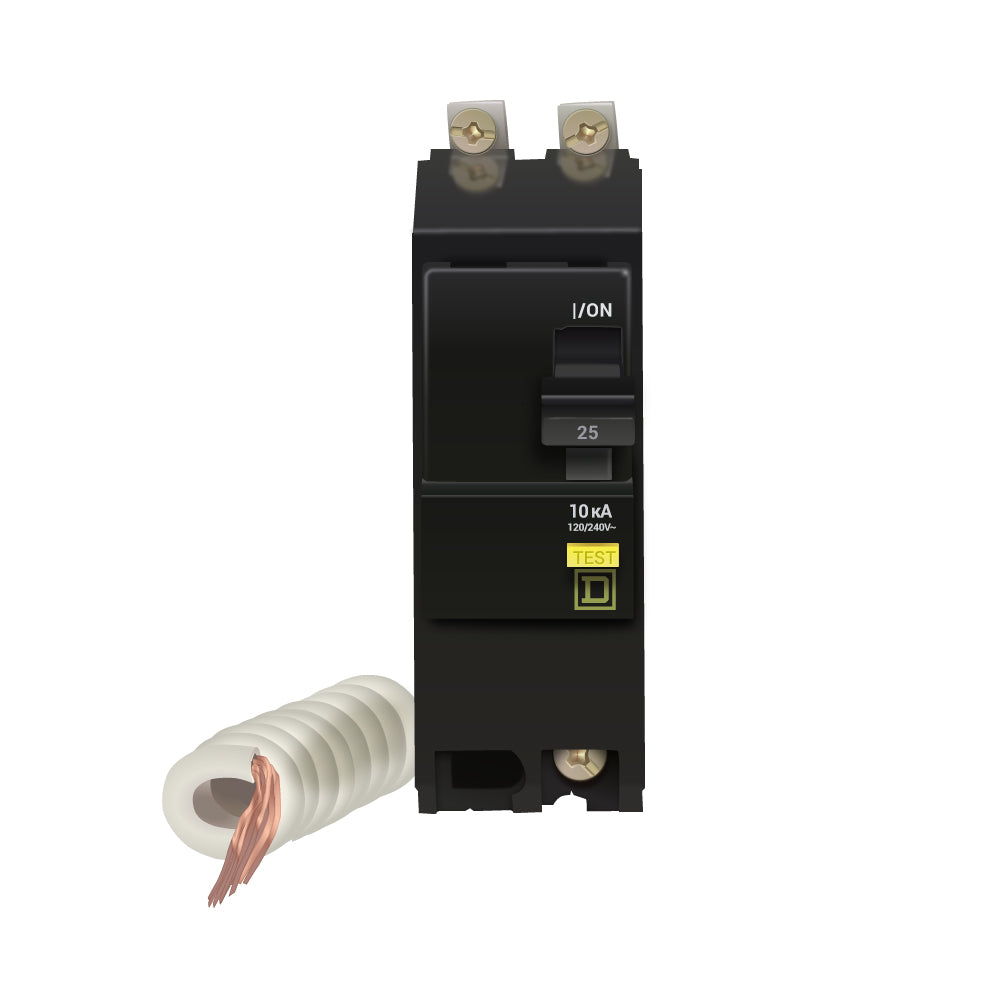

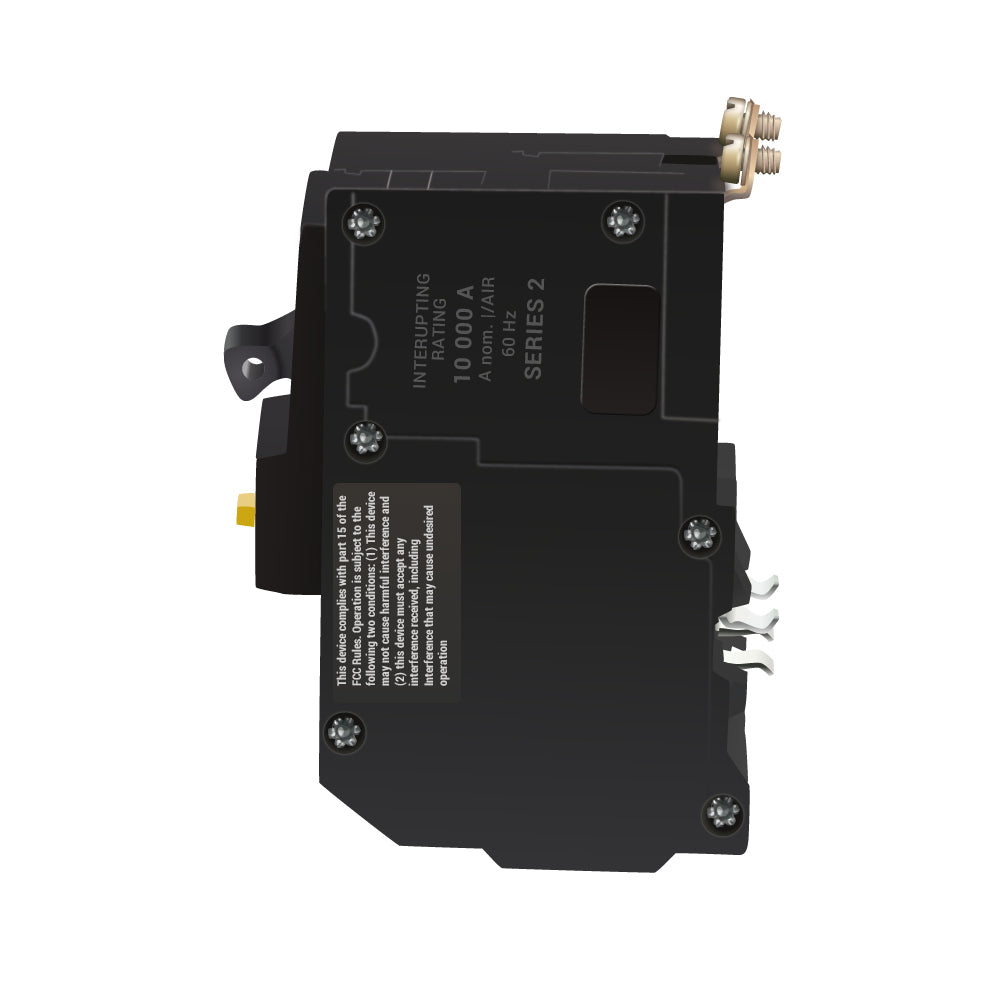

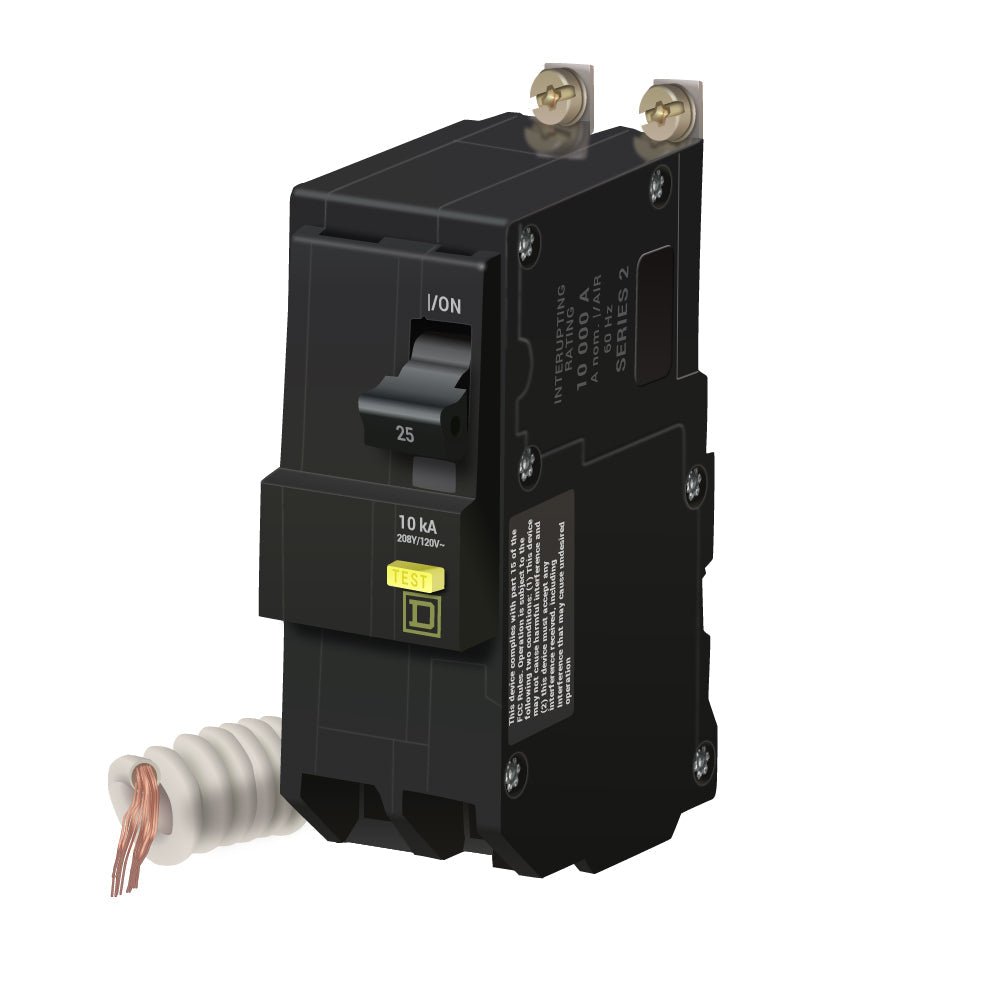

QOB225GFI - Square D 25 Amp 120/240V 2 Pole Bolt-On Ground Fault Circuit Breaker 10kA AIC

QOB225GFI

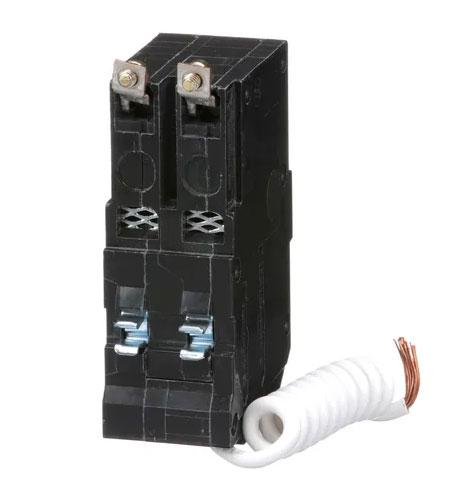

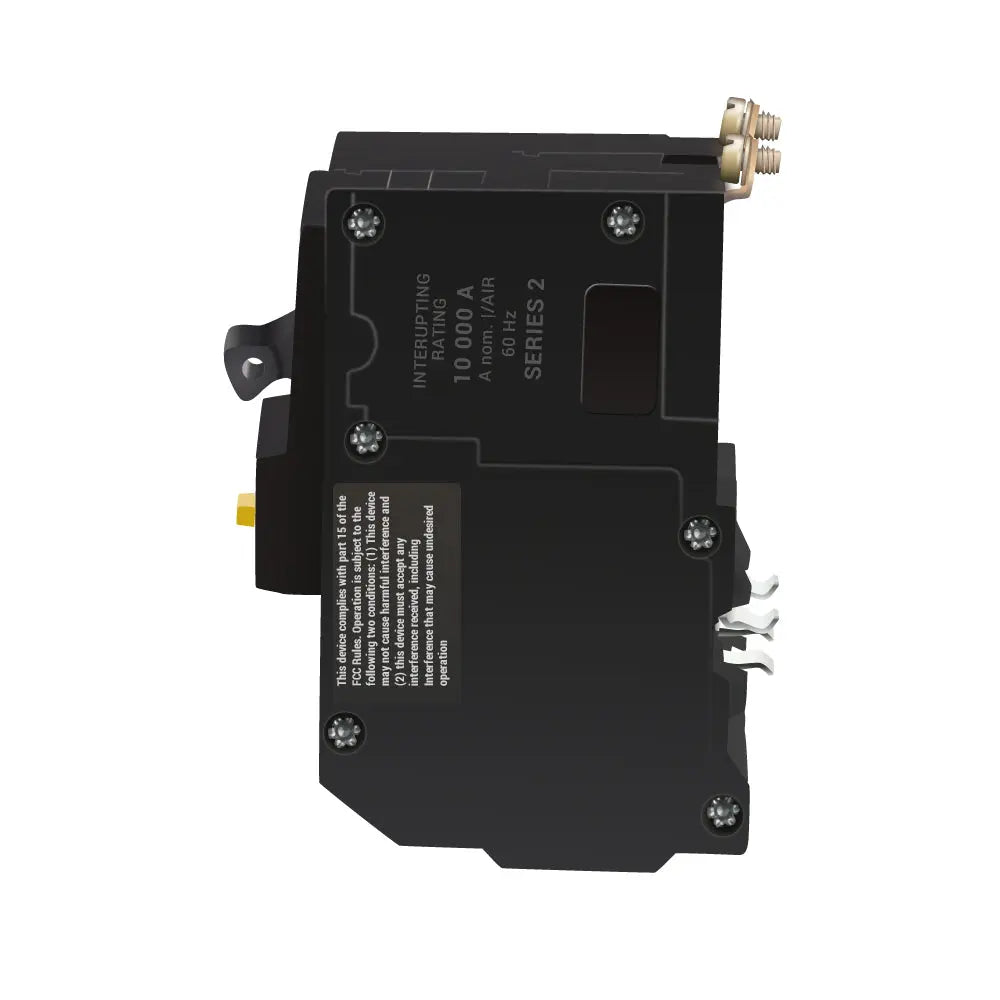

QOB225GFI is a Square D 2 pole, 25 amp, 120/240 Volt bolt-on ground fault circuit breaker with a 10kA interrupt rating.This circuit breaker features a bolt-on mounting style compatible with Square D QO and NQ panelboards. It provides ground fault protection with a 5 mA trip sensitivity, suitable for single-phase applications. The breaker has a frame size of 100A/QO, a maximum operating temperature of 104¡F, and is UL listed and CSA approved.

• Amperage: 25A
• Voltage Rating: 120/240V AC
• Number of Poles: 2
• Mounting Type: Bolt-On
• Interrupt Rating: 10kA at 240V
• Trip Unit: Ground Fault 5 mA Trip Sensitivity
• Frame Size: 100A/QO
• Compatible Panelboards: QO and NQ Series
• Phase: Single
• Operating Temperature: Up to 104¡F
• Certifications: UL Listed, CSA Approved

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: QOB225GFI
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : QOB Series
• Type : QOB
• Voltage : 120/240VAC
• Amperage : 25
• Phase : 1
• Poles : 2
• AIC rating : 10kA@240V
• Connection : Bolt-On
• Functions : LI - Long-Time and Instantaneous Trip
• Terminal Connection : Pressure Plate
• Frame Size : 100A/QO
• Temp Rating : -13‰ÛÒ158 å¡F (-25‰ÛÒ70 å¡C)
• MCM Size : Min. Wire Size 12 AWG (Al), 14 AWG (Cu) Max. Wire Size 8 AWG
• Breaker Type : Ground Fault Circuit Interrupter (Class A - 5mA)
• Protection : Thermal Magnetic

Product Data

• UPC : 785901562979
• GTIN : 00785901562979
• Country of Origin : Mexico
• Dimensions : 4.6 in (116 mm) x 1.5 in (38 mm) x 2.9 in (74 mm) (Height x Width x Depth)
• Weight : 0.95
• Panel Type : QO Load Centers and NQ Panelboards
• Standards : CSA, UL Listed
• Certification : UL Listed
• Wire Size : AWG 14 to AWG 8, Copper, AWG 12 to AWG 8, Aluminum
