Product Info
- Manufacturer:Schneider Electric
- Sub-Category:Molded Case
Description
QOB220SWN

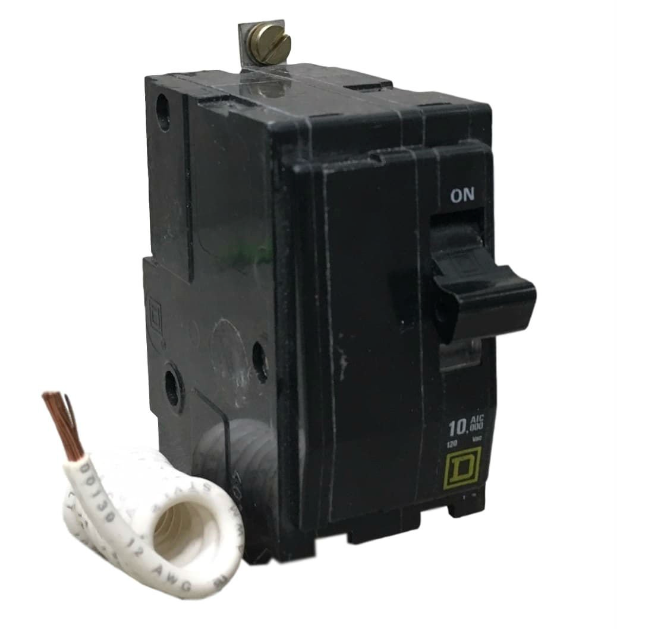

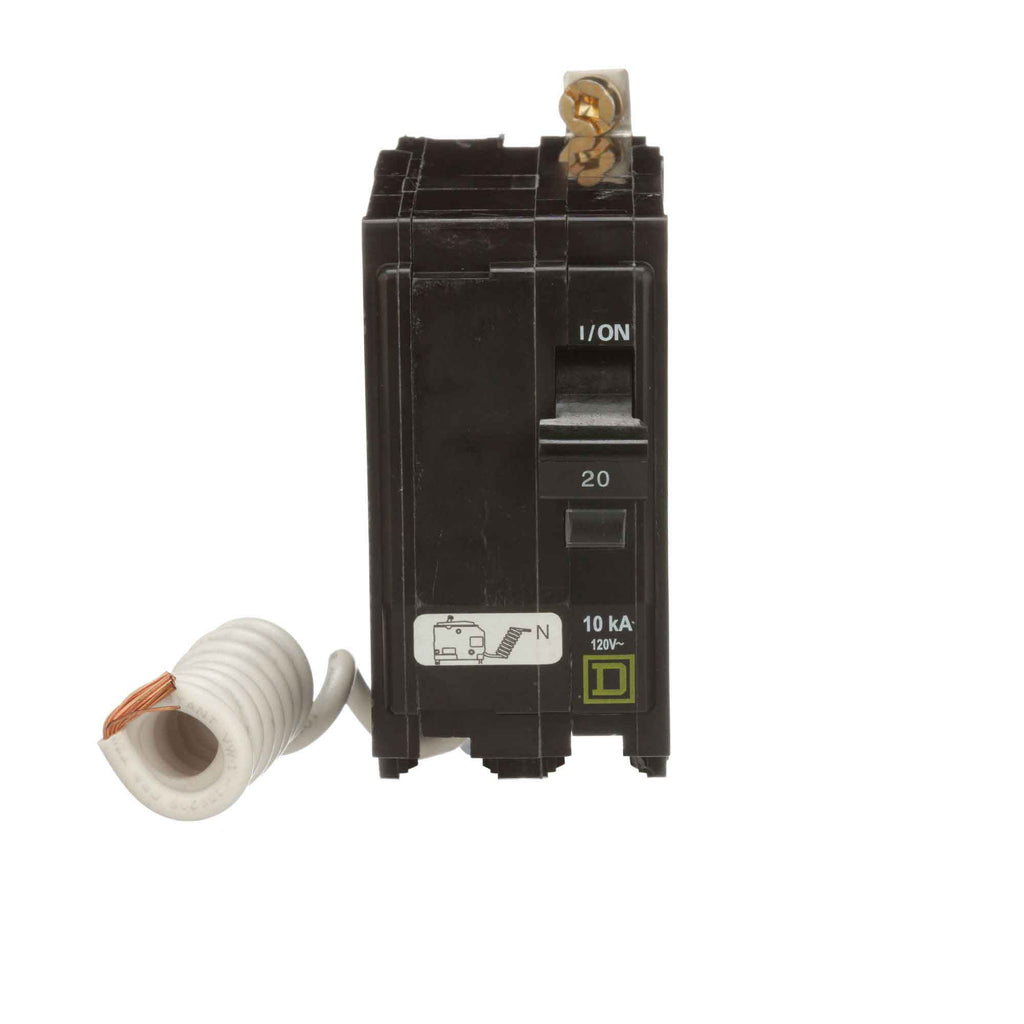

QOB220SWN is a 20A, 2-pole, 120/240VAC miniature circuit breaker from the Square D QO series, designed for reliable overcurrent protection in commercial and industrial applications. This breaker features a bolt-on mounting style and a plug-on neutral design for faster installation and improved safety. The QOB220SWN is built for use in NQ and NQOD panelboards, offering a compact footprint and easy setup. Engineered for durability and performance, the QOB220SWN provides thermal magnetic trip protection with a 10kA interrupt rating at 120VAC. Its plug-on neutral design simplifies wiring and reduces installation time, while the clear instructions and simple design ensure quick and error-free setup. The breaker is suitable for a wide range of applications requiring dependable circuit protection.
- Part Number: QOB220SWN
- Manufacturer: Square D
- Amperage: 20A
- Voltage: 120/240VAC
- Poles: 2
- Mounting Type: Bolt-On
- Interrupt Rating: 10kA at 120VAC
- Series/Frame: QO Series
- Neutral Type: Plug-On Neutral
- Dimensions: 1.5" W x 2.91" D x 3" H
- Application(more...)
Specifications
- Part Number: QOB220SWN
- Manufacturer : Schneider Electric
- Brand : Square D
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : QOB Series
- Type : QOB
- Voltage : 120/240VAC
- Amperage : 20
- Phase : 1
- Poles : 2
- AIC rating : 10kA@120V
- Connection : Bolt-On
- Functions : Long Time and Instantaneous Trip
- Terminal Connection : Pressure Plate
- Frame Size : 100A/QO
- Temp Rating : -13‰ÛÒ158 å¡F (-25‰ÛÒ70 å¡C)
- MCM Size : Min. Wire Size 14 AWG Max. Wire Size 8 AWG
- Breaker Type : Switched Neutral
- Protection : Thermal Magnetic
Product Data
- UPC : 785901341789
- GTIN : 00785901341789
- Country of Origin : Mexico
- Dimensions : 3.0 in (76 mm) x 1.5 in (38 mm) x 2.9 in (74 mm) (Height x Width x Depth)
- Weight : 0.6
- Panel Type : Square D NQOD Panelboards
- Standards : CSA, UL Listed
- Certification : UL Listed
- Wire Size : AWG 14 to AWG 8 Copper/Aluminum
