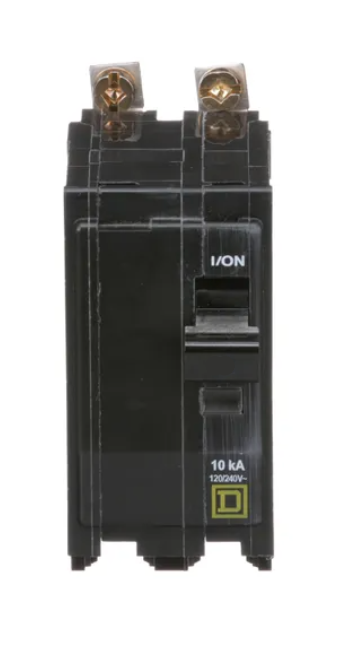

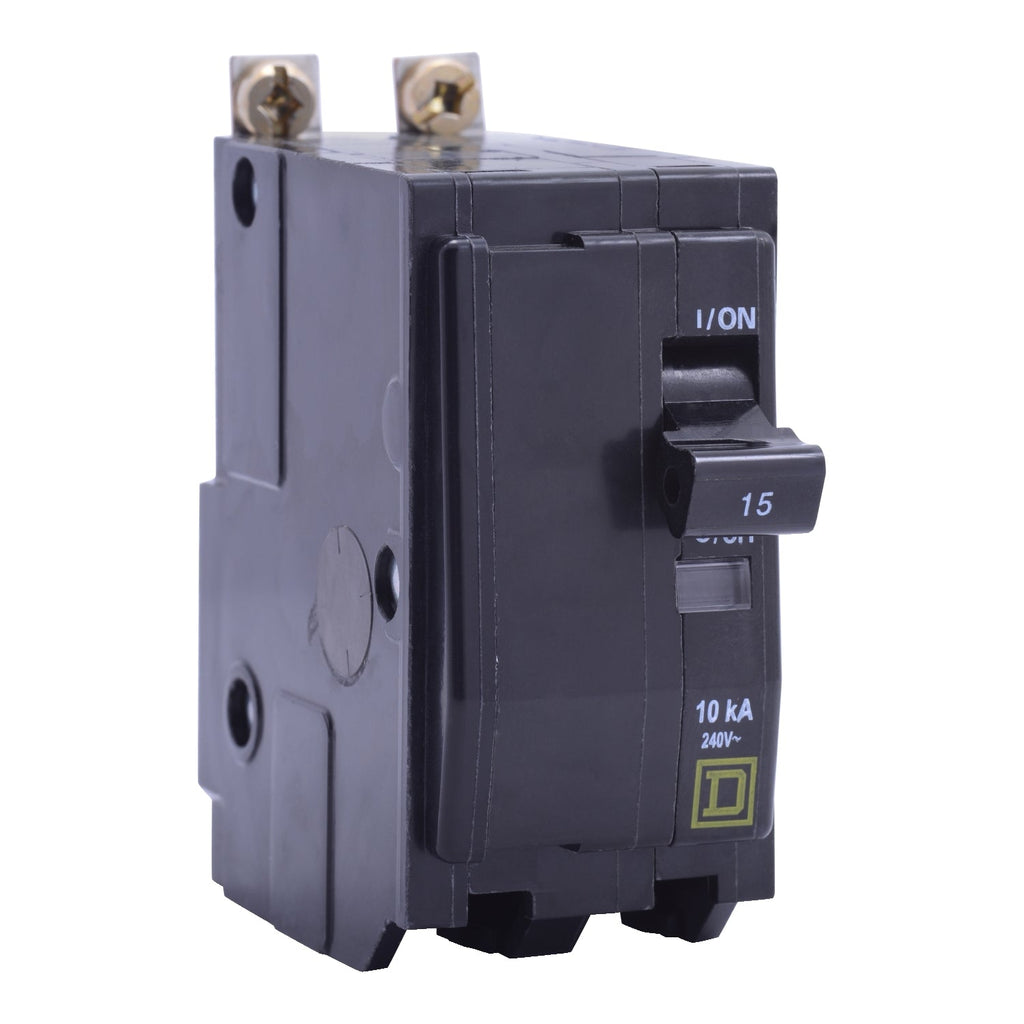

QOB220HID - Square D 20A 2 Pole 120/240VAC Miniature Circuit Breaker Bolt-On Mounting

QOB220HID

QOB220HID is a Square D QO series 2 pole miniature circuit breaker designed for reliable protection in residential and commercial applications. This breaker features a thermal magnetic trip unit and is specifically calibrated for use with high intensity discharge (HID) lighting loads. The QOB220HID is built for bolt-on mounting, providing a secure and stable connection in compatible panelboards. It offers a compact footprint for space-saving installations and is engineered for fast, easy setup with clear instructions and time-saving diagnostics.

• Part Number: QOB220HID
• Manufacturer: Square D
• Series: QO
• Amperage: 20A
• Poles: 2
• AC Voltage Rating: 120/240VAC
• DC Voltage Rating: 48VDC
• Interrupt Rating: 10kA
• Mounting Type: Bolt-On
• Trip Unit: Thermal Magnetic
• Application: High Intensity Discharge (HID) Lighting
• Calibration: 40¡C

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the (more...)

Specifications

• Part Number: QOB220HID
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : QOB Series
• Type : QOB
• Voltage : 120/240VAC
• Amperage : 20
• Phase : 1
• Poles : 2
• AIC rating : 10kA@120V
• Connection : Bolt-On
• Functions : Long Time and Instantaneous Trip
• Terminal Connection : Pressure Plate
• Frame Size : 100A/QO
• Temp Rating : -13‰ÛÒ158 å¡F (-25‰ÛÒ70 å¡C)
• MCM Size : Min. Wire Size 14 AWG Max. Wire Size 8 AWG
• Breaker Type : High Intensity Discharge
• Protection : Thermal Magnetic

Product Data

• UPC : 785901362906
• GTIN : 00785901362906
• Country of Origin : Mexico
• Dimensions : 3.0 in (76 mm) x 1.5 in (38 mm) x 2.9 in (74 mm) (Height x Width x Depth)
• Weight : 0.56
• Panel Type : Square D NQOD Panelboards
• Standards : CSA, UL Listed
• Certification : UL Listed
• Wire Size : AWG 14 to AWG 8 Copper/Aluminum
