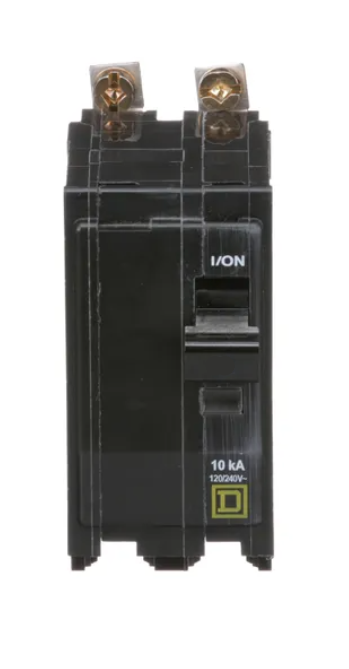

QOB220H - Square D 20A 240V 2-Pole Bolt-On Circuit Breaker 10kA Interrupt Rating

QOB220H

QOB220H is a Square D 20 amp, 240 volt, 2-pole bolt-on circuit breaker with a 10kA interrupt rating designed for reliable circuit protection.This Type QOB-H standard circuit breaker features thermal magnetic trip units, pressure plate connections for wire sizes 14 to 8 AWG, and is rated for 50/60 Hz frequency. It supports 3-phase applications, has a bolt-on mounting type, and is HACR rated with a 40¡C temperature rating. The breaker is constructed with fiberglass filled thermoset material and manufactured in Mexico.

Key Specifications
• Amperage: 20 A
• Voltage: 120/240 V AC
• Number of Poles: 2
• Interrupt Rating: 10 kA
• Mounting Type: Bolt-On
• Trip Type: Thermal Magnetic
• Connection Type: Pressure Plate
• Wire Size Range: 14 to 8 AWG
• Frequency: 50/60 Hz
• Temperature Rating: 40¡C
• Material: Fiberglass Filled Thermoset
• Certifications: HACR Rated
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get (more...)


Specifications

• Part Number: QOB220H
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : QOB Series
• Type : QOB
• Voltage : 120/240VAC
• Amperage : 20
• Phase : 1
• Poles : 2
• AIC rating : 10kA@240V
• Connection : Bolt-On
• Functions : LI - Long-Time and Instantaneous
• Terminal Connection : Pressure Plate
• MCM Size : Min. Wire Size 14 AWG (Cu/Al) Max. Wire Size 8 AWG (Cu/Al)
• Breaker Type : Standard
• Protection : Thermal Magnetic



Product Data

• UPC : 785901368274
• GTIN : 00785901368274
• Country of Origin : Mexico
• Dimensions : 3.0 in (76 mm) x 1.5 in (38 mm) x 2.9 in (74 mm) (Height x Width x Depth)
• Weight : 0.572
• Standards : CSA, UL Listed
• Certification : UL Listed
