QOB2151021 - Square D 15A 2-Pole 120/240V Bolt-On Circuit Breaker with Shunt Trip, 10kA Interrupt Rating

Save $113.56
SKU: QOB2151021-ReCert
Condition: Re-Certified
Price:
$164.44 $278.00
Stock:
1 in stock
Limited availability — we'll confirm stock immediately after your order.
This ships in 1-2 business days

Same-Day Shipping

Most items ship same-day if ordered by 1:30 PM PST.

2 Year Warranty Guaranteed

All items both Re-Certified, and New sold by Essential Electric include a 30 day return policy and a 2-year full warranty. This means that they are guaranteed to be free from defects for a full 2 years from the date that the product was shipped from our warehouse.

Product Questions? Contact Us

Product Info

QOB2151021 - Square D Bolt-On 15 Amp 2 Pole Circuit Breaker - Essential Electric Supply
QOB2151021 - Square D 15A 2-Pole 120/240V Bolt-On Circuit Breaker with Shunt Trip, 10kA Interrupt Rating - Essential Electric Supply
Roll over image to zoom in Click on image to zoom Images are for reference only
QOB2151021 - Square D Bolt-On 15 Amp 2 Pole Circuit Breaker - Essential Electric Supply
QOB2151021 - Square D 15A 2-Pole 120/240V Bolt-On Circuit Breaker with Shunt Trip, 10kA Interrupt Rating - Essential Electric Supply

Description

QOB2151021

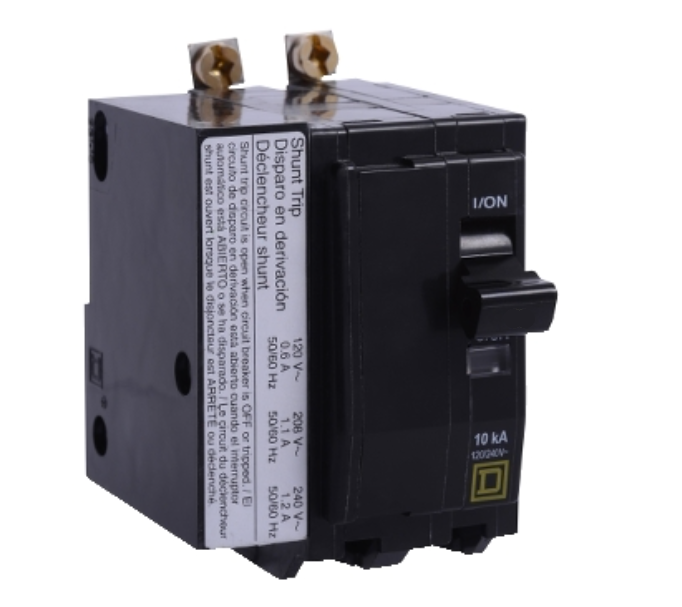

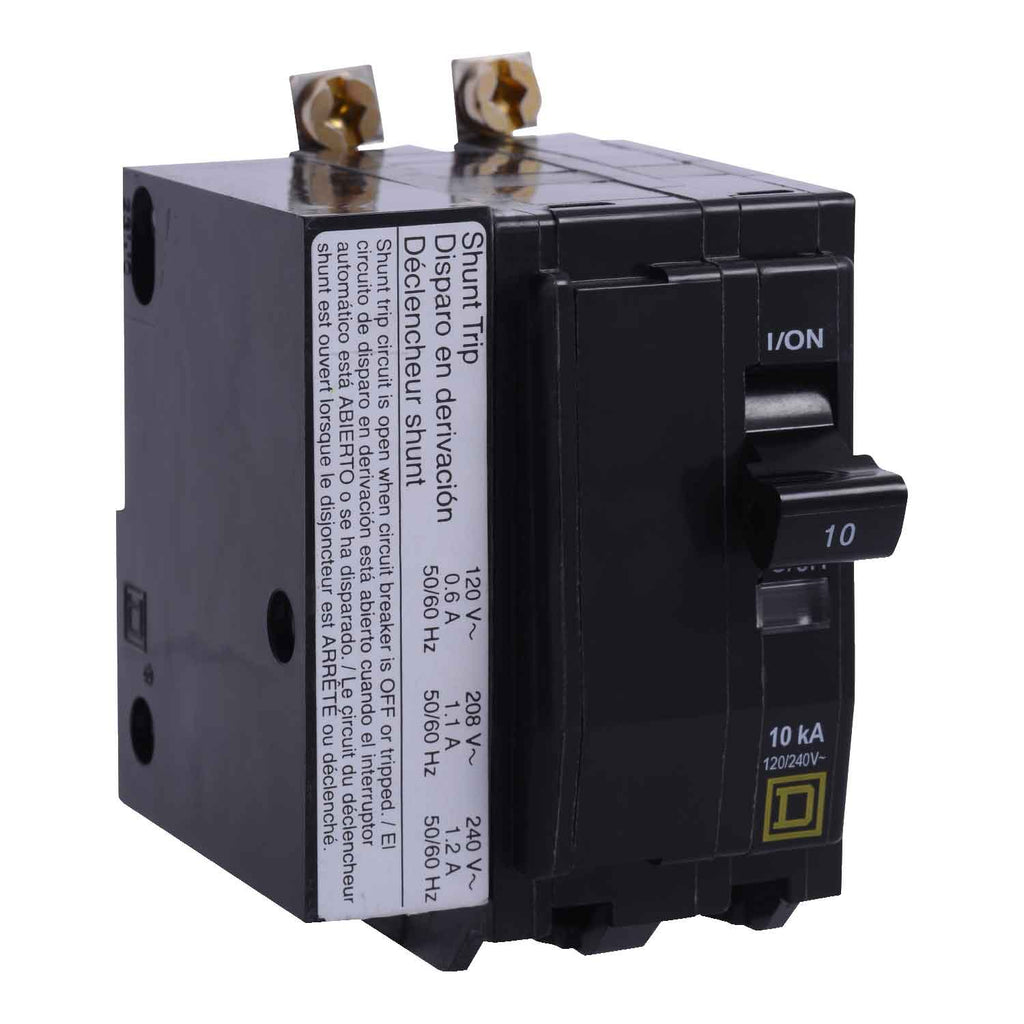

QOB2151021 is a Square D 15 Amp 2-pole bolt-on circuit breaker with shunt trip designed for reliable protection in electrical systems.This miniature circuit breaker from the QOB series features a thermal magnetic trip unit and supports voltages of 120/240 VAC and 48 VDC. It has a 10kA interrupt rating at 240 VAC and 5kA at 48 VDC, suitable for industrial and commercial applications. The breaker uses a bolt-on mounting type with press plate terminals and is HACR rated for compatibility with HVAC equipment. It is UL and CSA certified, ensuring compliance with safety standards.
    Key Specifications
    • Amperage: 15A
    • Voltage Rating: 120/240 VAC, 48 VDC
    • Number of Poles: 2
    • Mounting Type: Bolt-On
    • Interrupt Rating: 10kA @ 240 VAC, 5kA @ 48 VDC
    • Trip Unit: Thermal Magnetic with Shunt Trip Coil
    • Terminal Type: Press Plate
    • Series/Frame: QOB
    • Certifications: UL, CSA, HACR Rated
    • Wire Range: 14-8 AWG Aluminum or Copper
    At Essential Parts, we offer fast shipping, lowest price, and expert support(more...)

    Specifications

    • Part Number: QOB2151021
    • Manufacturer : Schneider Electric
    • Brand : Square D
    • Category : Circuit Breaker
    • Item Subcategory : Molded Case
    • Family : QOB Series
    • Type : QOB
    • Voltage : 120/240VAC
    • Amperage : 15
    • Phase : 1
    • Poles : 2
    • AIC rating : 10kA@120V
    • Connection : Bolt-On
    • Functions : LI - Long-Time and Instantaneous Trip
    • Terminal Connection : Pressure Plate
    • Frame Size : 100A/QO
    • Temp Rating : -13‰ÛÒ158 å¡F (-25‰ÛÒ70 å¡C)
    • MCM Size : Min. Wire Size 14 AWG Max. Wire Size 8 AWG
    • Breaker Type : Shunt Trip
    • Protection : Thermal Magnetic

    Product Data

    • UPC : 785901494270
    • GTIN : 00785901494270
    • Country of Origin : Mexico
    • Dimensions : 3.0 in (76 mm) x 2.2 in (57 mm) x 2.9 in (74 mm) (Height x Width x Depth)
    • Weight : 0.956 lb
    • Panel Type : Square D NQOD Panelboards
    • Standards : CSA, UL Listed
    • Certification : UL Listed
    • Wire Size : AWG 14 to AWG 8, Copper/Aluminum
