QOB215EPD

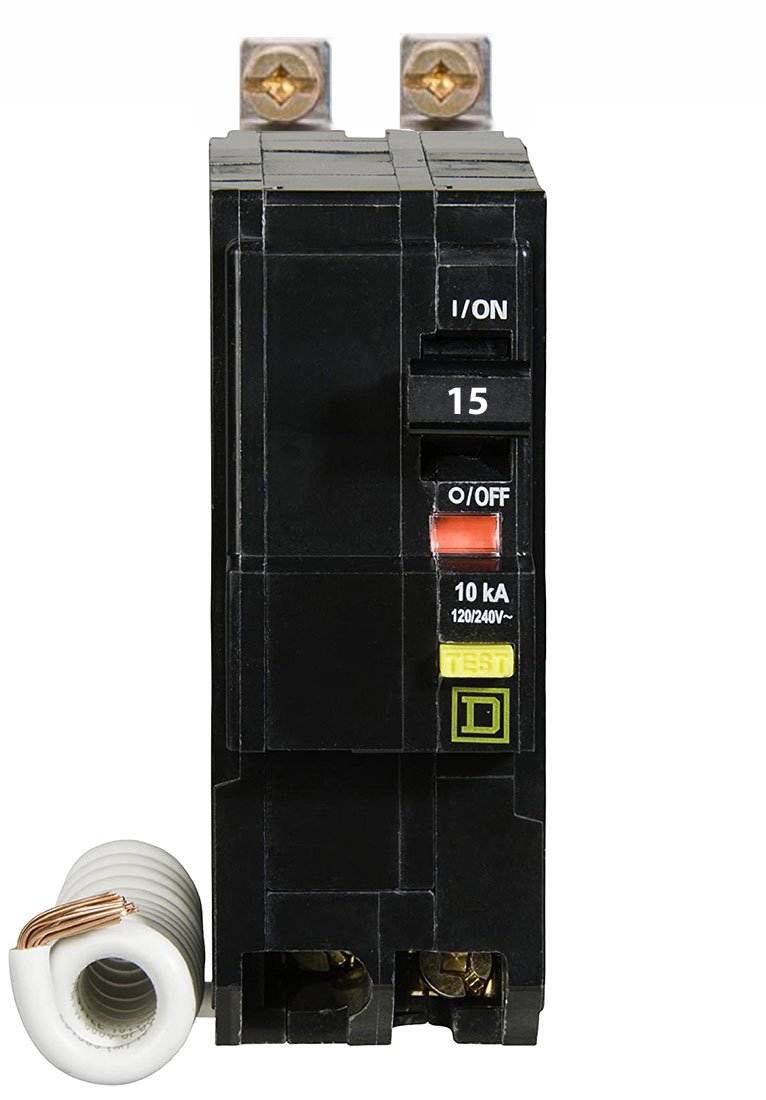

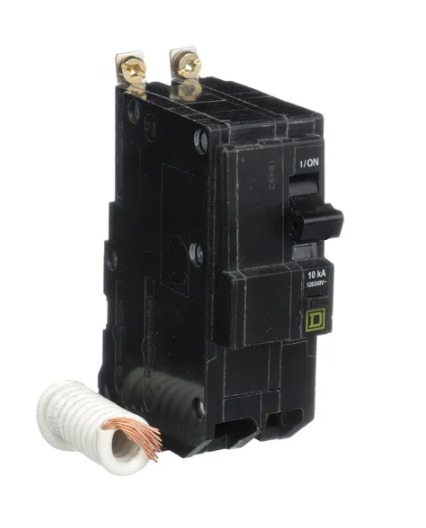

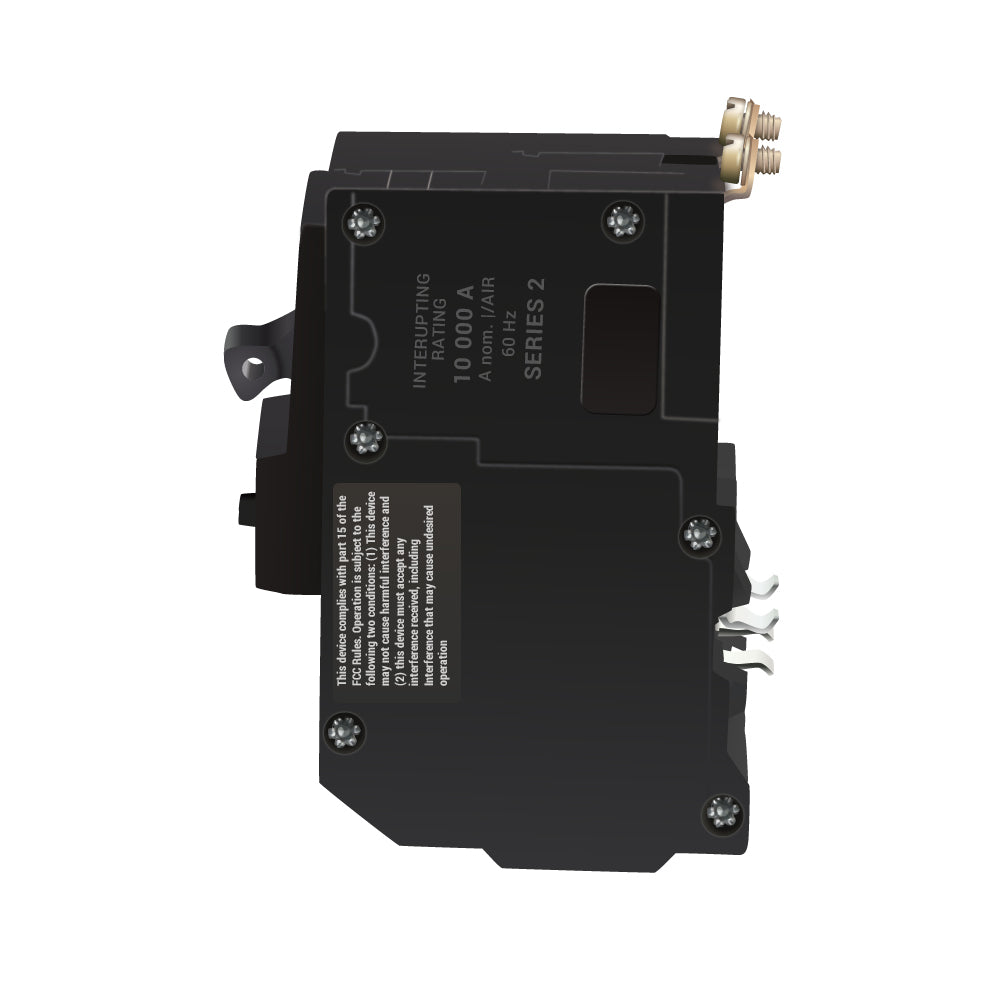

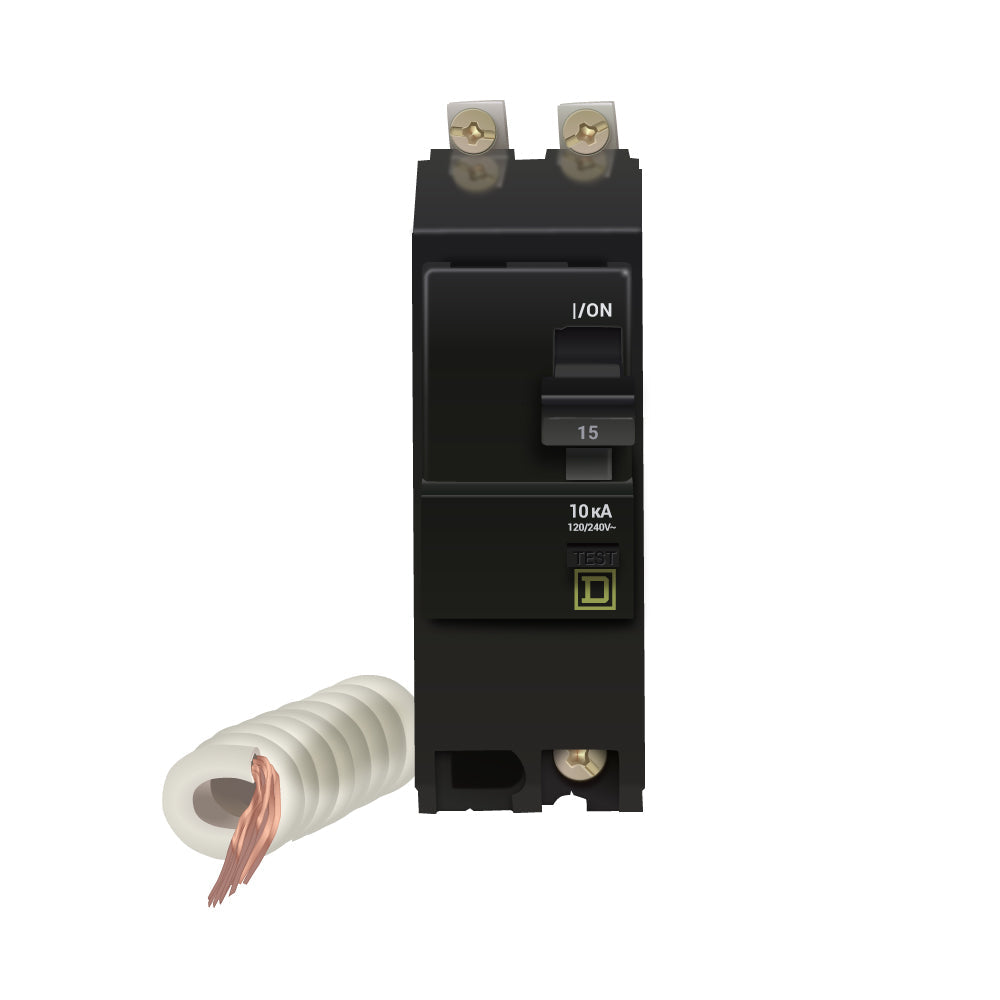

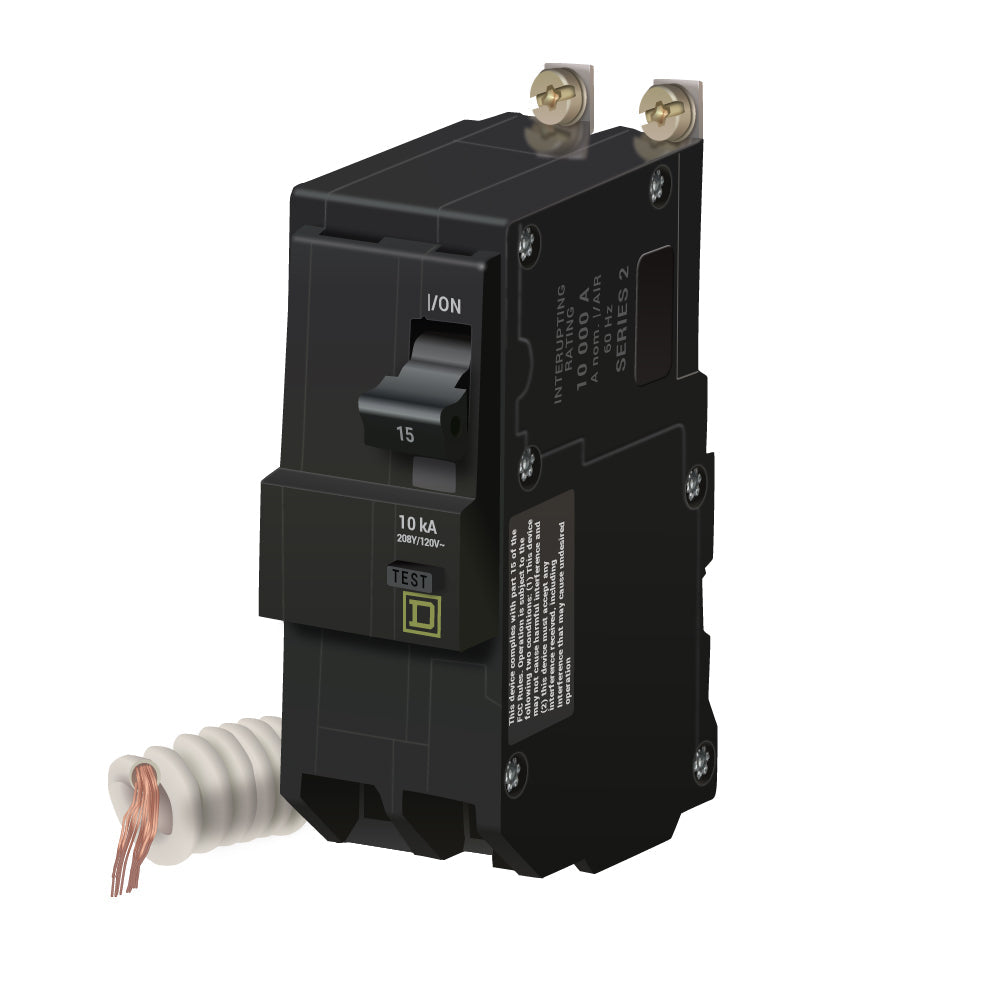

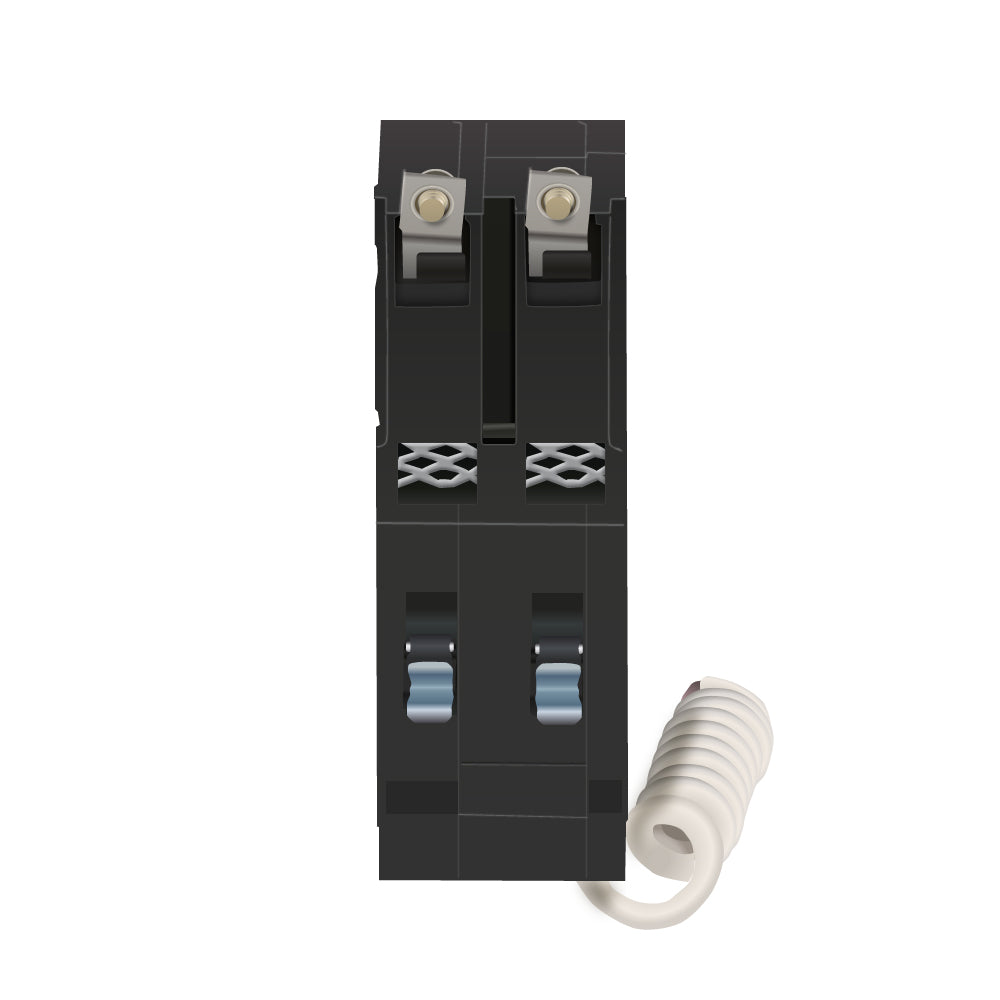

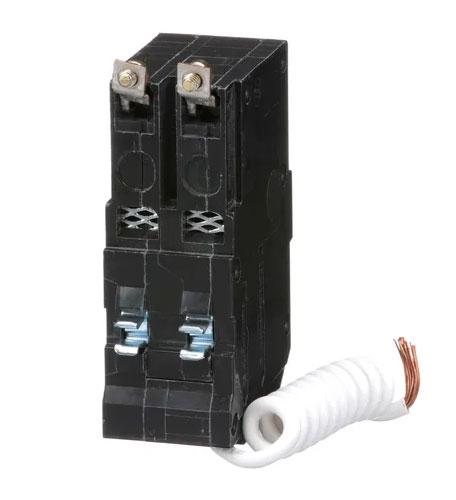

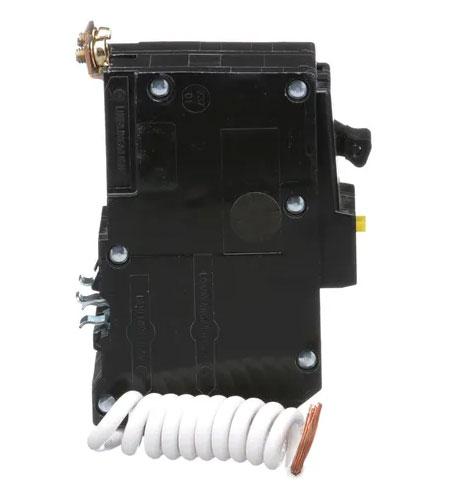

QOB215EPD is a Square D 2-pole thermal magnetic circuit breaker rated for 15 amps and 120/240 volts with bolt-on mounting.
This Square D QOB215EPD circuit breaker features a 10kA interrupting rating at 120/240 VAC, long-time and instantaneous trip functions, and is UL and CSA certified. It supports wire sizes from 14 to 8 AWG copper and aluminum and is designed for single-phase applications with reliable thermal magnetic protection.
- Key Specifications
- Amperage: 15 Amps
- Voltage: 120/240 VAC
- Poles: 2
- Mounting Type: Bolt-On
- Interrupting Rating: 10 kA at 120/240 VAC
- Trip Unit: Thermal Magnetic with Long-Time and Instantaneous
- Series/Frame: QOB
- Certifications: UL, CSA
- Wire Gauge: 14 to 8 AWG Copper and Aluminum
- Phase: Single Phase
- Dimensions (LxWxH): 2.91 x 1.5 x 4.12 inches
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.
Specifications
- Part Number: QOB215EPD
- Manufacturer : Schneider Electric
- Brand : Square D
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : QOB Series
- Type : QOB
- Voltage : 120/240VAC
- Amperage : 15
- Phase : 1
- Poles : 2
- AIC rating : 10kA@120V
- Connection : Bolt-On
- Functions : LI - Long-Time and Instantaneous
- Terminal Connection : Pressure Plate
- Frame Size : 100A/QO
- Temp Rating : Minimum Operating Temp 104 Degrees F Max. Operating Temp.104 Degrees F
- MCM Size : Min. Wire Size 12 AWG (Al), 14 AWG (Cu) Max. Wire Size 8 AWG
- Breaker Type : Ground Fault Equipment Protection
- Protection : Thermal Magnetic
Product Data
- UPC : 785901120766
- GTIN : 00785901120766
- Country of Origin : Mexico
- Dimensions : 4.1 in (105 mm) x 1.5 in (38 mm) x 2.9 in (74 mm) (Height x Width x Depth)
- Weight : 0.95
- Panel Type : QO Load Centers and NQ Panelboards
- Standards : CSA, UL Listed
- Certification : UL Listed
- Wire Size : AWG 14, AWG 8 copper, AWG 12, AWG 8 aluminium
