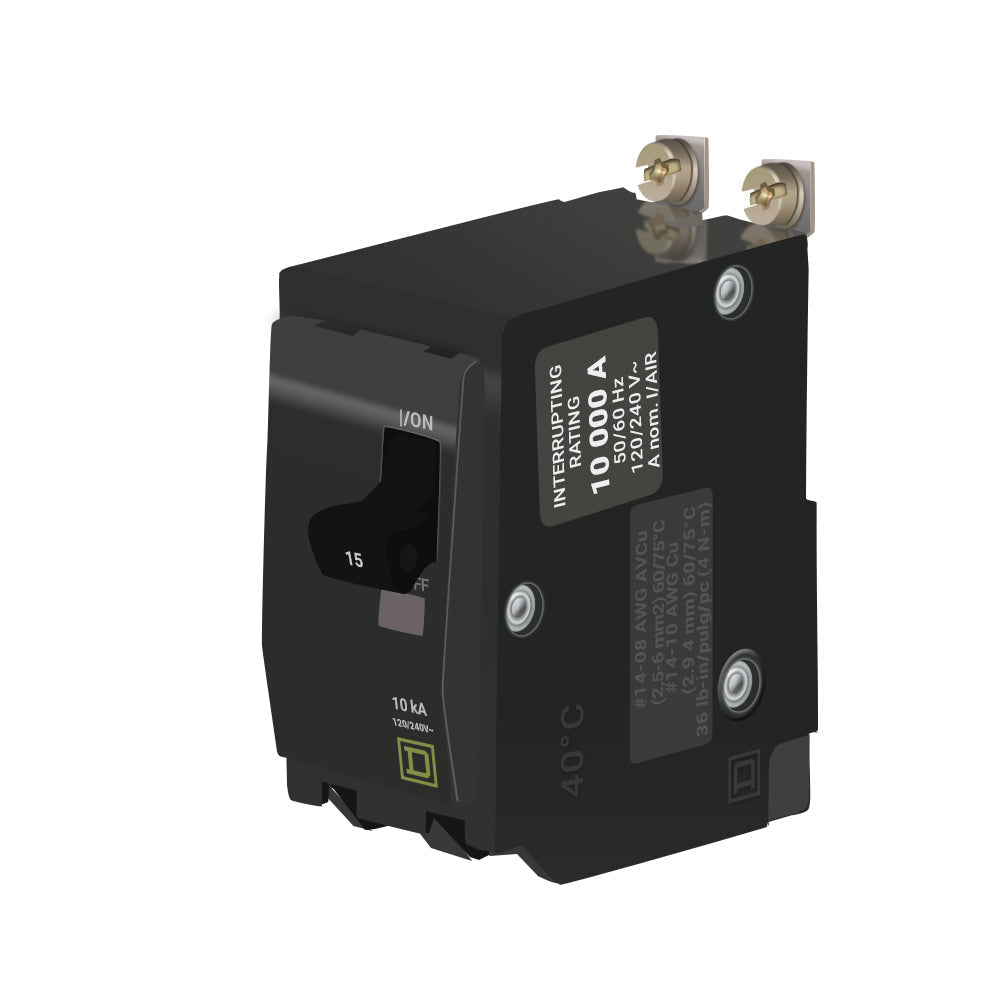

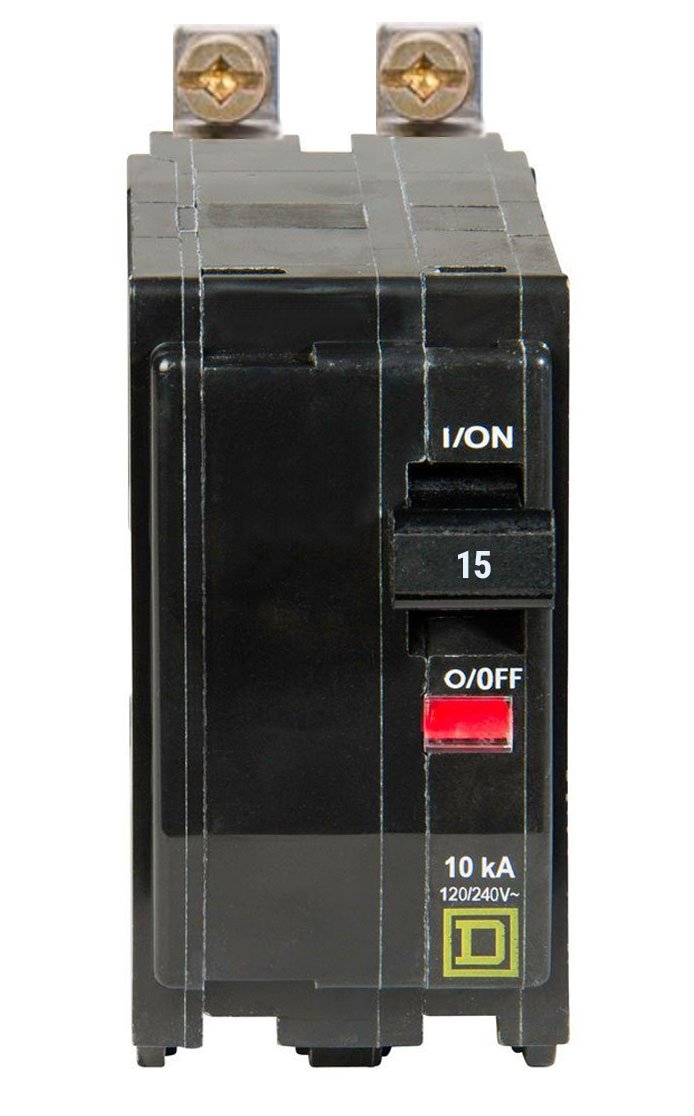

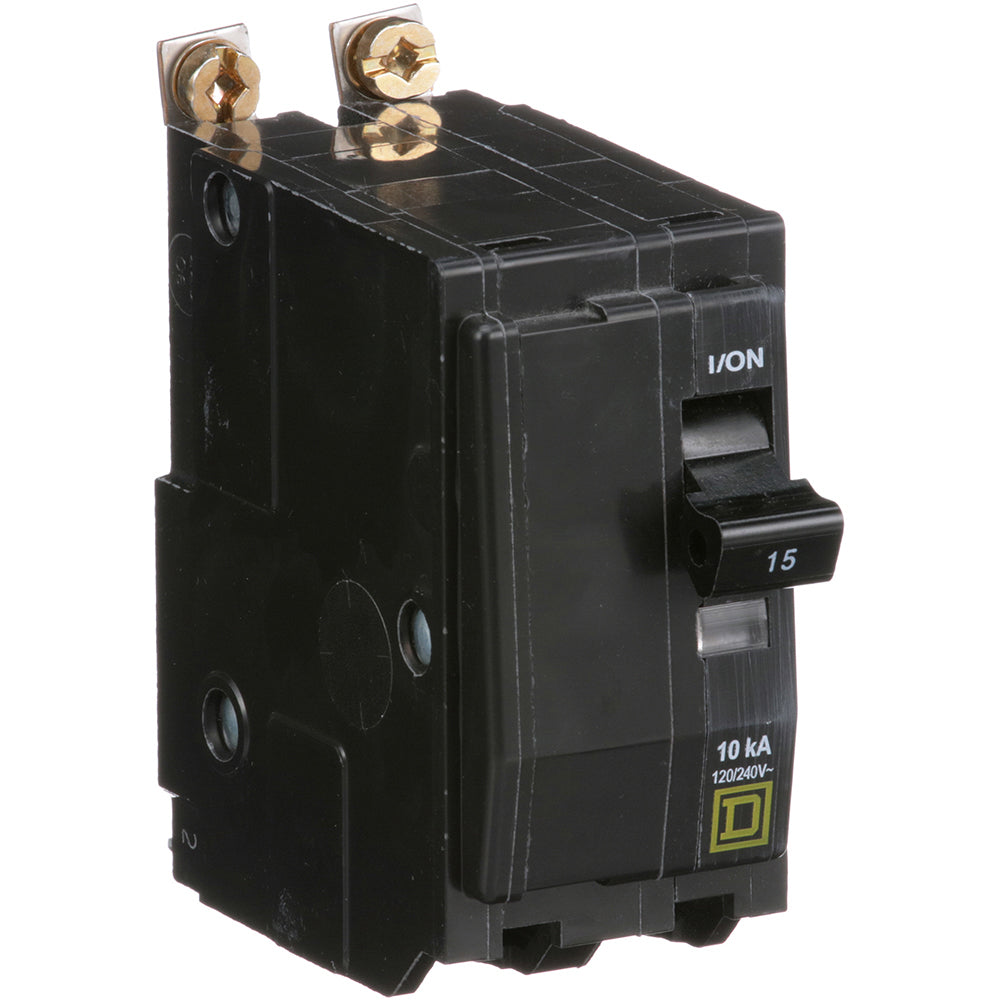

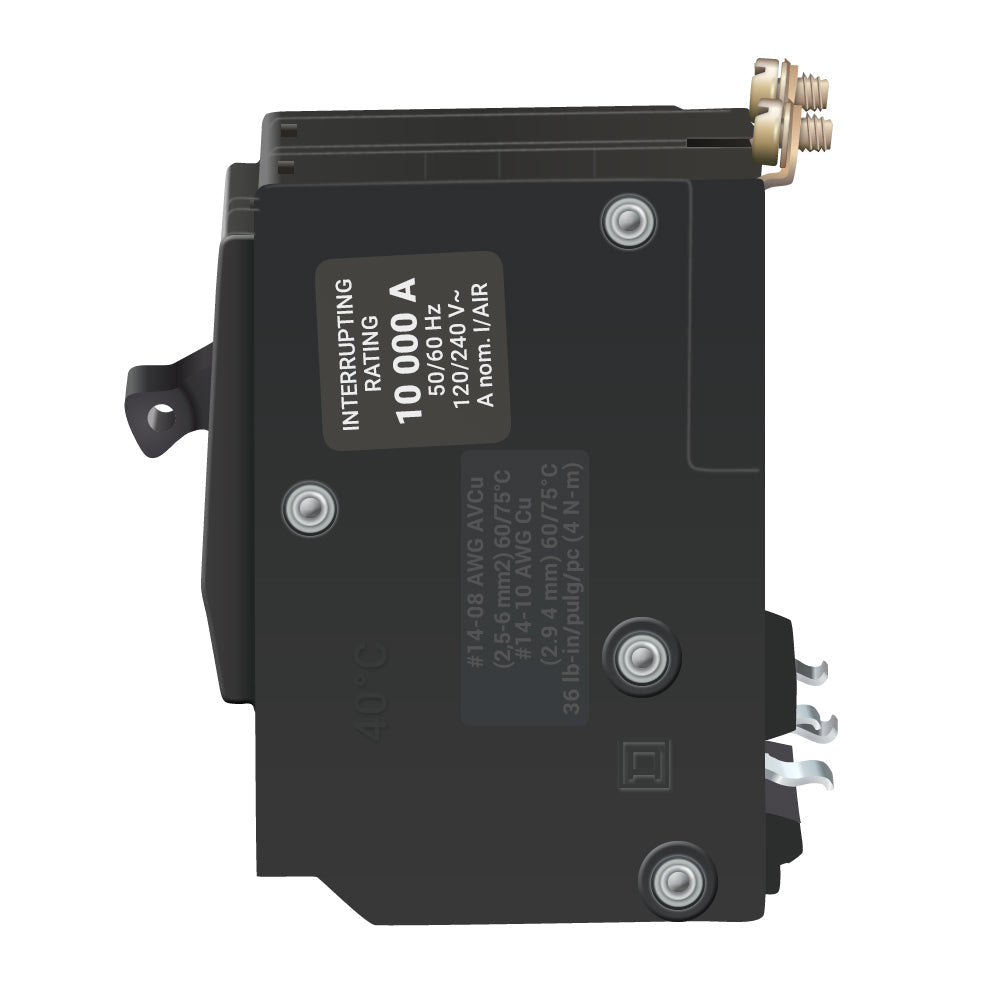

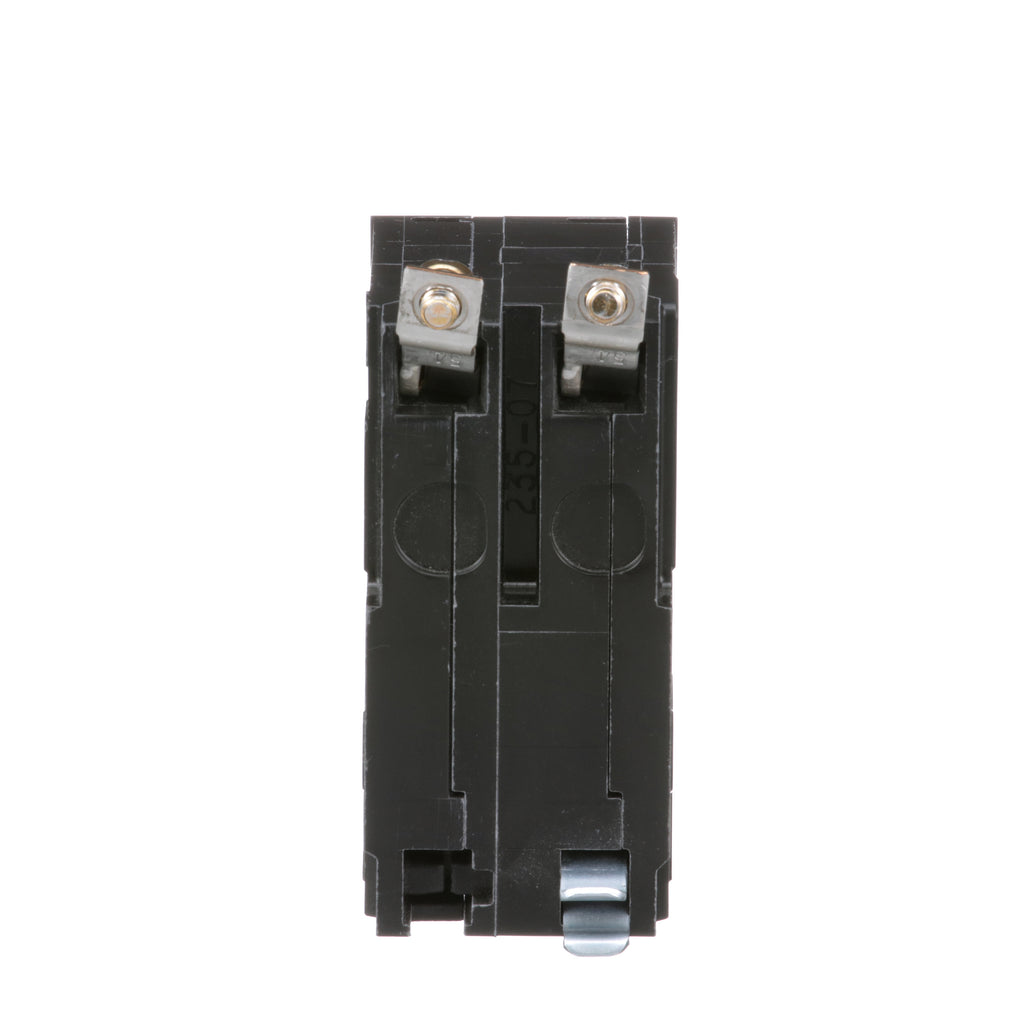

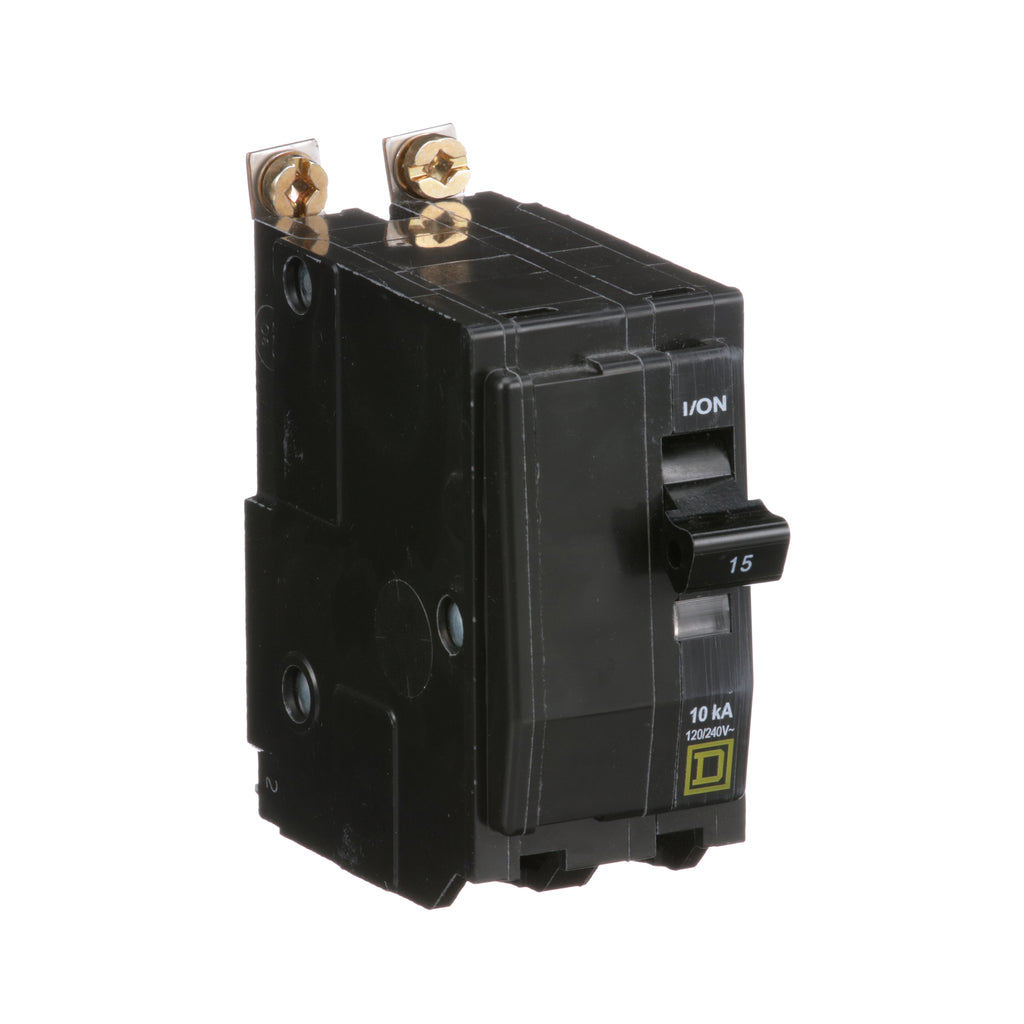

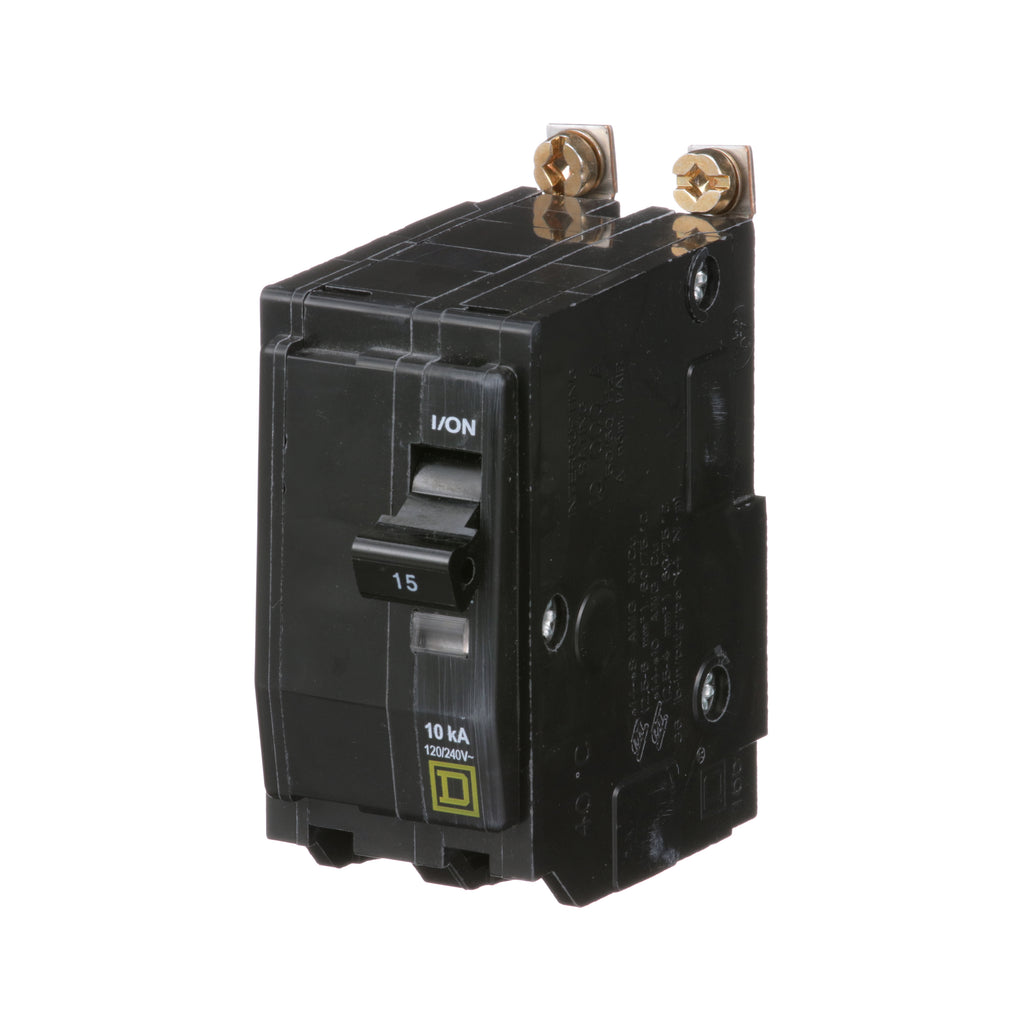

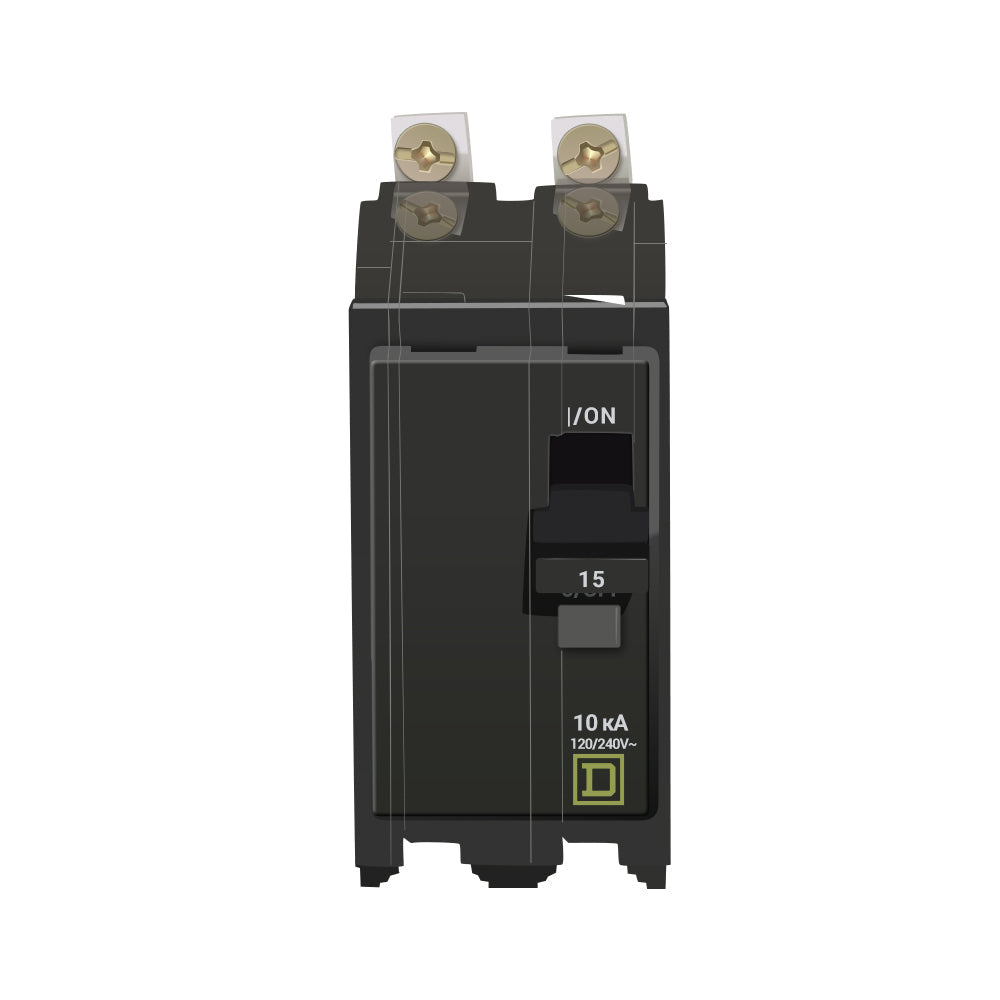

QOB215 - Square D 15 Amp 2 Pole 120/240VAC Bolt-On Miniature Circuit Breaker, QOB Series, 10kA Interrupt, Thermal Magnetic Trip, UL/CSA

QOB215

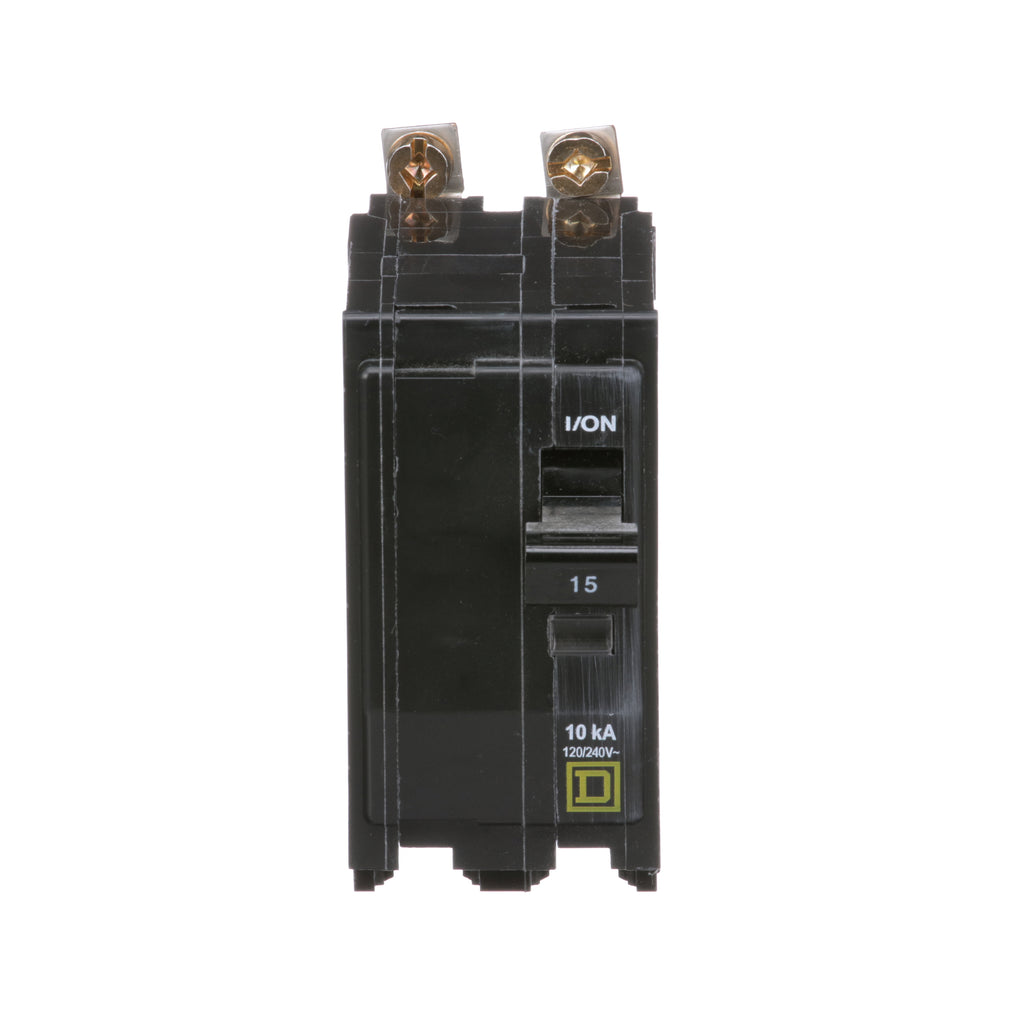

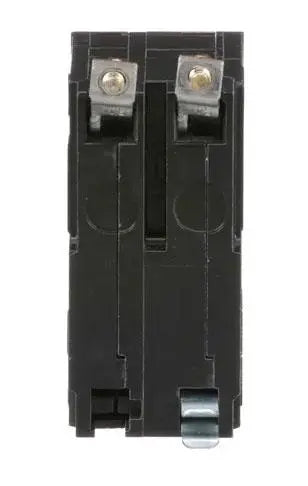

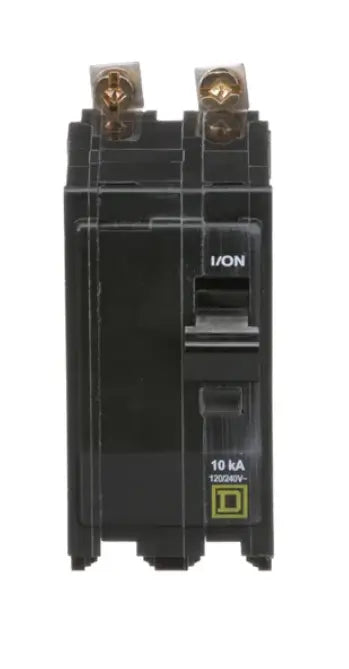

QOB215 is a Square D 2-pole miniature circuit breaker designed for reliable overcurrent protection in residential and light commercial applications.

This thermal magnetic trip circuit breaker features a 15 Amp current rating, 120/240VAC voltage rating, and a robust 10kA interrupting capacity. It is part of the QOB series with a bolt-on mounting type for secure installation, and is certified to UL and CSA standards for safety and compliance.

Key Specifications
• Amperage: 15 Amp
• Voltage: 120/240VAC, 48VDC
• Poles: 2
• Mounting Type: Bolt-On
• Interrupt Rating: 10kA at 120/240VAC
• Series/Frame: QOB
• Trip Unit: Thermal Magnetic (LI - Long-Time and Instantaneous)
• Certifications: UL Listed, CSA Certified
• Connection Type: Pressure Plate
• Wire Range: AWG 14 to AWG 8, Copper or Aluminum
• Temperature Rating: 40¡C
• Applications: HACR rated

At Essential Parts, we offer fast shipping, lowest price, and expert support

Specifications

• Part Number: QOB215
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : QOB Series
• Type : QOB
• Voltage : 120/240VAC
• Amperage : 15
• Phase : 1
• Poles : 2
• AIC rating : 10kA@120V
• Connection : Bolt-On
• Functions : LI - Long-Time and Instantaneous Trip
• Terminal Connection : Pressure Plate
• Frame Size : 100A/QO
• Temp Rating : -13‰ÛÒ158 å¡F (-25‰ÛÒ70 å¡C)
• MCM Size : Min. Wire Size 14 AWG Max. Wire Size 8 AWG
• Breaker Type : Standard
• Protection : Thermal Magnetic

Product Data

• UPC : 785901416821
• GTIN : 00785901416821
• Country of Origin : Mexico
• Dimensions : 3.0 in (76 mm) x 1.5 in (38 mm) x 2.9 in (74 mm) (Height x Width x Depth)
• Weight : 0.6 lb
• Panel Type : Square D NQOD Panelboards
• Standards : CSA, UL Listed
• Certification : UL Listed
• Wire Size : AWG 14 to AWG 8, Copper or Aluminum
