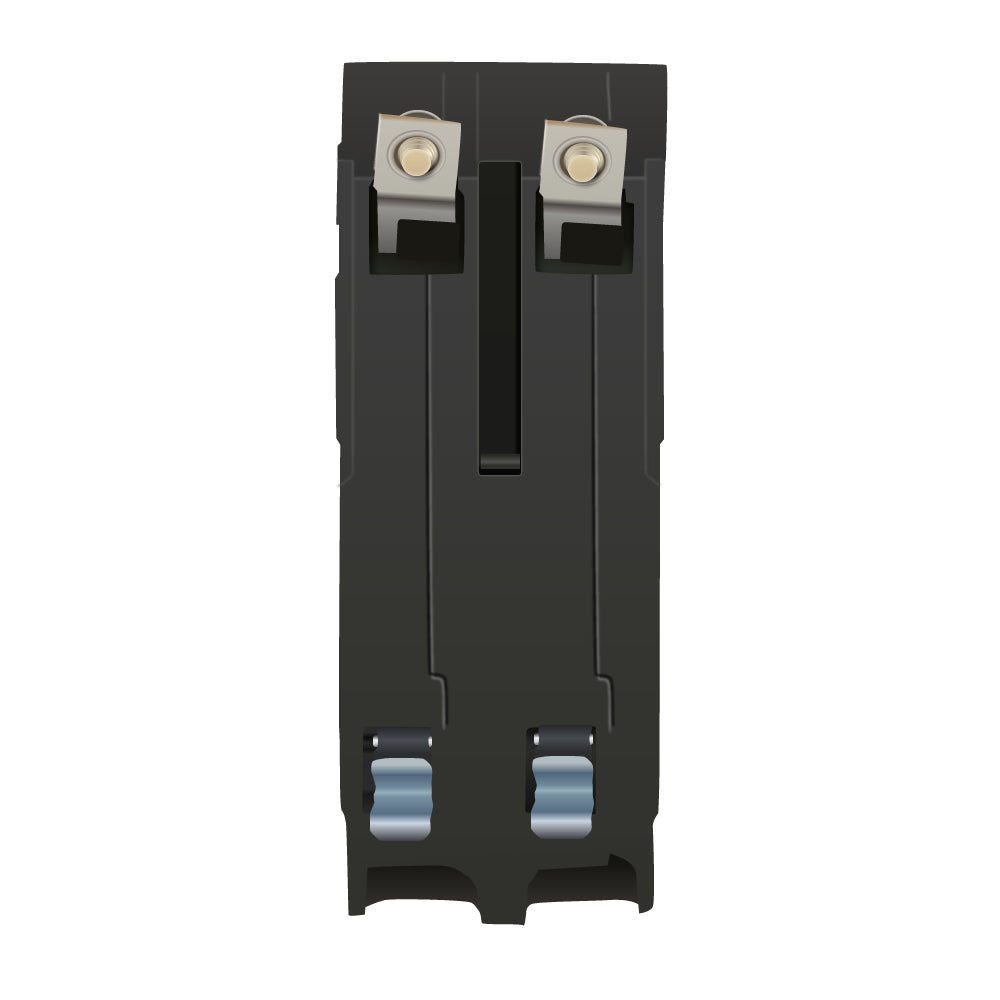

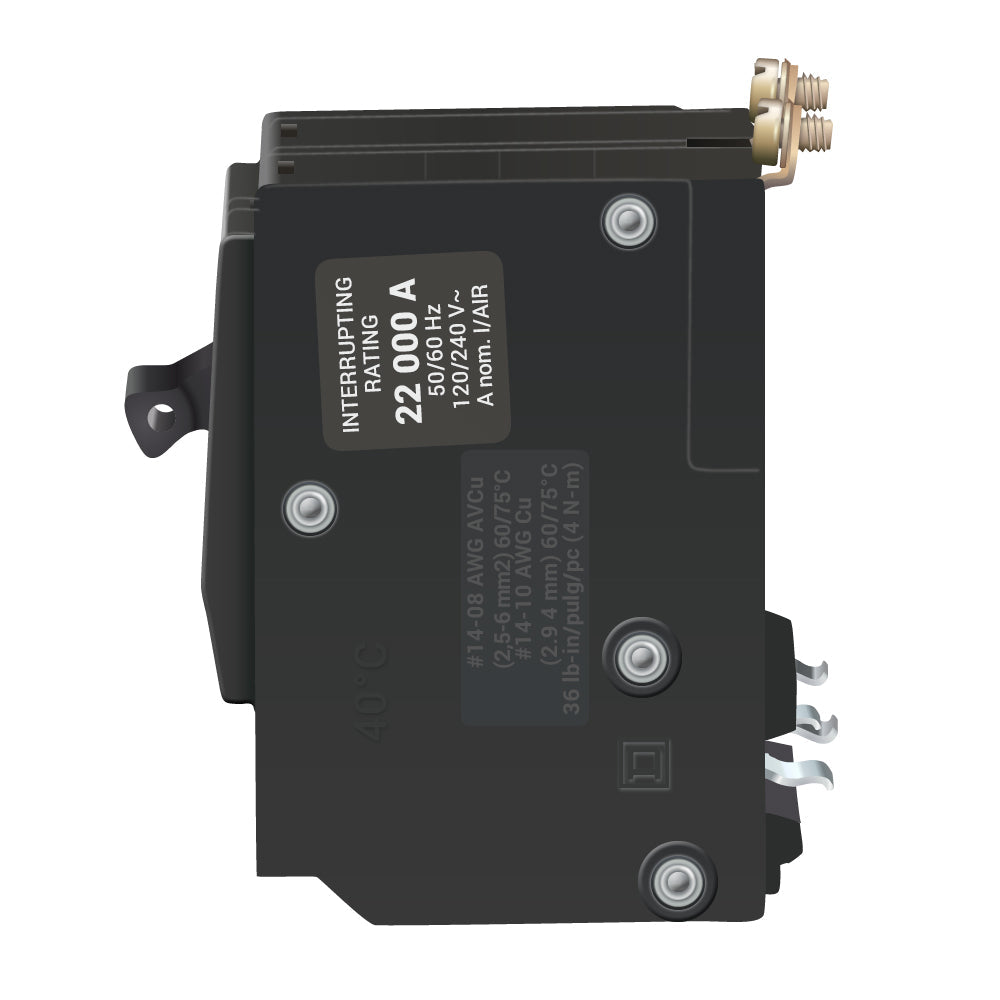

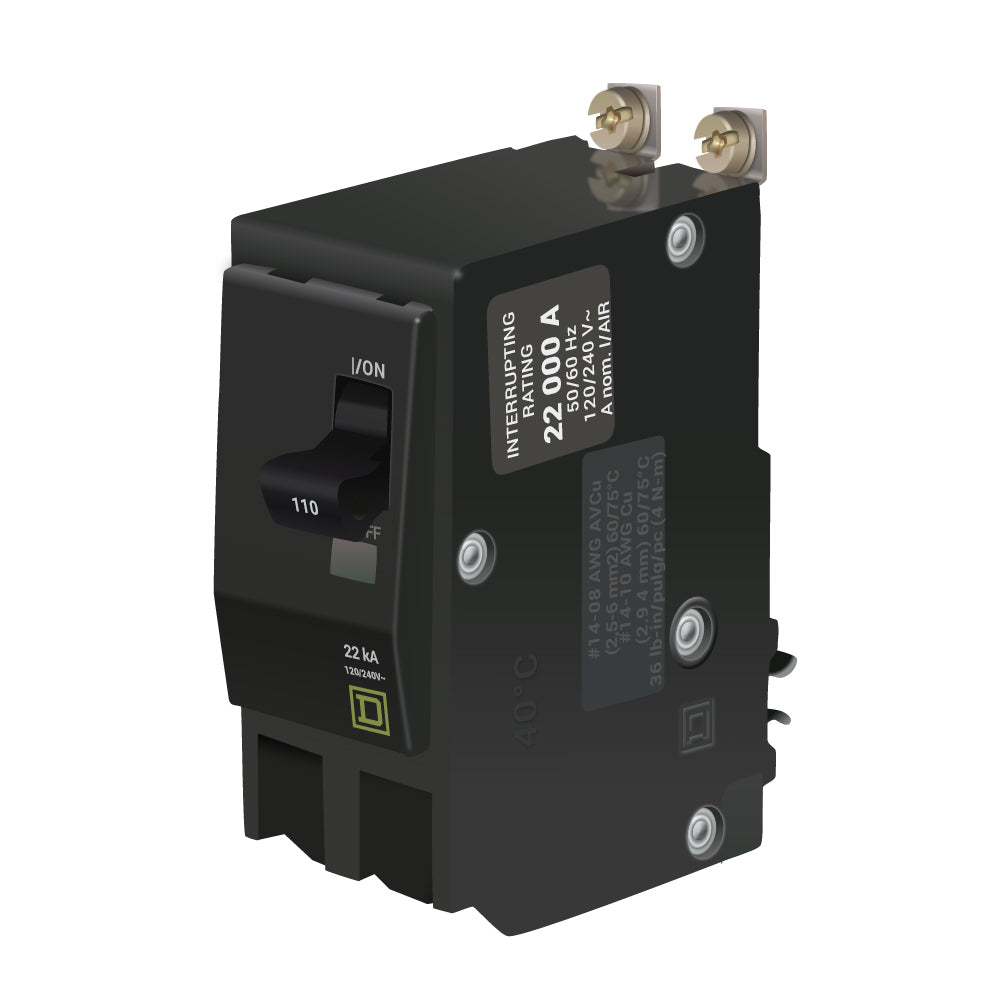

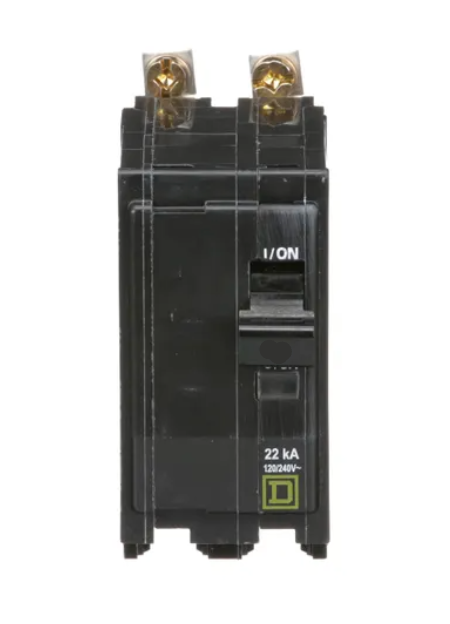

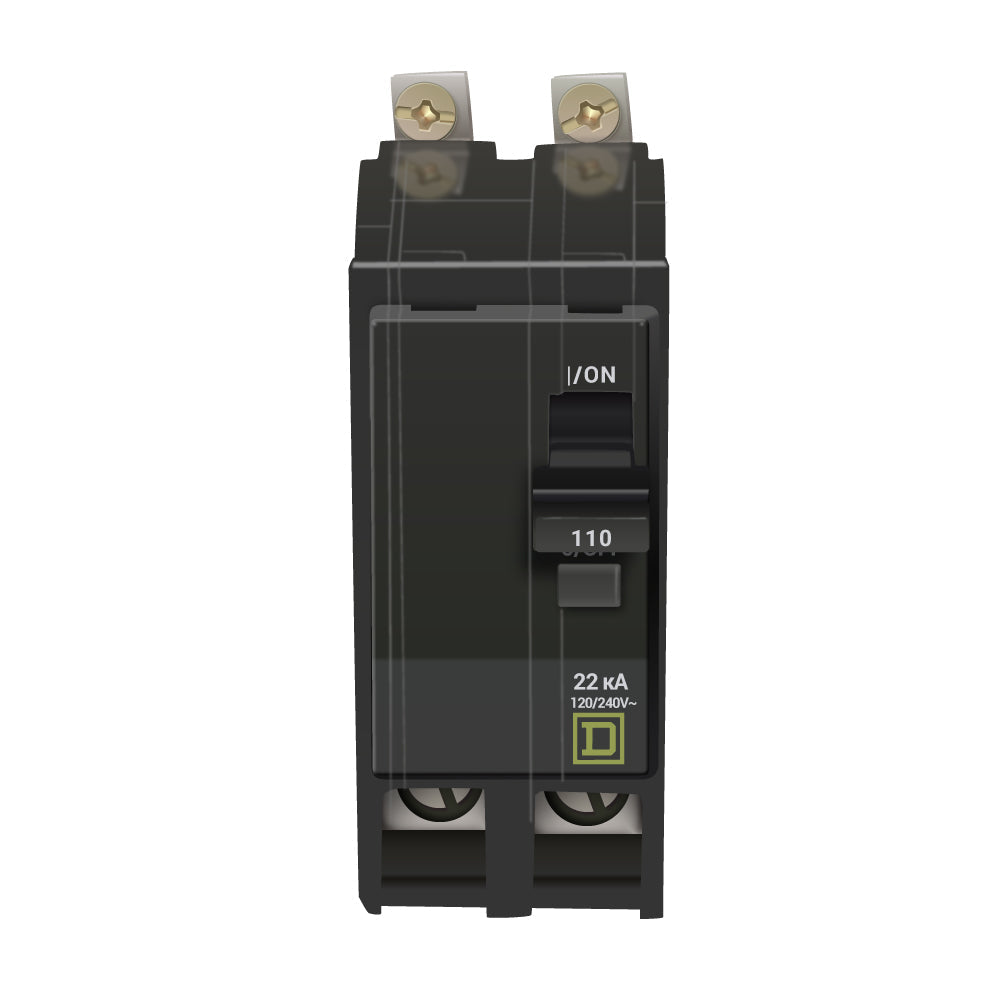

QOB2110VH - Square D QO 2-Pole 110 A 240 V AC Bolt-On Circuit Breaker, 22 kA Interrupting Rating

QOB2110VH

QOB2110VH is a bolt-on circuit breaker manufactured by Square D (a brand of Schneider Electric). It is part of the QO Series of branch circuit breakers and is rated for 110 A, 2 poles, and 240 V AC. This model features a 22 kA interrupting rating and the VH (Very High) interrupting capacity designation, providing dependable protection against overloads and short circuits in commercial and light industrial systems. The QOB2110VH is designed for use in Square D QO panelboards and load centers with bolt-on mounting. It provides superior performance and durability while maintaining compatibility with QO accessories such as shunt trips and auxiliary contacts.

• Part Number: QOB2110VH
• Manufacturer: Square D / Schneider Electric
• Series / Family: QO / QOB Series
• Product Type: Bolt-On Thermal-Magnetic Circuit Breaker
• Poles: 2
• Amperage Rating:&l(more...)


  Specifications

  • Part Number: QOB2110VH
  • Manufacturer : Schneider Electric
  • Brand : Square D
  • Category : Circuit Breaker
  • Item Subcategory : Molded Case
  • Family : QOB Series
  • Type : QOB
  • Voltage : 120/240VAC
  • Amperage : 110
  • Phase : 1
  • Poles : 2
  • AIC rating : 22kA@240V
  • Connection : Bolt-On
  • Functions : LI - Long-Time and Instantaneous
  • Terminal Connection : Pressure Plate
  • Protection : Thermal Magnetic



  Product Data

  • UPC : 078590112064
  • GTIN : 00785901120643
  • Country of Origin : Mexico
  • Dimensions : 3.5 in (89 mm) x 1.5 in (38 mm) x 2.9 in (74 mm) (Height x Width x Depth)
  • Weight : 0.75
  • Standards : CSA, UL Listed
  • Certification : UL Listed
  • Wire Size : AWG 4...300 kcmil copper or aluminium
