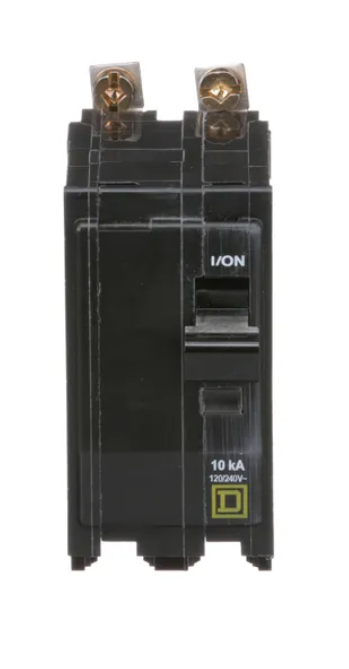

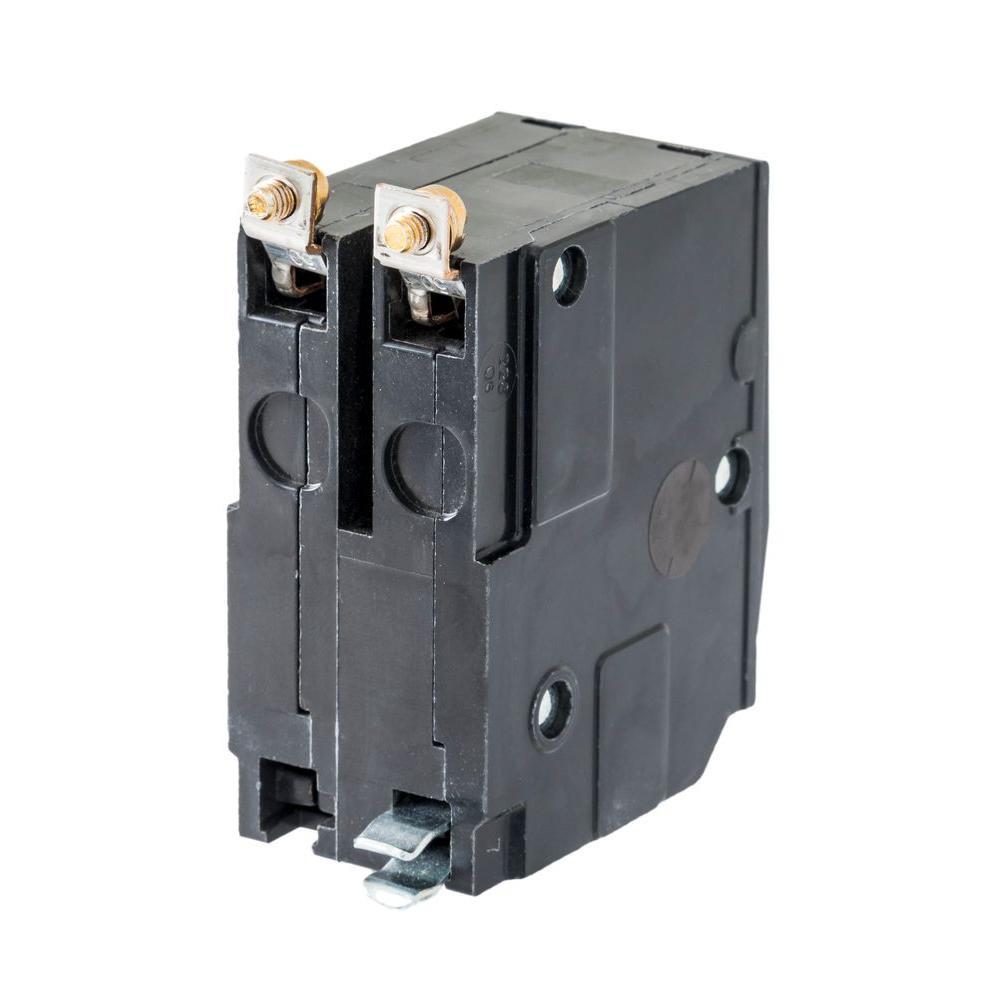

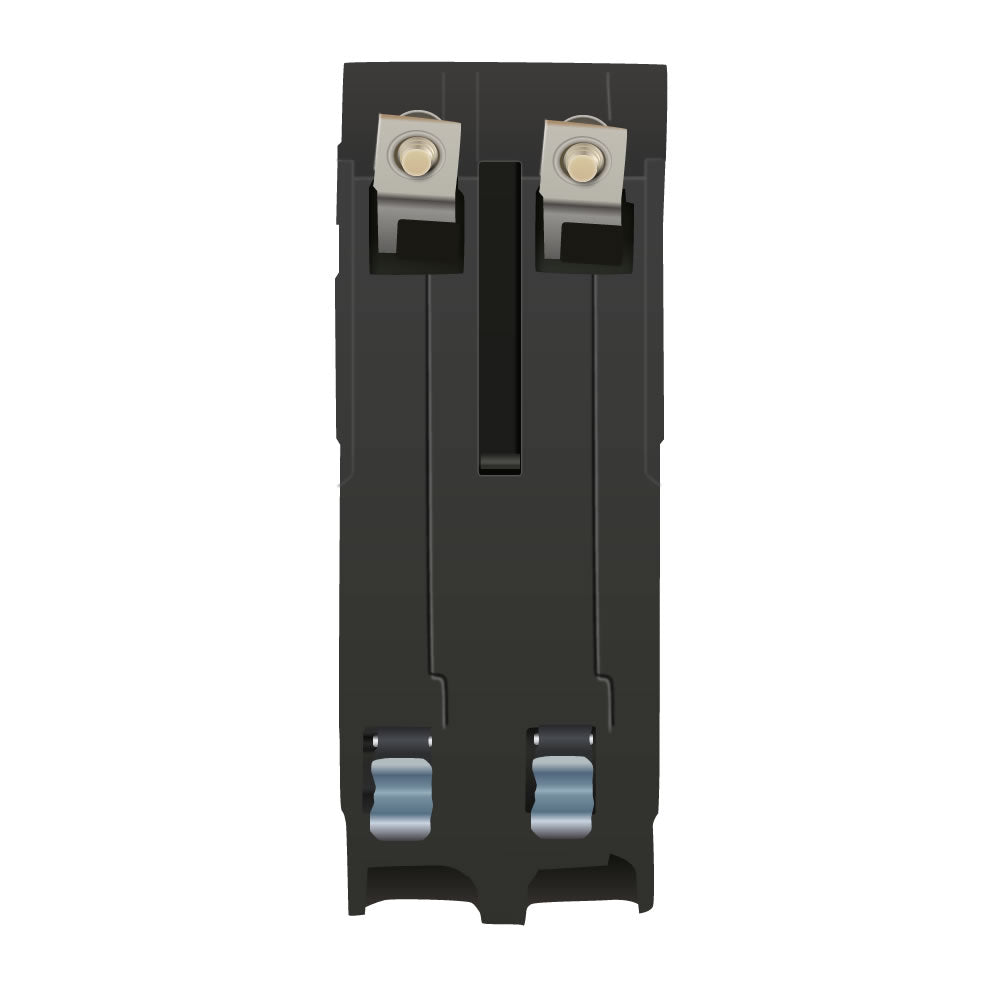

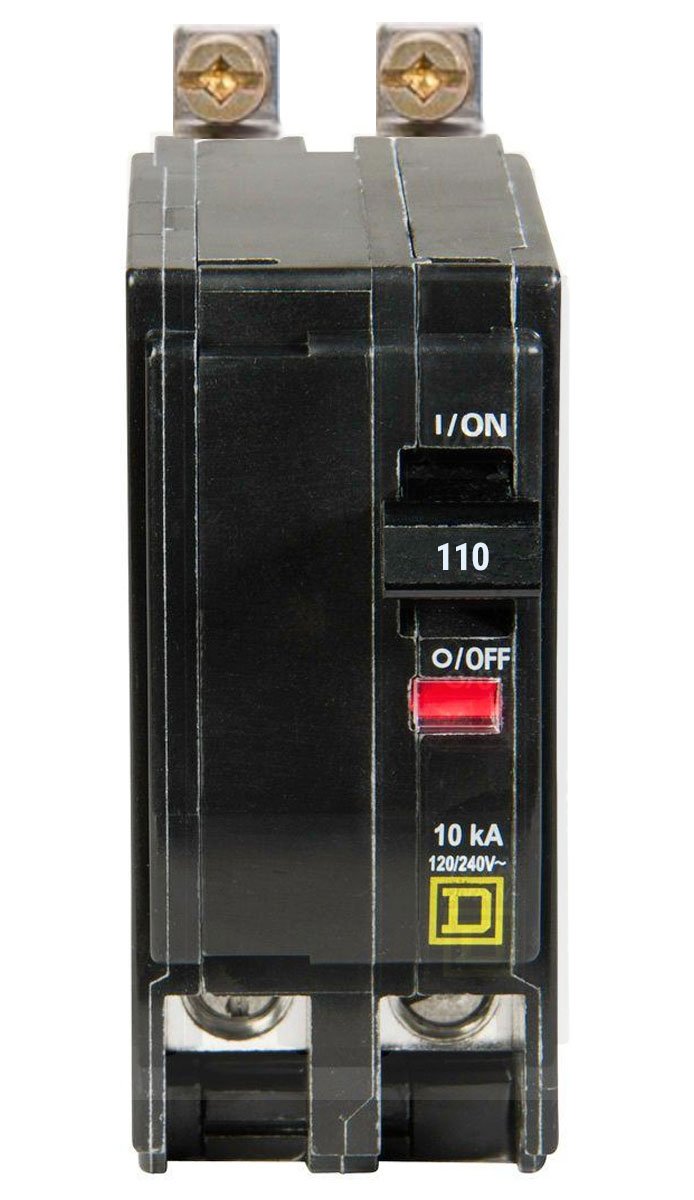

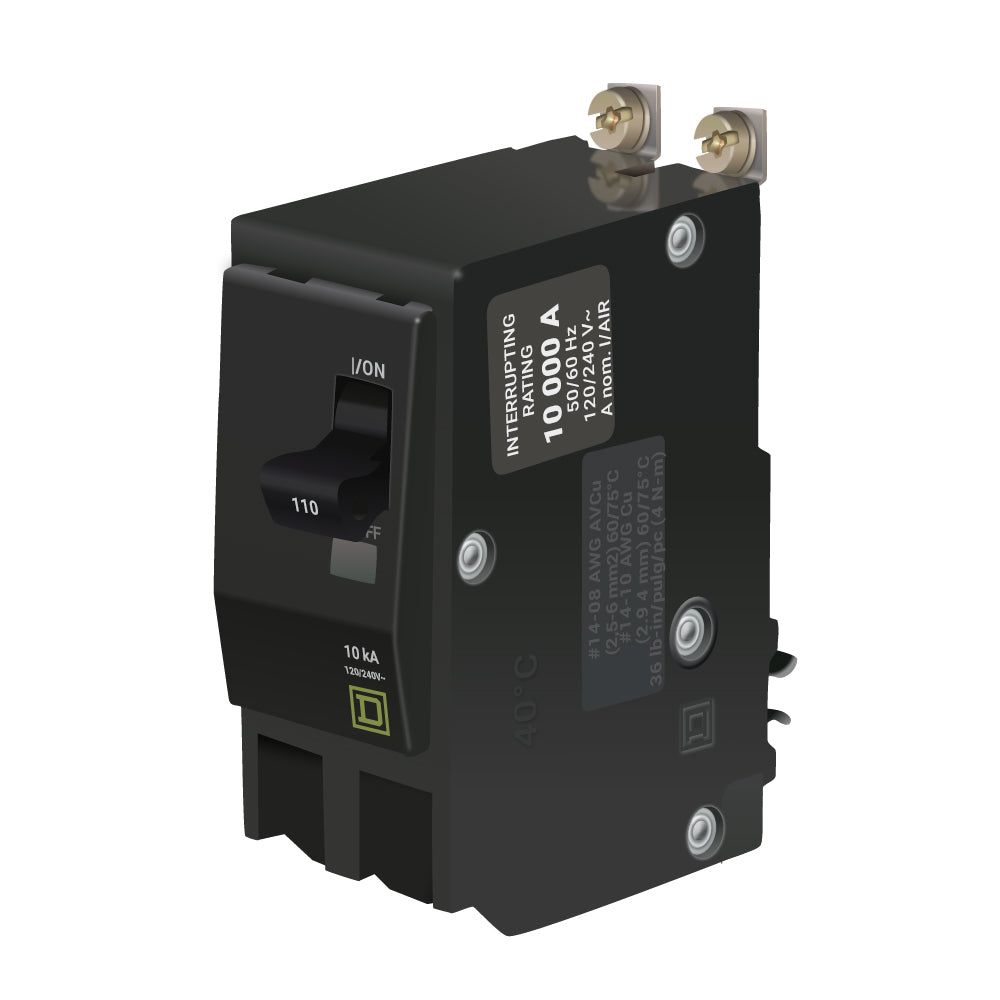

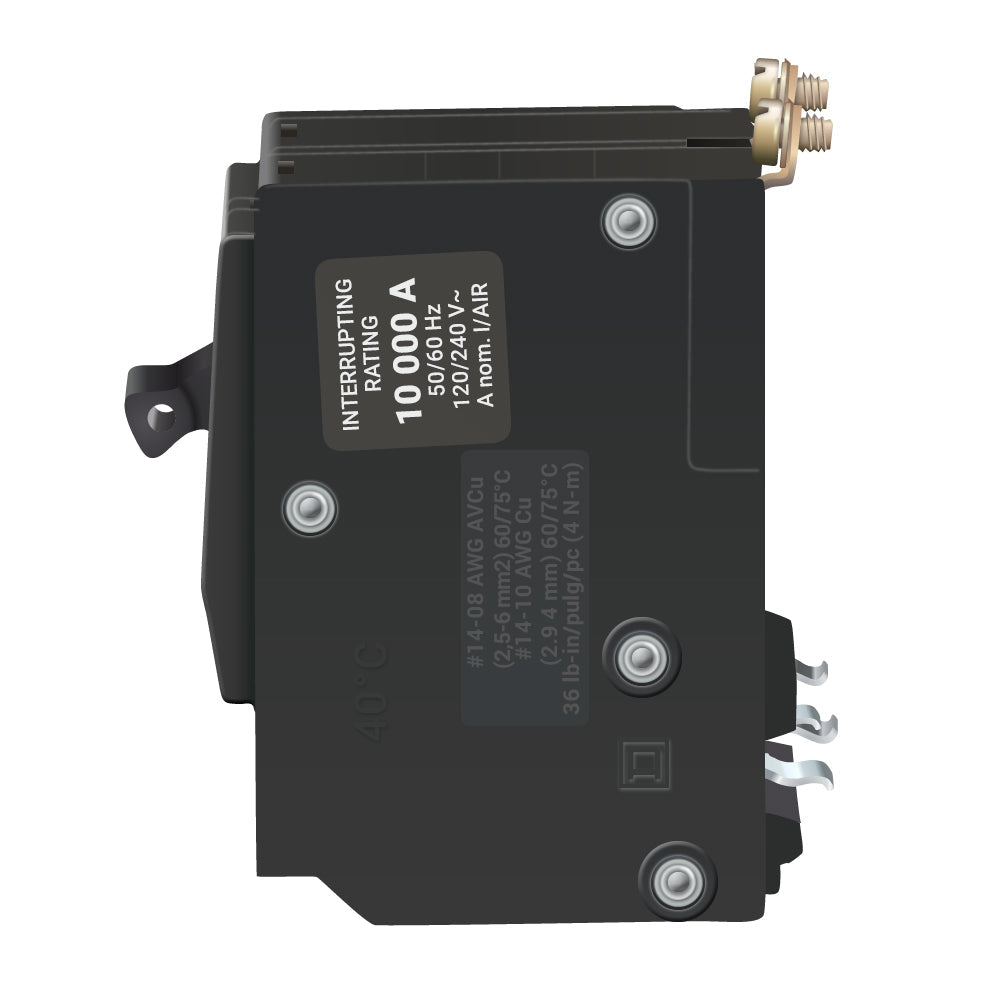

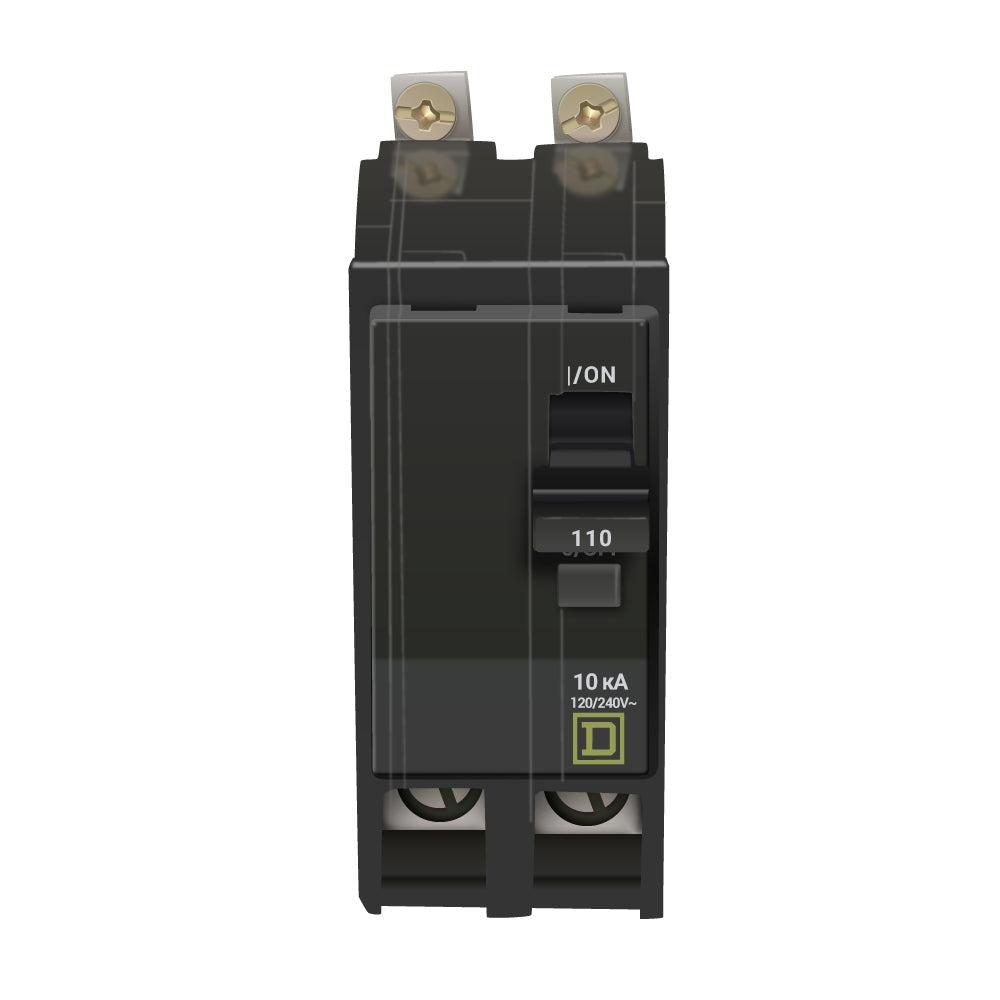

QOB2110 - Square D 110 Amp 2-Pole 120/240 Volt Bolt-On Circuit Breaker

QOB2110

QOB2110 is a Square D 2-pole miniature circuit breaker rated for 110 amps and 120/240 volts with bolt-on mounting.This thermal magnetic circuit breaker features a 10kA interrupt rating at 120/240 VAC and is designed for use in QO panelboards. It provides reliable overcurrent protection with a thermal magnetic trip unit and is UL and CSA certified. The bolt-on mounting ensures secure installation in compatible panels.

• Amperage: 110 A
• Voltage: 120/240 V AC, 48 V DC
• Poles: 2
• Mounting Type: Bolt-On
• Interrupt Rating: 10 kA at 120/240 V AC, 5 kA at 48 V DC
• Series/Frame: QO
• Trip Unit: Thermal Magnetic
• Certifications: UL, CSA
• Type: Miniature Circuit Breaker
• Application: QO Panelboard

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: QOB2110
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : QOB Series
• Type : QOB
• Voltage : 120/240VAC
• Amperage : 110
• Phase : 1
• Poles : 2
• AIC rating : 10kA@120V
• Connection : Bolt-On
• Functions : Long-Time and Instantaneous Trip
• Terminal Connection : Pressure Plate
• Frame Size : 100A/QO
• Temp Rating : -13‰ÛÒ158 å¡F (-25‰ÛÒ70 å¡C)
• MCM Size : Min. Wire Size 8 AWG Max. Wire Size 2 AWG
• Breaker Type : Standard
• Protection : Thermal Magnetic

Product Data

• UPC : 785901120636
• GTIN : 00785901120636
• Country of Origin : Mexico
• Dimensions : 3.5 in (89 mm) x 1.5 in (38 mm) x 2.9 in (74 mm) (Height x Width x Depth)
• Weight : 0.75
• Panel Type : Square D NQOD Panelboards
• Standards : CSA, UL Listed
• Certification : UL Listed
• Wire Size : AWG 4 to AWG 2/0 Copper or Aluminum
