QOB2105237 - Square D QO Series 10A 2-Pole 120/240V AC Miniature Circuit Breaker, 10kA Interrupt, Bolt-On Mount, UL/CSA

SKU: QOB2105237-New
Condition: New
Price:
$201.96
Stock:
Low inventory, please call for stock check

Same-Day Shipping

Most items ship same-day if ordered by 12:30 PM PST.

2 Year Warranty Guaranteed

All items both Re-Certified, and New sold by Essential Electric include a 30 day return policy and a 2-year full warranty. This means that they are guaranteed to be free from defects for a full 2 years from the date that the product was shipped from our warehouse.

Product Questions? Contact Us

Product Info

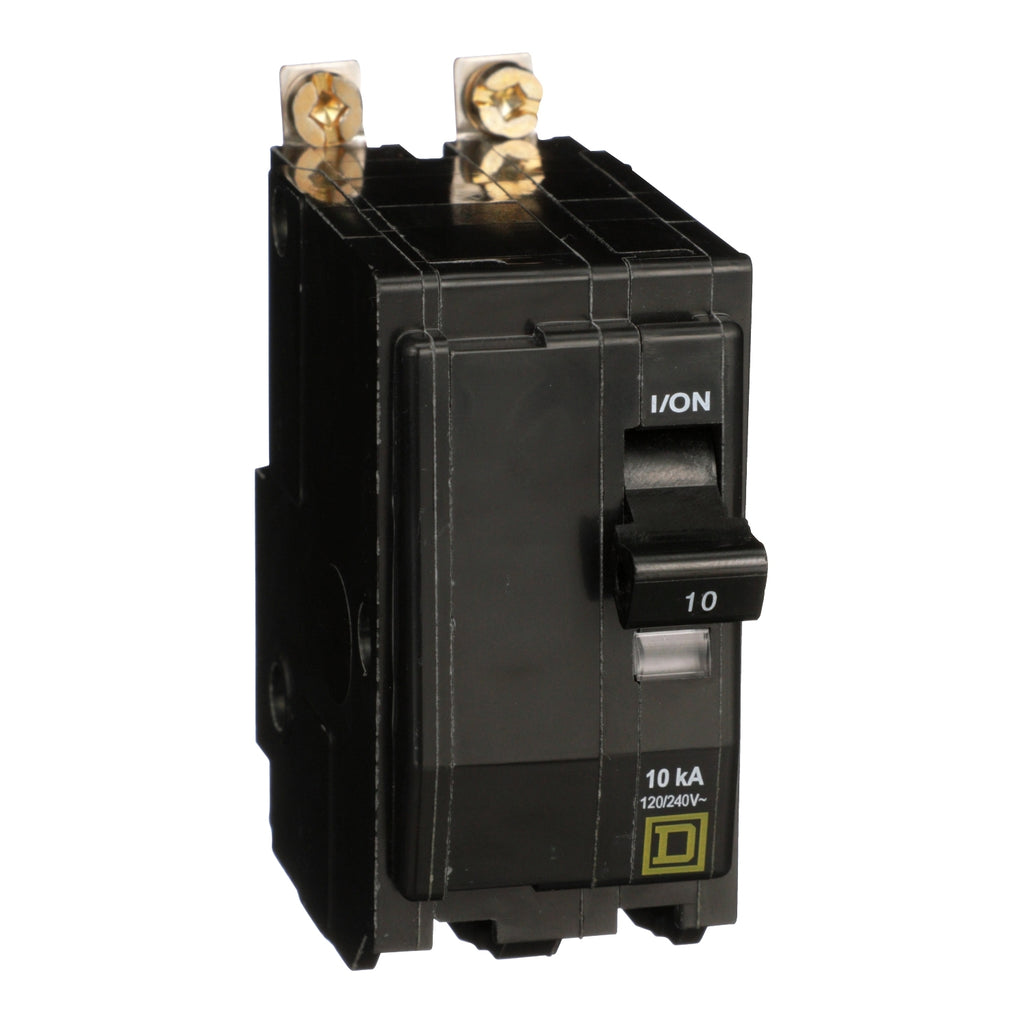

QOB2105237 - Square D Bolt-On 120V 10A 2 pole circuit breaker 10kA@120V - Essential Electric Supply
Roll over image to zoom in Click on image to zoom Images are for reference only
QOB2105237 - Square D Bolt-On 120V 10A 2 pole circuit breaker 10kA@120V - Essential Electric Supply

Description

QOB2105237


QOB2105237 is a Square D QO Series miniature circuit breaker designed for reliable circuit protection in commercial and industrial applications.

This 2-pole, 10A breaker features a bolt-on mounting style, 120/240V AC voltage rating, and a robust 10kA interrupt capacity at 120/240V AC. It is suitable for use in NQ panelboards, complies with UL and CSA standards, and operates at 50/60 Hz. The unit includes ring tongue terminals for secure connections and is rated for 5kA at 48V DC. Minimum wire size is 14 AWG (copper or aluminum).

    Key Specifications
  • Part Number: QOB2105237
  • Manufacturer: Square D (Schneider Electric)
  • Amperage: 10A
  • Voltage: 120/240V AC, 48V DC
  • Poles: 2
  • Mounting Type: Bolt-on
  • Interrupt Rating: 10kA at 120/240V AC, 5kA at 48V DC
  • Series/Frame: QO Series, NEMA AB1
  • Trip Unit: Standard (thermal-magnetic)
  • Certifications: UL, CSA
  • Frequency: 50/60 Hz
  • Terminal Type: Ring tongue (bolt-on)
  • Minimum Wire Size: 14 AWG (Cu/Al)

At Essenti(more...)

Specifications

  • Part Number: QOB2105237
  • Manufacturer : Schneider Electric
  • Brand : Square D
  • Category : Circuit Breaker
  • Item Subcategory : Molded Case
  • Family : QOB Series
  • Type : QOB
  • Voltage : 120/240VAC
  • Amperage : 10
  • Phase : 1
  • Poles : 2
  • AIC rating : 10kA@120V
  • Connection : Bolt-On
  • Functions : LI - Long-Time and Instantaneous
  • Terminal Connection : Pressure Plate
  • Protection : Thermal Magnetic

Product Data

  • UPC : 785901088608
  • GTIN : 785901088608
  • Country of Origin : Mexico
  • Dimensions : 3.0 in (76 mm) x 1.5 in (38 mm) x 2.9 in (74 mm) (Height x Width x Depth)
  • Weight : 0.55
  • Standards : CSA, UL Listed
  • Certification : UL Listed
