QOB130EPD2100 - Square D 30 Amp 120VAC 1 Pole Bolt-On Ground Fault Circuit Breaker

Save $19,461.97
SKU: QOB130EPD2100-New
Condition: New
Price:
$175.03 $19,637.00
Stock:
Low inventory, please call for stock check

Same-Day Shipping

Most items ship same-day if ordered by 12:30 PM PST.

2 Year Warranty Guaranteed

All items both Re-Certified, and New sold by Essential Electric include a 30 day return policy and a 2-year full warranty. This means that they are guaranteed to be free from defects for a full 2 years from the date that the product was shipped from our warehouse.

Product Questions? Contact Us

Product Info

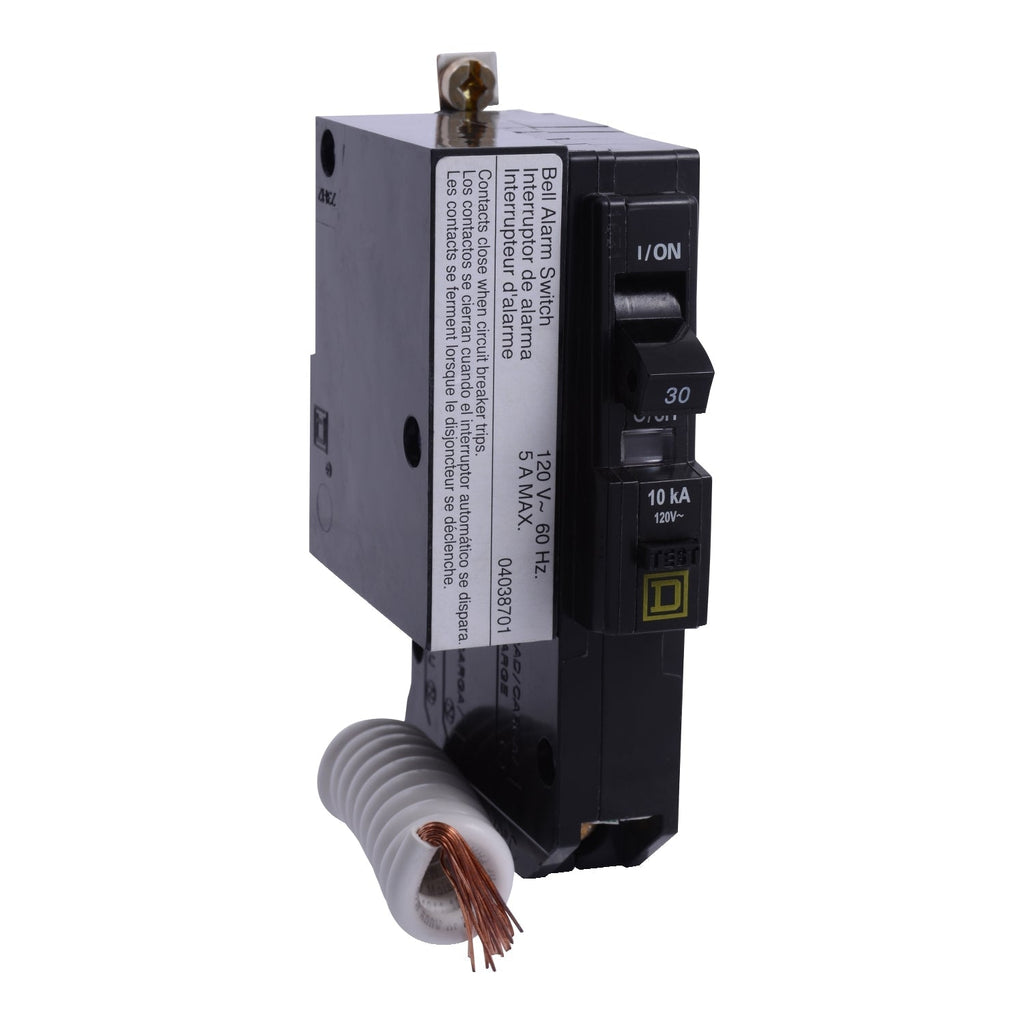

QOB130EPD2100 Square D Molded Case Circuit Breaker QOB Series 30A 120V - Essential Electric Supply
QOB130EPD2100 - Square D 30 Amp 120VAC 1 Pole Bolt-On Ground Fault Circuit Breaker - Essential Electric Supply
Roll over image to zoom in Click on image to zoom Images are for reference only
QOB130EPD2100 Square D Molded Case Circuit Breaker QOB Series 30A 120V - Essential Electric Supply
QOB130EPD2100 - Square D 30 Amp 120VAC 1 Pole Bolt-On Ground Fault Circuit Breaker - Essential Electric Supply

Description

QOB130EPD2100


QOB130EPD2100 is a Square D 1 Pole Ground Fault Circuit Breaker rated for 30 Amps and 120VAC voltage with bolt-on mounting.This Square D QOB130EPD2100 circuit breaker features a thermal magnetic trip unit with long time and instantaneous trip functions, a 10kA interrupting rating at 120VAC, and pressure plate connection type. It is UL and CSA approved and designed for use in load centers with wire gauge compatibility from AWG 14 to AWG 8 copper and AWG 12 to AWG 8 aluminum conductors.
    Key Specifications
    • Amperage: 30 Amps
    • Voltage: 120VAC
    • Poles: 1
    • Mounting Type: Bolt-On
    • Interrupting Rating: 10kA at 120VAC
    • Series/Frame: QOB
    • Trip Unit: Thermal Magnetic with Long Time and Instantaneous Trip
    • Connection Type: Pressure Plate
    • Certifications: UL, CSA
    • Wire Gauge: AWG 14-8 Copper, AWG 12-8 Aluminum
    • Circuit Breaker Type: Ground Fault Circuit Interrupter (GFCI)
    • Temperature Rating: 104¡F (40¡C)
At Essential Parts, we offer fast shipping,

Specifications

  • Part Number: QOB130EPD2100
  • Manufacturer : Schneider Electric
  • Brand : Square D
  • Category : Circuit Breaker
  • Item Subcategory : Molded Case
  • Family : QOB Series
  • Type : QOB
  • Voltage : 120/240VAC
  • Amperage : 30
  • Phase : 1
  • Poles : 1
  • AIC rating : 10kA@120V
  • Connection : Bolt-On
  • Functions : Long Time and Instantaneous Trip
  • Terminal Connection : Pressure Plate
  • Temp Rating : -13‰ÛÒ158 å¡F (-25‰ÛÒ70 å¡C)
  • MCM Size : Min. Wire Size 14 AWG (Cu), 12 AWG (Al) Max. Wire Size 8 AWG (Cu), 8 AWG (Al)
  • Protection : Thermal Magnetic

Product Data

  • UPC : 785901362821
  • GTIN : 00785901362821
  • Country of Origin : Mexico
  • Dimensions : 4.1 in (105 mm) x 1.5 in (38 mm) x 2.9 in (74 mm) (Height x Width x Depth)
  • Weight : 0.75
  • Standards : CSA, UL Listed
  • Certification : UL Listed
  • Wire Size : AWG 14 to AWG 8 Copper, AWG 12 to AWG 8 Aluminum
