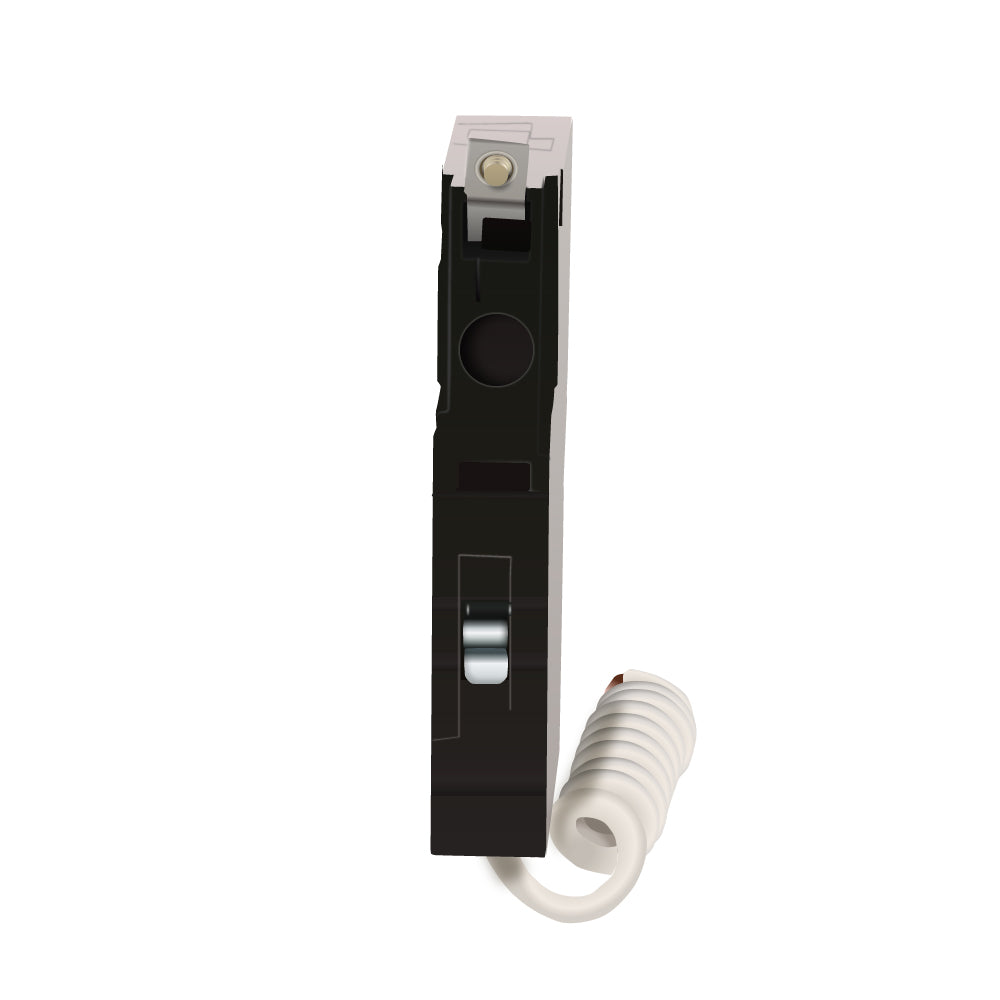

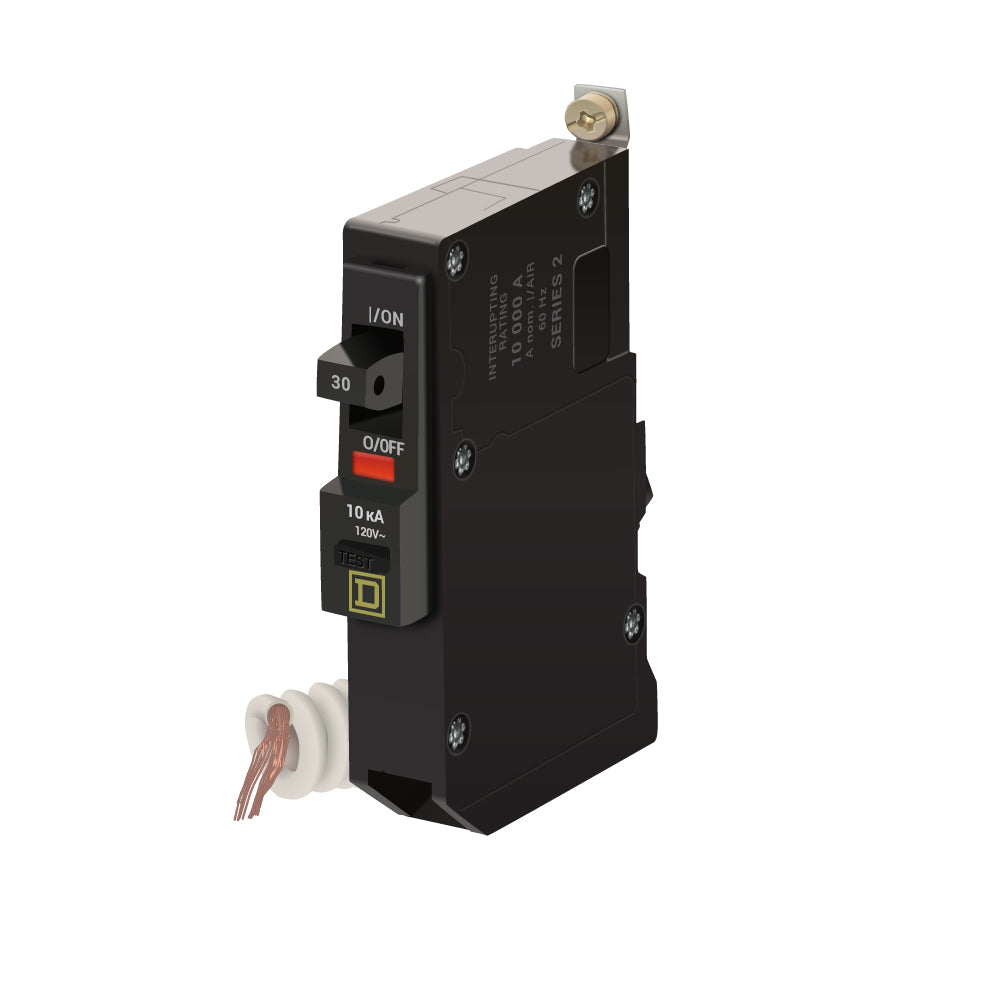

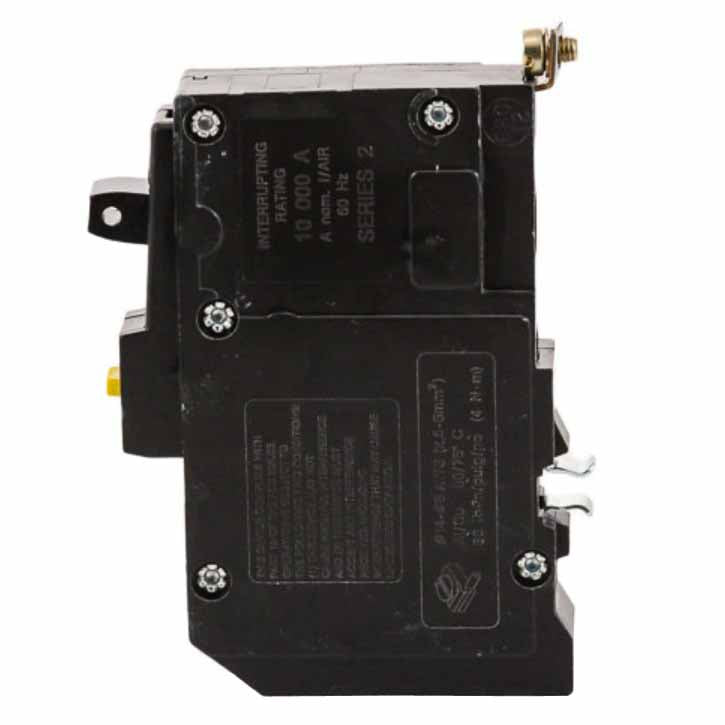

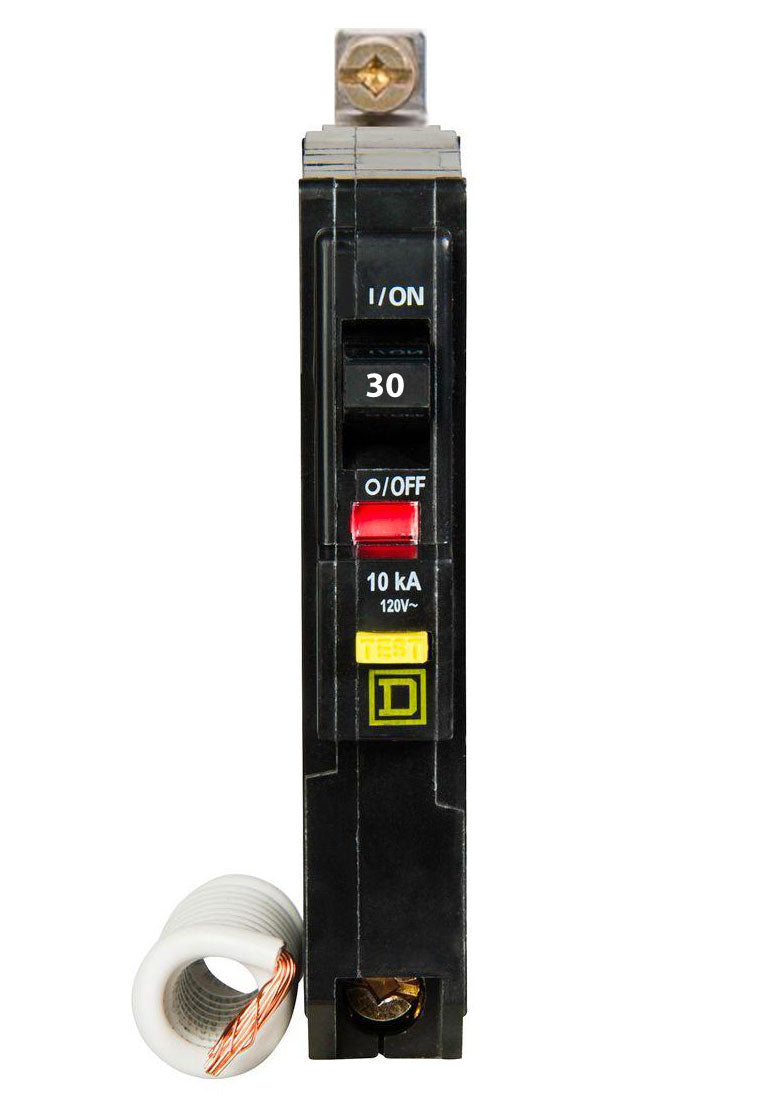

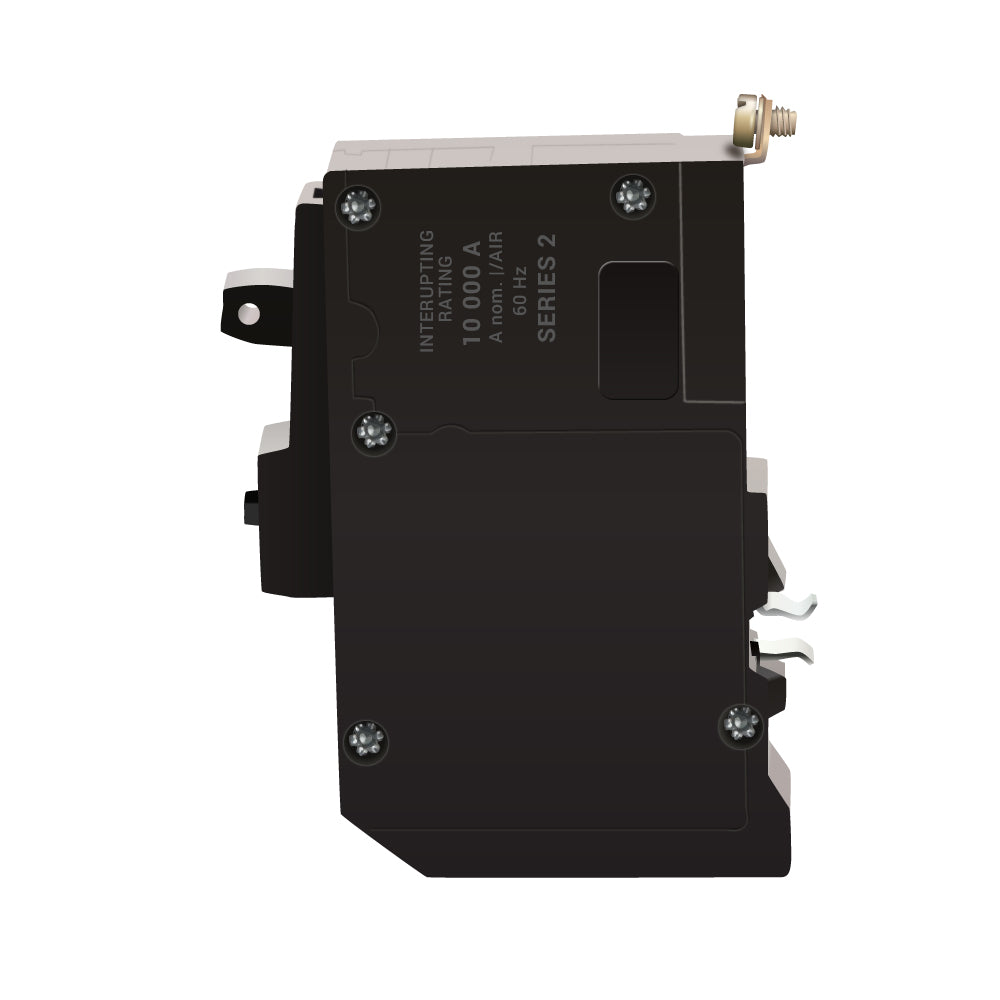

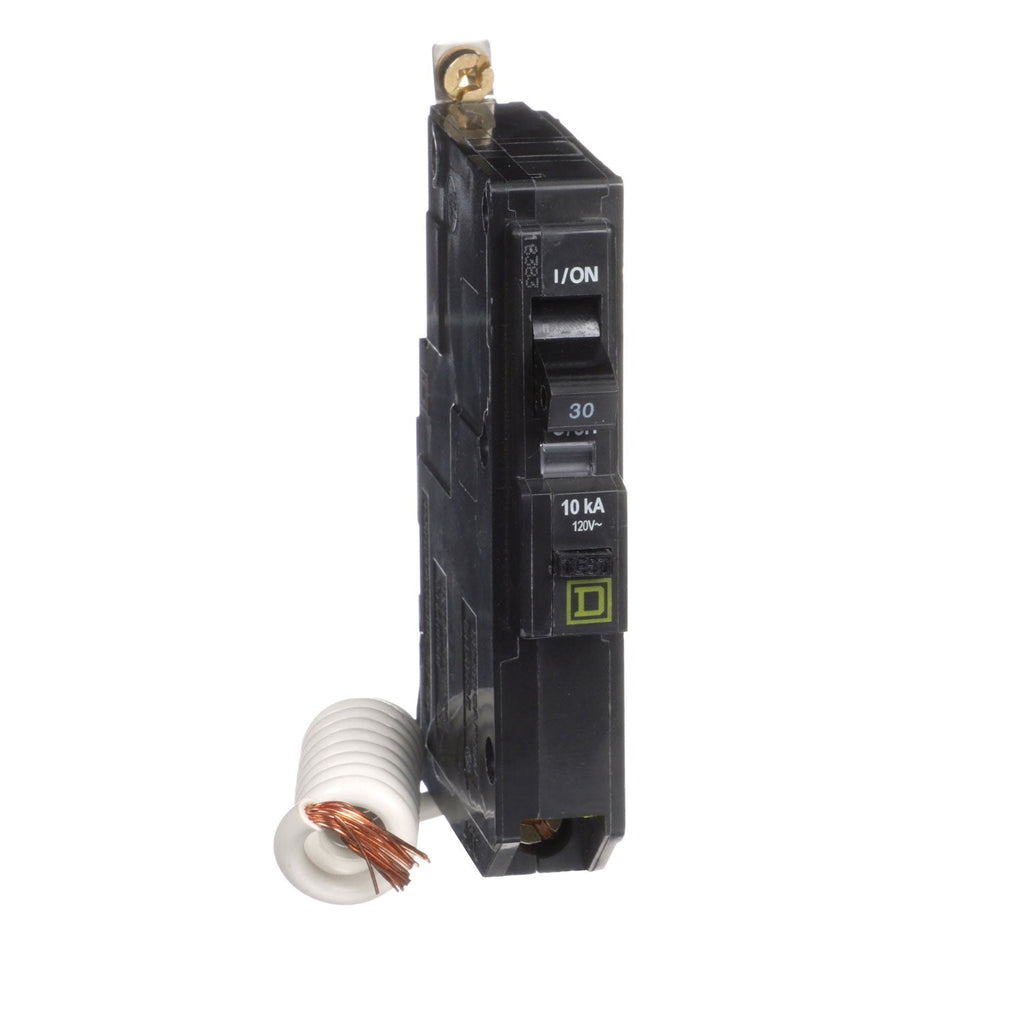

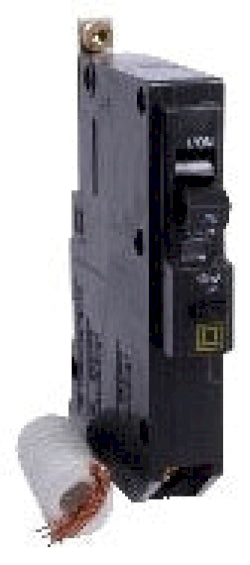

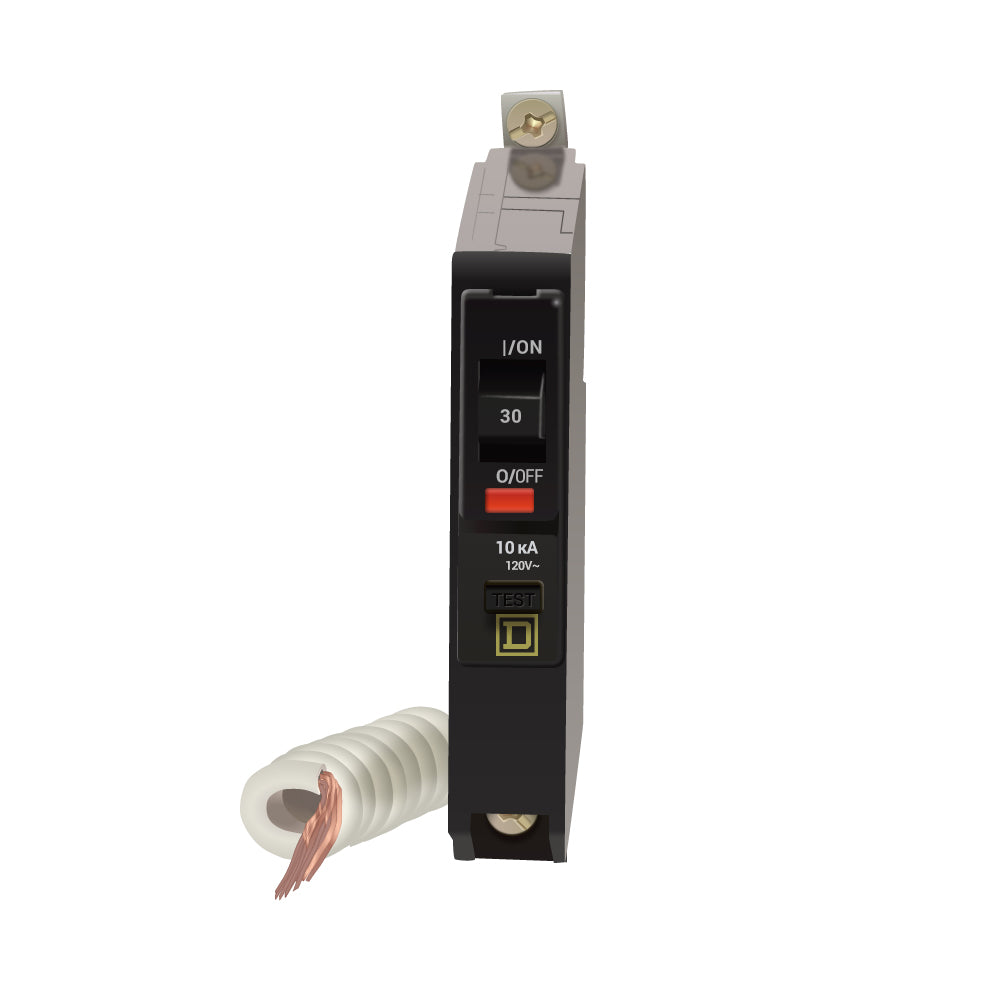

QOB130EPD - Square D 30A 1-Pole 120/240VAC Bolt-On Circuit Breaker with Ground Fault Protection

QOB130EPD

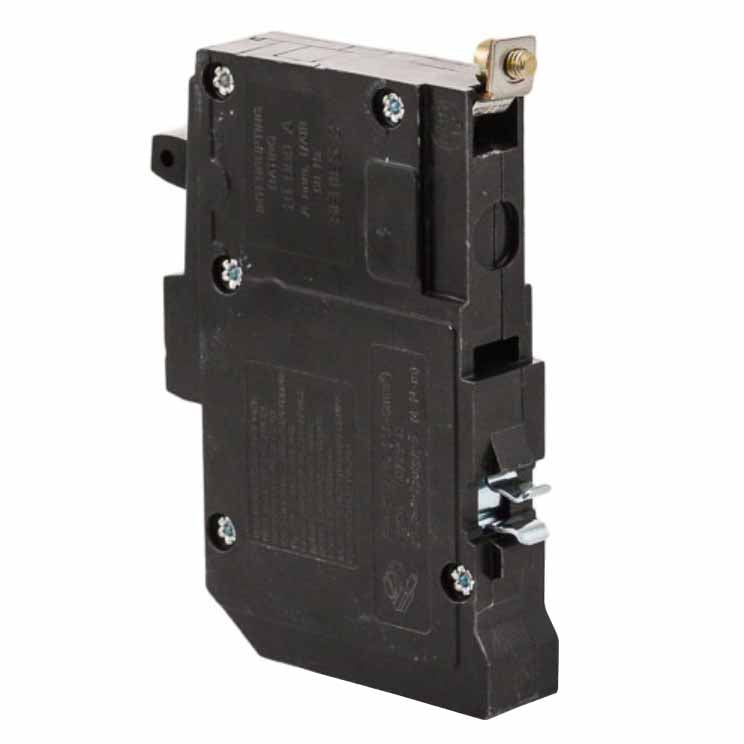

QOB130EPD is a Square D 30 Amp 1-pole bolt-on circuit breaker with ground fault protection designed for reliable overcurrent and ground fault interruption.This miniature circuit breaker features a thermal magnetic trip unit, 120/240 VAC voltage rating, and a 10kA interrupt rating. It includes 30mA ground fault protection (Class B) and a bolt-on mounting type for easy installation. The breaker is part of the QO series and is suitable for panelboard use, providing durable and precise circuit protection.

Key Specifications
• Amperage: 30 Amps
• Voltage: 120/240 VAC
• Poles: 1 Pole
• Mounting Type: Bolt-On
• Interrupt Rating: 10,000 Amps (10kA)
• Series/Frame: QO
• Trip Unit: Thermal Magnetic
• Ground Fault Protection: 30mA Class B
• Certifications: TAA Compliant
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.


Specifications

• Part Number: QOB130EPD
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : QOB Series
• Type : QOB
• Voltage : 120/240VAC
• Amperage : 30
• Phase : 1
• Poles : 1
• AIC rating : 10kA@120V
• Connection : Bolt-On
• Functions : LI - Long-Time and Instantaneous Trip
• Terminal Connection : Pressure Plate
• Frame Size : 100A/QO
• Temp Rating : -13‰ÛÒ158 å¡F (-25‰ÛÒ70 å¡C)
• MCM Size : Min. Wire Size 12 AWG (Al), 14 AWG (Cu) Max. Wire Size 8 AWG
• Breaker Type : Ground Fault Equipment Protection
• Protection : Thermal Magnetic



Product Data

• UPC : 785901763765
• GTIN : 00785901763765
• Country of Origin : Mexico
• Dimensions : 4.1 in (105 mm) x 0.7 in (19 mm) x 2.9 in (74 mm) (Height x Width x Depth)
• Weight : 0.54
• Panel Type : QO Load Centers and NQ Panelboards
• Standards : CSA, UL Listed
• Certification : UL Listed
• Wire Size : AWG 14 to AWG 8, AWG 12 to AWG 8, Cu, Al
