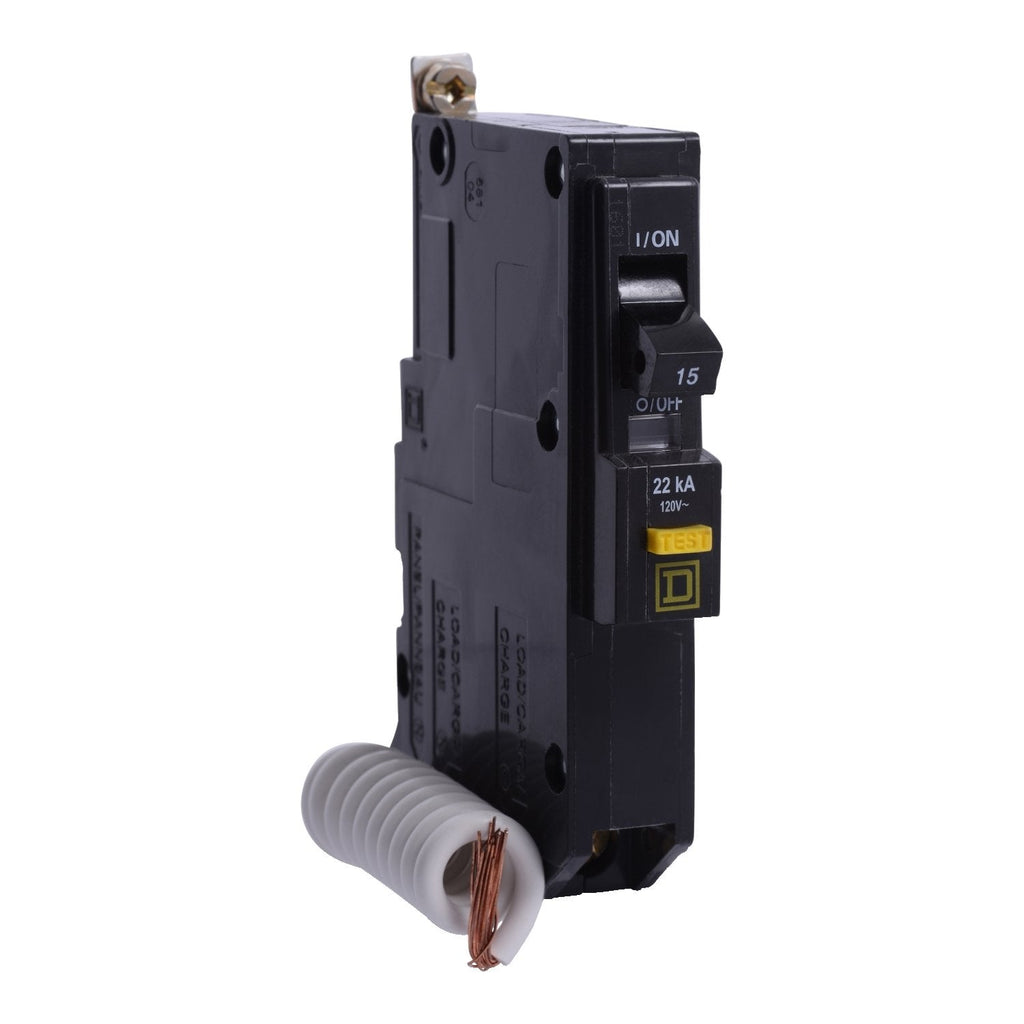

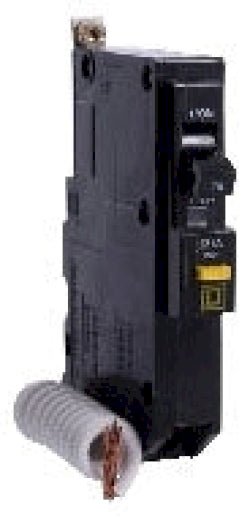

QOB115VHGFI - Square D 15A 120V 1 Pole Ground Fault Circuit Breaker Bolt-On QO Frame 22kA

QOB115VHGFI

QOB115VHGFI is a 1 pole ground fault circuit breaker designed for reliable protection in residential and light commercial applications. This Square D QO series breaker features a 15A current rating, 120VAC voltage, and a high interrupting capacity of 22kA. It is equipped with a 6mA ground fault trip unit for enhanced safety and uses a bolt-on mounting design for secure installation. This molded case circuit breaker is part of the QO frame series and is built for thermal magnetic protection with long time and instantaneous trip functions. The QOB115VHGFI is suitable for use in standard load centers and provides dependable ground fault protection for branch circuits.

• Part Number: QOB115VHGFI
• Manufacturer: Square D
• Amperage: 15A
• Voltage: 120VAC
• Poles: 1
• Mounting Type: Bolt-On
• Interrupt Rating: 22kA
• Series/Frame: QO
• Trip Unit: Ground Fault (6mA)
• Protection Type: Thermal Magnetic
• Application: Residential, Light Commercial
• Standards: UL Listed

At Essential Parts, we offer <(more...)

Specifications

• Part Number: QOB115VHGFI
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : QOB Series
• Type : QOB
• Voltage : 120/240VAC
• Amperage : 15
• Phase : 1
• Poles : 1
• AIC rating : 22kA@120V
• Connection : Bolt-On
• Functions : LI - Long-Time and Instantaneous Trip
• Terminal Connection : Pressure Plate
• Temp Rating : -13‰ÛÒ158 å¡F (-25‰ÛÒ70 å¡C)
• MCM Size : Min. Wire Size 14 AWG (Cu), 12 AWG (Al) Max. Wire Size 8 AWG (Cu), 8 AWG (Al)
• Protection : Thermal Magnetic

Product Data

• UPC : 785901520672
• GTIN : 00785901520672
• Country of Origin : Mexico
• Dimensions : 4.1 in (105 mm) x 0.7 in (19 mm) x 2.9 in (74 mm) (Height x Width x Depth)
• Weight : 0.55
• Standards : CSA, UL Listed
• Certification : UL Listed
• Wire Size : AWG 14 to AWG 8, AWG 12 to AWG 8, Cu, Al
