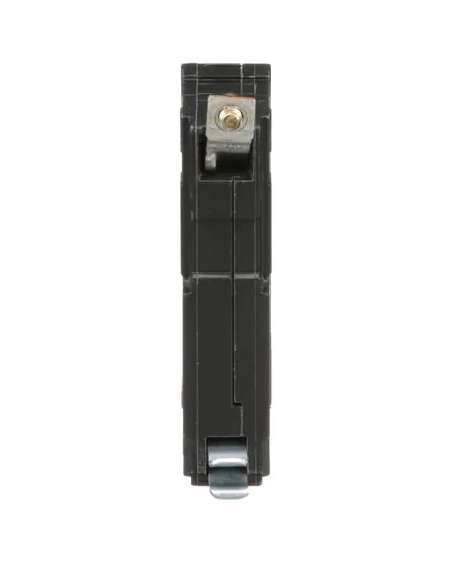

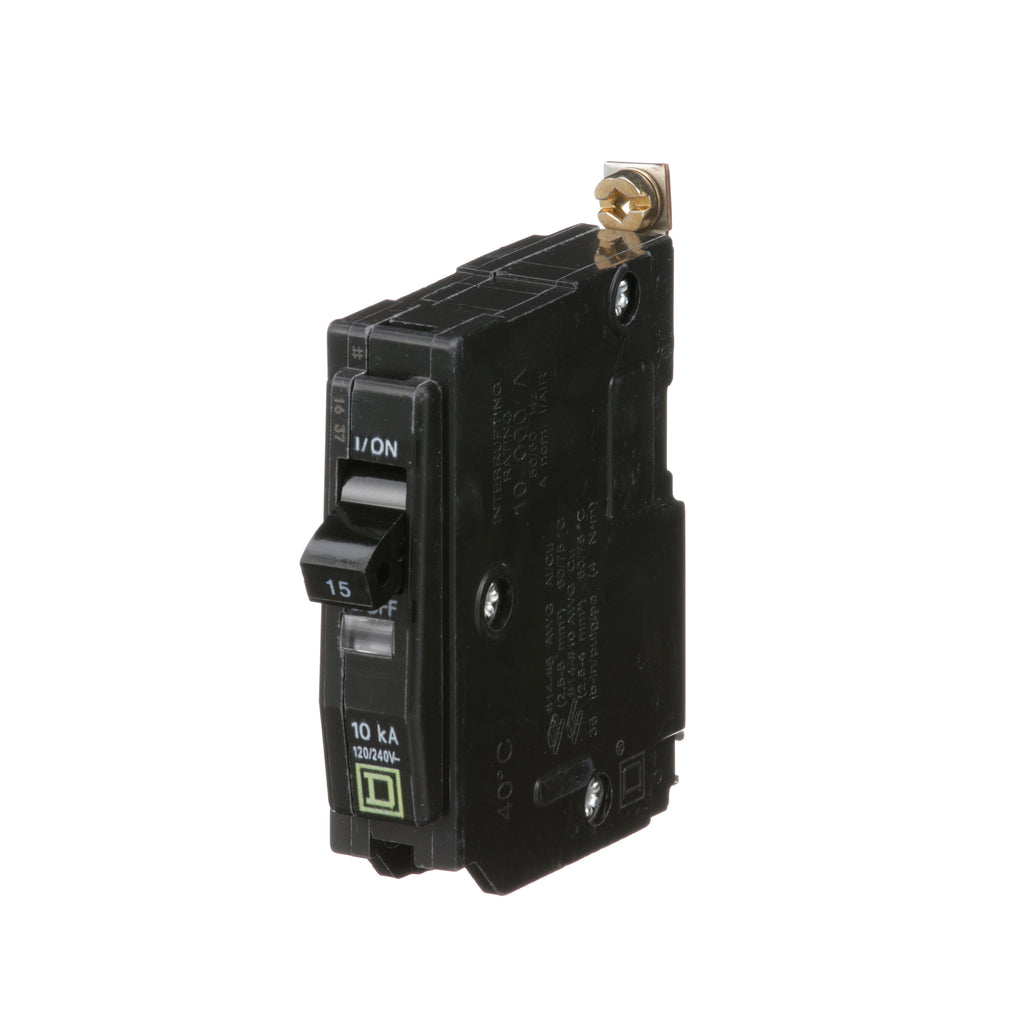

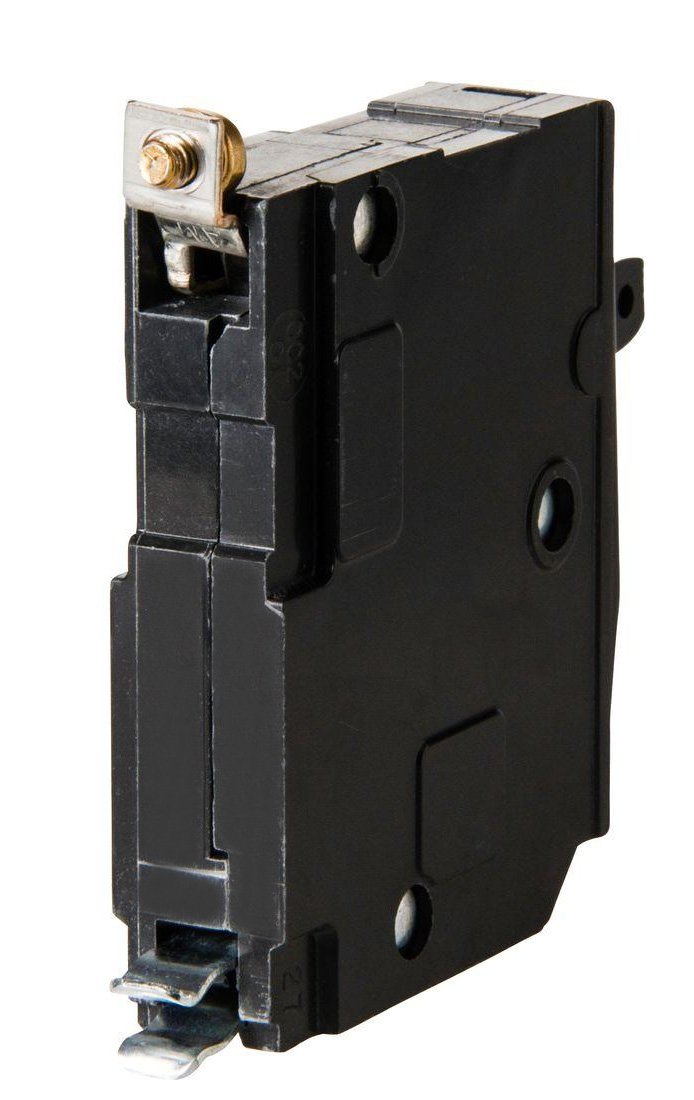

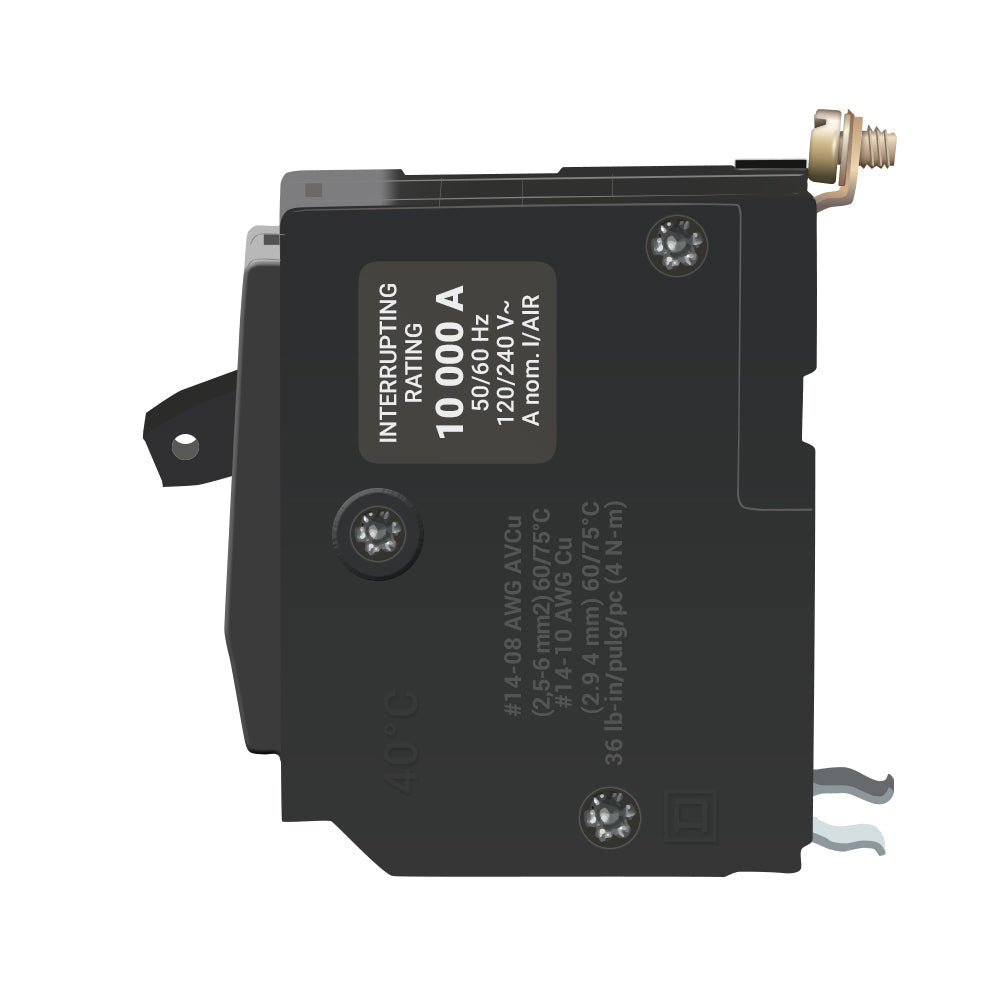

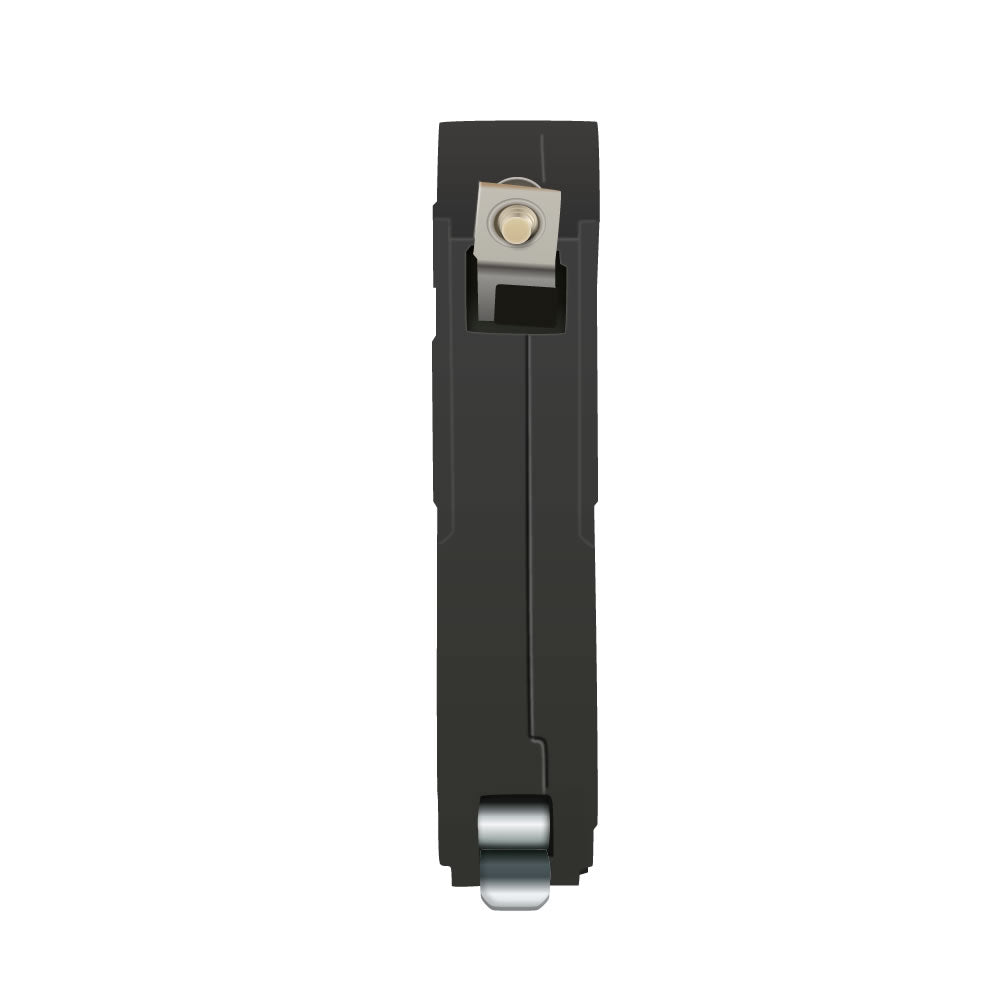

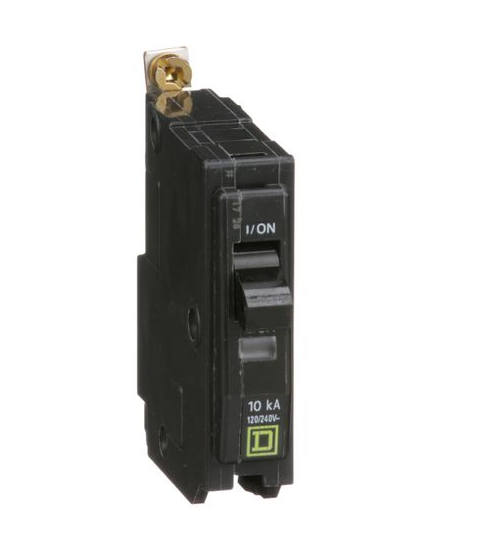

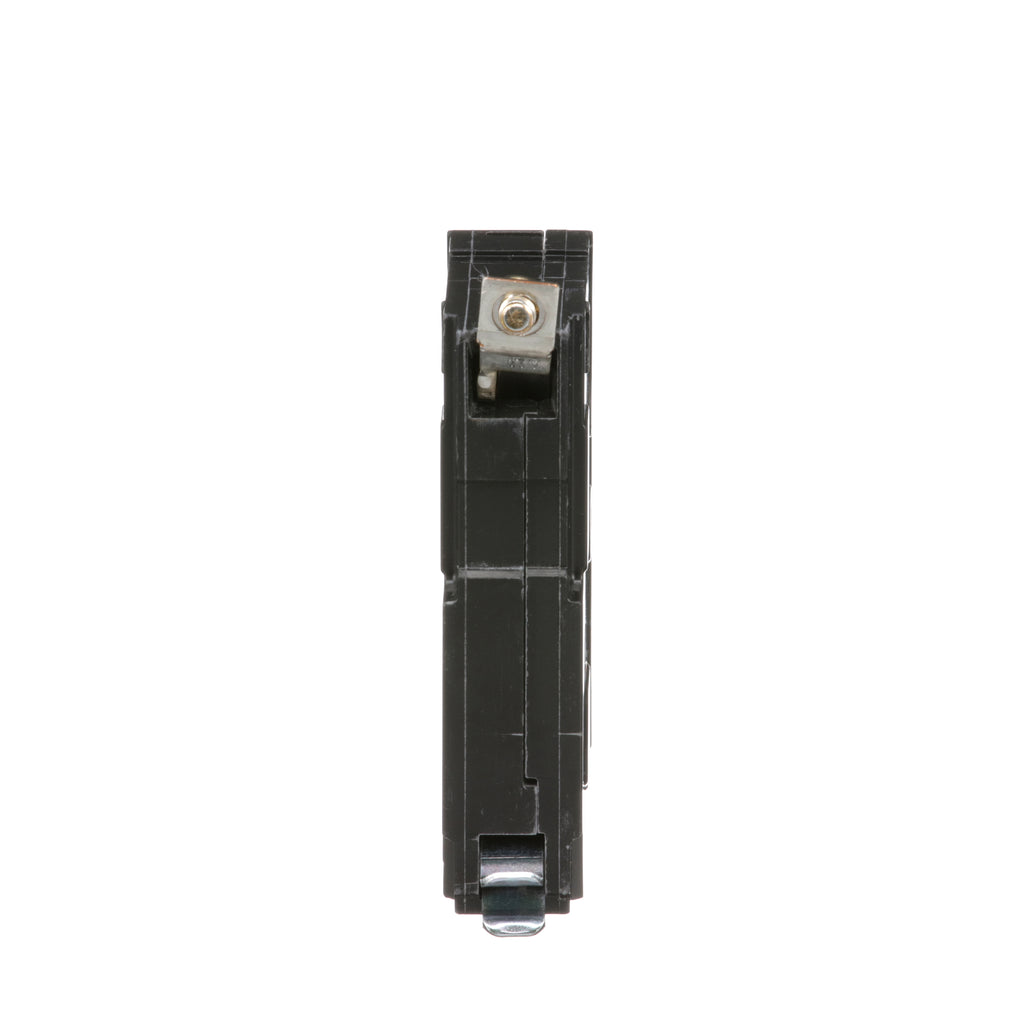

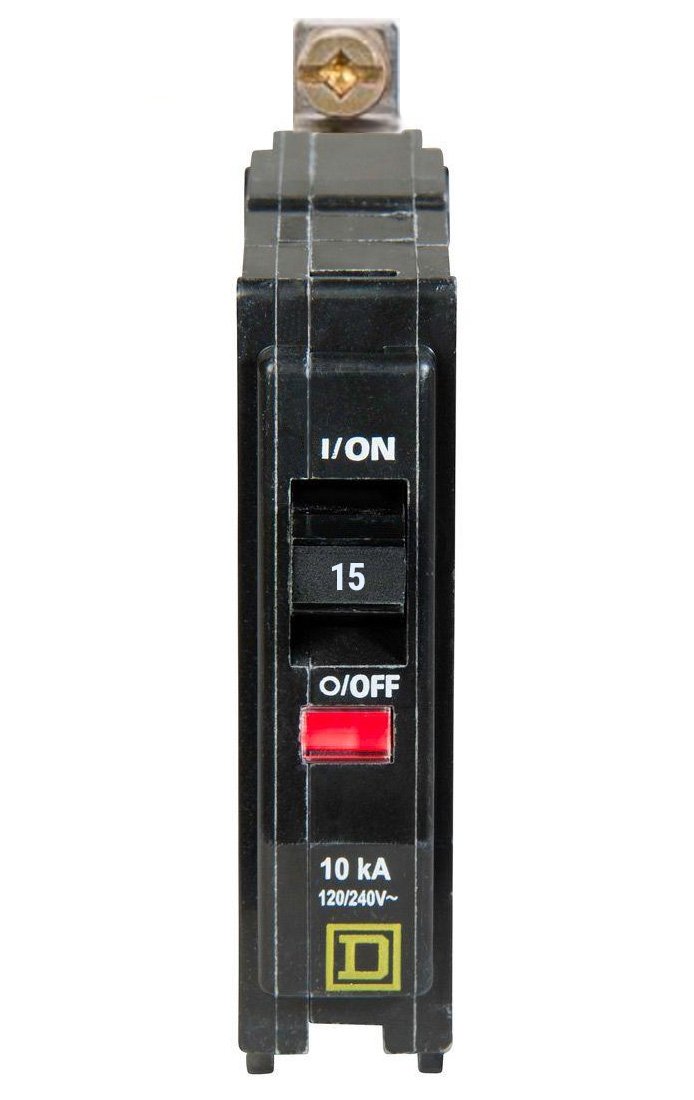

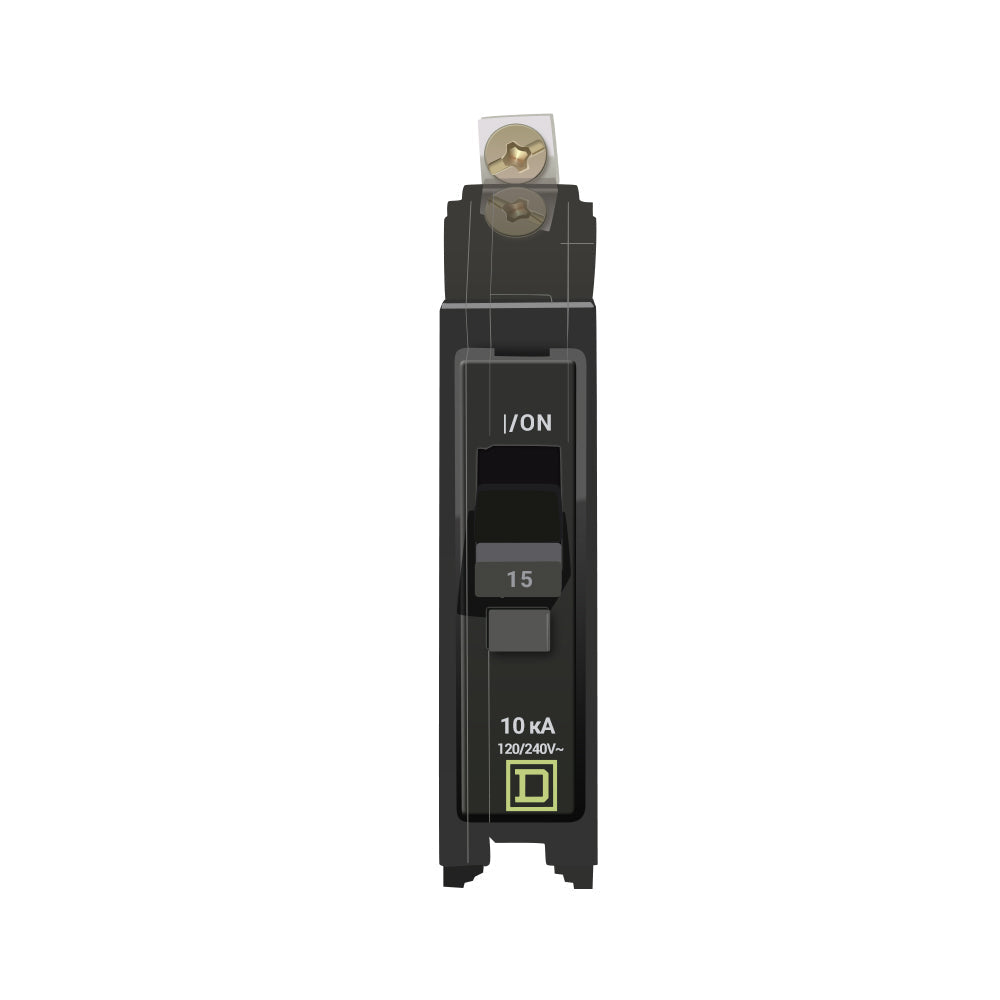

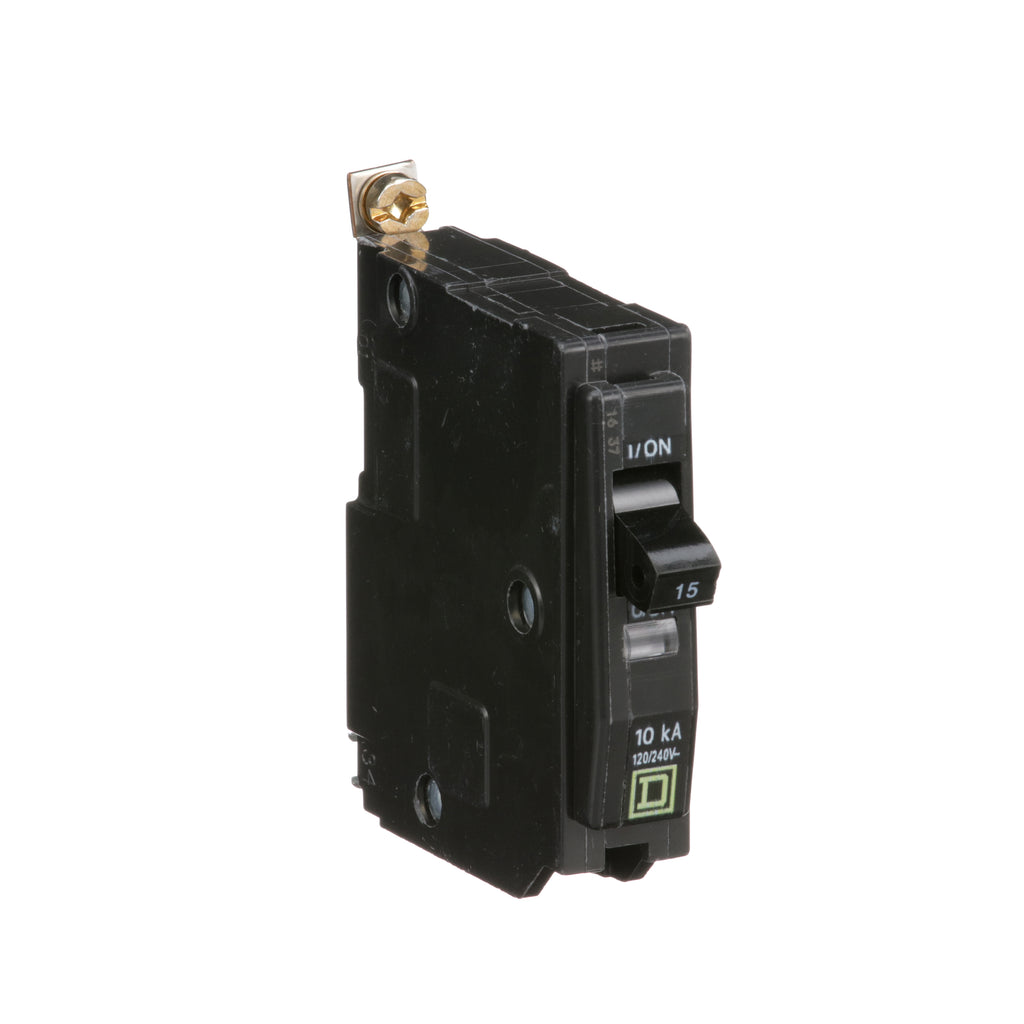

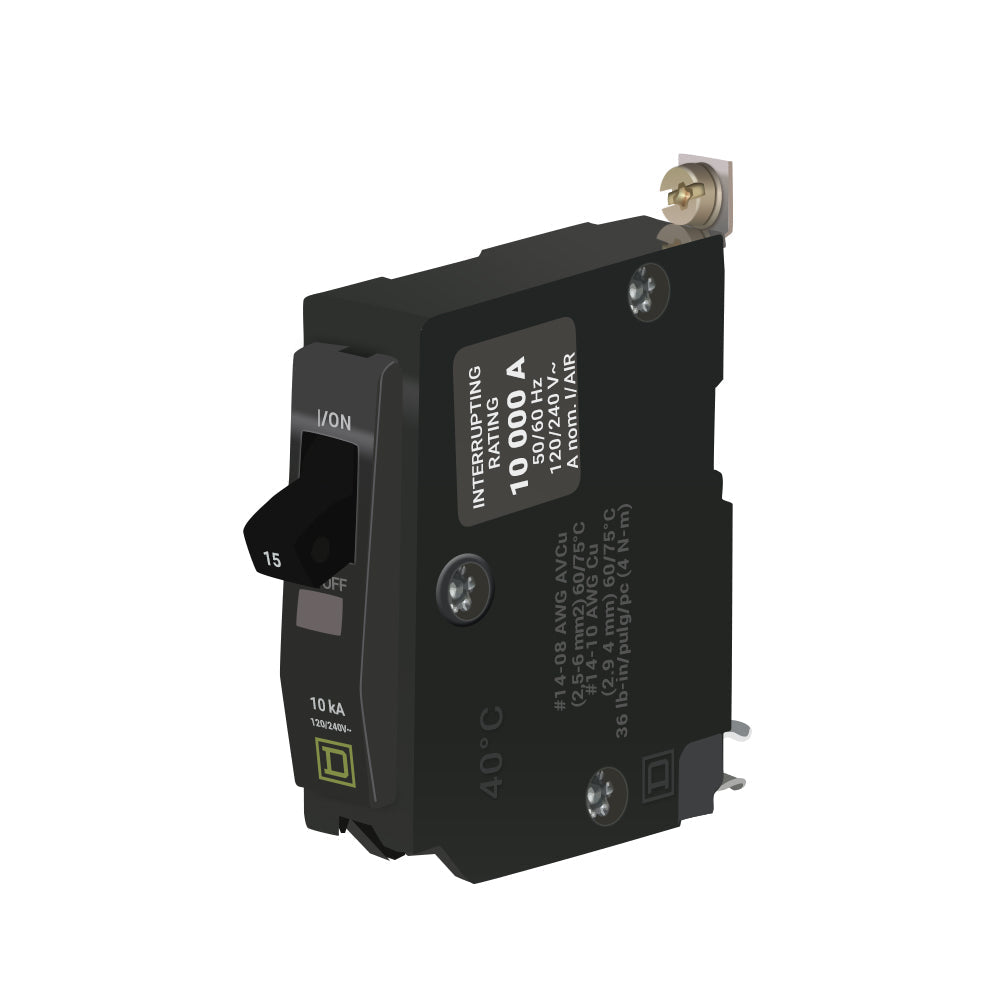

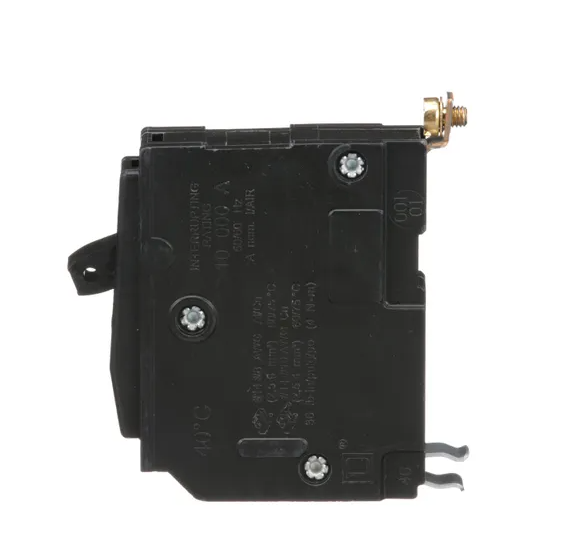

QOB115 - Square D 15A 1-Pole 120/240V Bolt-On Mini Circuit Breaker 10kA Interrupt Rating

QOB115

QOB115 is a Square D 15 Amp, 1 pole mini circuit breaker designed for 120/240 VAC applications with a bolt-on mounting type.This QO series circuit breaker features a 10 kA interrupt rating at 120/240 VAC and 5 kA at 48 VDC, providing reliable overload and short circuit protection. It supports wire sizes from AWG 14 to AWG 8 copper or aluminum and is HACR and UL listed for safety and performance.

• Amperage: 15 A
• Voltage Rating: 120/240 V AC, 48 V DC
• Number of Poles: 1
• Mounting Type: Bolt-on
• Interrupt Rating: 10 kA at 120/240 V AC, 5 kA at 48 V DC
• Series/Frame: QO
• Trip Unit: Thermal Magnetic
• Certifications: UL Listed, CSA
• Wire Size Range: AWG 14Ð8 copper or aluminum
• HACR and Switching Duty Rated
• Electrical Connection: Pressure plate

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: QOB115
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : QOB Series
• Type : QOB
• Voltage : 120/240VAC
• Amperage : 15
• Phase : 1
• Poles : 1
• AIC rating : 10kA@120V
• Connection : Bolt-On
• Functions : LI - Long-Time and Instantaneous
• Terminal Connection : Pressure Plate
• Frame Size : 100A/QO
• Temp Rating : Minimum Operating Temp 104 Degrees F Max. Operating Temp.104 Degrees F
• MCM Size : Min. Wire Size 14 AWG Max. Wire Size 8 AWG
• Breaker Type : Standard
• Protection : Thermal Magnetic

Product Data

• UPC : 785901416708
• GTIN : 00785901416708
• Country of Origin : United States
• Dimensions : 3.0 in (76 mm) x 0.7 in (19 mm) x 2.9 in (74 mm) (Height x Width x Depth)
• Weight : 0.281
• Panel Type : Square D NQOD Panelboards
• Standards : CSA, UL Listed
• Certification : UL Listed
• Wire Size : 14 to 8 AWG Aluminum, 14 to 10 AWG Copper
