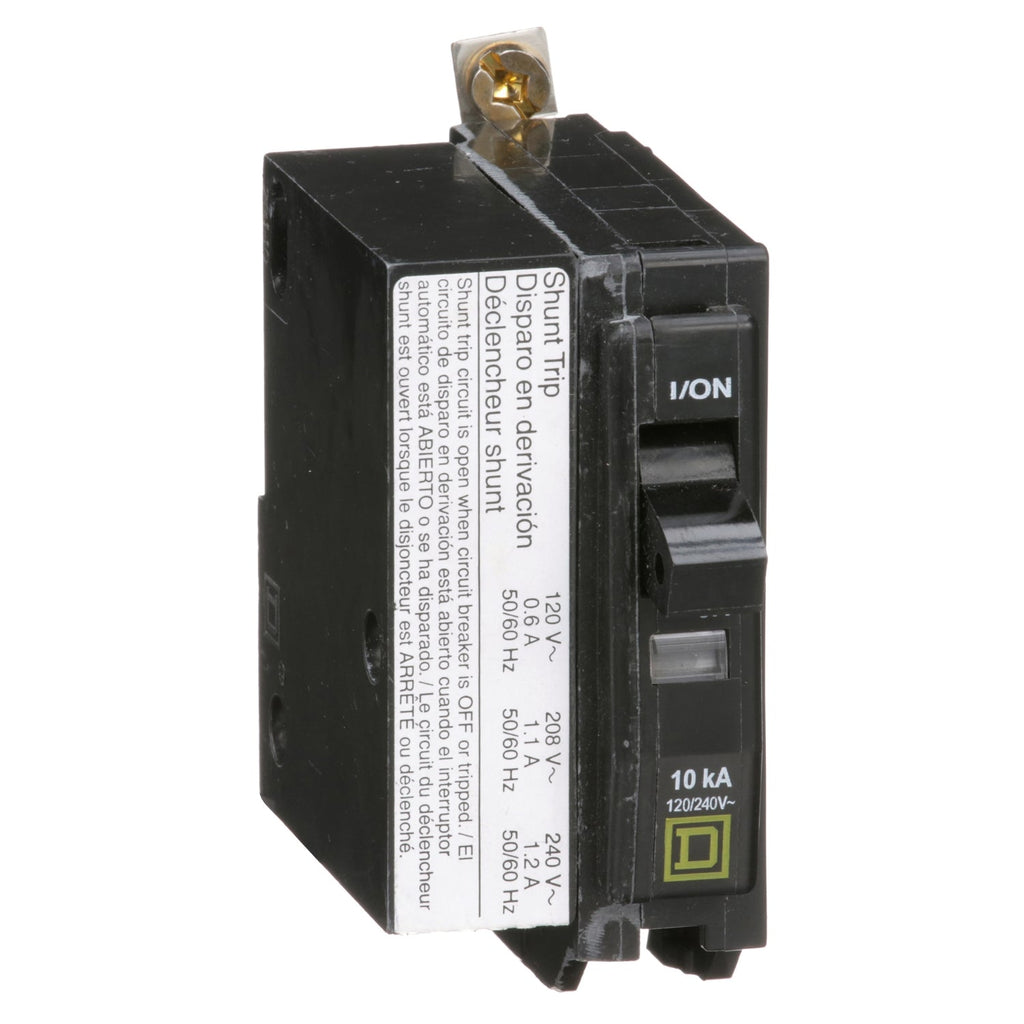

QOB1151021 - Square D 15A 120/240VAC 1 Pole Bolt-On Circuit Breaker with Shunt Trip 10kA

QOB1151021

QOB1151021 is a 1 pole, 15 amp, 120/240VAC bolt-on circuit breaker with shunt trip, designed for reliable overload and short circuit protection in load centers and panelboards.This Square D QOB Series breaker features thermal magnetic protection, box lug terminals, and a VISI-trip indicator for easy status monitoring. It is suitable for use in NQ panelboards and offers bolt-on mounting for secure installation. The breaker is UL Listed, CSA Certified, HACR Rated, and SWD Rated for versatile applications.

• Part Number: QOB1151021
• Manufacturer: Square D
• Series: QOB
• Mounting Type: Bolt-On
• Number of Poles: 1
• Amperage: 15A
• Voltage Rating: 120/240VAC, 48VDC
• Interrupt Rating: 10kA
• Shunt Trip: Yes
• Wire Size: 14-8 AWG Copper/Aluminum
• Certifications: UL Listed, CSA Certified, HACR Rated, SWD Rated
• Operating Temperature: 104¡F (40¡C)

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product e(more...)

Specifications

• Part Number: QOB1151021
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : QOB Series
• Type : QOB
• Voltage : 120/240VAC
• Amperage : 15
• Phase : 1
• Poles : 1
• AIC rating : 10kA@120V
• Connection : Bolt-On
• Functions : Long-Time and Instantaneous Trip
• Terminal Connection : Pressure Plate
• Frame Size : 100A/QO
• Temp Rating : -13‰ÛÒ158 å¡F (-25‰ÛÒ70 å¡C)
• MCM Size : Min. Wire Size 14 AWG Max. Wire Size 8 AWG
• Breaker Type : Shunt Trip
• Protection : Thermal Magnetic

Product Data

• UPC : 785901494188
• GTIN : 00785901494188
• Country of Origin : Mexico
• Dimensions : 3.0 in (76 mm) x 1.5 in (38 mm) x 2.9 in (74 mm) (Height x Width x Depth)
• Weight : 0.66
• Panel Type : Square D NQOD Panelboards
• Standards : CSA, UL Listed
• Certification : UL Listed
• Wire Size : AWG 14 to AWG 8, Copper/Aluminum
