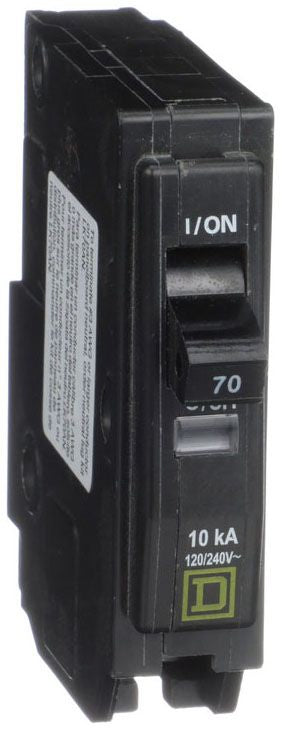

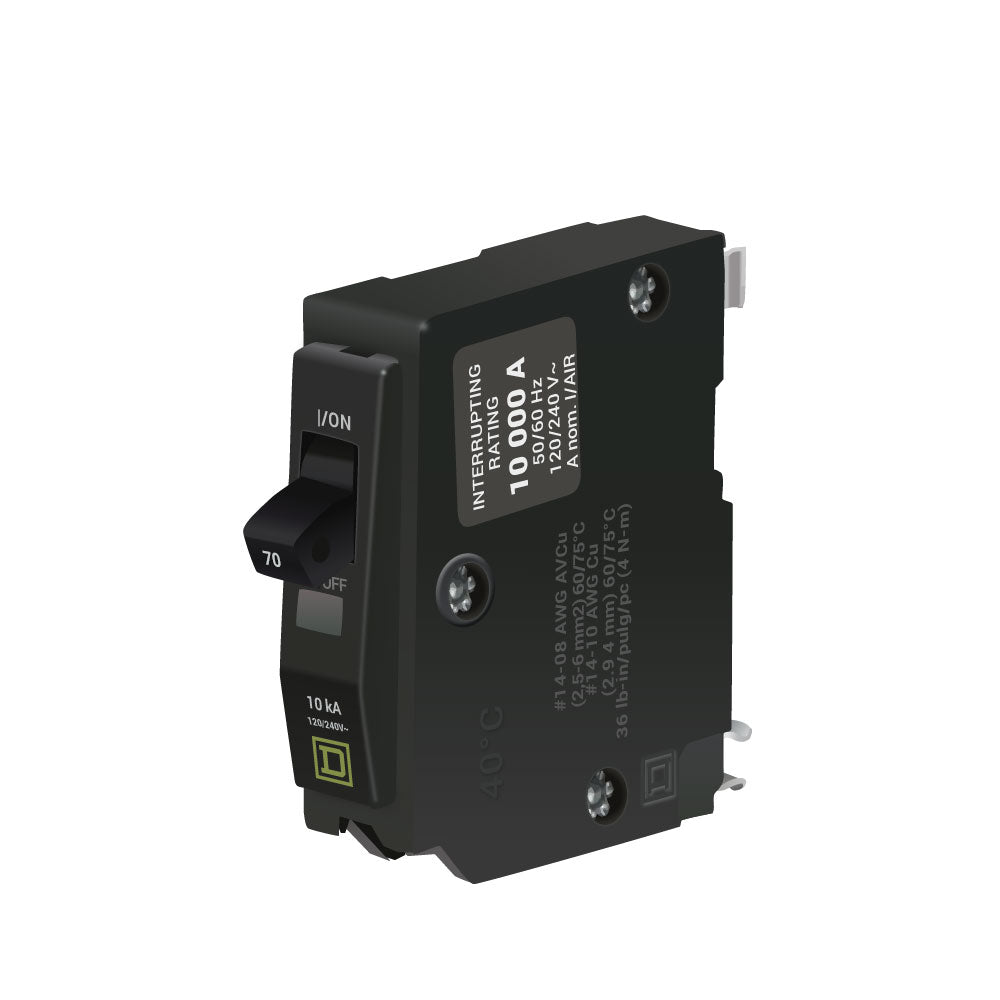

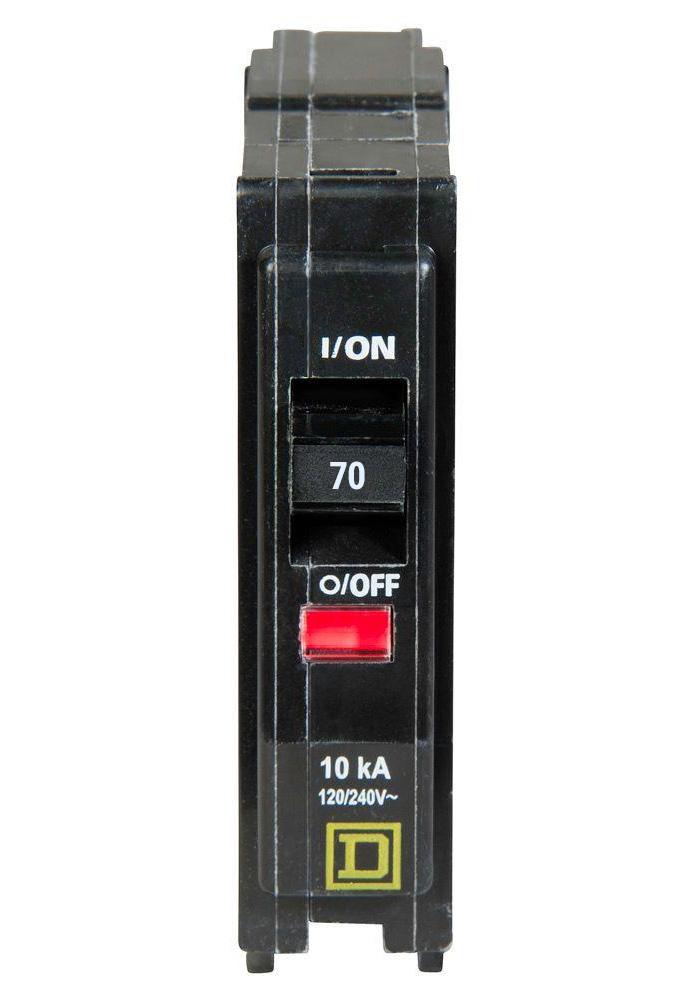

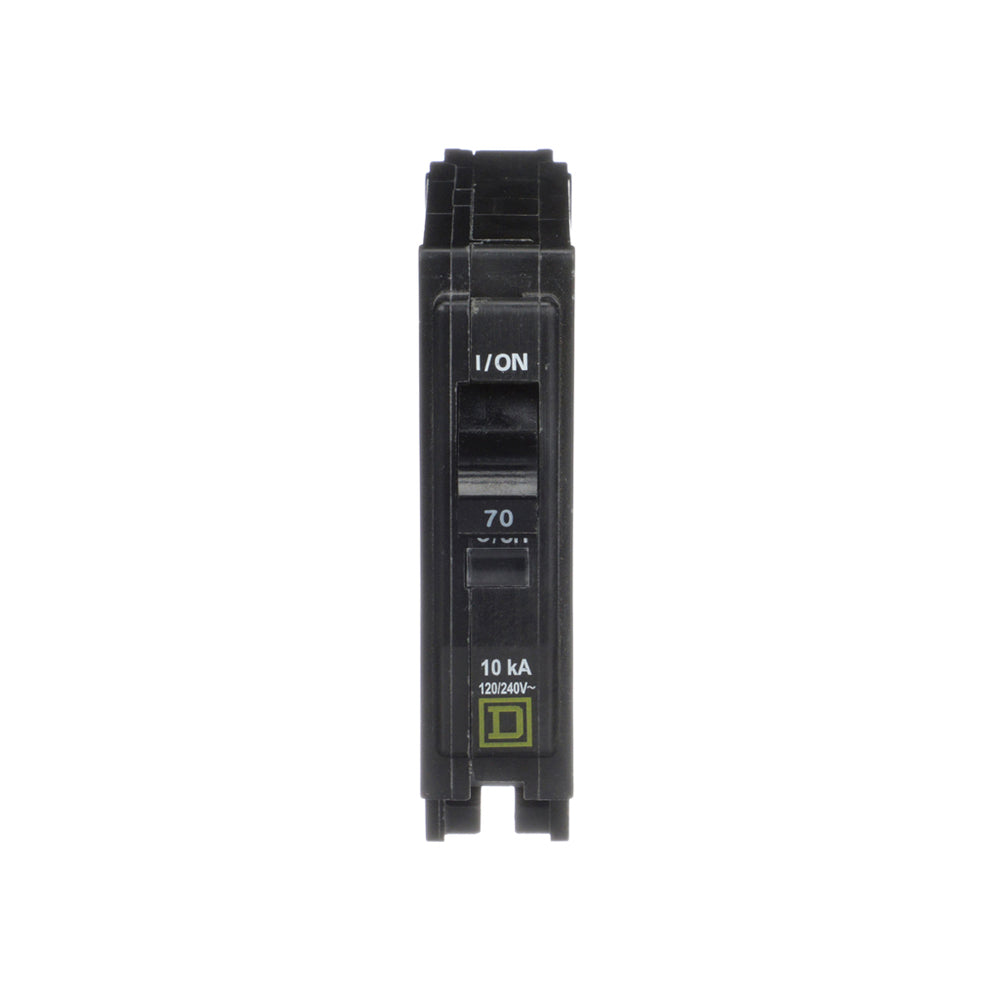

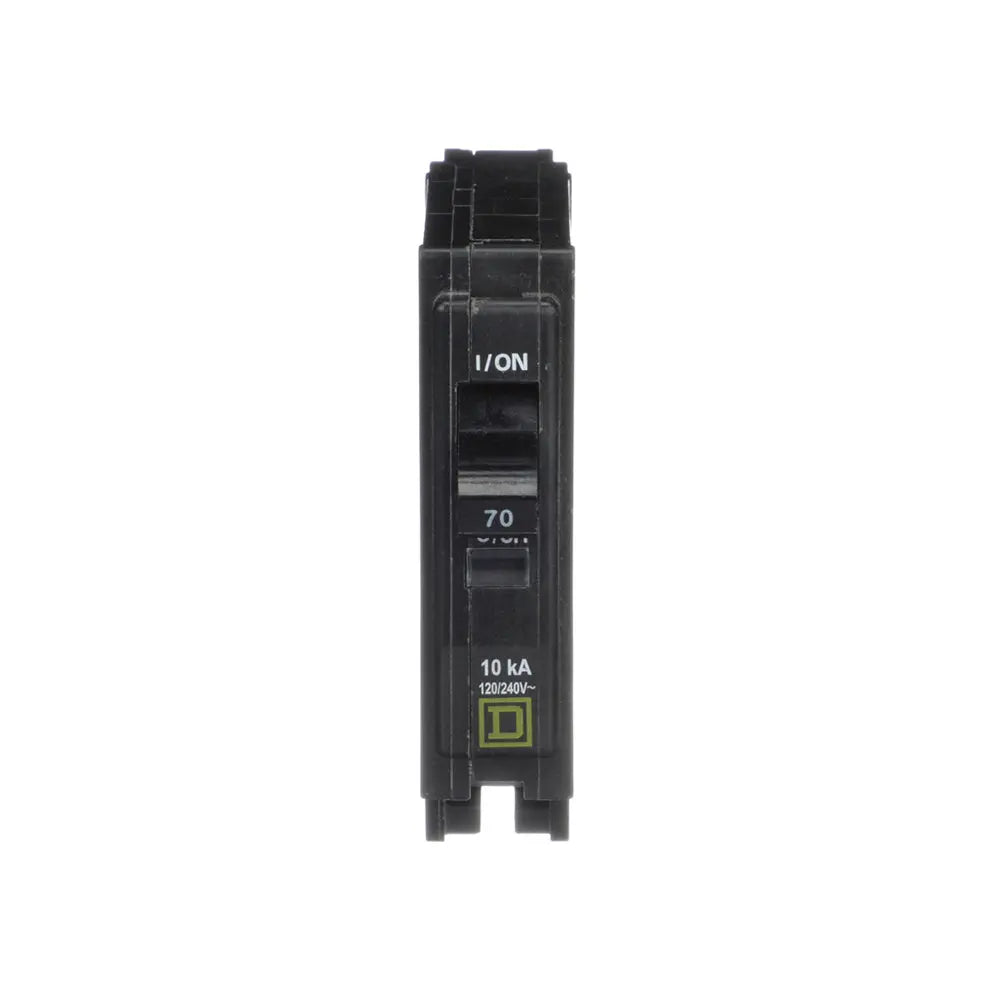

QO170 - Square D 70 Amp 1 Pole 120 Volt QO Series Circuit Breaker Plug-In

QO170

QO170 is a Square D 70 Amp 1 Pole 120 Volt circuit breaker designed for residential electrical protection.This QO Series miniature circuit breaker features a plug-in mounting type, thermal magnetic trip unit, and a 10,000 Amp interrupting rating at 120 Volts. It is CSA approved and UL listed for safety and reliability, compatible with Square D QO load centers and panelboards.

• Manufacturer: Square D (Schneider Electric)
• Type: QO Series
• Amperage: 70 Amp
• Voltage: 120 Volt
• Poles: 1 Pole
• Mounting Type: Plug-In
• Interrupt Rating: 10,000 Amps
• Trip Unit: Thermal Magnetic
• Phase: Single Phase
• Certifications: CSA Approved, UL Listed
• Dimensions: 3.5" H x 0.75" W x 3" L

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: QO170
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : QO SEries
• Type : QO
• Voltage : 120/240
• Amperage : 70
• Phase : 1
• Poles : 1
• AIC rating : 10kA@240V
• Connection : Plug-In
• Functions : LI - Long-Time and Instantaneous
• Terminal Connection : Lug
• Frame Size : 100A/QO
• Temp Rating : Minimum Operating Temp 104 Degrees F Max. Operating Temp.104 Degrees F
• MCM Size : Min. Wire Size 8 AWG Max. Wire Size 2 AWG
• Breaker Type : Standard
• Protection : Thermal Magnetic

Product Data

• UPC : 785901477471
• GTIN : 00785901477471
• Country of Origin : Mexico
• Dimensions : 3.1 in (79 mm) x 0.7 in (19 mm) x 2.9 in (74 mm) (Height x Width x Depth)
• Weight : 0.311
• Panel Type : QO Load Centers and NQ Panelboards
• Standards : CSA Certified, HACR, UL Listed
• Certification : HACR, UL Listed
