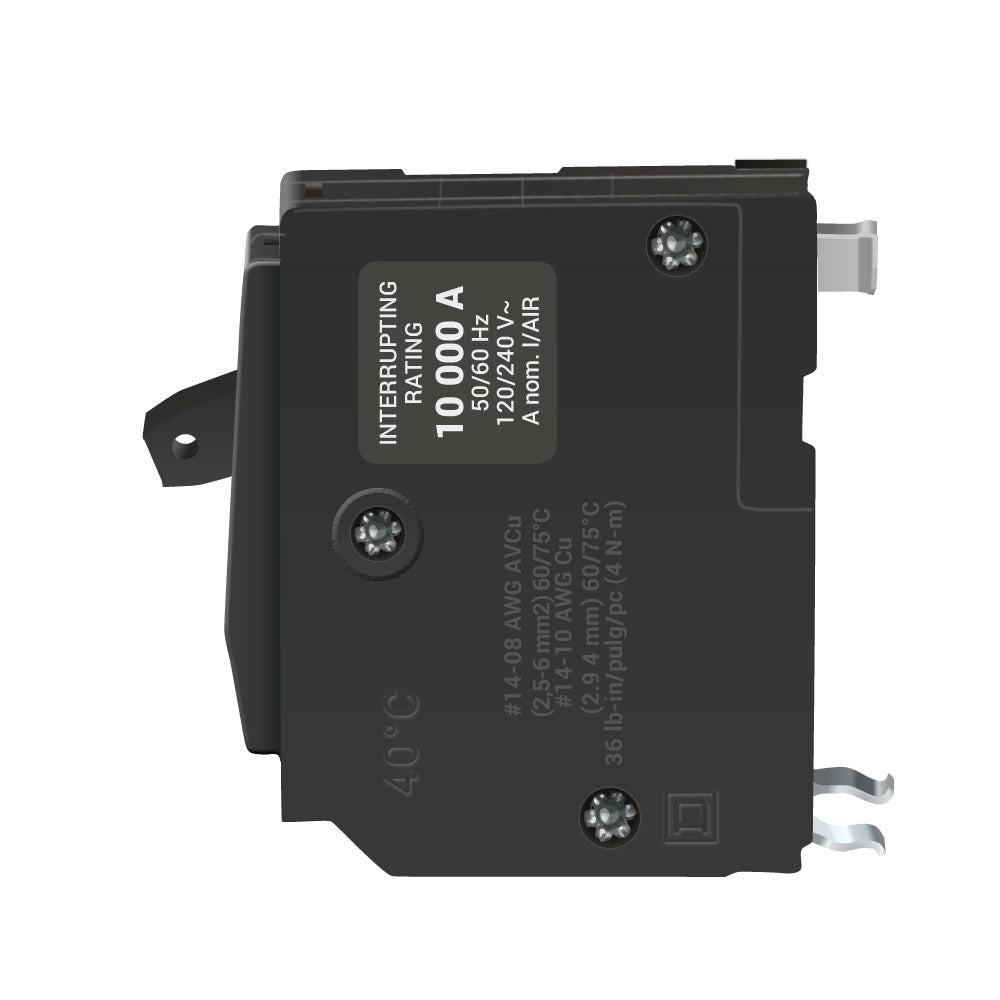

QO160 - Square D 60A 1-Pole 120/240V Plug-On Circuit Breaker QO Series

QO160

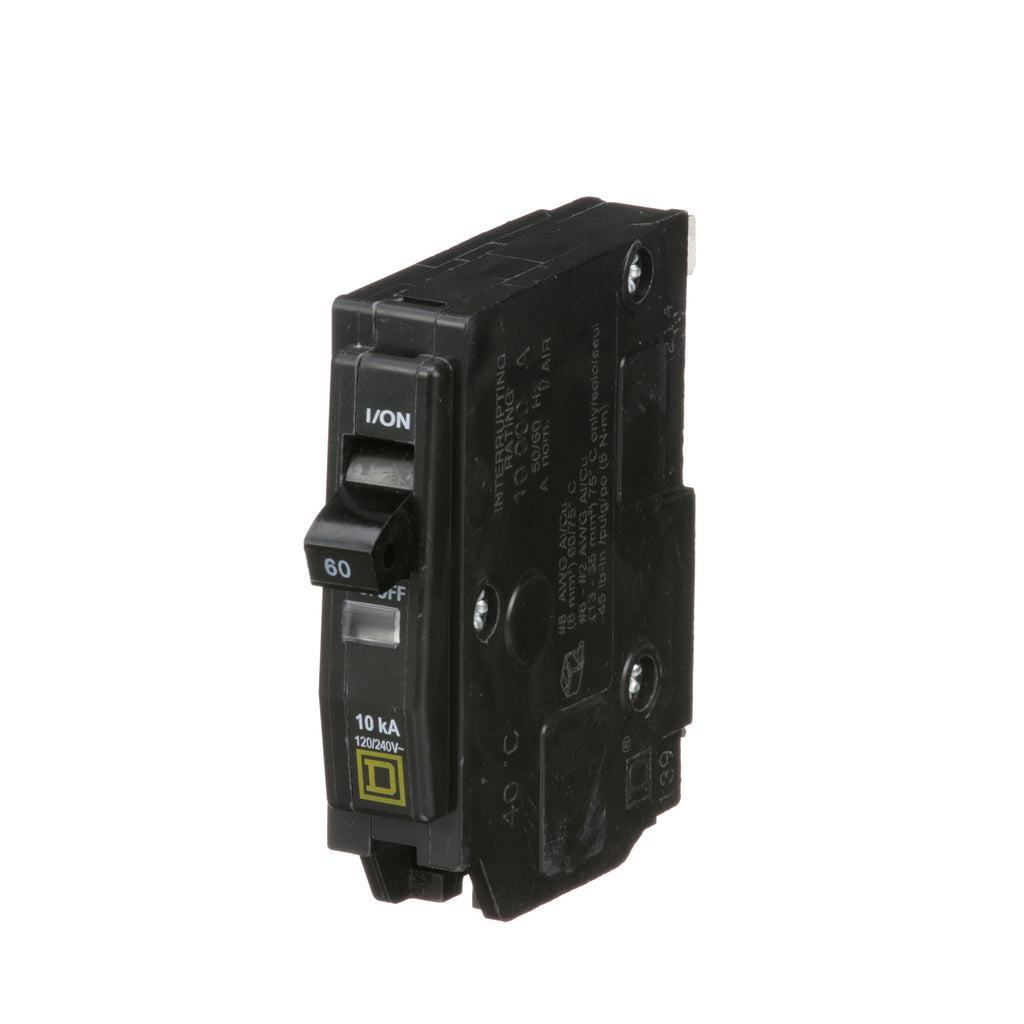

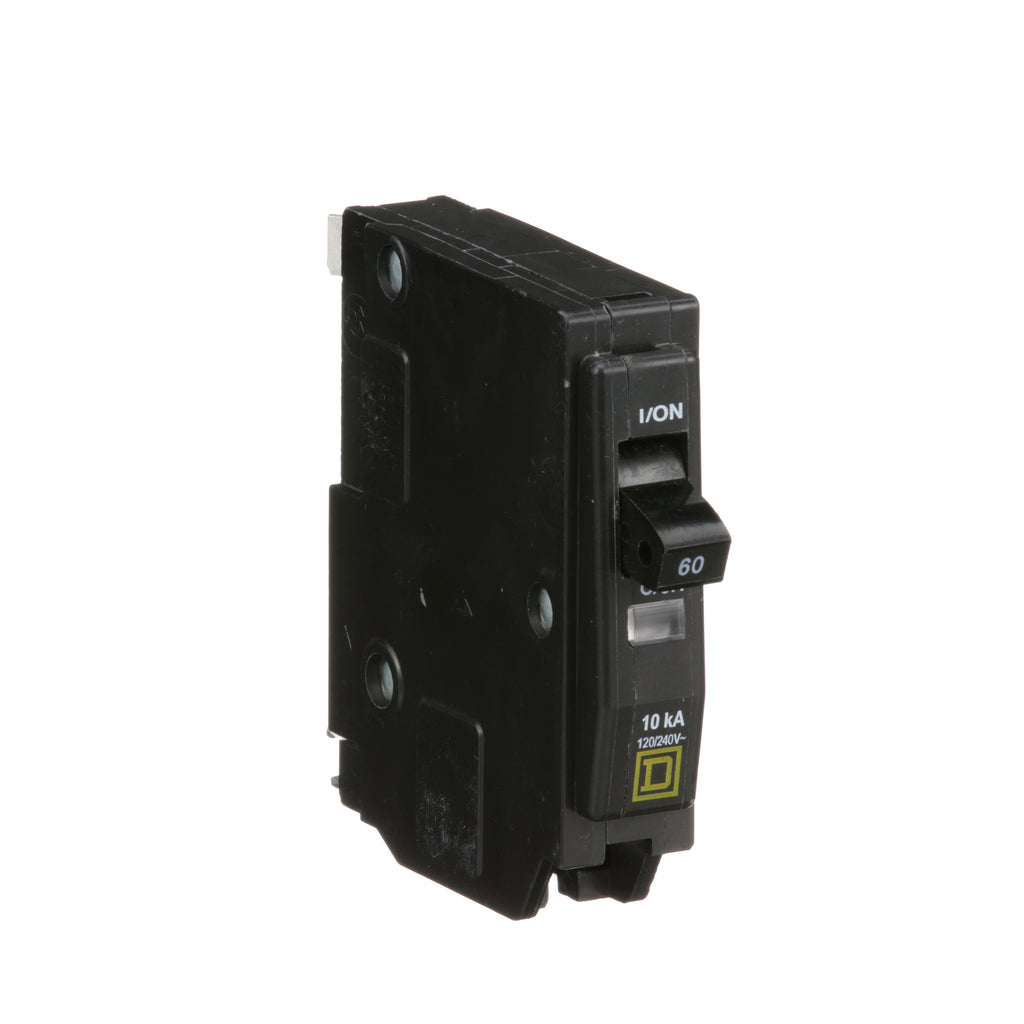

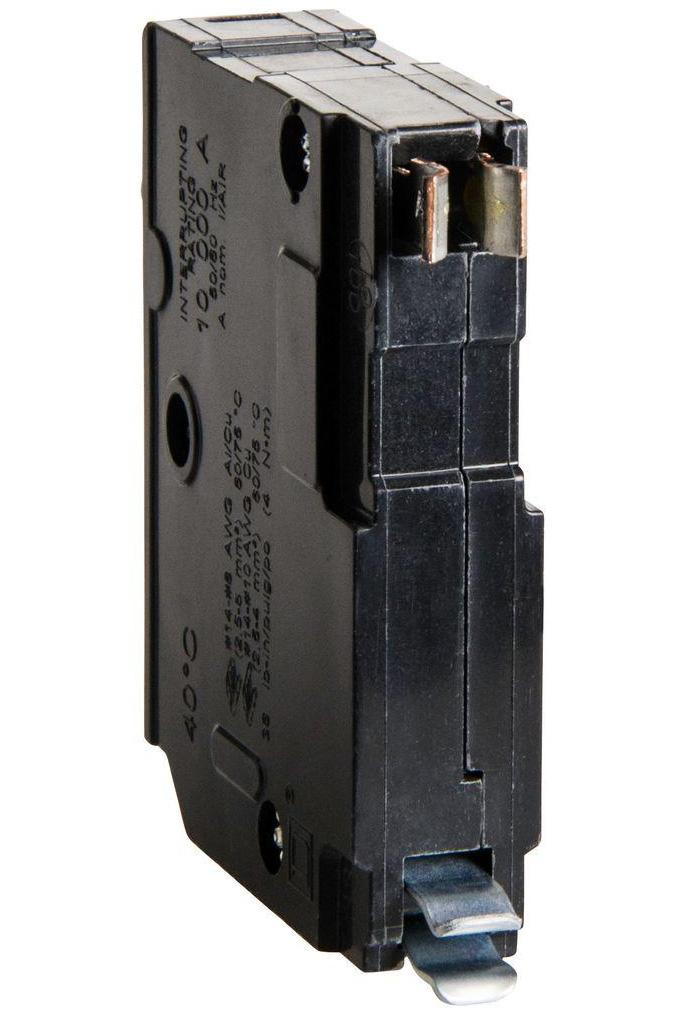

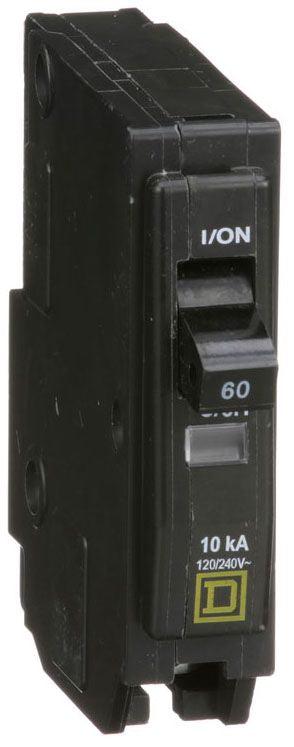

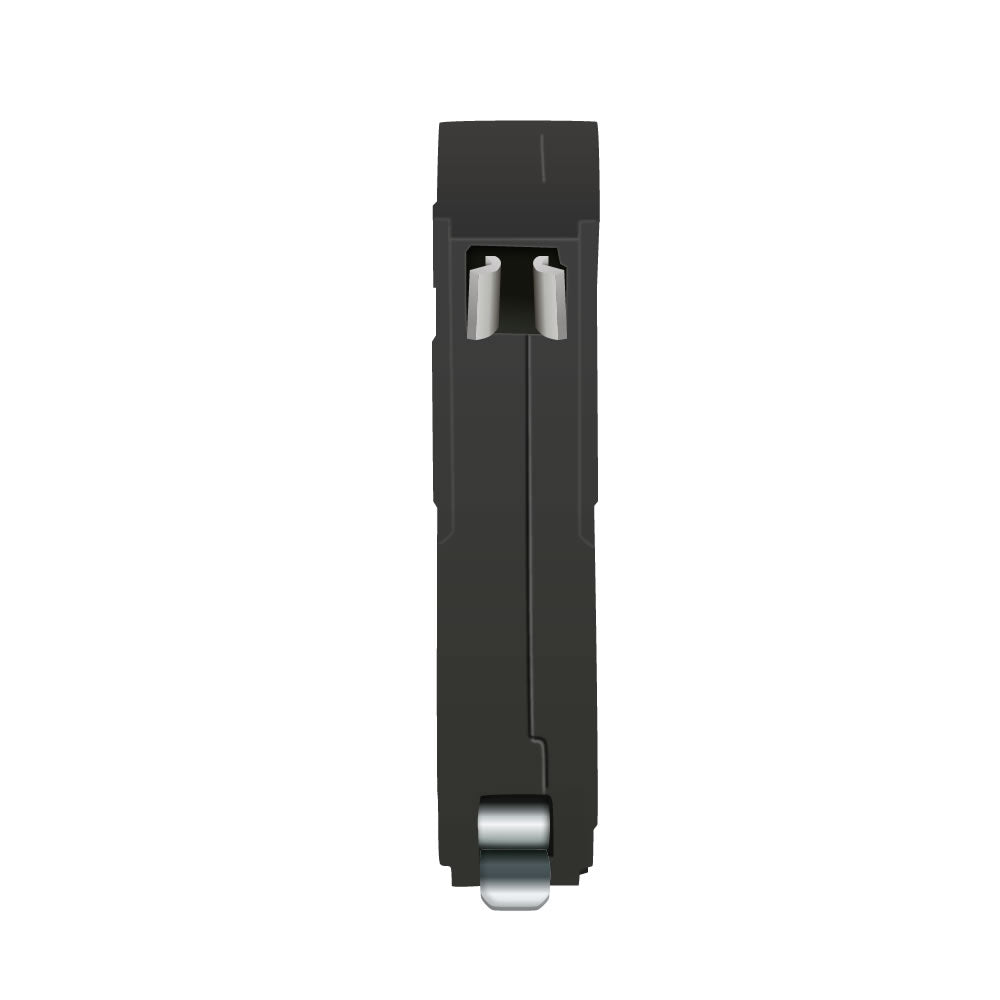

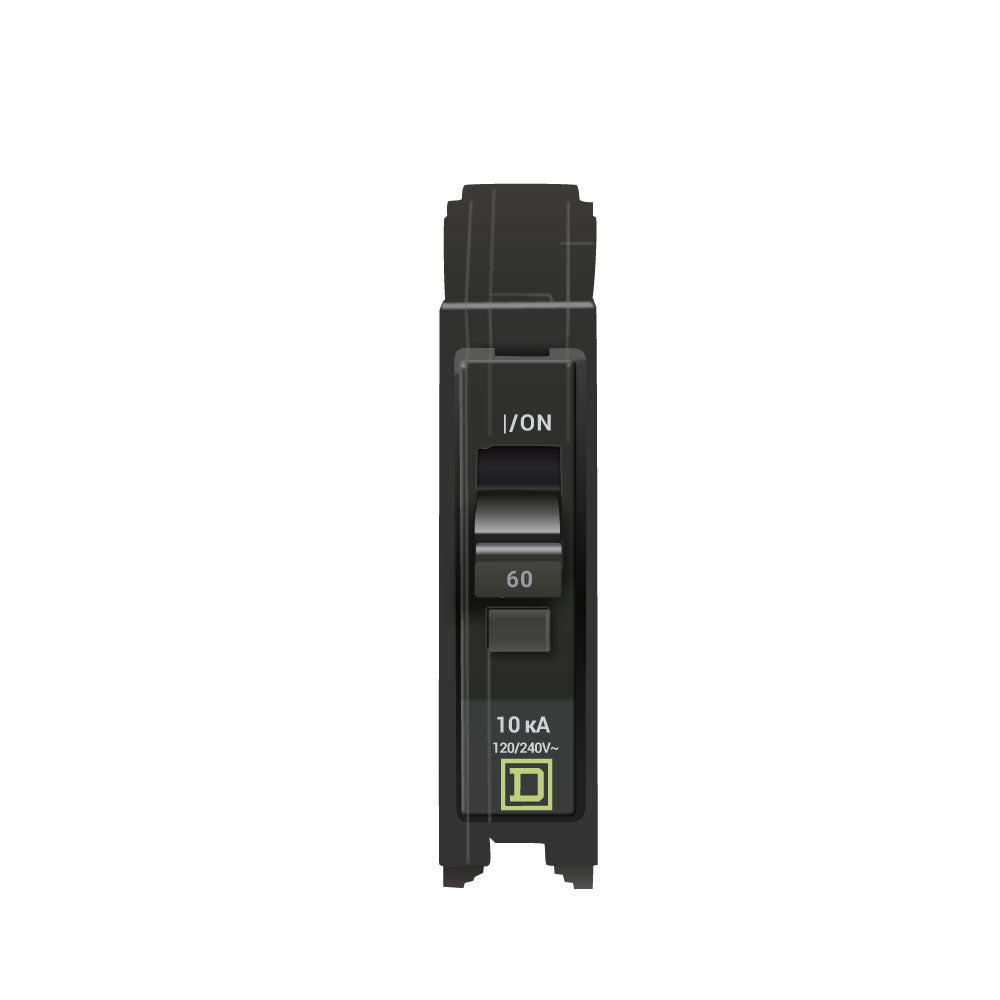

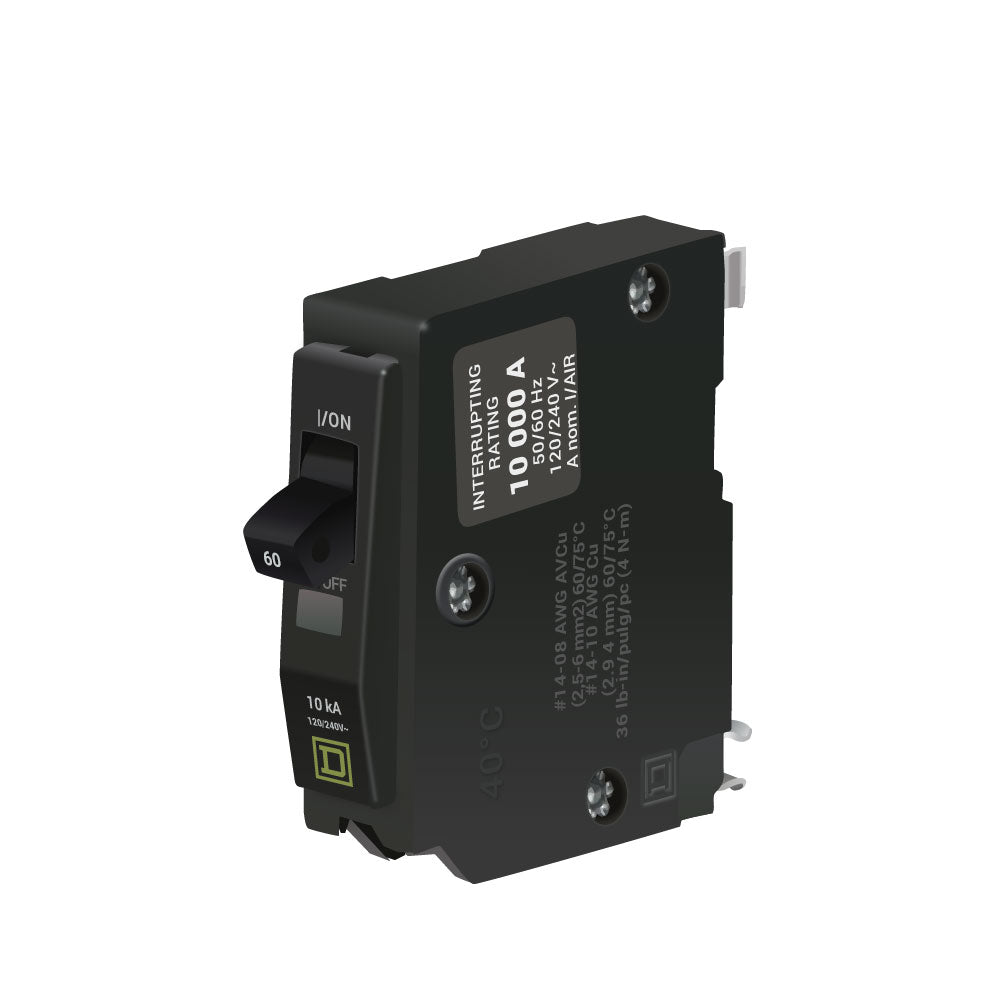

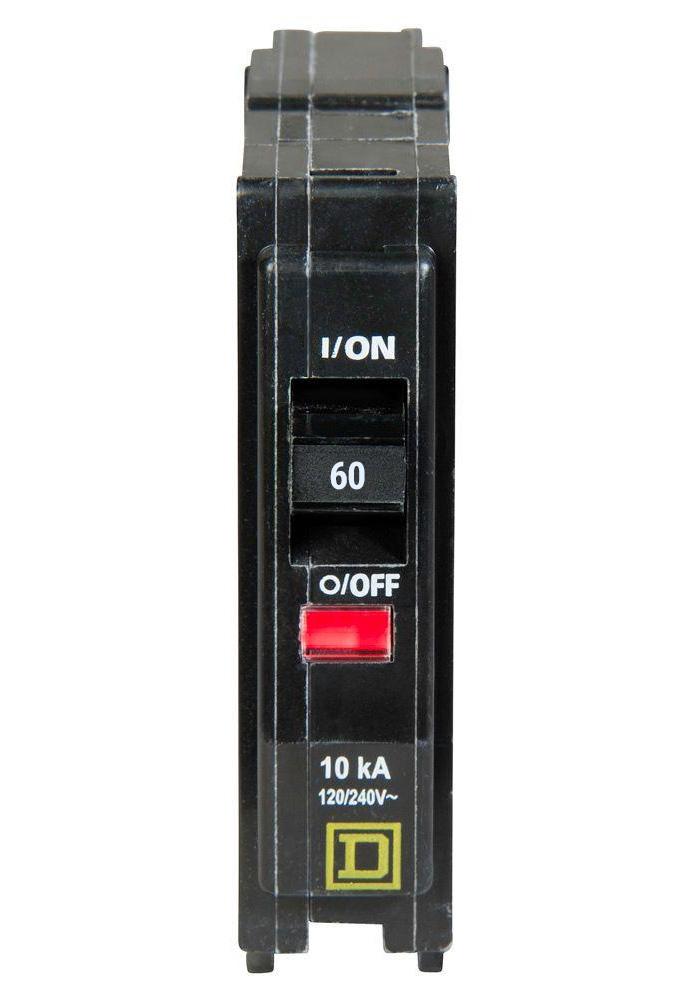

QO160 is a Square D 1-pole circuit breaker rated for 60 amps and 120/240 volts AC, designed for plug-on mounting in QO load centers.This QO series miniature circuit breaker features a thermal magnetic trip unit, providing reliable overcurrent protection with a 10kA interrupting rating at 120/240VAC. It is UL listed and compatible with QO load centers and NQ panelboards, offering a compact design for fast installation.

• Manufacturer: Square D
• Series: QO
• Amperage: 60A
• Voltage Rating: 120/240VAC
• Poles: 1
• Mounting Type: Plug-On
• Interrupt Rating: 10kA at 120/240VAC
• Trip Unit: Thermal Magnetic
• Phase: Single
• UL Listed
• Compatible with QO Load Centers and NQ Panelboards

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: QO160
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : QO SEries
• Type : QO
• Voltage : 120/240
• Amperage : 60
• Phase : 1
• Poles : 1
• AIC rating : 10kA@240V
• Connection : Plug-In
• Functions : LI - Long-Time and Instantaneous Trip
• Terminal Connection : Lug
• Frame Size : 100A/QO
• Temp Rating : -13–158 °F (-25–70 °C)
• MCM Size : Min. Wire Size 8 AWG Max. Wire Size 2 AWG
• Breaker Type : Standard
• Protection : Thermal Magnetic

Product Data

• UPC : 785901477464
• GTIN : 00785901477464
• Country of Origin : Mexico
• Dimensions : 3.1 in (79 mm) x 0.7 in (19 mm) x 2.9 in (74 mm) (Height x Width x Depth)
• Weight : 0.313
• Panel Type : QO Load Centers and NQ Panelboards
• Standards : CSA Certified, HACR, UL Listed
• Certification : HACR, UL Listed
• Wire Size : AWG 8 to AWG 2 Copper or Aluminum
