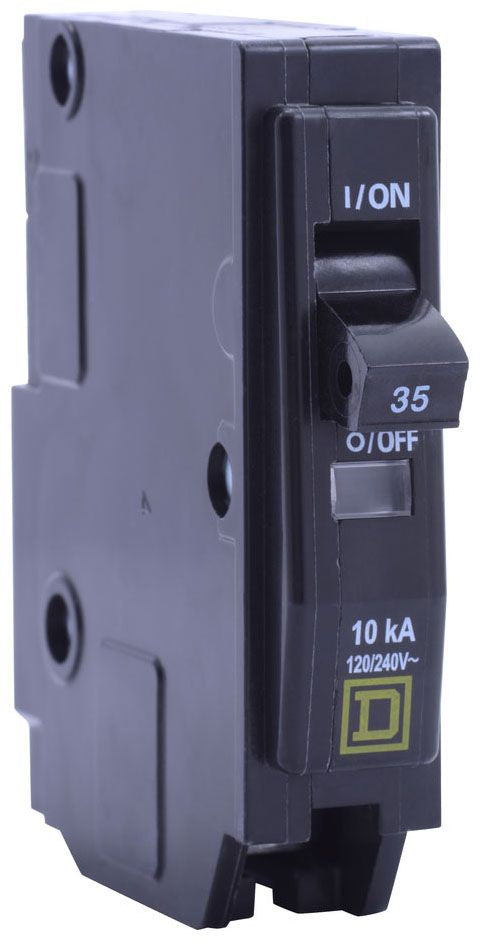

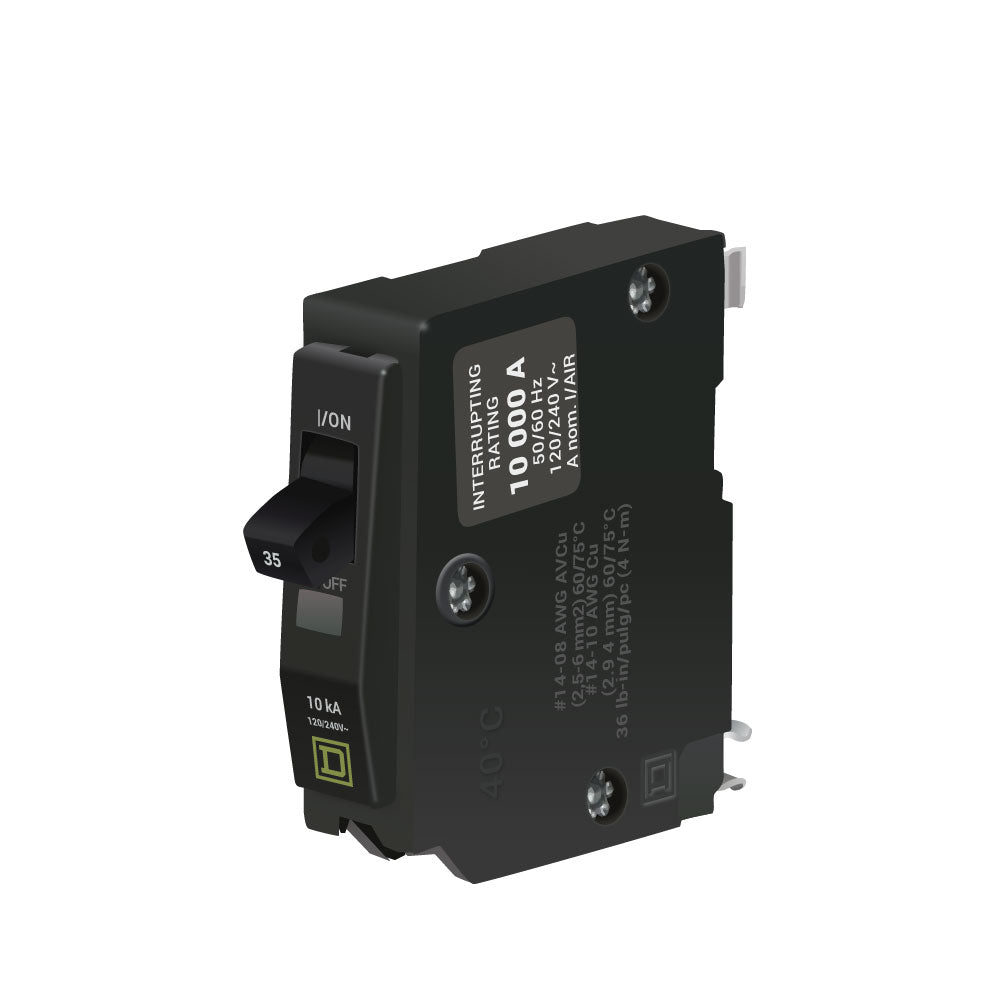

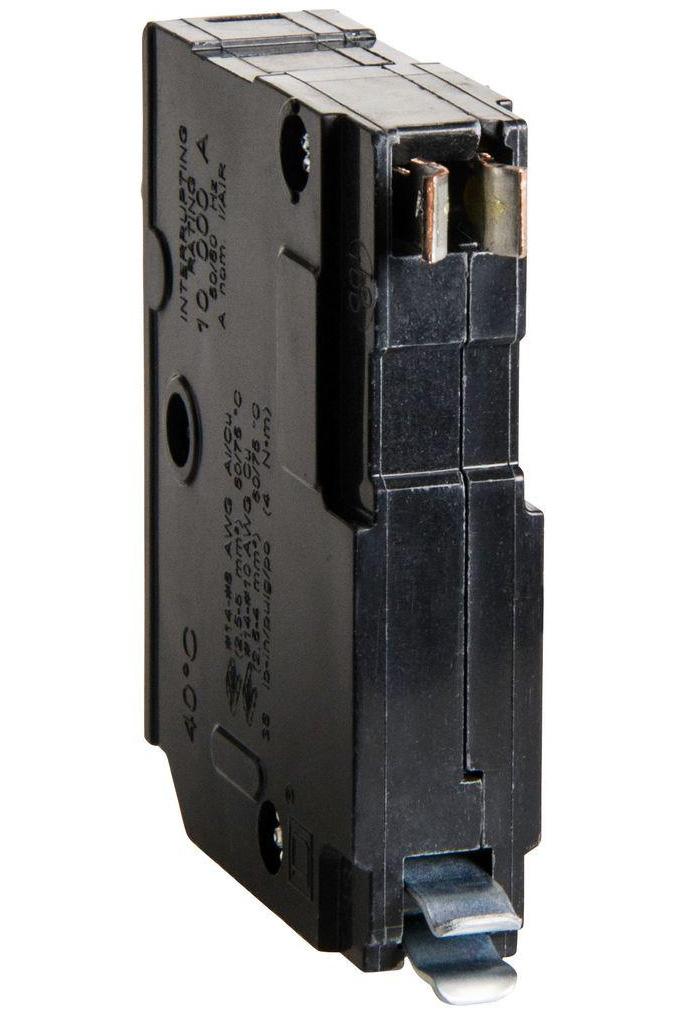

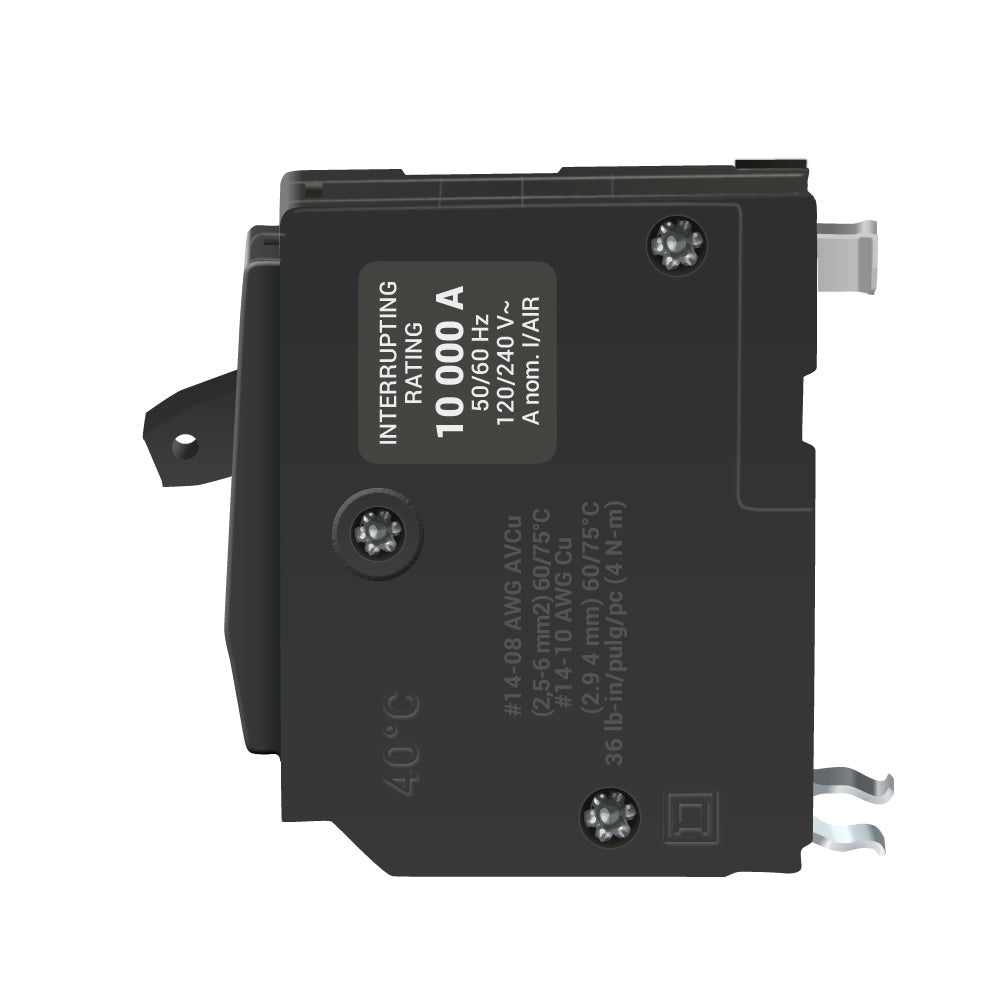

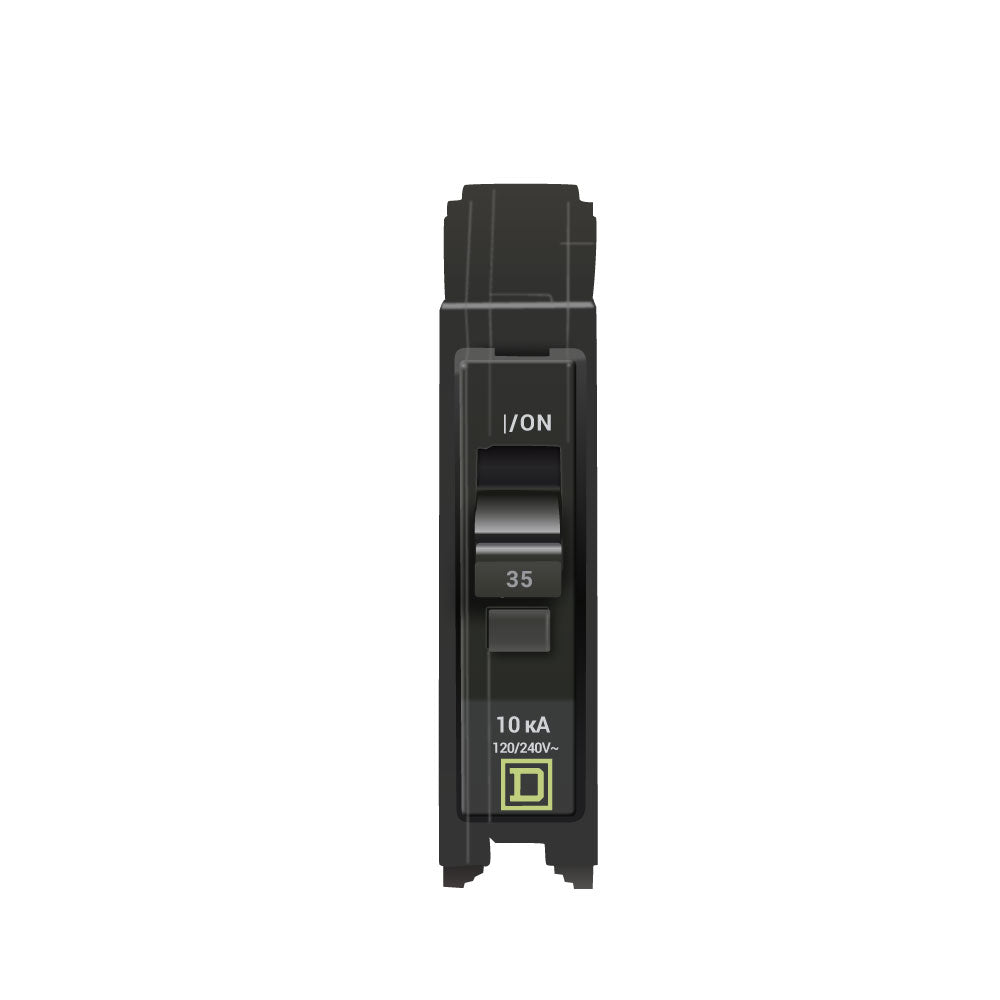

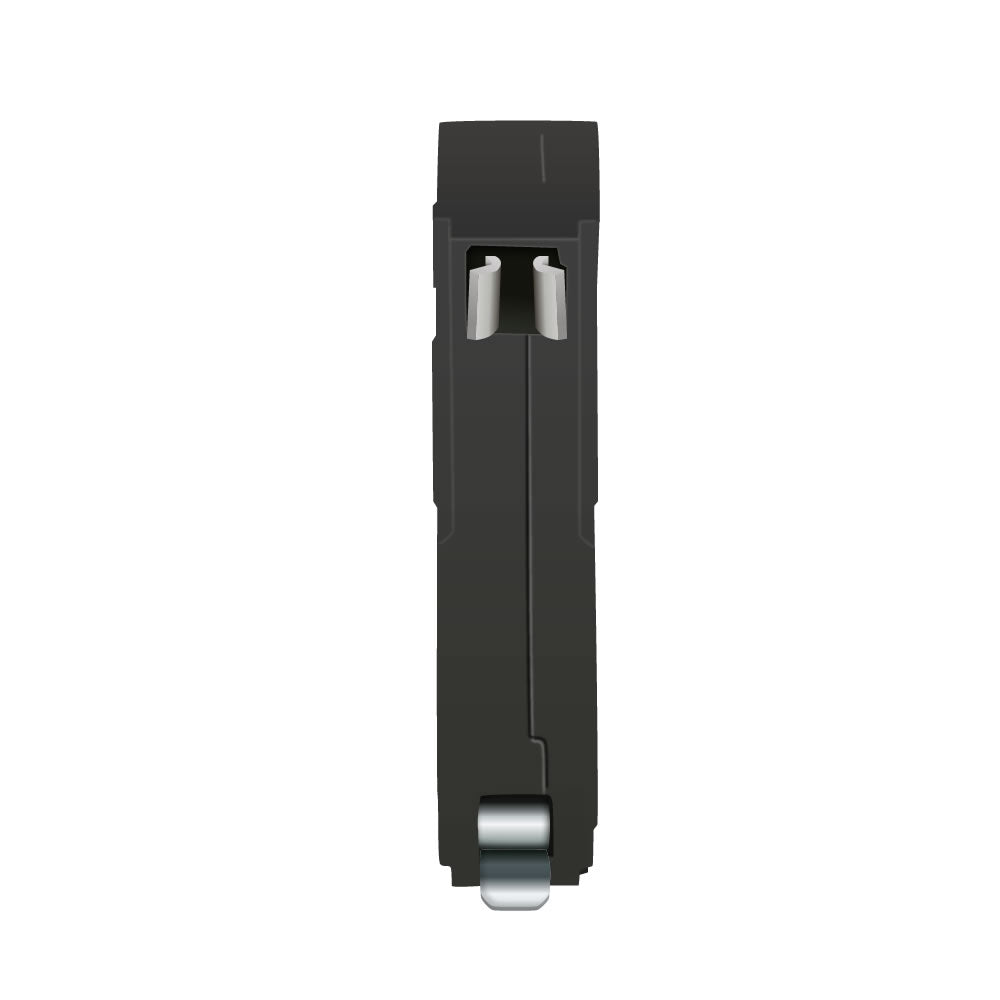

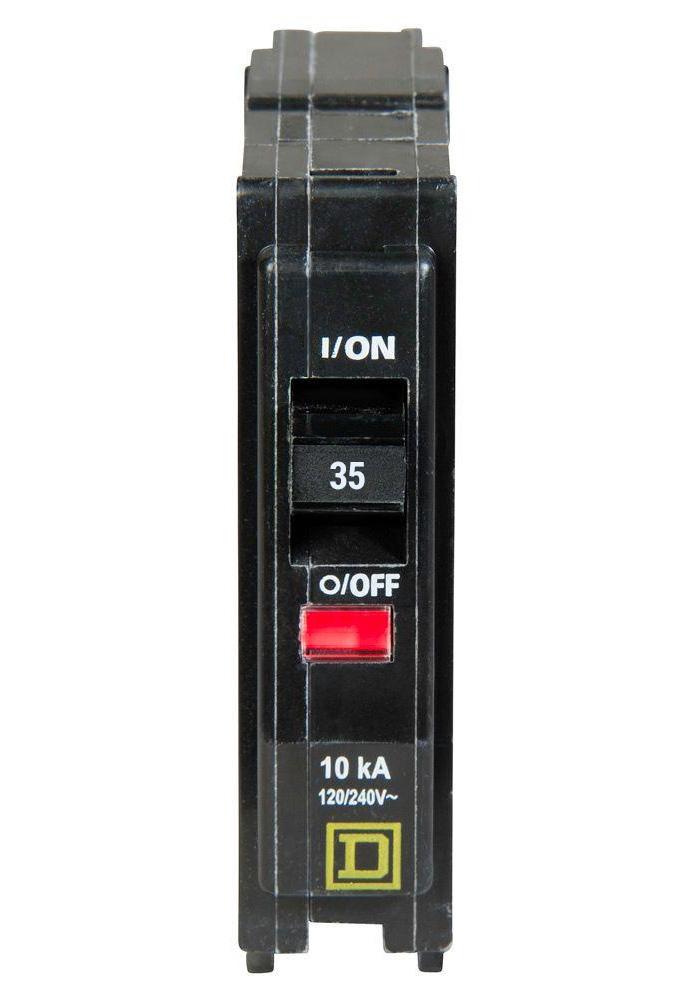

QO135 - Square D 35 Amp 120/240V 1 Pole Circuit Breaker QO Series Plug-In

QO135

QO135 is a Square D 35 Amp, 1 Pole circuit breaker designed for 120/240 Volt applications in QO series load centers.This miniature circuit breaker features a thermal magnetic trip unit, plug-in mounting, and a 10,000 Amp interrupt rating at 120VAC. It is UL listed and CSA approved for residential and light commercial electrical protection.

• Amperage: 35 Amp
• Voltage: 120/240 Volt AC
• Number of Poles: 1 Pole
• Mounting Type: Plug-In
• Interrupt Rating: 10,000 Amps at 120VAC
• Series/Frame: QO
• Trip Unit: Thermal Magnetic
• Terminal Connection: Lugs
• Compatible with Square D QO Load Centers
• Certifications: UL Listed, CSA Approved
• Dimensions: Approx. 3.11" H x 0.75" W x 2.91" D

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: QO135
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : QO SEries
• Type : QO
• Voltage : 120/240
• Amperage : 35
• Phase : 1
• Poles : 1
• AIC rating : 10kA@240V
• Connection : Plug-In
• Functions : LI - Long-Time and Instantaneous Trip
• Terminal Connection : Lug
• Frame Size : 100A/QO
• Temp Rating : -13–158 °F (-25–70 °C)
• MCM Size : Min. Wire Size 8 AWG Max. Wire Size 2 AWG
• Breaker Type : Standard
• Protection : Thermal Magnetic

Product Data

• UPC : 785901010609
• GTIN : 00785901010609
• Country of Origin : Mexico
• Dimensions : 3.1 in (79 mm) x 0.7 in (19 mm) x 2.9 in (74 mm) (Height x Width x Depth)
• Weight : 0.28
• Panel Type : QO Load Centers and NQ Panelboards
• Standards : CSA Certified, HACR, UL Listed
• Certification : HACR, UL Listed
• Wire Size : AWG 8 to AWG 2, Cu/Al
