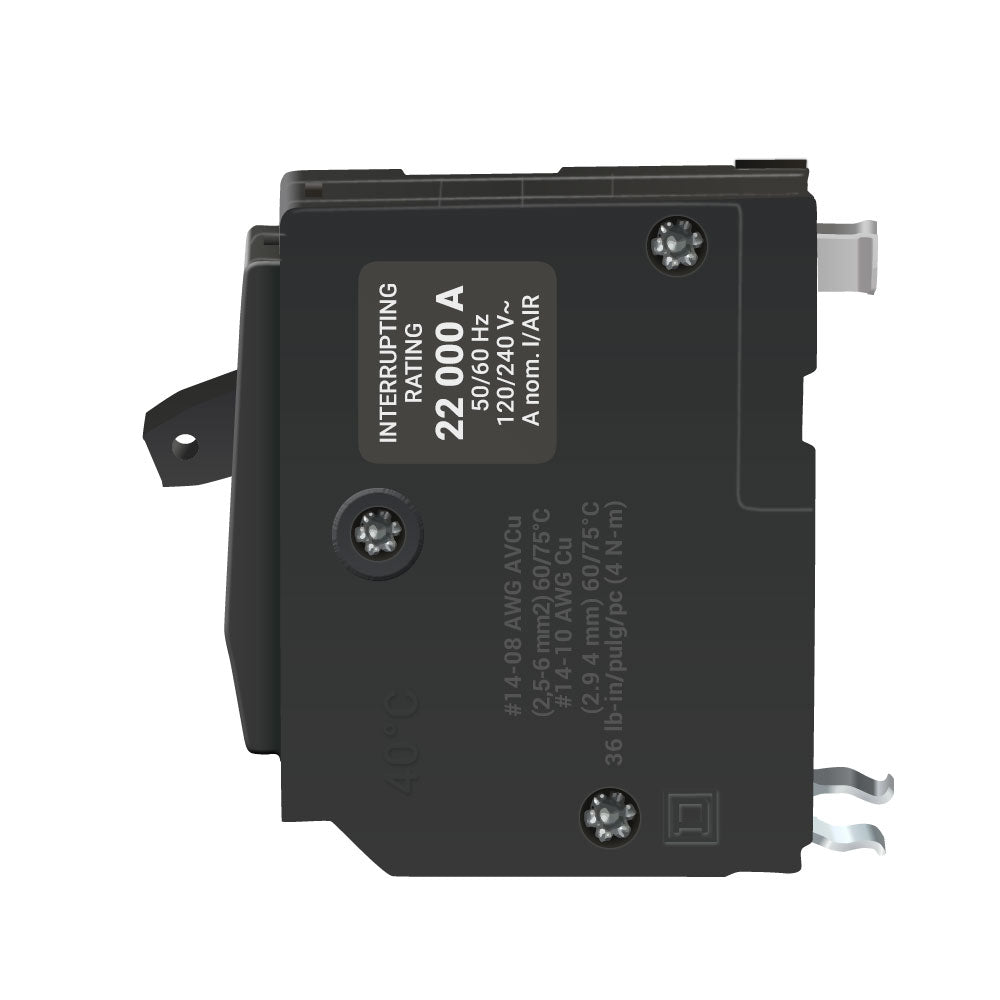

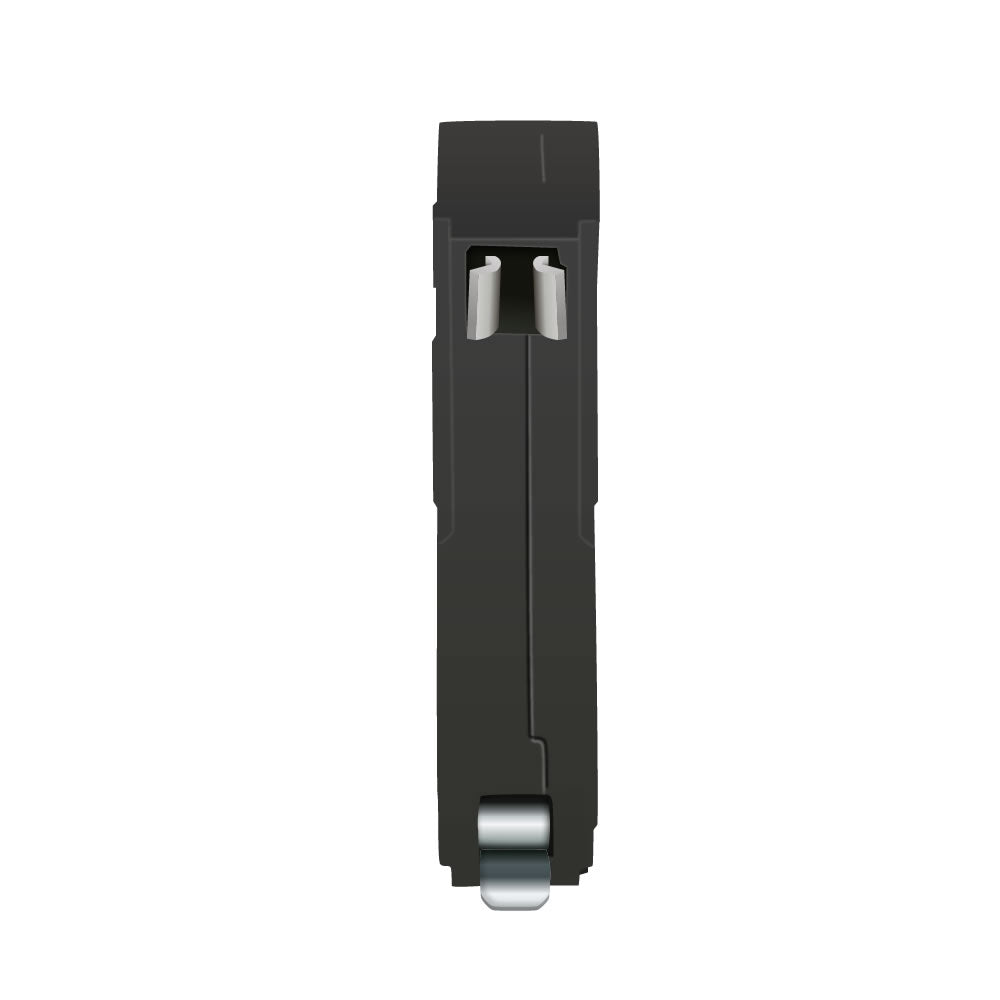

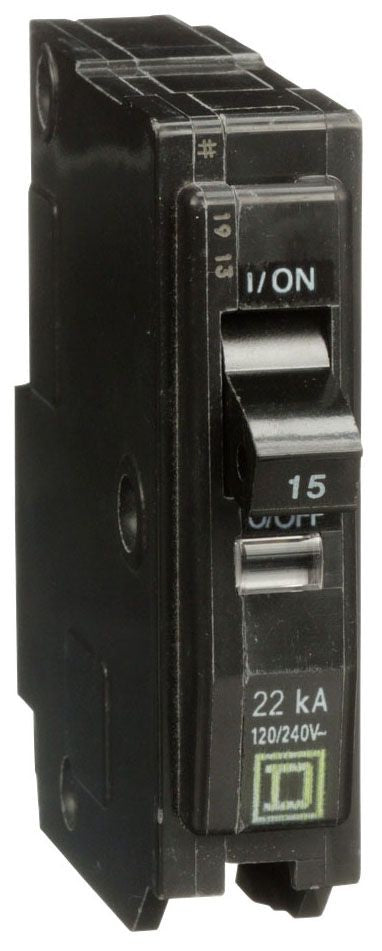

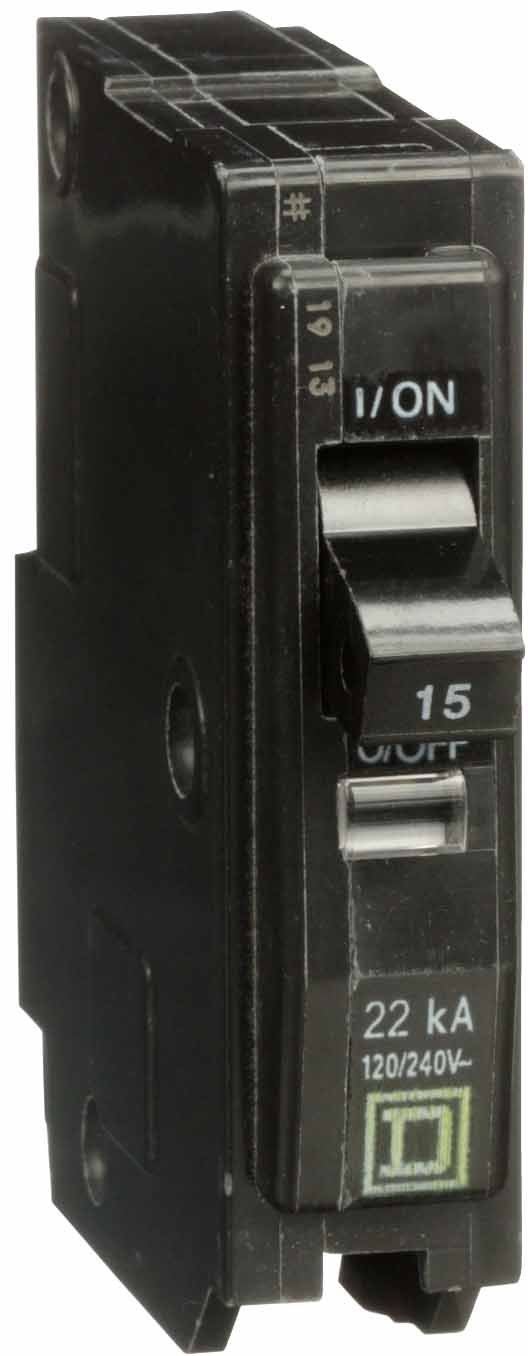

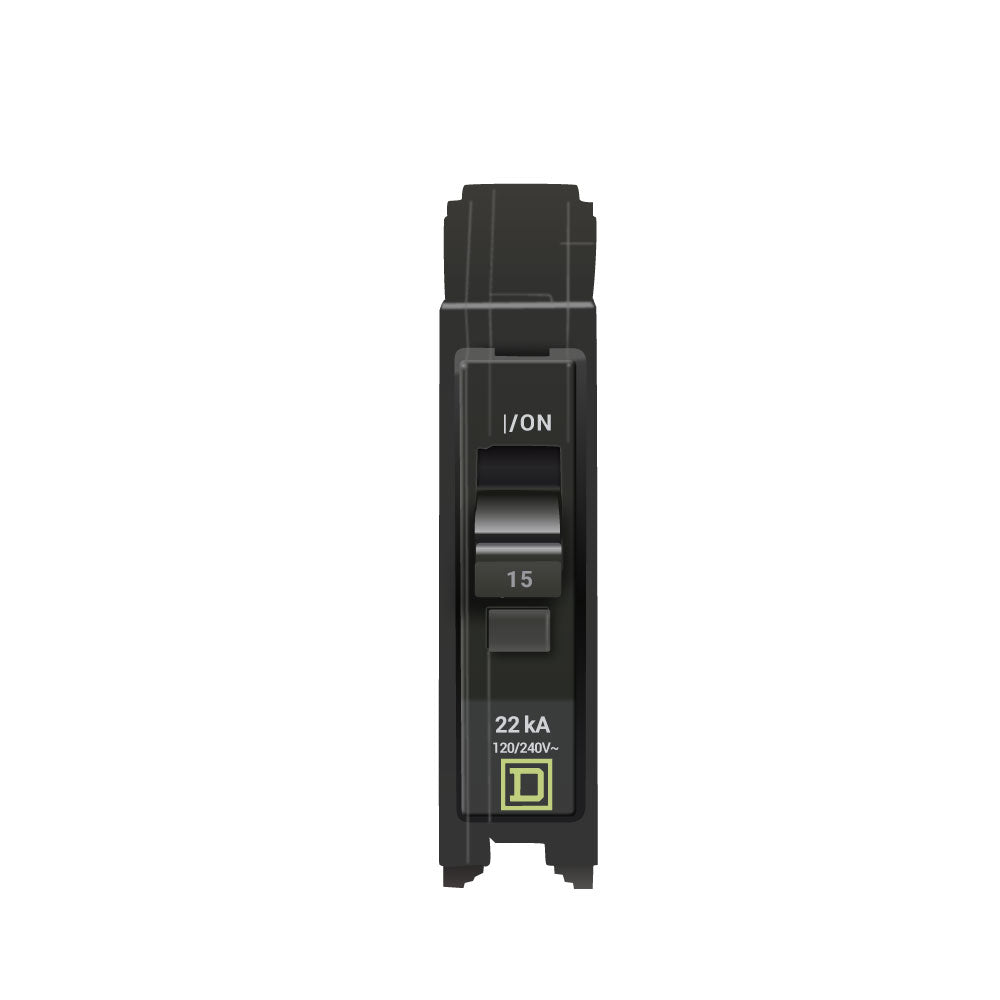

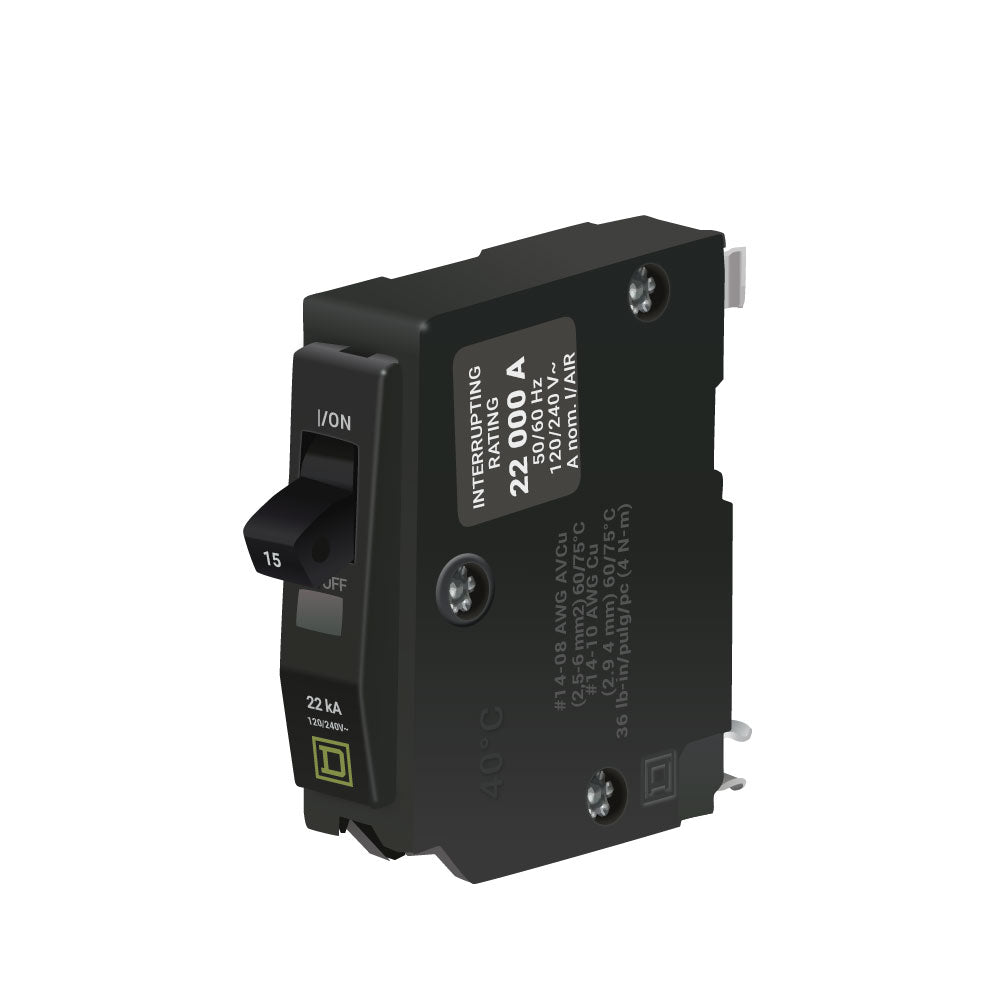

QO115VH - Square D 15 Amp 1 Pole 120/240 Volt Plug-In Molded Case Circuit Breaker 22kA Interrupt Rating

QO115VH

QO115VH is a Square D 15 Amp 1 Pole 120/240 Volt plug-in molded case circuit breaker designed for reliable circuit protection.This QO Series breaker features a thermal magnetic trip unit with long-time and instantaneous protection functions. It has a 22kA interrupt rating at 120/240 VAC, suitable for single-phase applications. The breaker mounts via plug-in connection and is UL listed and CSA approved for safety and performance.

• Amperage: 15 Amp
• Voltage: 120/240 VAC
• Poles: 1 Pole
• Mounting Type: Plug-In
• Interrupt Rating: 22kA at 120/240 VAC
• Series/Frame: QO Series
• Trip Unit: Thermal Magnetic (Long-Time and Instantaneous)
• Certifications: UL Listed, CSA Approved
• Phase: Single Phase
• Dimensions: 2.99" H x 0.75" W x 2.91" L

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: QO115VH
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : QO Series
• Type : QO
• Voltage : 240
• Amperage : 15
• Phase : 1
• Poles : 1
• AIC rating : 22kA@240V
• Connection : Plug-In
• Functions : LI - Long-Time and Instantaneous Trip
• Temp Rating : -13–158 °F (-25–70 °C)
• Protection : Thermal Magnetic

Product Data

• UPC : 785901371779
• GTIN : 00785901371779
• Country of Origin : United States
• Dimensions : 3.0 in (76 mm) x 0.7 in (19 mm) x 2.9 in (74 mm) (Height x Width x Depth)
• Weight : 0.27
• Certification : UL Listed
• Wire Size : AWG 14 to AWG 8, Cu/Al
