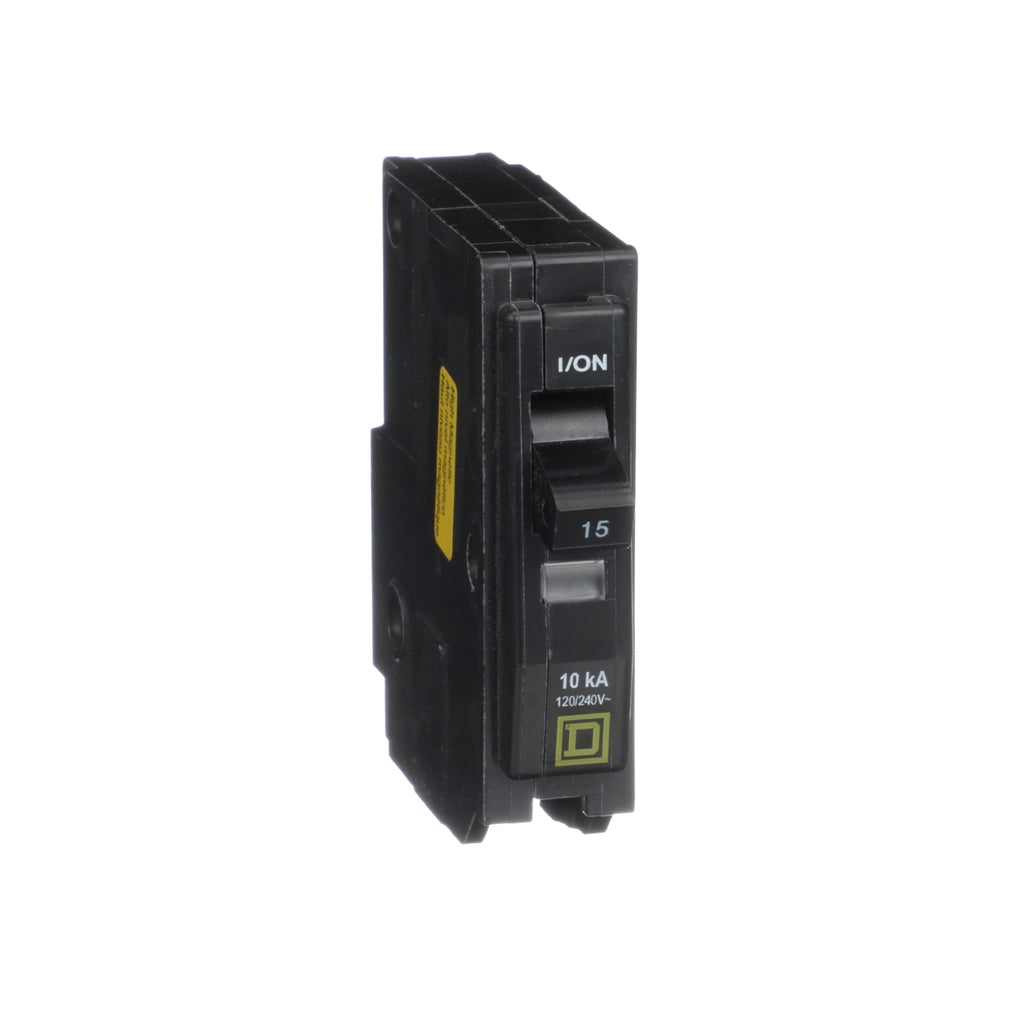

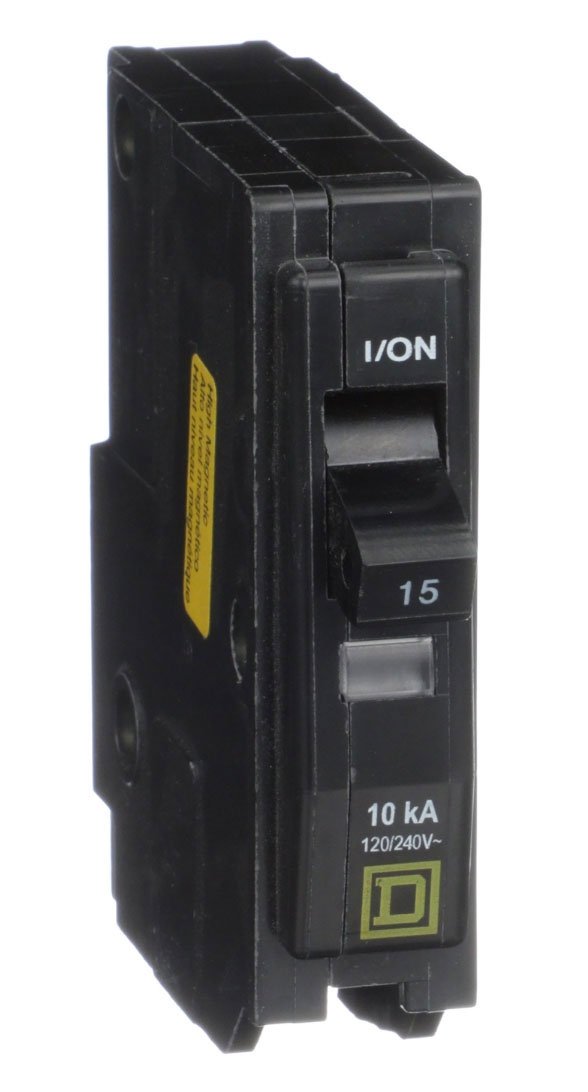

QO115HM - Square D 15 Amp 1 Pole 120/240V High Magnetic Thermal Magnetic Circuit Breaker

QO115HM

QO115HM is a Square D QO Series 15 Amp single-pole circuit breaker designed for use in QO load centers and compatible panelboards. This high magnetic thermal magnetic breaker provides reliable protection for branch circuits in residential and commercial applications.Engineered for durability and safety, the QO115HM features a plug-in mounting design, long-time and instantaneous trip functions, and is suitable for 120/240V systems. It is UL listed and built to meet rigorous industry standards for performance and reliability.

• Part Number: QO115HM
• Manufacturer: Square D
• Series: QO
• Amperage: 15 Amps
• Poles: 1
• Voltage: 120/240V
• Mounting Type: Plug-In
• Interrupt Rating: 10kA @ 120V
• Frame: 70 Amp
• Trip Unit: Thermal Magnetic, High Magnetic
• Functions: LI (Long-Time and Instantaneous)
• Certifications: UL Listed

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: QO115HM
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : QO Series
• Type : QO
• Voltage : 120/240
• Amperage : 15
• Phase : 1
• Poles : 1
• AIC rating : 10kA@120V
• Connection : Plug-In
• Functions : Long Time and Instantaneous Trip
• Terminal Connection : Pressure plate
• Frame Size : 100A/QO
• Temp Rating : -13–158 °F (-25–70 °C)
• MCM Size : Min. Wire Size 14 AWG Max. Wire Size 8 AWG
• Breaker Type : High Magnetic
• Protection : Thermal Magnetic

Product Data

• UPC : 785901400073
• GTIN : 00785901400073
• Country of Origin : Mexico
• Dimensions : 3.0 in (76 mm) x 0.7 in (19 mm) x 2.9 in (74 mm) (Height x Width x Depth)
• Weight : 0.419
• Panel Type : QO Load Centers and NQ Panelboards
• Standards : CSA, IEC, UL listed
• Certification : IEC, UL listed
• Wire Size : AWG 14 to AWG 8, Copper/Aluminum
