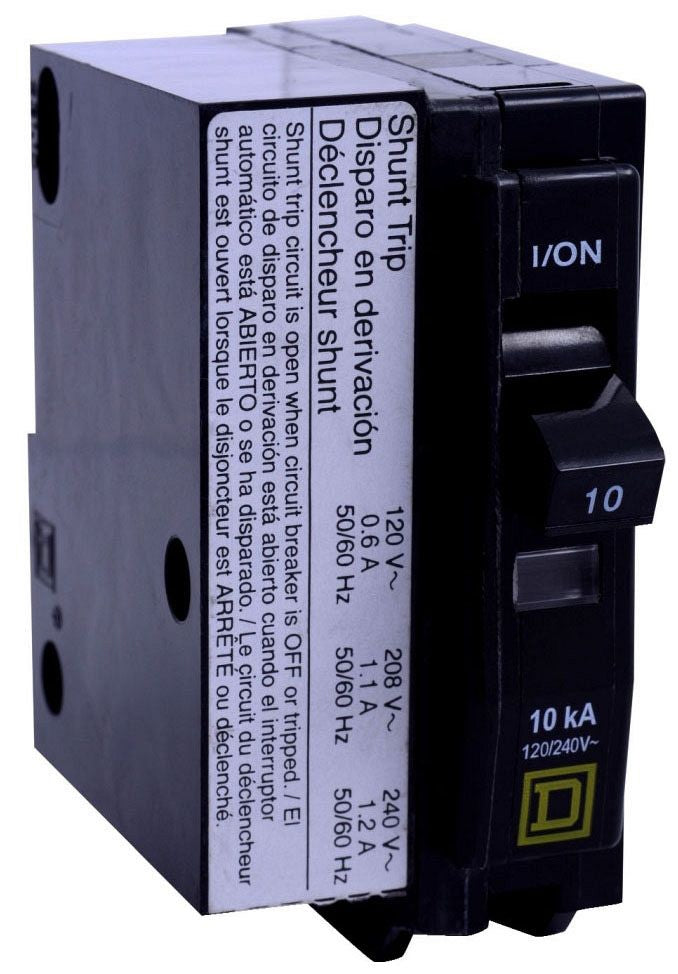

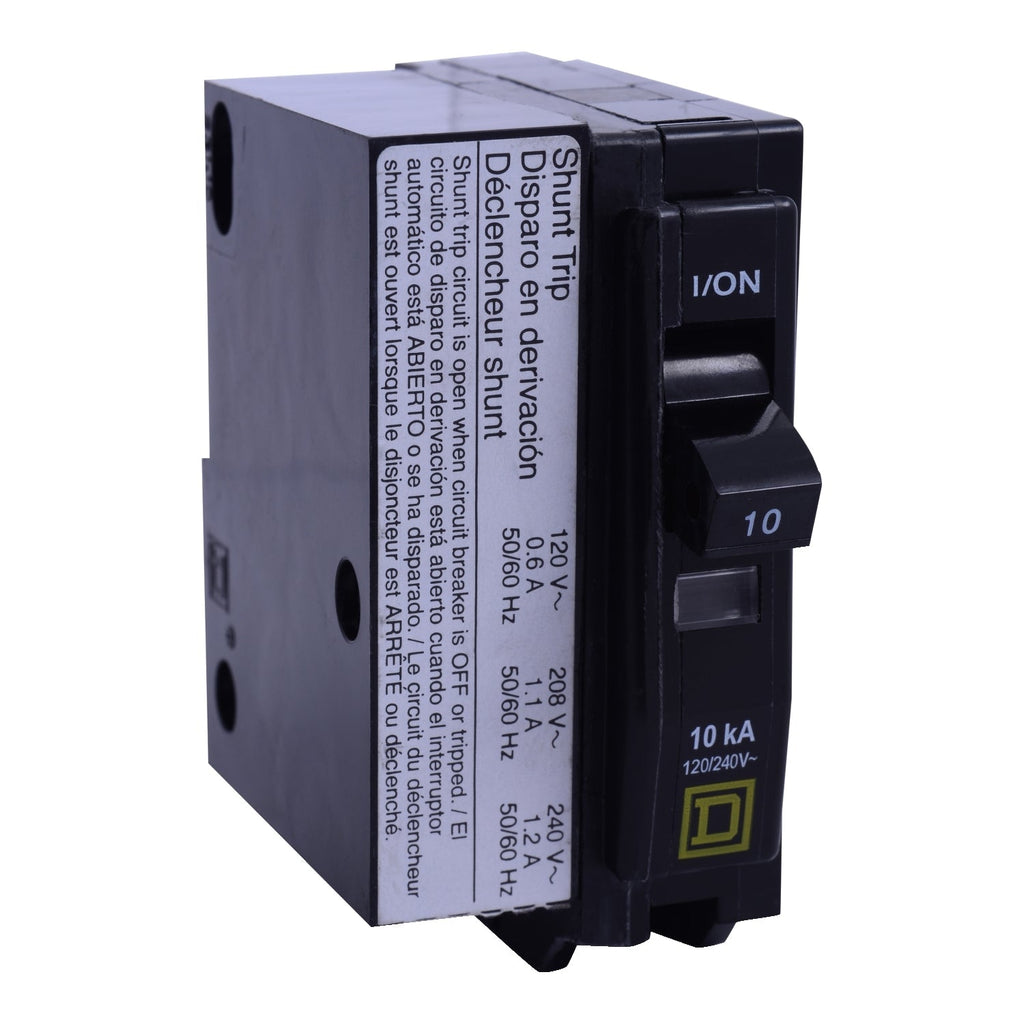

QO1151021 - Square D 15A 120/240V 1-Pole QO Series Miniature Circuit Breaker Plug-In

QO1151021

QO1151021 is a Square D 15 Amp, 1 Pole miniature circuit breaker designed for 120/240 Volt applications with plug-in mounting.This QO Series circuit breaker features a thermal magnetic trip unit and a 10,000 A interrupt rating, suitable for residential and commercial electrical panels. It provides reliable overcurrent protection with a compact design compatible with QO load centers and panelboards.

• Amperage: 15 A
• Voltage Rating: 120/240 VAC, 48 VDC
• Number of Poles: 1
• Mounting Type: Plug-In
• Interrupt Rating: 10,000 AIC at 240 VAC
• Series/Frame: QO
• Trip Unit: Thermal Magnetic
• Standards: California Proposition 65 Compliant

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: QO1151021
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : QO Series
• Type : QO
• Voltage : 120/240
• Amperage : 15
• Phase : 1
• Poles : 1
• AIC rating : 10kA@240V
• Connection : Plug-In
• Functions : Long Time and Instantaneous Trip
• Terminal Connection : Pressure plate
• Frame Size : 100A/QO
• Temp Rating : -13–158 °F (-25–70 °C)
• MCM Size : Min. Wire Size 12 AWG (Al), 14 AWG (Cu) Max. Wire Size 8 AWG
• Breaker Type : Shunt Trip
• Protection : Thermal Magnetic

Product Data

• UPC : 785901493808
• GTIN : 00785901493808
• Country of Origin : Mexico
• Dimensions : 3.0 in (76 mm) x 1.5 in (38 mm) x 2.9 in (74 mm) (Height x Width x Depth)
• Weight : 0.65
• Panel Type : QO Load Centers and NQ Panelboards
• Standards : CSA Certified, UL Listed
• Certification : UL Listed
• Wire Size : AWG 14 to AWG 8, Copper/Aluminum
