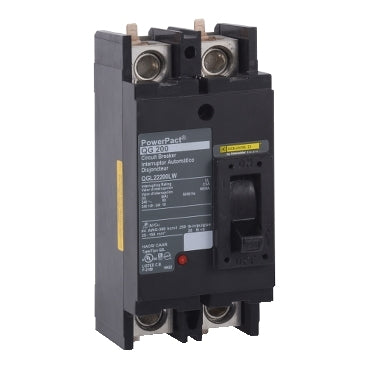

QGL22200LW - Square D 200A 240VAC 2 Pole Thermal Magnetic Circuit Breaker QGL Frame

QGL22200LW

QGL22200LW is a Square D 2 Pole thermal magnetic molded case circuit breaker rated for 200 Amps and 240VAC voltage. It features a QGL frame and provides reliable overcurrent protection.QGL22200LW includes a 65kA interrupting rating at 240V, feed-thru connection type, and long-time and instantaneous trip functions. It is UL 489 listed and suitable for unit mount applications with line and load side lug connections.

• Manufacturer: Square D
• Amperage: 200A
• Voltage: 240VAC
• Poles: 2
• Frame Type: QGL
• Interrupt Rating: 65kA at 240V
• Trip Unit: Thermal Magnetic with LI (Long-Time and Instantaneous)
• Connection Type: Feed-Thru, Line and Load Side Lug
• Mounting Type: Unit Mount
• Certifications: UL 489 Listed, CSA, ANCE, IEC Certified
• Dimensions: 3 in W x 3.93 in D x 6.47 in H
• Frequency: 50/60 Hz

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: QGL22200LW
• Manufacturer : Square D
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : QGL
• Voltage : 240
• Amperage : 200
• Phase : 1
• Poles : 2
• AIC rating : 65kA@240V
• Connection : Feed-Thru
• Functions : LI - Long-Time and Instantaneous Trip
• Terminal Connection : Lug
• Frame Size : Q
• Temp Rating : -13–158 °F (-25–70 °C)
• Protection : Thermal Magnetic

Product Data

• UPC : 785901926023
• GTIN : 00785901926023
• Country of Origin : Mexico
• Dimensions : Height 6.47 in (164.34 mm) x Depth 5.38 in (136.65 mm) x Width 5.64 in (143.26 mm)
• Weight : 1.55
• Standards : UL, CSA, NEMA, NOM
