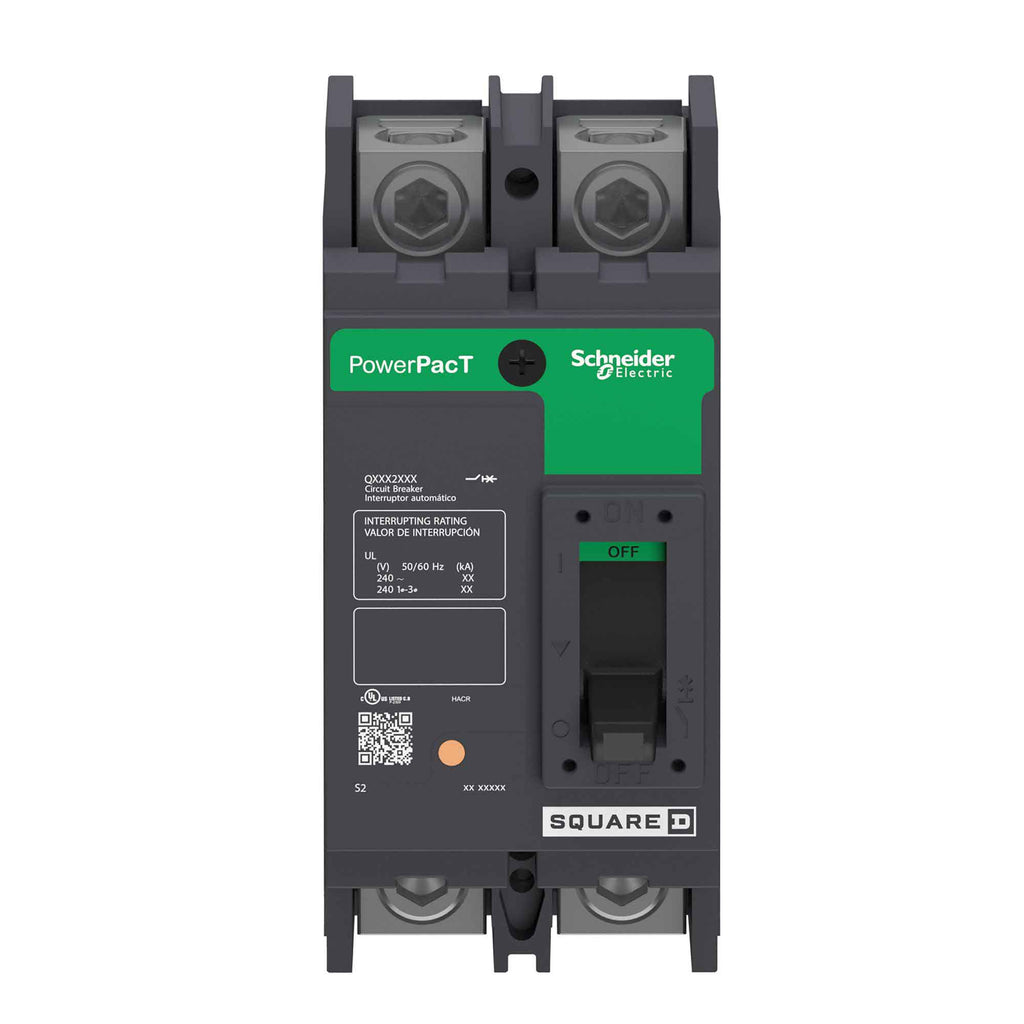

QGL22225 - Square D 225 Amp 240 Volt 2 Pole Q Frame Circuit Breaker Thermal Magnetic

QGL22225

QGL22225 is a Square D Powerpact Q Frame molded case circuit breaker rated for 225 amps and 240 volts with two poles and thermal magnetic trip unit.This QGL22225 circuit breaker features a 65kA interrupt rating at 240 VAC, unit mount design, and is UL 489 listed. It provides reliable overcurrent protection with long-time and instantaneous trip functions, suitable for AC systems up to 240 volts. The breaker includes line and load side lug terminals and meets multiple certifications including UL, CSA, and IEC.

• Manufacturer: Square D (Schneider Electric)
• Type: Powerpact QGL Molded Case Circuit Breaker
• Amperage: 225 Amp
• Voltage Rating: 240 VAC
• Poles: 2
• Interrupt Rating: 65kA at 240 VAC (G Interrupt Code)
• Mounting: Unit Mount
• Trip Unit: Thermal Magnetic (Long-Time and Instantaneous)
• UL Listed: UL 489
• Frame: Q Frame
• Connection: Line and Load Side Lugs
• Certifications: UL, CSA, IEC

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: QGL22225
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : QGL
• Voltage : 240
• Amperage : 225
• Phase : 1
• Poles : 2
• AIC rating : 65kA@240V
• Connection : Feed-Thru
• Functions : Long Time and Instantaneous
• Terminal Connection : Lug
• Frame Size : Q
• Temp Rating : -13–158 °F (-25–70 °C)
• Protection : Thermal Magnetic

Product Data

• UPC : 785901603467
• GTIN : 00785901603467
• Country of Origin : Mexico
• Dimensions : 6.47 in (164.34 mm) x 3 in (76.2 mm) x 3.93 in (99.82 mm) (Height x Width x Depth)
• Weight : 3.34
• Standards : UL, CSA, NEMA, NOM-003-SCFI-2000
• Certification : UL, CSA, NOM
