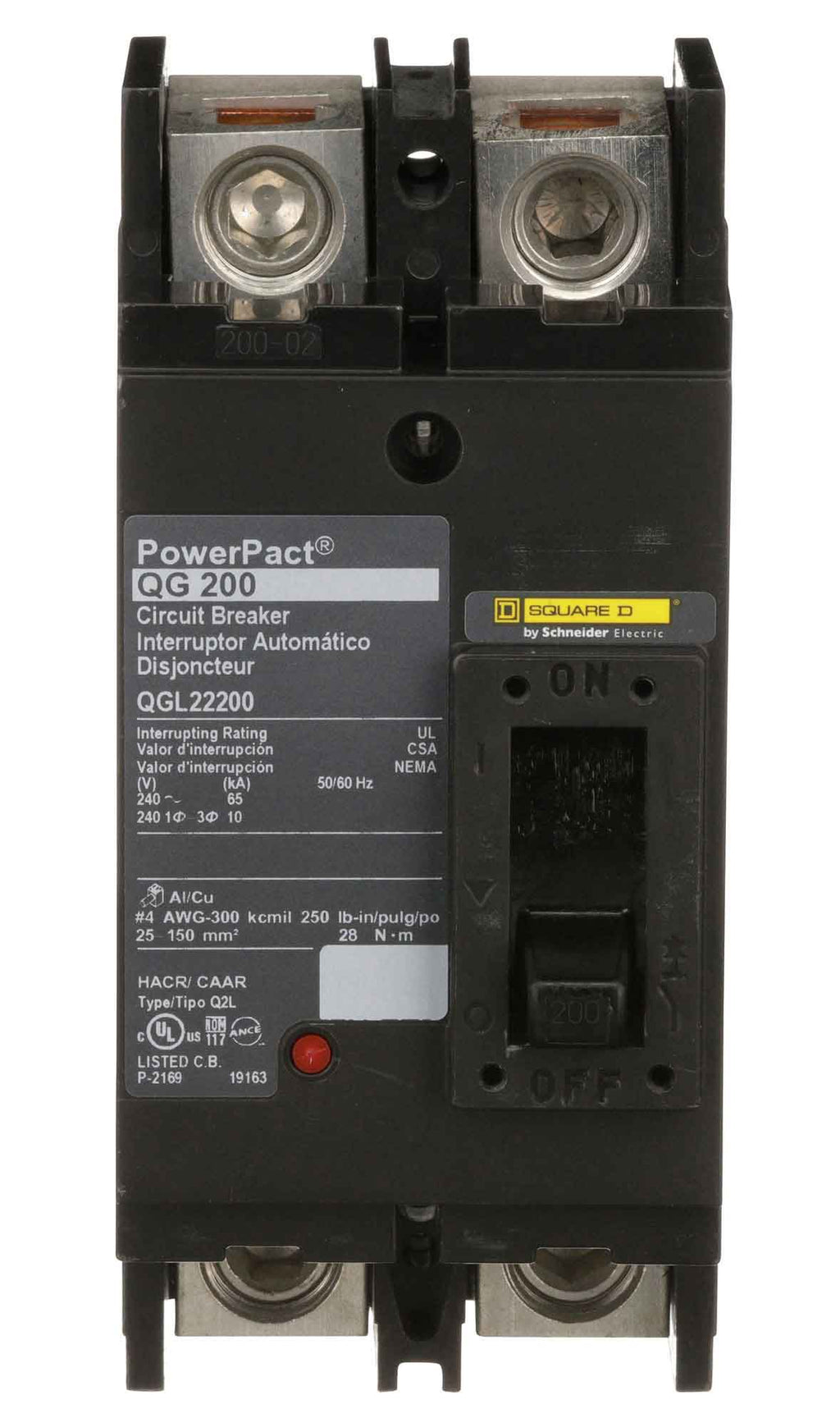

QGL22200 - Square D Q-Frame Molded Case Circuit Breaker, 200A, 2 Pole, 240V AC, 65kA Interrupt, Thermal Magnetic Trip, UL/CSA/CE Listed

QGL22200

QGL22200 is a Square D Q-Frame molded case circuit breaker designed for reliable circuit protection in commercial and industrial applications.

This thermal magnetic trip unit breaker features a robust molded case construction, unit mounting, and is suitable for use in panelboards and switchboards. It is engineered for high interrupting capacity and dependable performance under demanding conditions.

Key Specifications
• Amperage: 200A
• Voltage: 240V AC
• Poles: 2
• Mounting Type: Unit mount
• Interrupt Rating: 65kA at 240V AC
• Series/Frame: Q-Frame (PowerPact Q)
• Trip Unit: Thermal magnetic
• Certifications: UL, CSA, CE listed
• Frequency: 50/60 Hz
• Electrical Connection: Lugs load/lugs line
• Breaking Capacity Code: G
• Ambient Temperature Range: 104°F to 158°F

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: QGL22200
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : QGL
• Voltage : 240
• Amperage : 200
• Phase : 1
• Poles : 2
• AIC rating : 65kA@240V
• Connection : Feed-Thru
• Functions : LI - Long-Time and Instantaneous
• Terminal Connection : Lug
• Frame Size : Q
• Temp Rating : -13–158 °F (-25–70 °C)
• Protection : Thermal Magnetic

Product Data

• UPC : 785901854579
• GTIN : 00785901854579
• Country of Origin : Mexico
• Dimensions : 6.47 in (164.34 mm) x 3 in (76.2 mm) x 3.93 in (99.82 mm) (Height x Width x Depth)
• Weight : 3.4
• Standards : UL, CSA, NEMA, NOM-003-SCFI-2000
• Certification : UL, CSA, NOM
