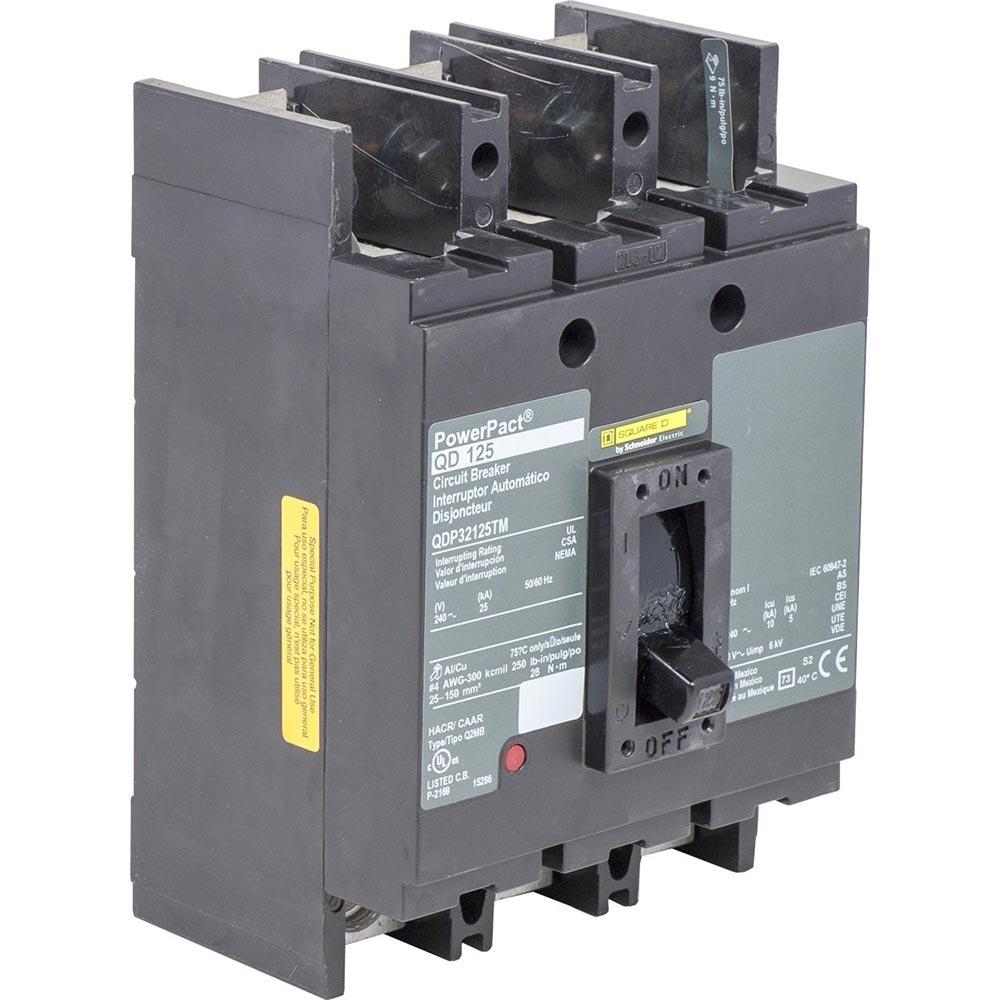

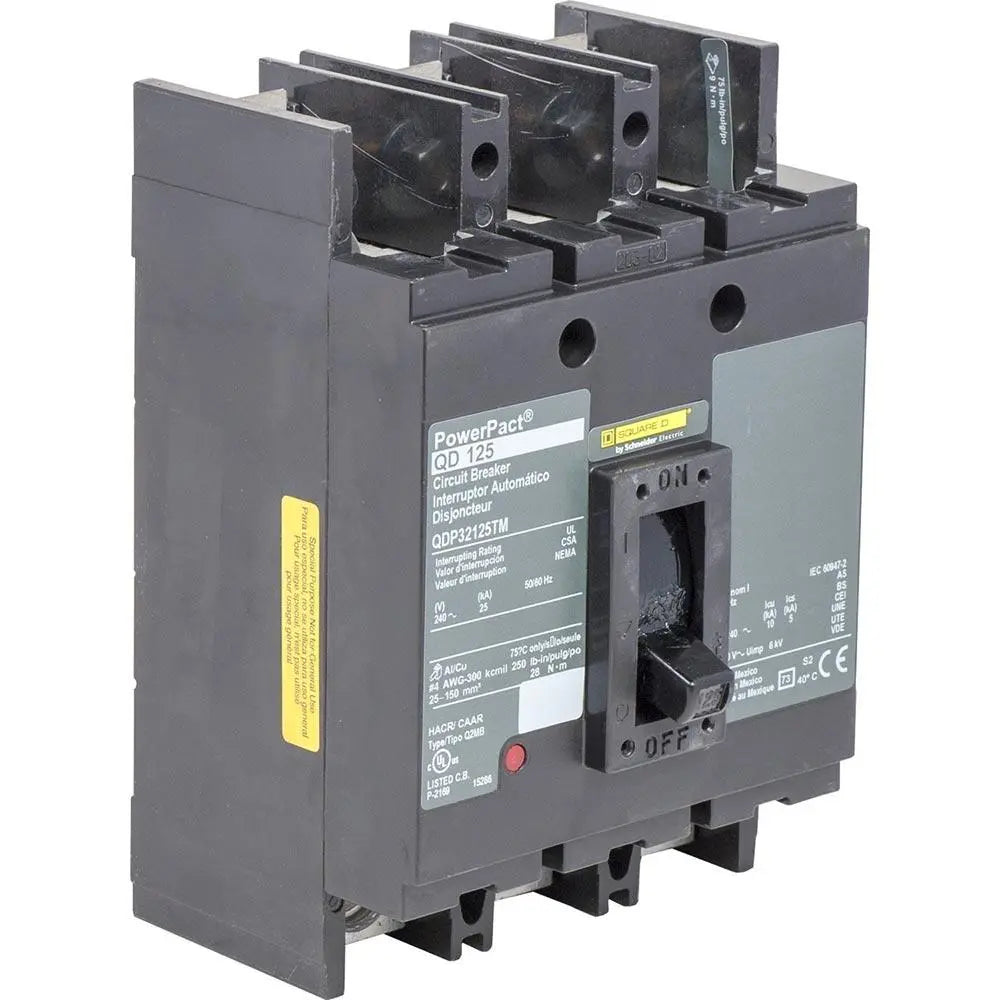

QDP32125TM - Square D 125A 240V 3 Pole Bolt-On Thermal Magnetic Circuit Breaker

QDP32125TM

QDP32125TM is a Square D 3 pole thermal magnetic molded case circuit breaker rated for 125 amps and 240 volts AC with bolt-on mounting.This Powerpact QDP series breaker features long time and instantaneous trip functions, a 25kA interrupting rating at 240V, and line side lug terminals with load side lug connections. It is UL, CSA, and IEC certified, designed for reliable overcurrent protection in commercial and industrial applications.

• Manufacturer: Square D
• Series/Frame: Powerpact QDP
• Amperage: 125A
• Voltage: 240VAC
• Poles: 3
• Mounting Type: Bolt-On
• Interrupting Rating: 25kA @ 240V
• Trip Unit: Thermal Magnetic (Long Time and Instantaneous)
• Terminal Connection: Line side lug, load side lug
• Certifications: UL, CSA, IEC
• Phase: 3
• Protection Type: Molded Case Circuit Breaker

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: QDP32125TM
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : QDP
• Voltage : 240
• Amperage : 125
• Phase : 3
• Poles : 3
• AIC rating : 25kA@240V
• Connection : Bolt-On
• Functions : Long Time and Instantaneous Trip
• Terminal Connection : Lug, Terminal Nut
• Frame Size : Q
• Temp Rating : -13–158 °F (-25–70 °C)
• Protection : Thermal Magnetic

Product Data

• UPC : 785901946885
• GTIN : 00785901946885
• Country of Origin : Mexico
• Dimensions : 6.47 in (164.34 mm) x 4.5 in (114.3 mm) x 3.93 in (99.82 mm) (Height x Width x Depth)
• Weight : 4.61
• Standards : UL, CSA, NEMA, NOM-003-SCFI-2000
• Certification : UL, CSA, NOM
