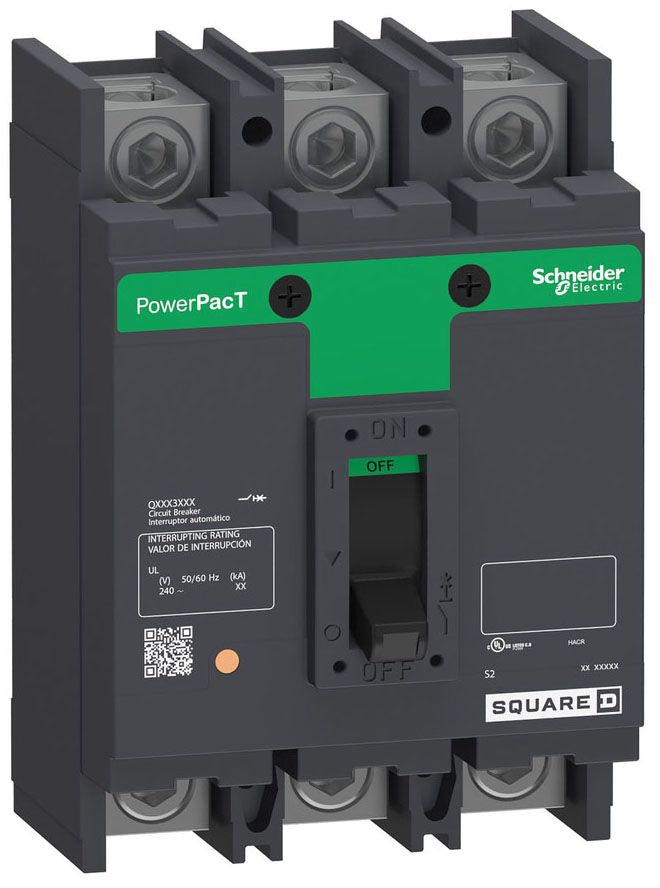

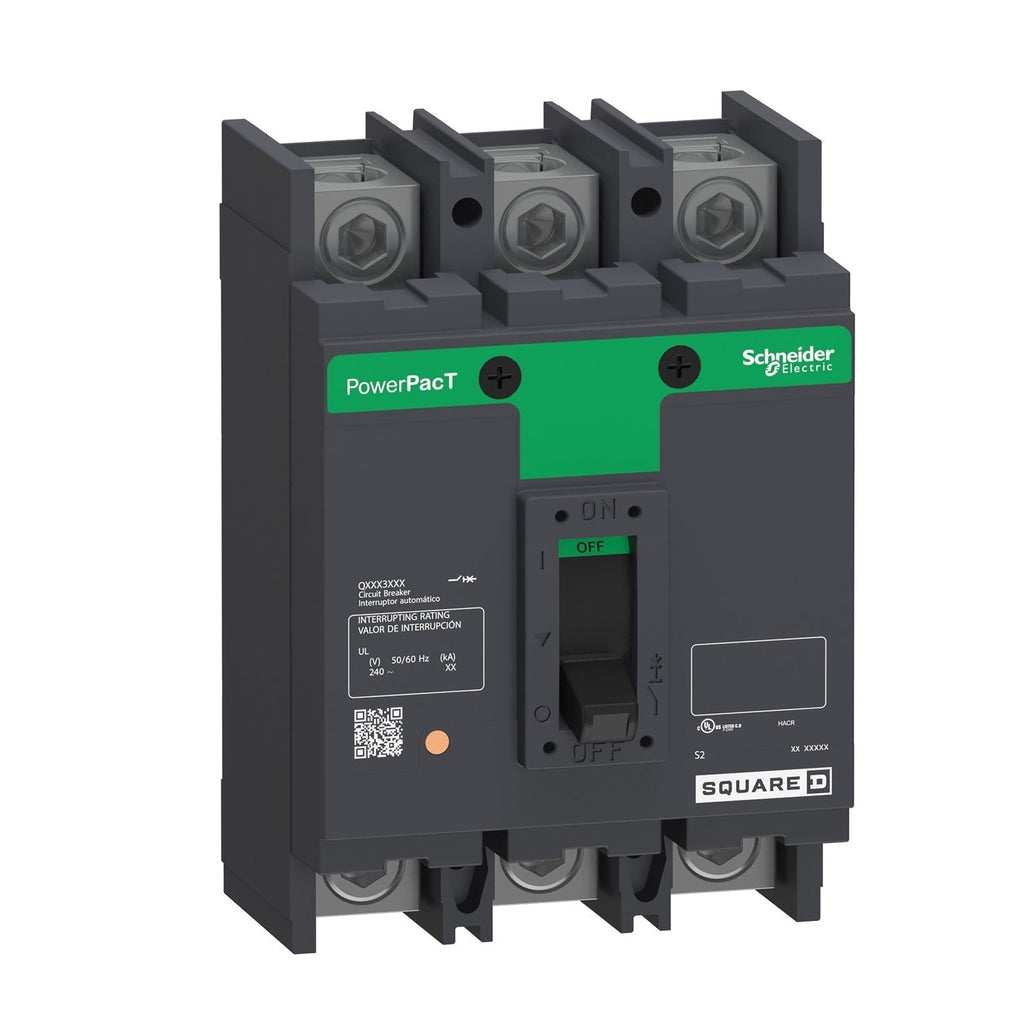

QDP32100TM - Square D 100 Amp 240V 3 Pole Molded Case Circuit Breaker, Bolt-On, QDP Frame

QDP32100TM

QDP32100TM is a Square D 3 pole, 100 amp molded case circuit breaker designed for 240VAC applications with bolt-on mounting.This circuit breaker features a QDP frame type with thermal magnetic trip unit, providing reliable protection with a 25 kiloamp interrupting rating. It includes line side lug terminals for secure connections and is UL, CSA, and CE certified. The breaker supports wire sizes from 4 AWG to 300 KCMIL copper or aluminum.

• Manufacturer: Square D
• Part Number: QDP32100TM
• Frame Type: QDP
• Voltage Rating: 240VAC
• Current Rating: 100 Amps
• Poles: 3
• Mounting Type: Bolt-On
• Interrupt Rating: 25 kA
• Trip Unit: Thermal Magnetic
• Terminal Type: Line terminal nut, lug load terminal
• Wire Size Range: 4 AWG to 300 KCMIL (Copper/Aluminum)
• Certifications: UL, CSA, CE

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: QDP32100TM
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : QDP
• Voltage : 240
• Amperage : 100
• Phase : 3
• Poles : 3
• AIC rating : 25kA@240V
• Connection : Bolt-On
• Functions : Long Time and Instantaneous Trip
• Terminal Connection : Lug, Terminal Nut
• Frame Size : Q
• Temp Rating : -13–158 °F (-25–70 °C)
• Protection : Thermal Magnetic

Product Data

• UPC : 785901879664
• GTIN : 00785901879664
• Country of Origin : Mexico
• Dimensions : 6.47 in (164.34 mm) x 4.5 in (114.3 mm) x 3.93 in (99.82 mm) (Height x Width x Depth)
• Weight : 4.59
• Standards : UL, CSA, NEMA, NOM-003-SCFI-2000
• Certification : UL, CSA, NOM
