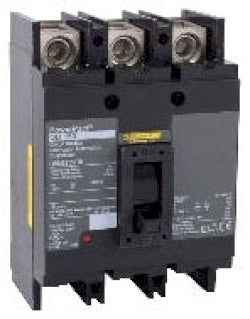

QDM32150TN - Square D 150A 3 Pole 240VAC PowerPacT Q Frame Thermal Magnetic Circuit Breaker

QDM32150TN

QDM32150TN is a Square D PowerPacT Q Frame molded case circuit breaker with a 150 amp rating and 3 poles designed for 240VAC applications.This 3-pole unit mount breaker features thermal-magnetic trip technology, a 25kA interrupt rating at 240VAC, and lug connections for line side installation. It provides reliable overcurrent protection with an 80% continuous current rating and is UL 489 listed for safety compliance.

• Amperage: 150A
• Voltage Rating: 240VAC
• Poles: 3
• Frame Type: PowerPacT Q Frame
• Trip Unit: Thermal Magnetic (fixed)
• Interrupt Rating: 25kA at 240VAC
• Mounting Type: Unit Mount
• Connection Type: Lug on line side, threaded studs on load side
• Continuous Current Rating: 80%
• Certifications: UL 489, CSA, IEC, RoHS
• Protection: Overload and short circuit

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: QDM32150TN
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : QDM
• Voltage : 240
• Amperage : 150
• Phase : 3
• Poles : 3
• AIC rating : 25kA@240V
• Connection : Bolt-On
• Functions : LI - Long Time and Instantaneous
• Terminal Connection : Lug, Terminal Nut
• Frame Size : Q
• Temp Rating : -13–158 °F (-25–70 °C)
• Protection : Thermal Magnetic

Product Data

• UPC : 785901417255
• GTIN : 00785901417255
• Country of Origin : Mexico
• Dimensions : 6.47 in (164.34 mm) x 4.5 in (114.3 mm) x 3.93 in (99.82 mm) (Height x Width x Depth)
• Weight : 4.59
• Standards : UL, CSA, NEMA, NOM-003-SCFI-2000
• Certification : UL, CSA, NOM
