QDM32100TN - Square D 100 Amp 240 Volt 3 Pole Q Frame Circuit Breaker, Thermal Magnetic, Unit Mount, 25kA Interrupt Rating

QDM32100TN

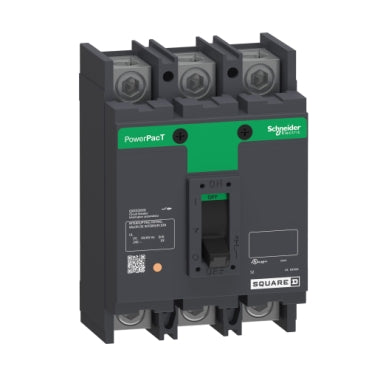

QDM32100TN is a Square D 3 pole, 100 amp, 240 volt Q Frame molded case circuit breaker with thermal magnetic trip unit and unit mount design.QDM32100TN provides reliable overcurrent protection with a 25kA interrupt rating at 240 VAC, suitable for panelboard and switchboard applications. It features a thermal magnetic trip unit, UL 489 listing, and is designed for unit mounting with bolt-on installation.

Key Specifications
• Amperage: 100 Amp
• Voltage: 240 VAC
• Poles: 3 Pole
• Frame Type: Q Frame
• Mounting Type: Unit Mount (Bolt-On)
• Interrupt Rating: 25kA @ 240 VAC
• Trip Unit: Thermal Magnetic
• UL Listing: UL 489
• Continuous Current Rating: 80%
• Manufacturer: Square D (Schneider Electric)

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: QDM32100TN
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : QDM
• Voltage : 240
• Amperage : 100
• Phase : 3
• Poles : 3
• AIC rating : 25kA@240V
• Connection : Bolt-On
• Functions : LI - Long Time and Instantaneous
• Terminal Connection : Lug, Terminal Nut
• Frame Size : Q
• Temp Rating : -13–158 °F (-25–70 °C)

Product Data

• UPC : 785901417194
• GTIN : 00785901417194
• Country of Origin : Mexico
• Dimensions : 6.47 in (164.34 mm) x 4.5 in (114.3 mm) x 3.93 in (99.82 mm) (Height x Width x Depth)
• Weight : 4.76
• Standards : UL, CSA, NEMA, NOM-003-SCFI-2000
• Certification : UL, CSA, NOM
