Product Info
- Manufacturer:Schneider Electric
- Sub-Category:Molded Case
Description

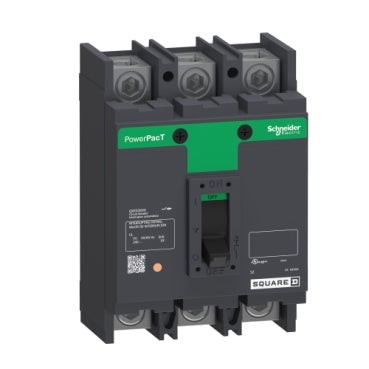

QDM32125TN
QDM32125TN is a Square D PowerPact Q Frame molded case circuit breaker designed for reliable overcurrent protection in three-phase electrical systems.This 125 Amp, 3 pole circuit breaker operates at 240 volts AC with a 25kA interrupt rating at 240VAC. It features a thermal magnetic trip unit and bolt-on mounting style, suitable for panelboard and switchboard applications. The breaker is UL 489 listed and designed for top-of-panel installation with an 80% continuous current rating.
- Amperage: 125 Amp
- Voltage: 240 VAC
- Poles: 3 Pole
- Interrupt Rating: 25kA at 240VAC
- Frame/Series: PowerPact Q Frame
- Trip Unit: Thermal Magnetic
- Mounting Type: Bolt-On
- Continuous Current Rating: 80%
- UL Listed: UL 489
- Installation: Top of Panel
Specifications
- Part Number: QDM32125TN
- Manufacturer : Schneider Electric
- Brand : Square D
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Powerpact
- Type : QDM
- Voltage : 240
- Amperage : 125
- Phase : 3
- Poles : 3
- AIC rating : 25kA@240V
- Connection : Bolt-On
- Functions : LI - Long Time and Instantaneous
- Terminal Connection : Lug, Terminal Nut
- Frame Size : Q
- Temp Rating : -13–158 °F (-25–70 °C)
- Protection : Thermal Magnetic
Product Data
- UPC : 785901417217
- GTIN : 00785901417217
- Country of Origin : Mexico
- Dimensions : 6.47 in (164.34 mm) x 4.5 in (114.3 mm) x 3.93 in (99.82 mm) (Height x Width x Depth)
- Weight : 2.08
- Standards : UL, CSA, NEMA, NOM-003-SCFI-2000
- Certification : UL, CSA, NOM
