QDL32250 - Square D 250A 240V 3-Pole QDL Frame Molded Case Circuit Breaker

QDL32250

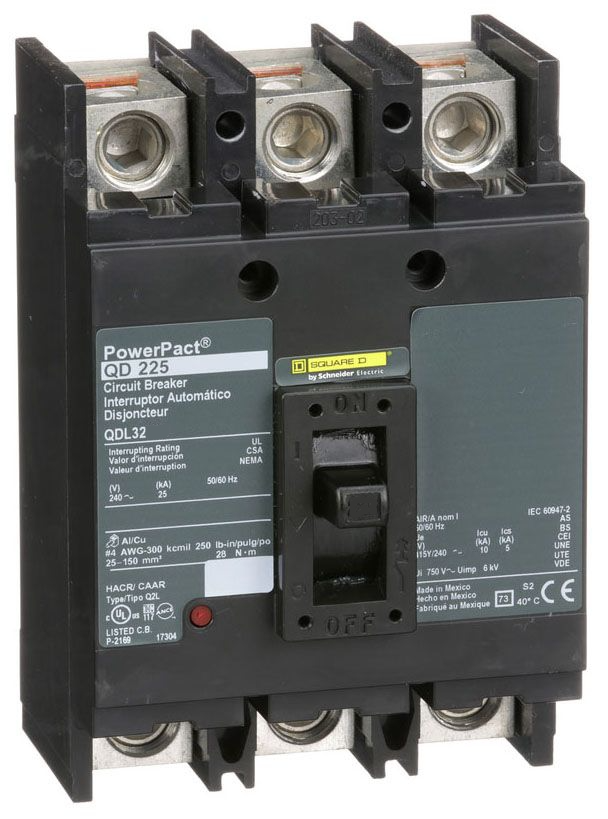

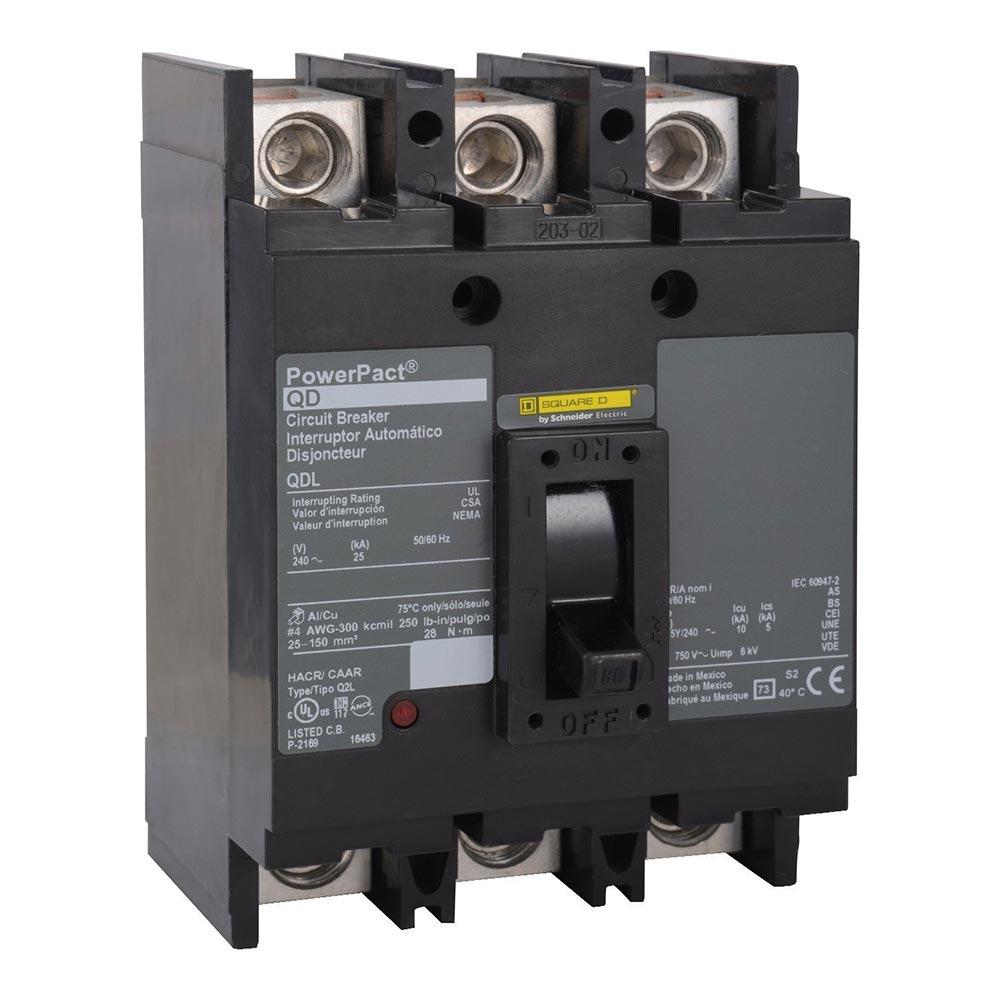

QDL32250 is a Square D 3-pole molded case circuit breaker with a 250 ampere rating and 240 volts AC voltage rating.This thermal magnetic circuit breaker features a QDL frame, unit mounting type, and feed-thru connection. It provides long-time and instantaneous trip functions with a 25kA interrupting rating at 240V. Certified to IEC, UL, and CSA standards, it is designed for reliable protection in three-phase electrical systems.

• Manufacturer: Square D
• Part Number: QDL32250
• Amperage: 250A
• Voltage: 240V AC
• Poles: 3
• Frame Type: QDL
• Mounting Type: Unit Mount
• Interrupting Rating: 25kA at 240V
• Trip Functions: Long-Time and Instantaneous (LI)
• Connection Type: Feed-Thru
• Protection: Thermal Magnetic
• Certifications: IEC, UL, CSA

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: QDL32250
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : QDL
• Voltage : 240
• Amperage : 250
• Phase : 3
• Poles : 3
• AIC rating : 25kA@240V
• Connection : Feed-Thru
• Functions : LI - Long-Time and Instantaneous
• Terminal Connection : Lug
• Frame Size : 250A/QD
• Temp Rating : -13–158 °F (-25–70 °C)
• MCM Size : Min. Wire Size 4 AWG Max. Wire Size 300 MCM
• Breaker Type : Standard
• Protection : Thermal Magnetic
• Phase Connection : ABC

Product Data

• UPC : 785901542902
• GTIN : 00785901542902
• Country of Origin : Mexico
• Dimensions : 6.47 in (164.34 mm) x 4.5 in (114.3 mm) x 3.93 in (99.82 mm) (Height x Width x Depth)
• Weight : 2.14
• Standards : UL, CSA, NEMA, NOM-003-SCFI-2000
• Certification : UL, CSA, NOM
