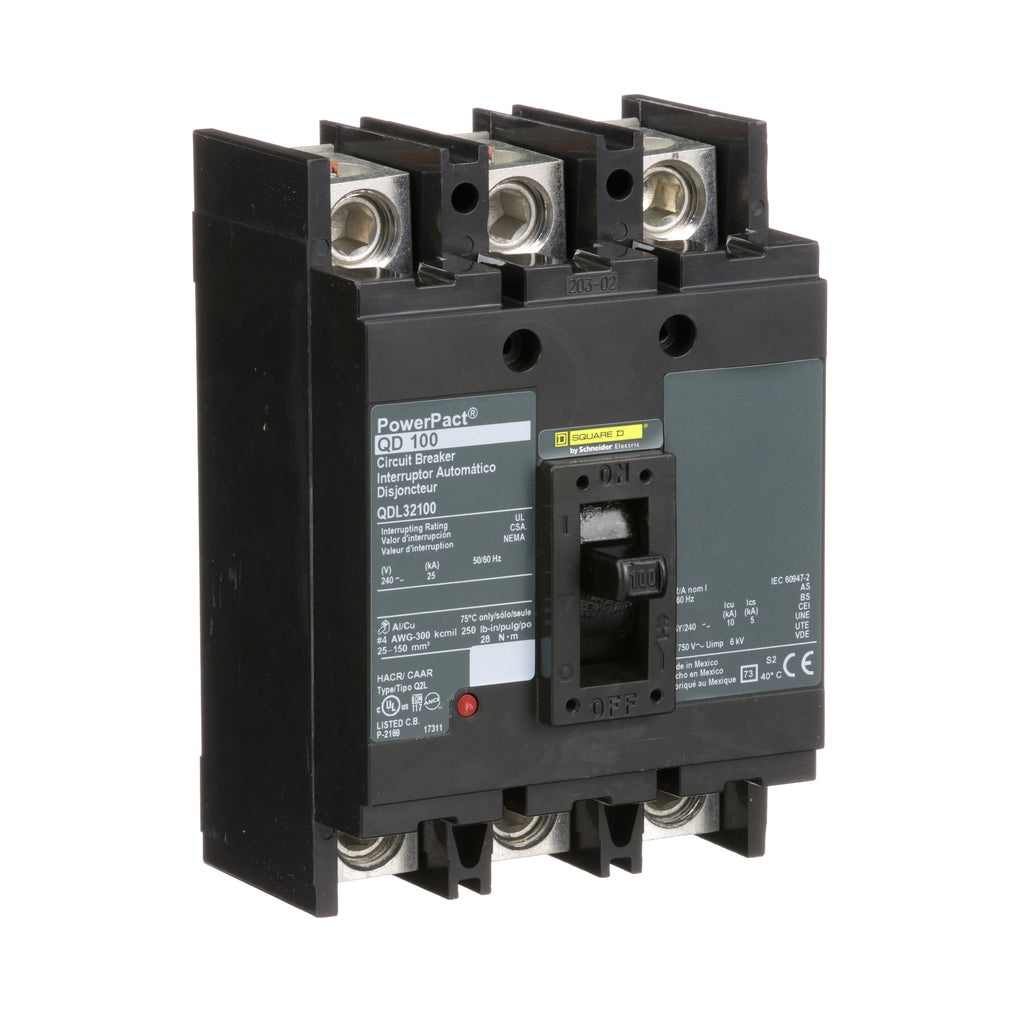

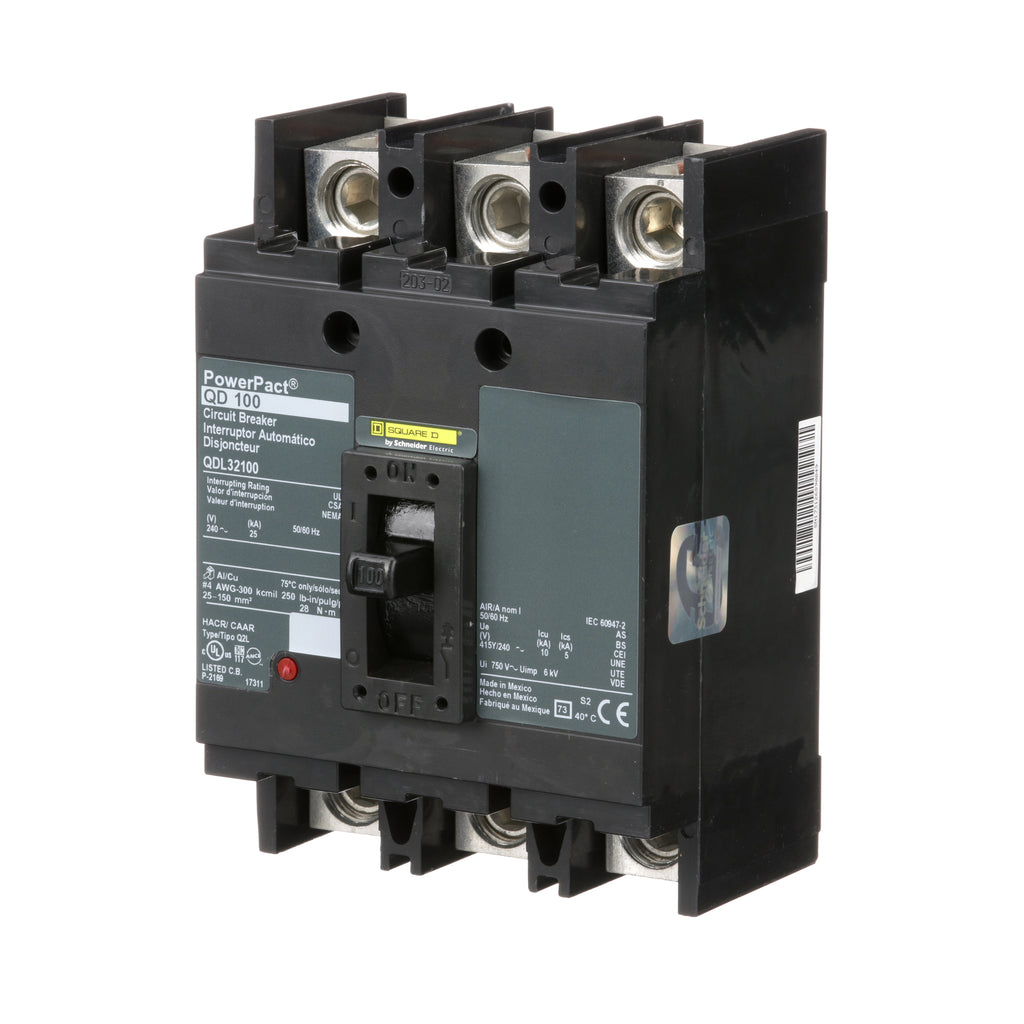

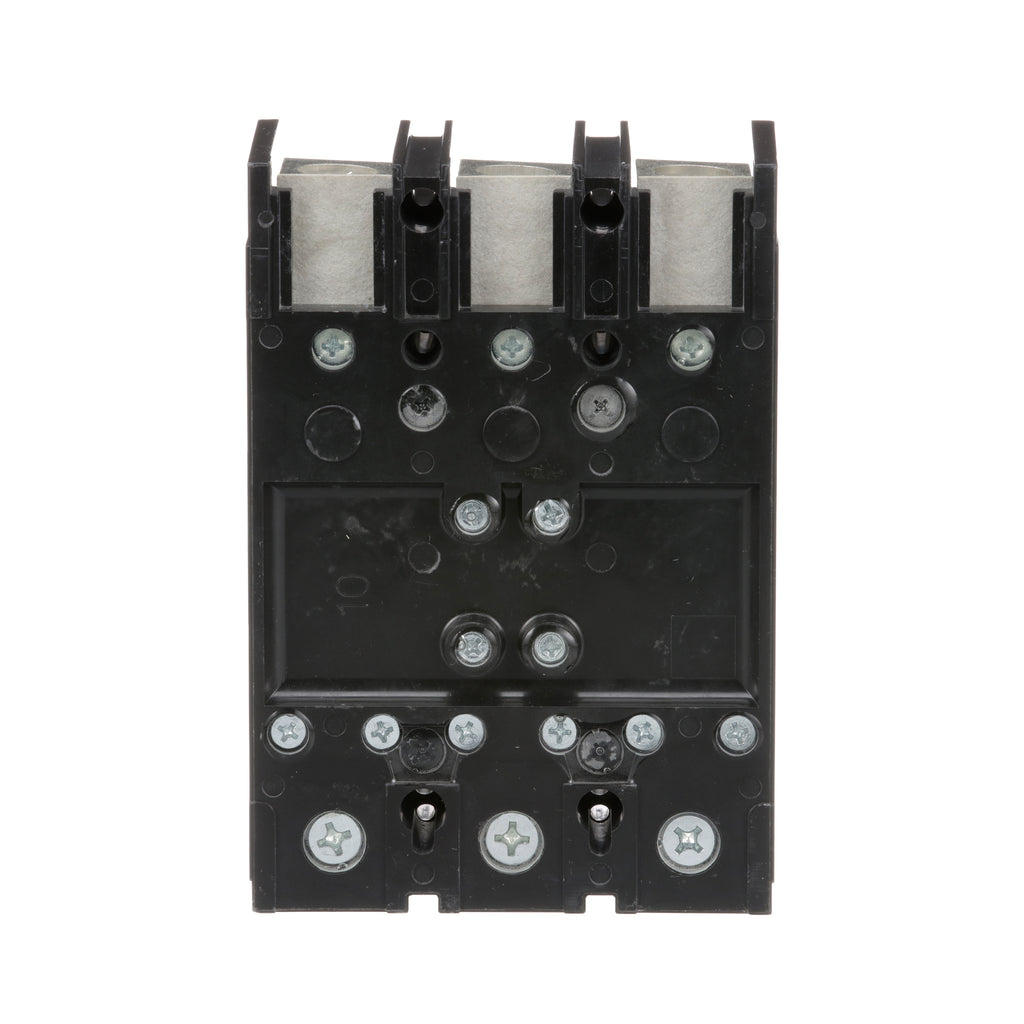

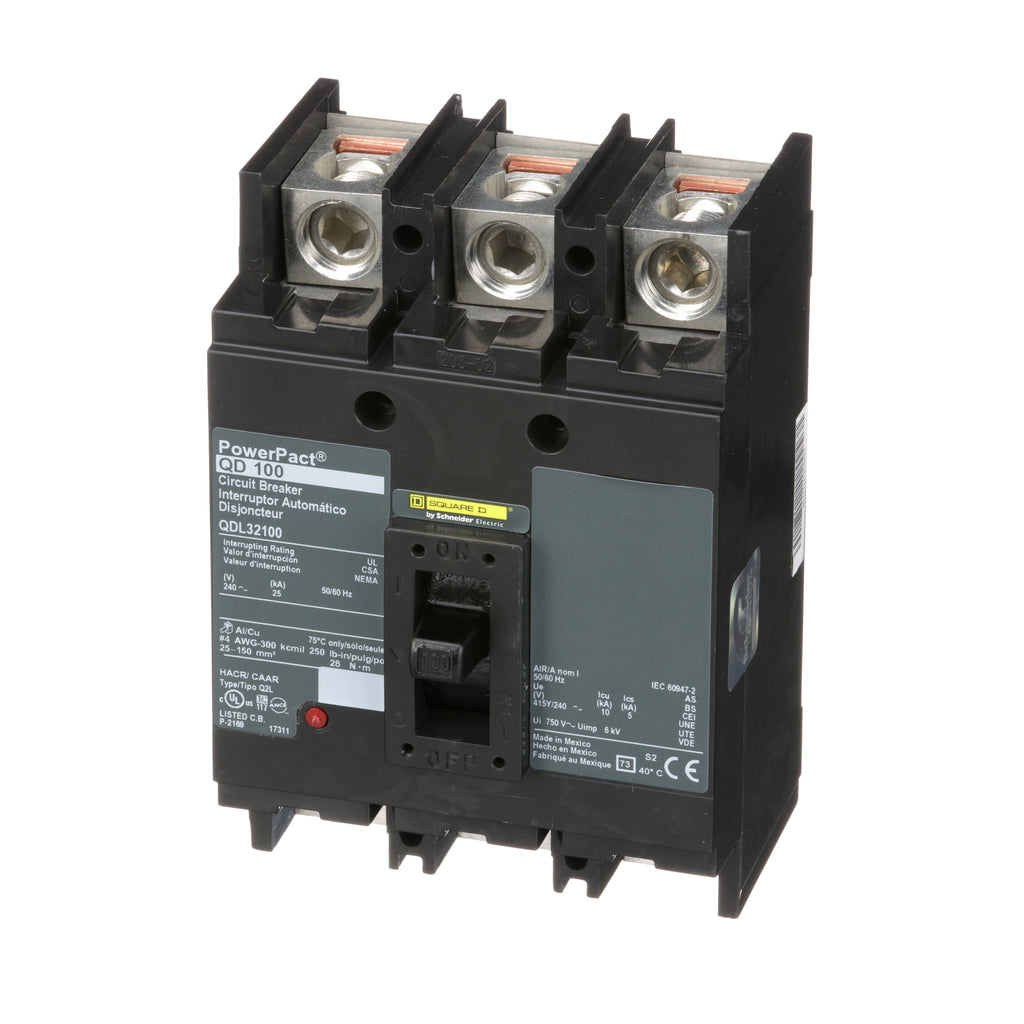

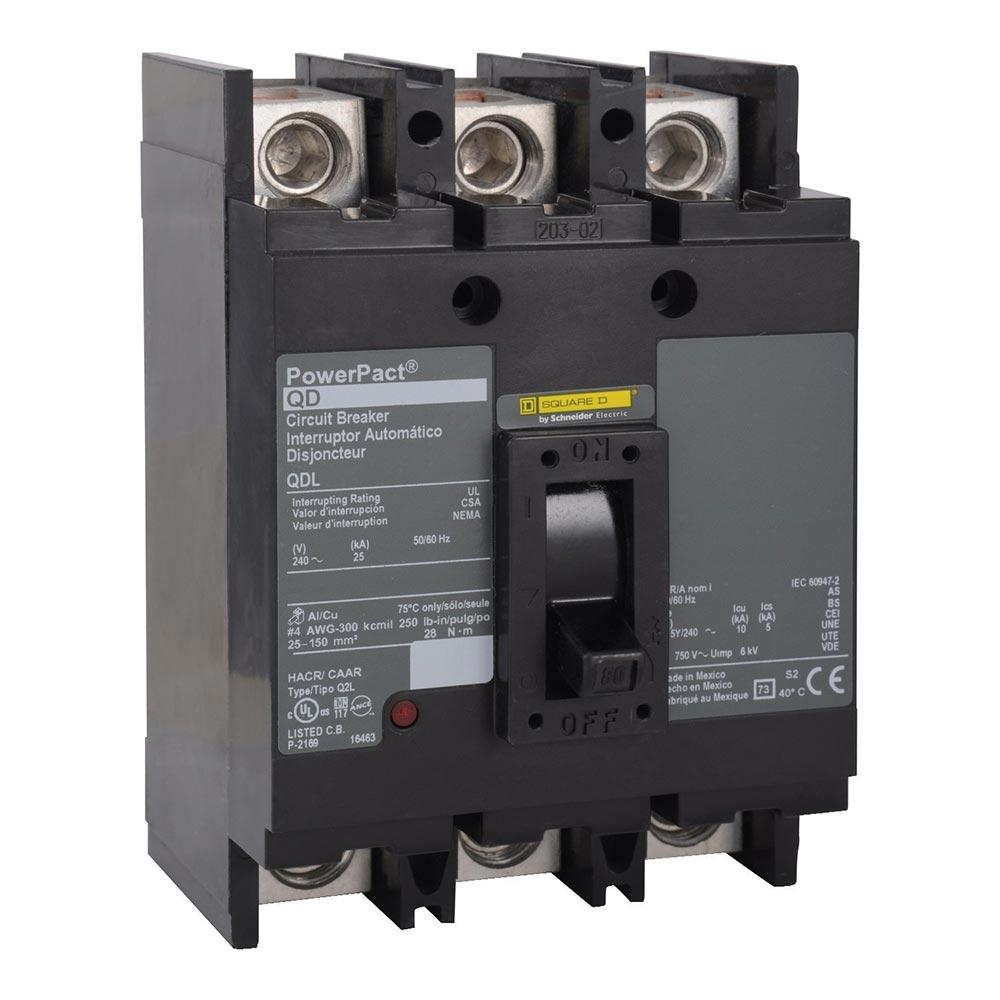

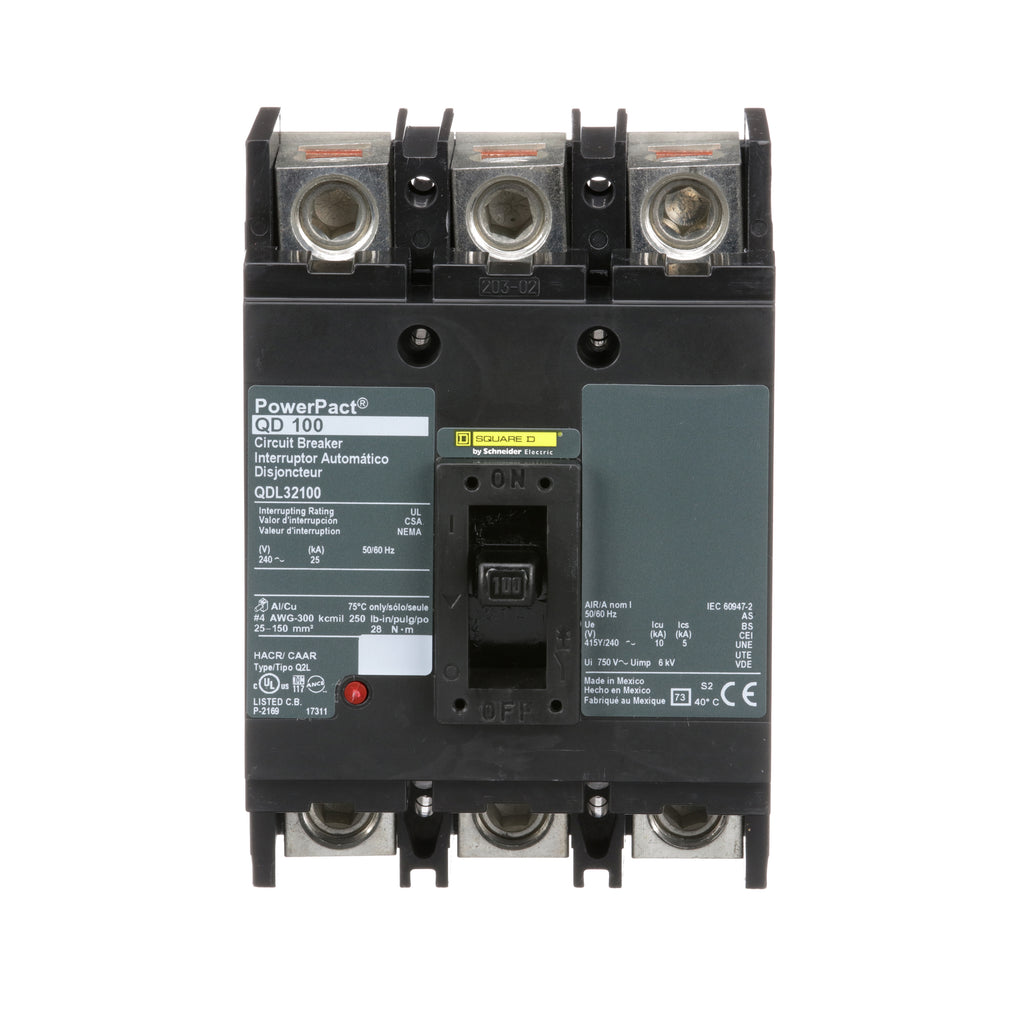

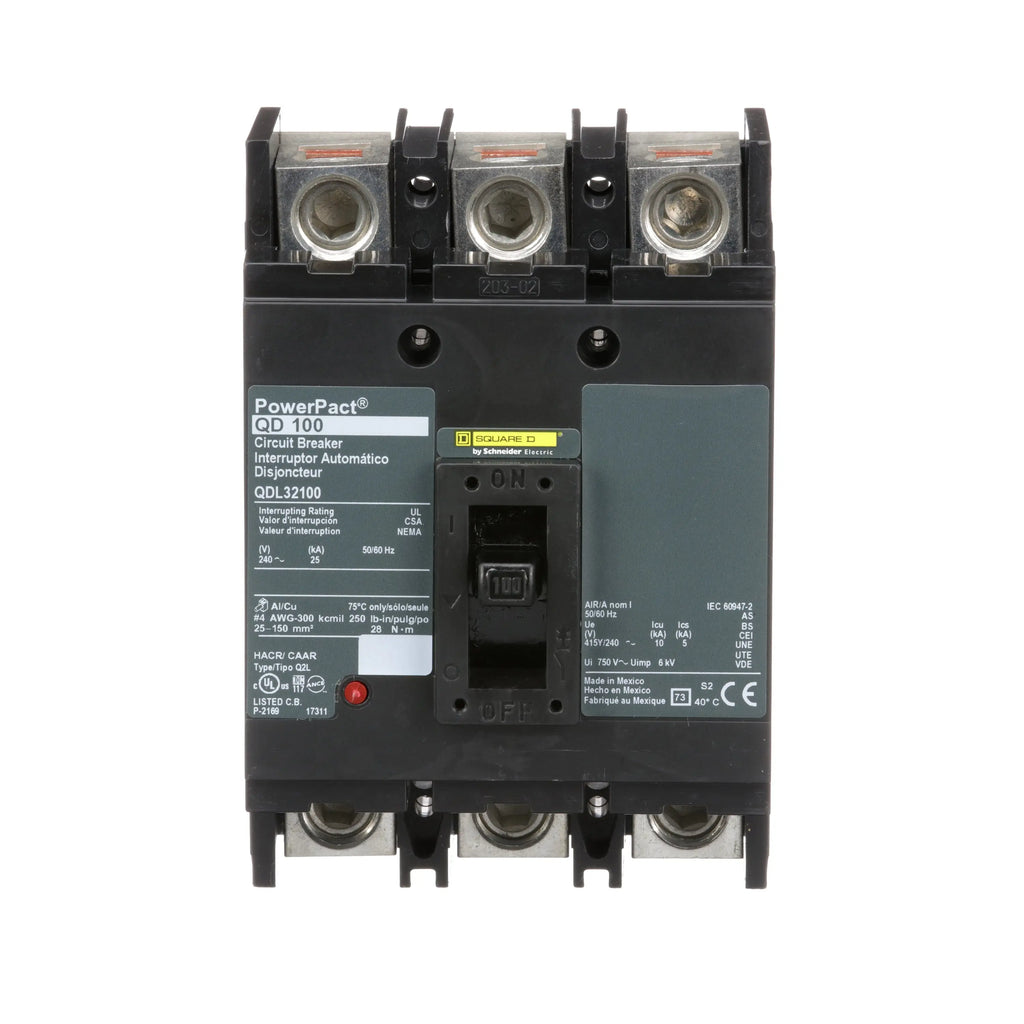

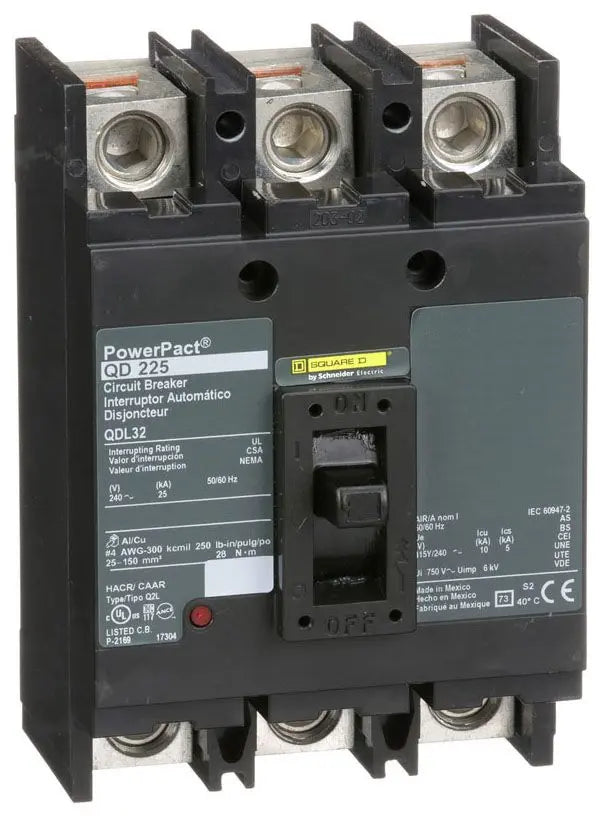

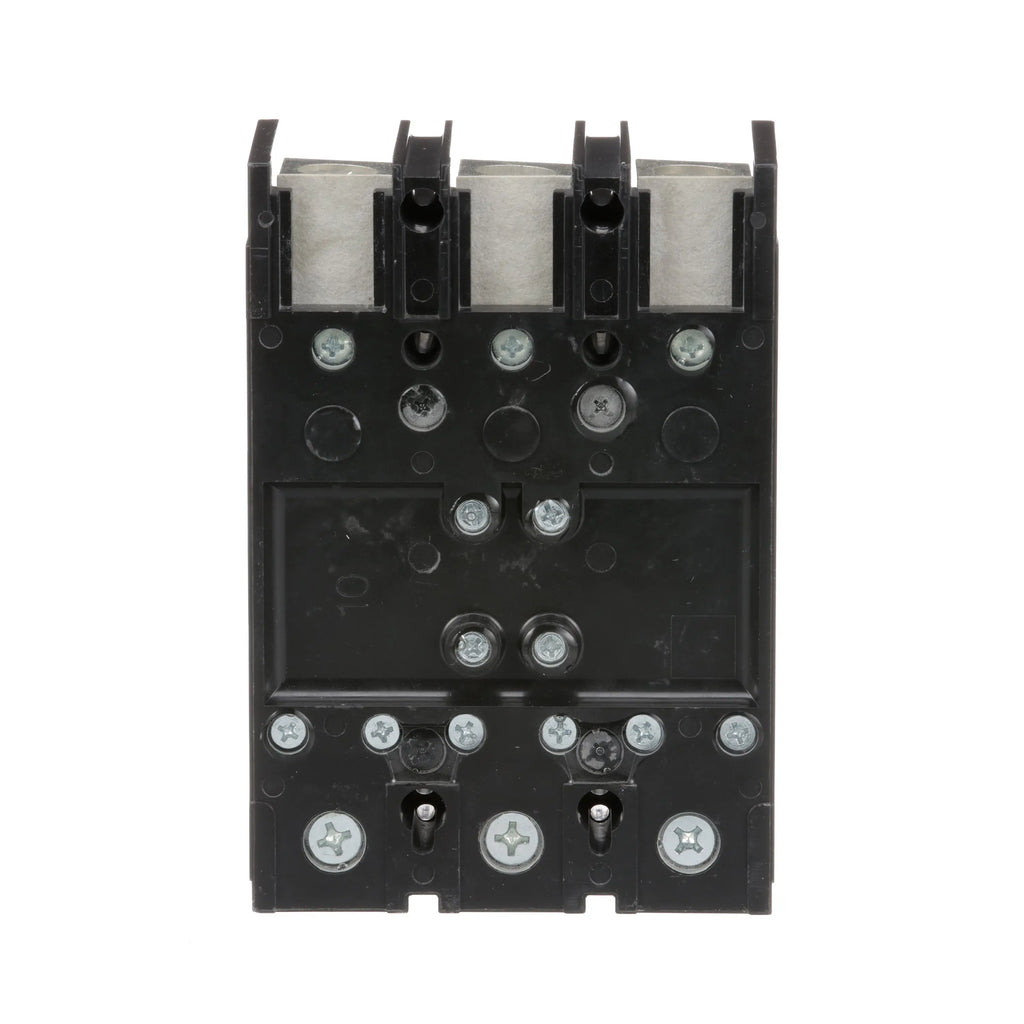

QDL32100 - Square D 100A 240V 3 Pole Molded Case Circuit Breaker QDL Frame

QDL32100

QDL32100 is a Square D 100 Amp, 240 Volt, 3 Pole molded case circuit breaker designed for reliable overcurrent protection.This thermal magnetic circuit breaker features a QDL frame, 25kA interrupting rating at 240VAC, and UL, CSA, IEC certifications for safety and performance. It includes line and load lug terminals for easy installation and is part of the Powerpact Q family.

• Amperage: 100A
• Voltage Rating: 240 VAC
• Poles: 3
• Frame Type: QDL
• Interrupting Rating: 25 kA at 240 VAC (UL/CSA)
• Trip Unit: Thermal Magnetic
• Mounting Type: Bolt-On
• Terminal Type: Line and Load Lugs
• Certifications: UL, CSA, IEC
• Dimensions: 4.5" W x 3.93" D x 6.47" H
• Brand: Square D Powerpact Q

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: QDL32100
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : QDL
• Voltage : 240
• Amperage : 100
• Phase : 3
• Poles : 3
• AIC rating : 25kA@240V
• Connection : Bolt-On
• Functions : Long Time and Instantaneous Trip
• Terminal Connection : Lug
• Frame Size : 250A/QD
• Temp Rating : -13–158 °F (-25–70 °C)
• MCM Size : Min. Wire Size 4 AWG Max. Wire Size 300 MCM
• Breaker Type : Standard
• Protection : Thermal Magnetic
• Phase Connection : ABC

Product Data

• UPC : 785901662402
• GTIN : 00785901662402
• Country of Origin : Mexico
• Dimensions : 6.47 in (164.34 mm) x 4.5 in (114.3 mm) x 3.93 in (99.82 mm) (Height x Width x Depth)
• Weight : 4.799
• Standards : UL, CSA, NEMA, NOM-003-SCFI-2000
• Certification : UL, CSA, NOM
