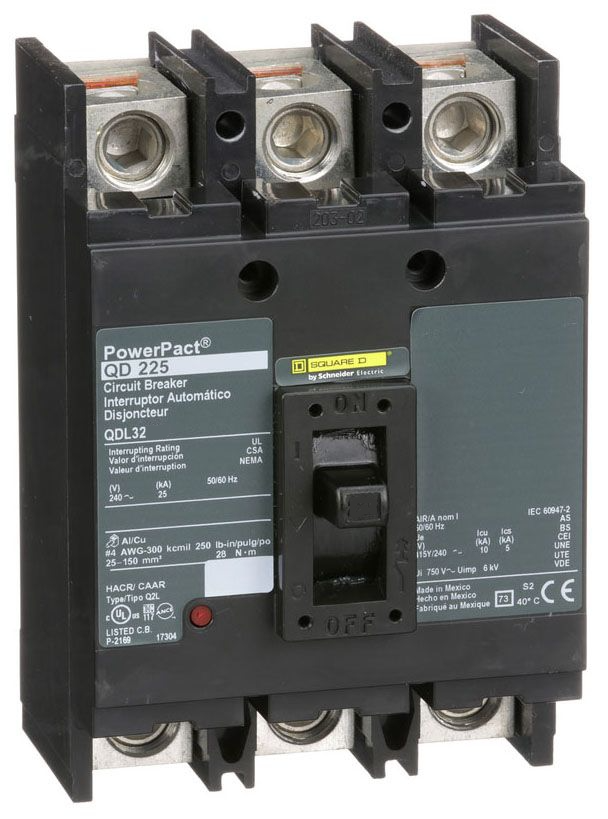

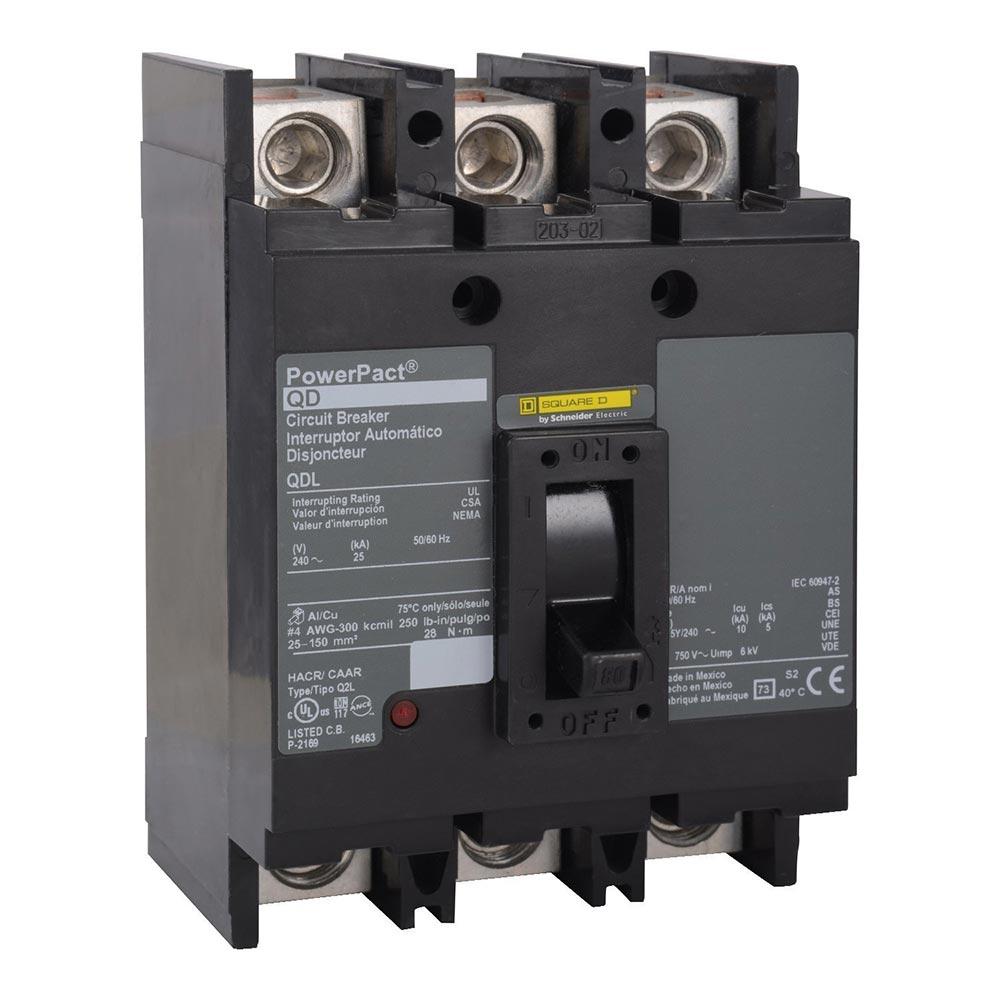

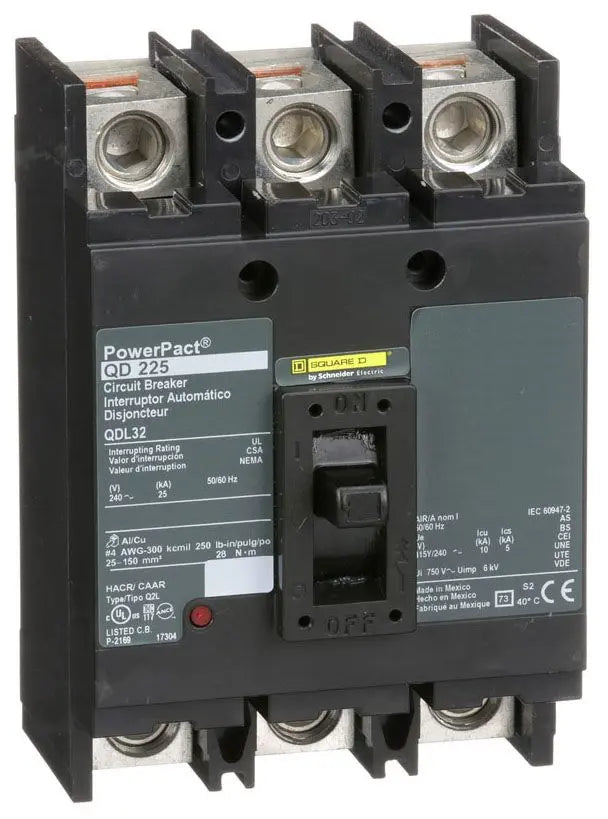

QDL32110 - Square D 110 Amp 3 Pole 240V Q Frame Molded Case Circuit Breaker

QDL32110

QDL32110 is a Square D 3 pole molded case circuit breaker rated for 110 amps and 240 volts with thermal magnetic protection.QDL32110 features a unit mount design with a Q frame and feed-thru connection type. It provides long time and instantaneous trip functions with a 25kA interrupting rating at 240V. This breaker is UL 489, CSA, and IEC certified and includes lug terminals for line and load connections.

• Manufacturer: Square D
• Part Number: QDL32110
• Amperage: 110 Amp
• Voltage: 240 VAC
• Poles: 3
• Frame Type: Q
• Mounting Type: Unit Mount
• Interrupt Rating: 25kA at 240V
• Trip Unit: Thermal Magnetic with Long Time and Instantaneous
• Connection Type: Feed-Thru with Lug Terminals
• Certifications: UL 489, CSA, IEC
• Actuator Type: Toggle

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: QDL32110
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : QDL
• Voltage : 240
• Amperage : 110
• Phase : 3
• Poles : 3
• AIC rating : 25kA@240V
• Connection : Bolt-On
• Functions : Long Time and Instantaneous
• Terminal Connection : Lug
• Frame Size : 250A/QD
• Temp Rating : -13–158 °F (-25–70 °C)
• MCM Size : Min. Wire Size 4 AWG Max. Wire Size 300 MCM
• Breaker Type : Standard
• Protection : Thermal Magnetic
• Phase Connection : ABC

Product Data

• UPC : 785901522898
• GTIN : 00785901522898
• Country of Origin : Mexico
• Dimensions : 6.47 in (164.34 mm) x 4.5 in (114.3 mm) x 3.93 in (99.82 mm) (Height x Width x Depth)
• Weight : 4.76
• Standards : UL, CSA, NEMA, NOM-003-SCFI-2000
• Certification : UL, CSA, NOM
• Wire Size : AWG 14, AWG 3/0 Aluminium/Copper
