QDL32125 - Square D 125 Amp 240 Volt 3 Pole PowerPacT Q Molded Case Circuit Breaker

Save $1,279.28
SKU: QDL32125-New
Condition: New
Price:
$504.72 $1,784.00
Stock:
29 In stock, ready to be shipped

Same-Day Shipping

Most items ship same-day if ordered by 1:30 PM PST.

2 Year Warranty Guaranteed

All items both Re-Certified, and New sold by Essential Electric include a 30 day return policy and a 2-year full warranty. This means that they are guaranteed to be free from defects for a full 2 years from the date that the product was shipped from our warehouse.

Product Questions? Contact Us

Product Info

QDL32125 - Square D/ Schneider Electric Feed-Thru 125 Amp 3 Pole Circuit Breaker - Essential Electric Supply
QDL32125 - Square D Bolt-On 240V 125A 3 pole circuit breaker 25kA@240V - Essential Electric Supply
QDL32125 - Square D Bolt-On 240V 125A 3 pole circuit breaker 25kA@240V - Essential Electric Supply
QDL32125 - Square D Bolt-On 240V 125A 3 pole circuit breaker 25kA@240V - Essential Electric Supply
QDL32125 - Square D Bolt-On 240V 125A 3 pole circuit breaker 25kA@240V - Essential Electric Supply
QDL32125 - Square D Bolt-On 240V 125A 3 pole circuit breaker 25kA@240V - Essential Electric Supply
Roll over image to zoom in Click on image to zoom Images are for reference only
QDL32125 - Square D/ Schneider Electric Feed-Thru 125 Amp 3 Pole Circuit Breaker - Essential Electric Supply
QDL32125 - Square D Bolt-On 240V 125A 3 pole circuit breaker 25kA@240V - Essential Electric Supply
QDL32125 - Square D Bolt-On 240V 125A 3 pole circuit breaker 25kA@240V - Essential Electric Supply
QDL32125 - Square D Bolt-On 240V 125A 3 pole circuit breaker 25kA@240V - Essential Electric Supply
QDL32125 - Square D Bolt-On 240V 125A 3 pole circuit breaker 25kA@240V - Essential Electric Supply
QDL32125 - Square D Bolt-On 240V 125A 3 pole circuit breaker 25kA@240V - Essential Electric Supply

Description

QDL32125

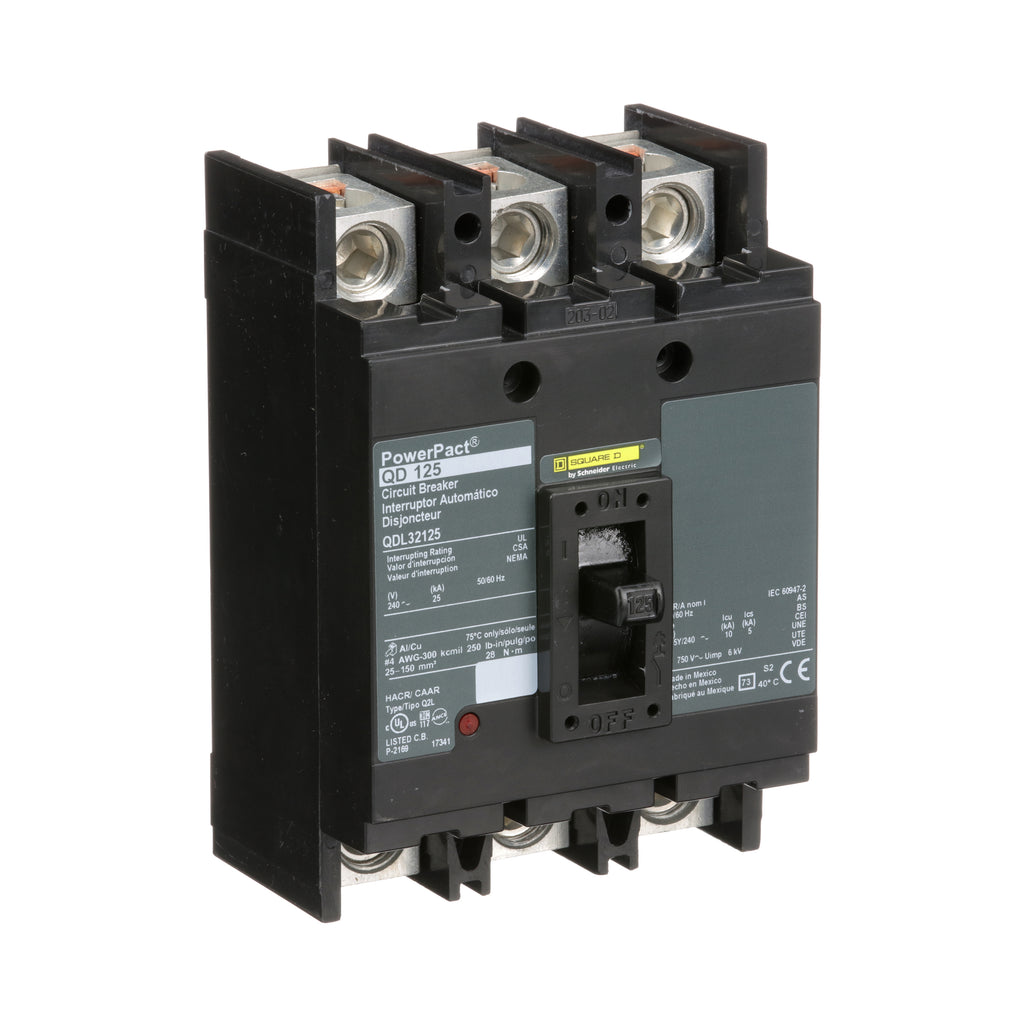

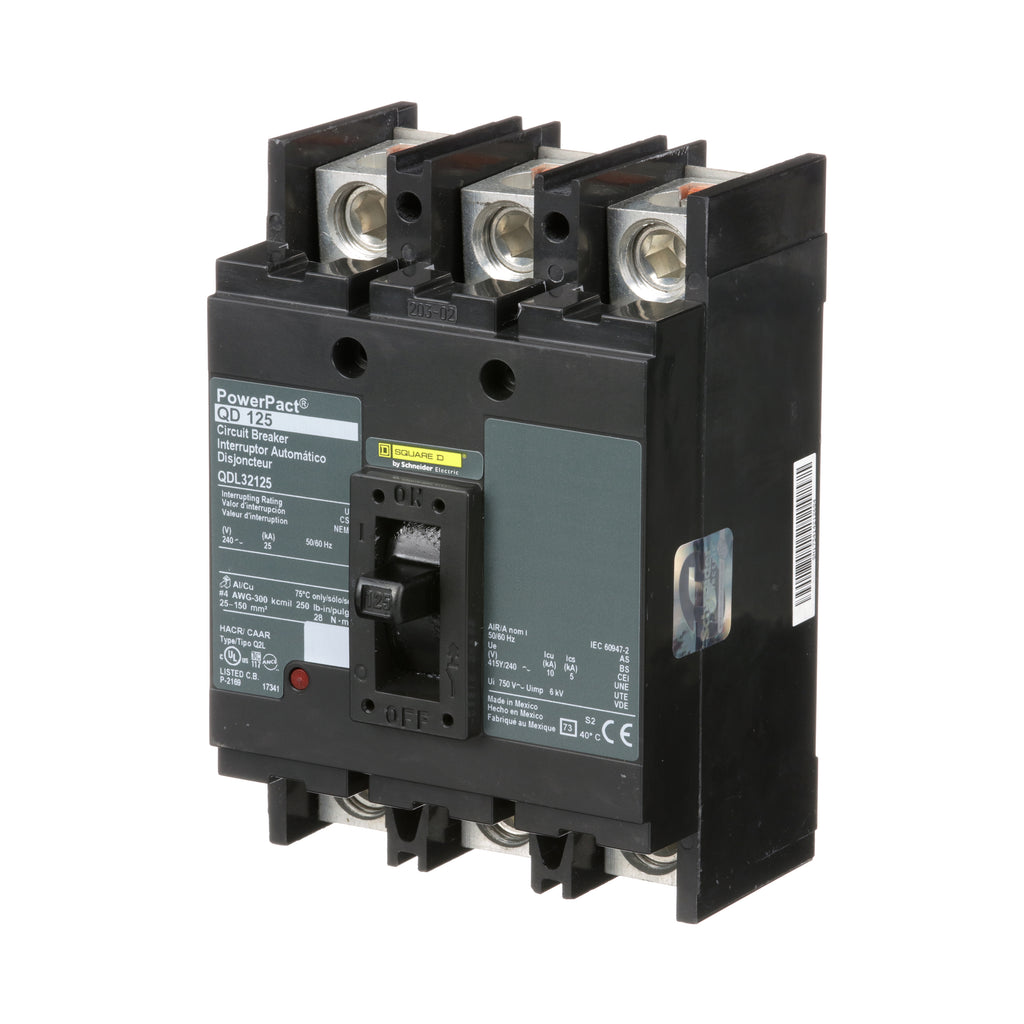

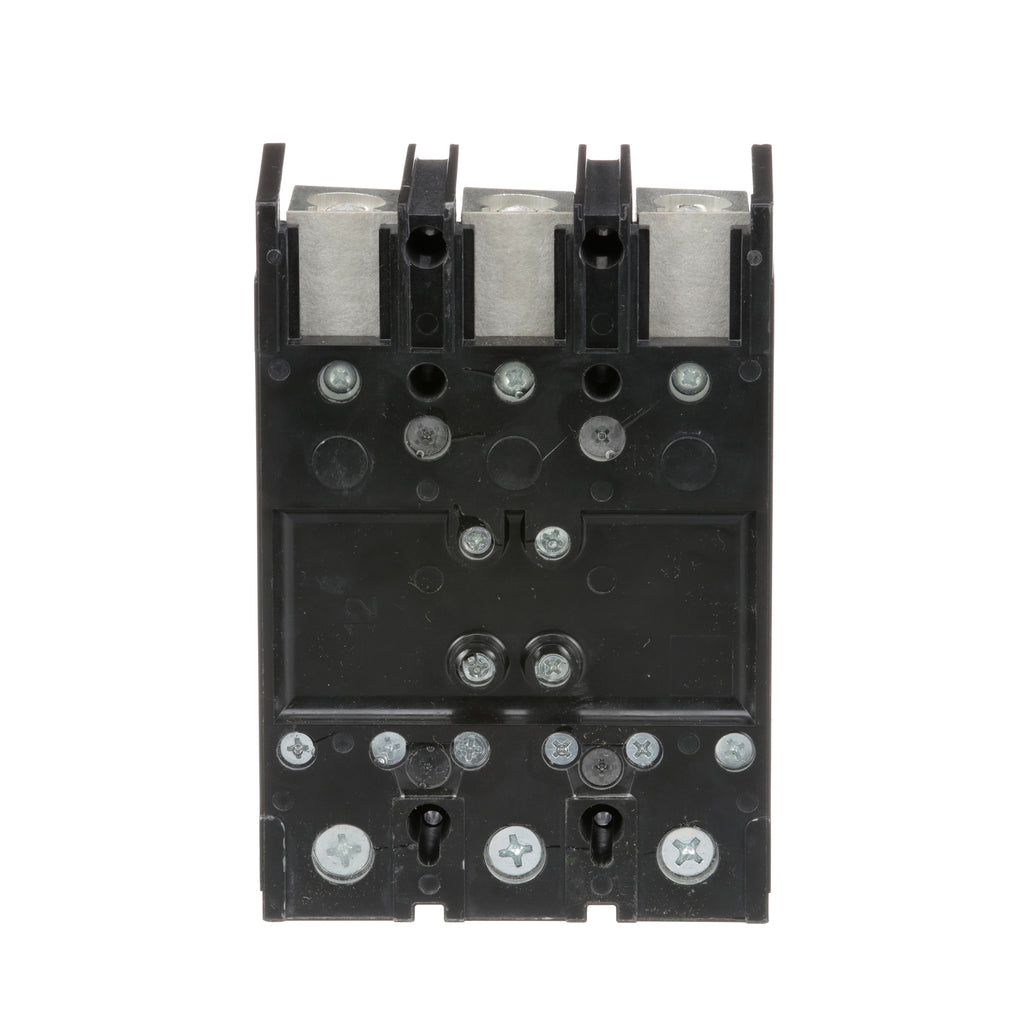

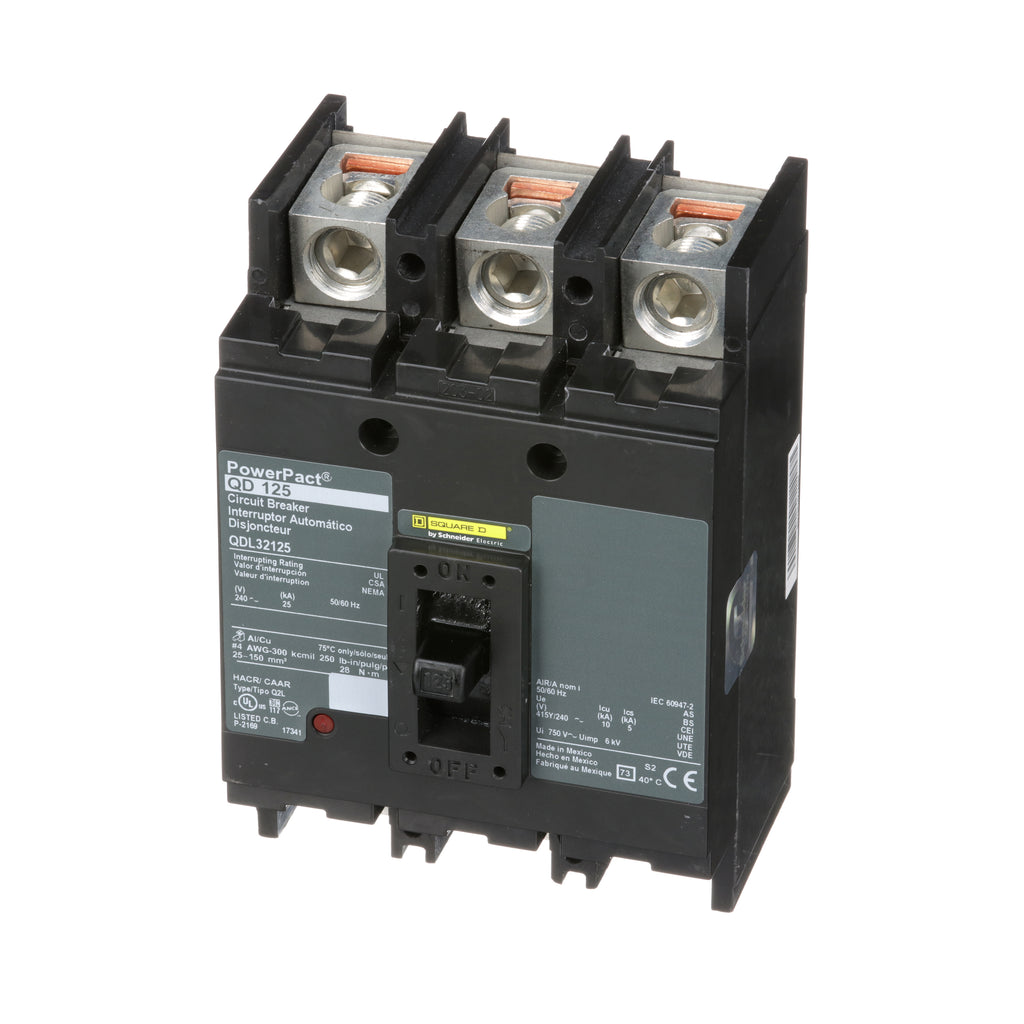

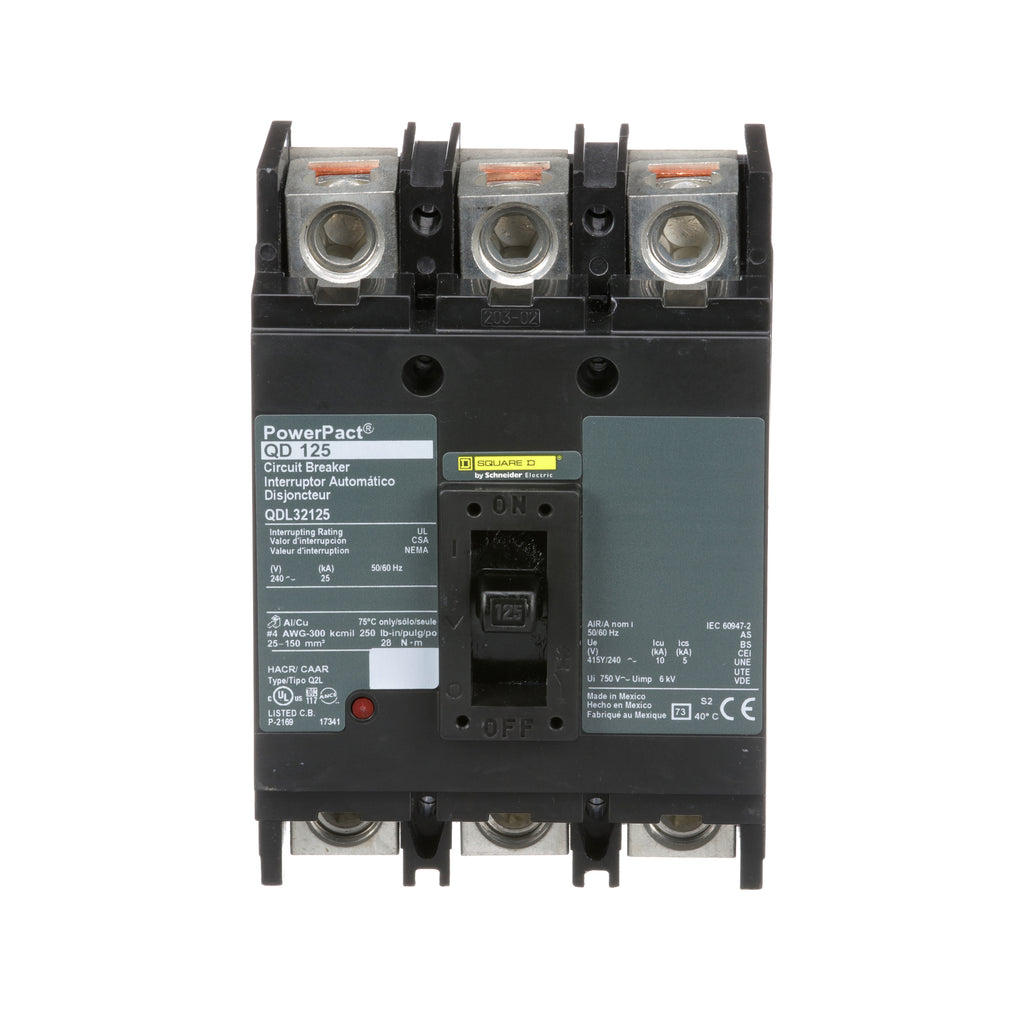

QDL32125 is a 3 pole, 125 amp, 240 volt molded case circuit breaker from Square D's PowerPacT Q series designed for reliable thermal magnetic protection.This circuit breaker features a 25kA interrupting rating at 120/208/240VAC, feed-thru connection type, and includes long time and instantaneous trip functions. It is UL, CSA, IEC, NOM, and NEMA certified, suitable for unit mounting, and supports line and load side lug terminals. The breaker is mercury and PVC free, with a temperature rating from 40 to 70 °C and supports wire sizes from AWG 4 to 300 MCM.
    Key Specifications
    • Amperage: 125 Amps
    • Voltage: 240 VAC
    • Poles: 3
    • Series/Frame: PowerPacT QDL
    • Interrupt Rating: 25kA at 120/208/240 VAC
    • Mounting Type: Unit Mount
    • Trip Unit: Thermal Magnetic with Long Time and Instantaneous Trip
    • Connection Type: Feed-Thru
    • Certifications: UL, CSA, IEC, NOM, NEMA
    • Terminal Connection: Line and Load Side Lug
    • Temperature Rating: 40 to 70 °C
    • Breaker Features: Mercury Free, PVC Free
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

  • Part Number: QDL32125
  • Manufacturer : Schneider Electric
  • Brand : Square D
  • Category : Circuit Breaker
  • Item Subcategory : Molded Case
  • Family : Powerpact
  • Type : QDL
  • Voltage : 240
  • Amperage : 125
  • Phase : 3
  • Poles : 3
  • AIC rating : 25kA@240V
  • Connection : Bolt-On
  • Functions : Long Time and Instantaneous Trip
  • Terminal Connection : Lug
  • Frame Size : 250A/QD
  • Temp Rating : -13–158 °F (-25–70 °C)
  • MCM Size : Min. Wire Size 4 AWG Max. Wire Size 300 MCM
  • Breaker Type : Standard
  • Protection : Thermal Magnetic
  • Phase Connection : ABC

Product Data

  • UPC : 785901522980
  • GTIN : 00785901522980
  • Country of Origin : Mexico
  • Dimensions : 6.47 in (164.34 mm) x 4.5 in (114.3 mm) x 3.93 in (99.82 mm) (Height x Width x Depth)
  • Weight : 4.751
  • Standards : UL, CSA, NEMA, NOM-003-SCFI-2000
  • Certification : UL, CSA, NOM
