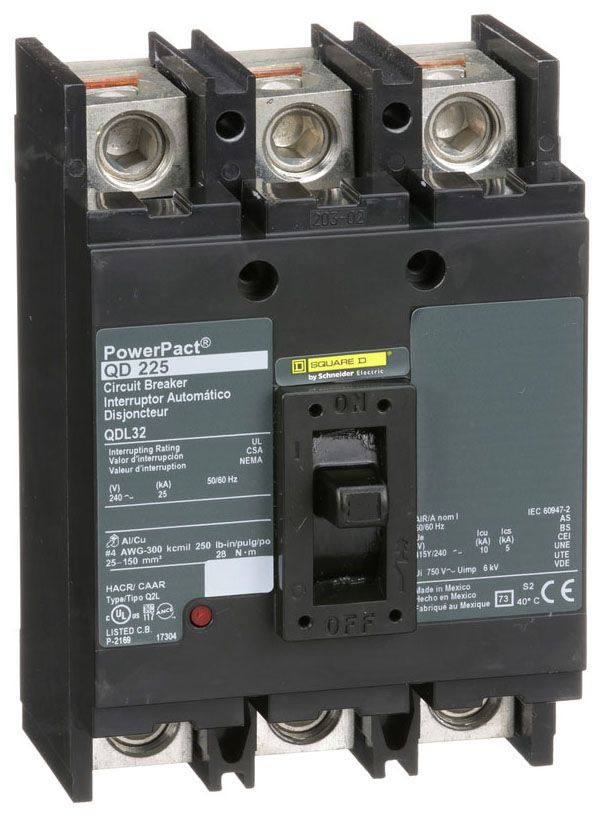

QDL32080 - Square D 80 Amp 240V 3 Pole Q Frame Molded Case Circuit Breaker

QDL32080

QDL32080 is a Square D 80 Amp, 3 Pole, 240 Volt Q Frame molded case circuit breaker designed for reliable overload and short circuit protection.This circuit breaker features a thermal magnetic trip unit with a D interrupt rating, suitable for unit mount installation. It is UL 489 listed and rated for 25 kA interrupt capacity at 240 VAC, with additional ratings of 18 kA at 480 VAC and 14 kA at 600 VAC. The breaker supports lug-type terminal connections and accommodates wire sizes from 4 AWG to 300 kcmil.

• Amperage: 80 Amp
• Voltage Rating: 240 VAC
• Number of Poles: 3
• Frame Type: Q Frame
• Mounting Type: Unit Mount
• Interrupt Rating: 25 kA @ 240 VAC, 18 kA @ 480 VAC, 14 kA @ 600 VAC
• Trip Unit: Thermal Magnetic
• UL Listing: UL 489
• Terminal Type: Lug
• Wire Size Range: 4 AWG to 300 kcmil
• Dimensions (HxWxD): 6.47" x 4.5" x 3.93"
• Manufacturer: Square D (Schneider Electric)

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: QDL32080
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : QDL
• Voltage : 240
• Amperage : 80
• Phase : 3
• Poles : 3
• AIC rating : 25kA@240V
• Connection : Bolt-On
• Functions : LI - Long-Time and Instantaneous
• Terminal Connection : Lug
• Frame Size : 250A/QD
• Temp Rating : -13–158 °F (-25–70 °C)
• MCM Size : Min. Wire Size 4 AWG Max. Wire Size 300 MCM
• Breaker Type : Standard
• Protection : Thermal Magnetic
• Phase Connection : ABC

Product Data

• UPC : 785901522867
• GTIN : 00785901522867
• Country of Origin : Mexico
• Dimensions : 6.47 in (164.34 mm) x 4.5 in (114.3 mm) x 3.93 in (99.82 mm) (Height x Width x Depth)
• Weight : 4.76
• Standards : UL, CSA, NEMA, NOM-003-SCFI-2000
• Certification : UL, CSA, NOM
