QDA32150 - Square D 150A 3 Pole 240V Molded Case Circuit Breaker Thermal Magnetic 25kA Interrupting Rating

Save $1,305.15
SKU: QDA32150-New
Condition: New
Price:
$763.85 $2,069.00
Stock:
100+ in stock, ready to be shipped

Same-Day Shipping

Most items ship same-day if ordered by 12:30 PM PST.

2 Year Warranty Guaranteed

All items both Re-Certified, and New sold by Essential Electric include a 30 day return policy and a 2-year full warranty. This means that they are guaranteed to be free from defects for a full 2 years from the date that the product was shipped from our warehouse.

Product Questions? Contact Us

Product Info

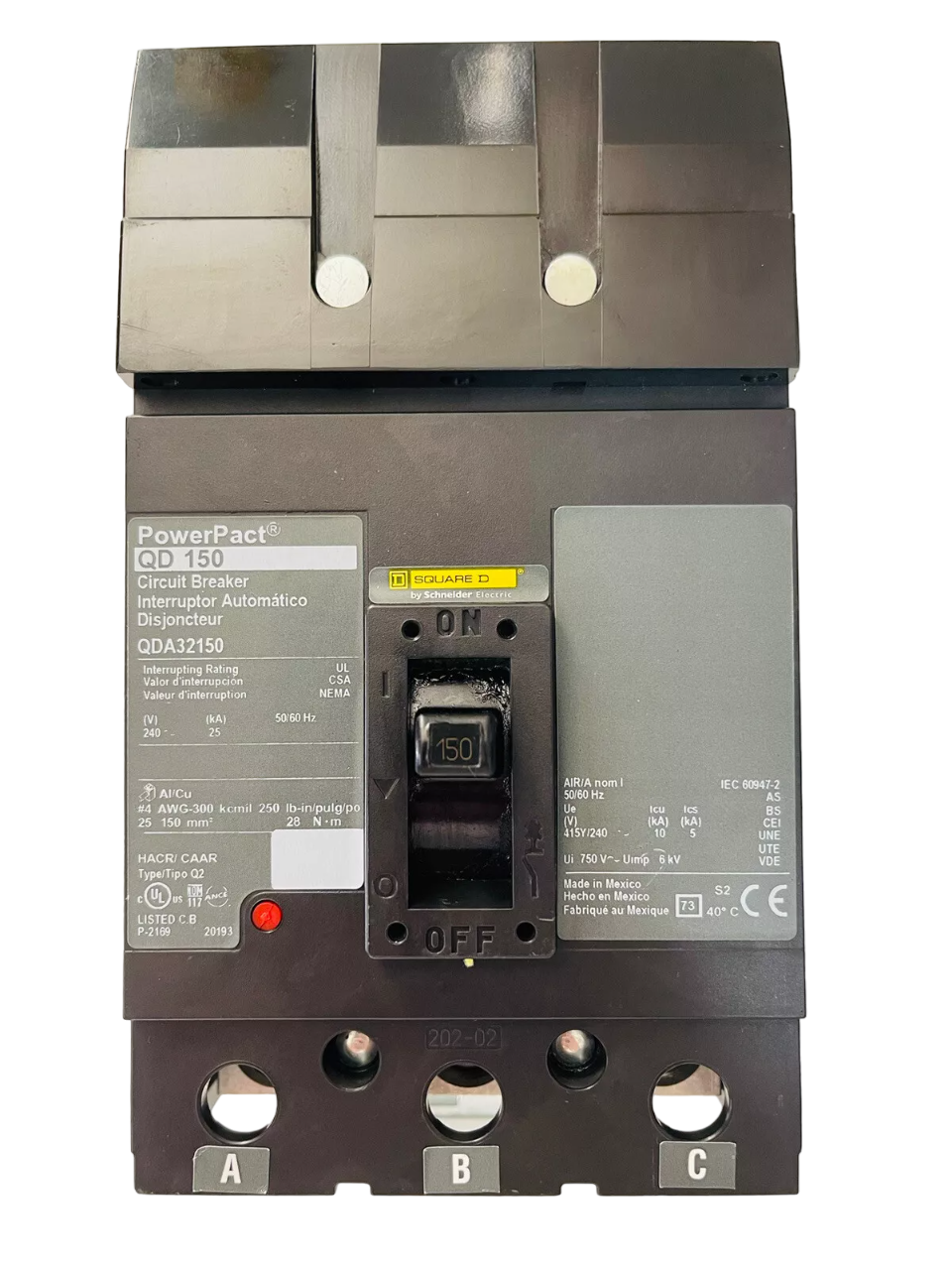

QDA32150 - Square D Plug In Panelboard 240V 150A 3 pole circuit breaker 25kA@240V - Essential Electric Supply

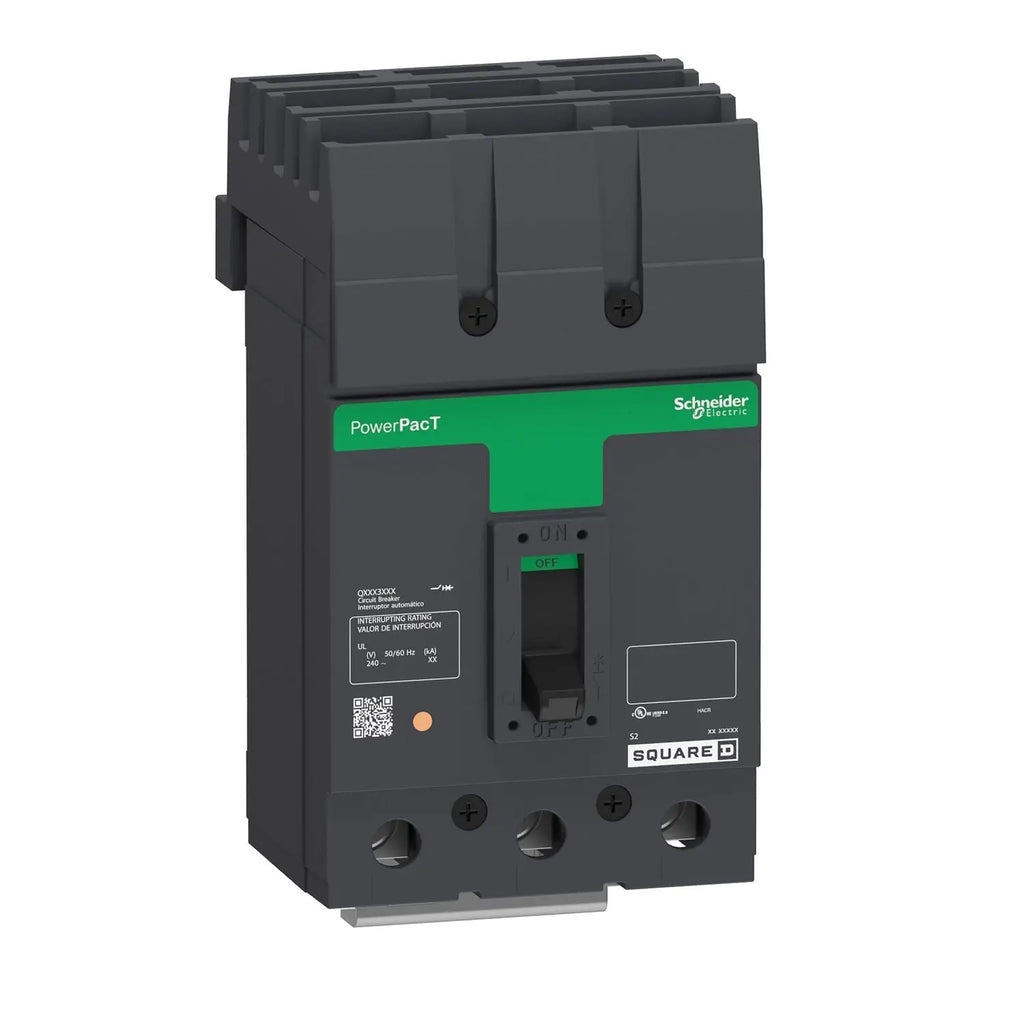

QDA32150 - Square D I-Line Style Plug-In 150 Amp 3 Pole Circuit Breaker - Essential Electric Supply
QDA32150 - Square D 150A 3 Pole 240V Molded Case Circuit Breaker Thermal Magnetic 25kA Interrupting Rating - Essential Electric Supply
Roll over image to zoom in Click on image to zoom Images are for reference only
QDA32150 - Square D Plug In Panelboard 240V 150A 3 pole circuit breaker 25kA@240V - Essential Electric Supply
QDA32150 - Square D I-Line Style Plug-In 150 Amp 3 Pole Circuit Breaker - Essential Electric Supply
QDA32150 - Square D 150A 3 Pole 240V Molded Case Circuit Breaker Thermal Magnetic 25kA Interrupting Rating - Essential Electric Supply

Description

QDA32150


QDA32150 is a Square D molded case circuit breaker designed for 150 ampere, 3 pole, 240 volt AC applications with thermal magnetic trip unit.

This circuit breaker features a 25 kiloampere interrupting rating at 240VAC, plug-in mounting for I-Line panelboards, and trip settings ranging from 1200 to 2400 amperes. It is UL 489 listed, CSA and IEC certified, and suitable for use in industrial and commercial electrical distribution systems. The breaker supports load side lug terminals and is compatible with ABC phase connection.

    Key Specifications
    • Amperage: 150A
    • Voltage Rating: 240VAC
    • Number of Poles: 3
    • Interrupting Rating: 25kA at 240VAC
    • Mounting Type: Plug-In I-Line Panelboard
    • Trip Unit: Thermal Magnetic
    • Trip Settings: 1200A hold, 2400A trip
    • Frame/Series: QDA
    • Phase Connection: ABC
    • Certifications: UL 489, CSA, IEC
    • Terminal Connection: Lug
    • Compatible Wire Size: 4 AWG to 300 kcmil

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.


Specifications

  • Part Number: QDA32150
  • Manufacturer : Schneider Electric
  • Brand : Square D
  • Category : Circuit Breaker
  • Item Subcategory : Molded Case
  • Family : I-Line
  • Type : QDA
  • Voltage : 240
  • Amperage : 150
  • Phase : 3
  • Poles : 3
  • AIC rating : 25kA@240V
  • Connection : Plug In Panelboard
  • Functions : LI - Long-Time and Instantaneous
  • Terminal Connection : Lug
  • Frame Size : 250A/QD
  • Temp Rating : -13–158 °F (-25–70 °C)
  • MCM Size : Min. Wire Size 4 AWG Max. Wire Size 300 MCM
  • Breaker Type : Standard
  • Protection : Thermal Magnetic
  • Phase Connection : ABC

Product Data

  • UPC : 785901702917
  • GTIN : 00785901702917
  • Country of Origin : Mexico
  • Dimensions : 6.47 in (164.34 mm) x 4.5 in (114.3 mm) x 3.93 in (99.82 mm) (Height x Width x Depth)
  • Weight : 6.601 lb
  • Panel Type : I Line Panelboards
  • Standards : UL, CSA, NEMA, NOM-003-SCFI-2000
  • Certification : UL, CSA, NOM
