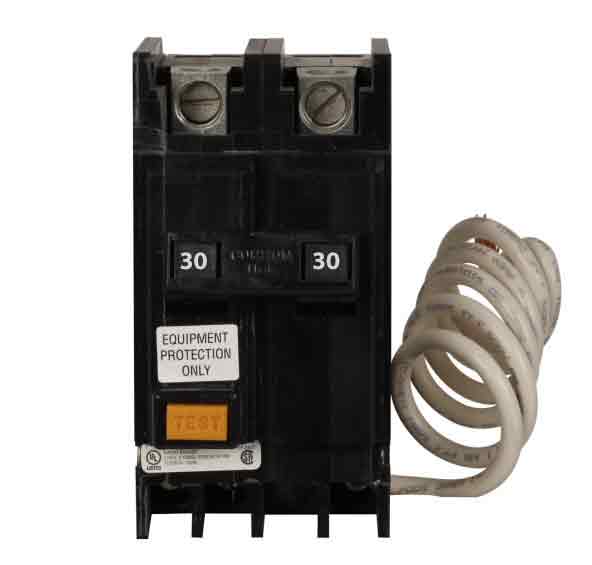

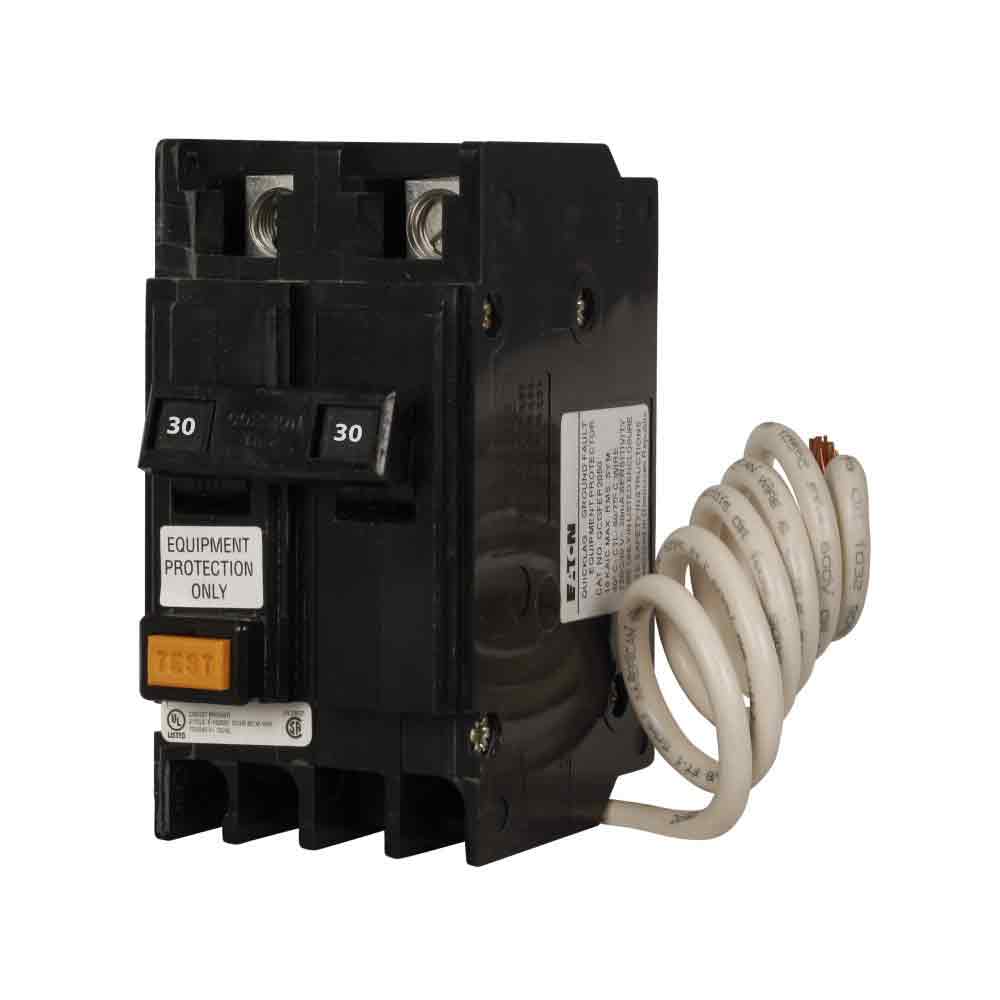

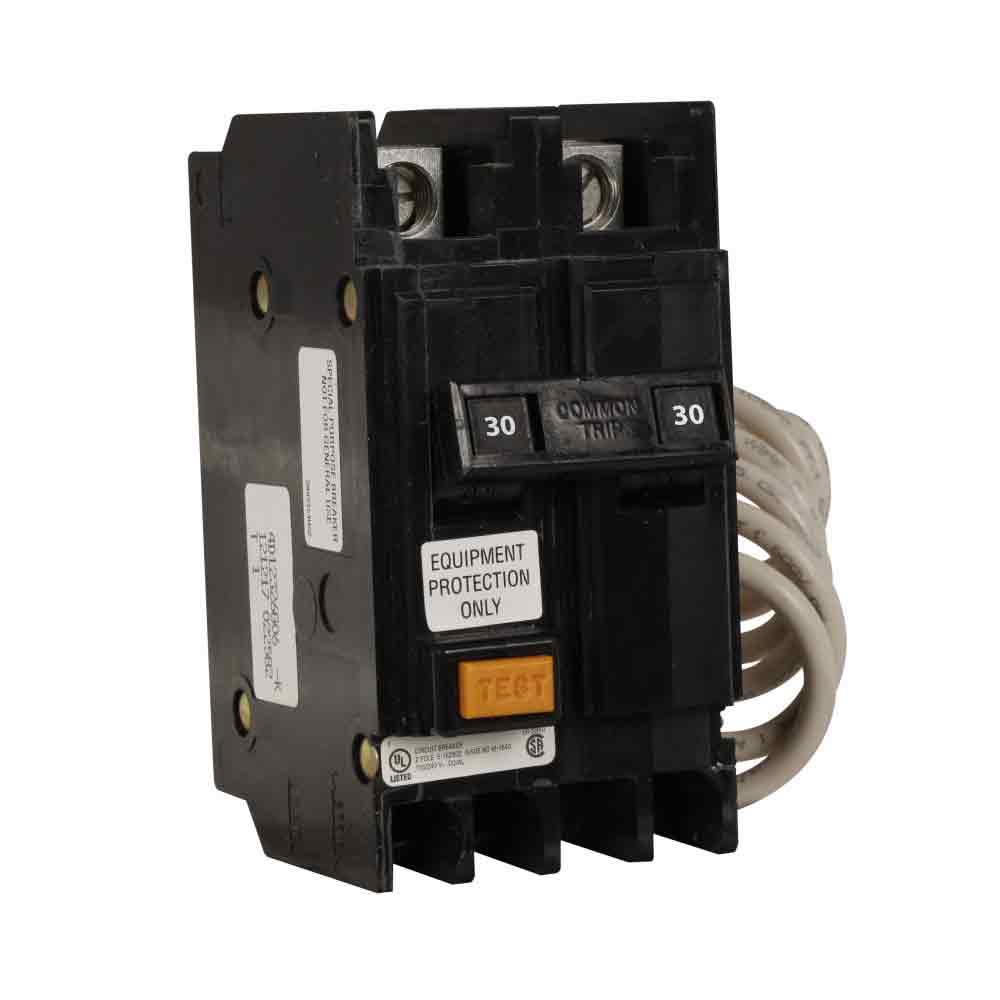

QCGFEP2030 - Cutler Hammer 30A 2-Pole 120/240V GFCI Circuit Breaker 10kAIC QC Frame

QCGFEP2030

QCGFEP2030 is a Cutler Hammer 2-pole GFCI circuit breaker designed for equipment protection with 30 mA trip sensitivity.This Eaton Cutler Hammer QC frame breaker features a 30 ampere rating, 120/240 volt AC operation, and a 10 kA interrupt rating. It is non-interchangeable with cable-in/cable-out connections and provides ground fault protection with a 30 mA trip sensitivity. The breaker includes thermal magnetic trip functions and is UL listed, CSA certified, and HACR rated for reliable performance.

Key Specifications
• Amperage: 30 A
• Voltage: 120/240 V AC
• Poles: 2
• Interrupt Rating: 10 kAIC
• Trip Sensitivity: 30 mA Ground Fault
• Frame/Series: QC
• Mounting Type: Cable-in/Cable-out
• Trip Type: Thermal Magnetic
• Certifications: UL Listed, CSA Certified, HACR Rated
• Non-Interchangeable
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.


Specifications

• Part Number: QCGFEP2030
• Manufacturer : Cutler Hammer
• Brand : Cutler Hammer
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : QUICKLAG
• Type : QCGF
• Voltage : 240
• Amperage : 30
• Phase : 1
• Poles : 2
• AIC rating : 10kA@240V
• Connection : Feed-Thru
• Functions : Long Time and Instantaneous Trip
• Temp Rating : -13–158 °F (-25–70 °C)
• Protection : Thermal Magnetic



Product Data

• UPC : 786679574263
• GTIN : 00786679574263
• Country of Origin : Dominican Republic
• Dimensions : 5.7 in x 3 in x 4.5 in (Length/Depth x Height x Width)
• Weight : 0.95
• Certification : CSA Certified,UL Listed
• Wire Size : 14 to 4 AWG
