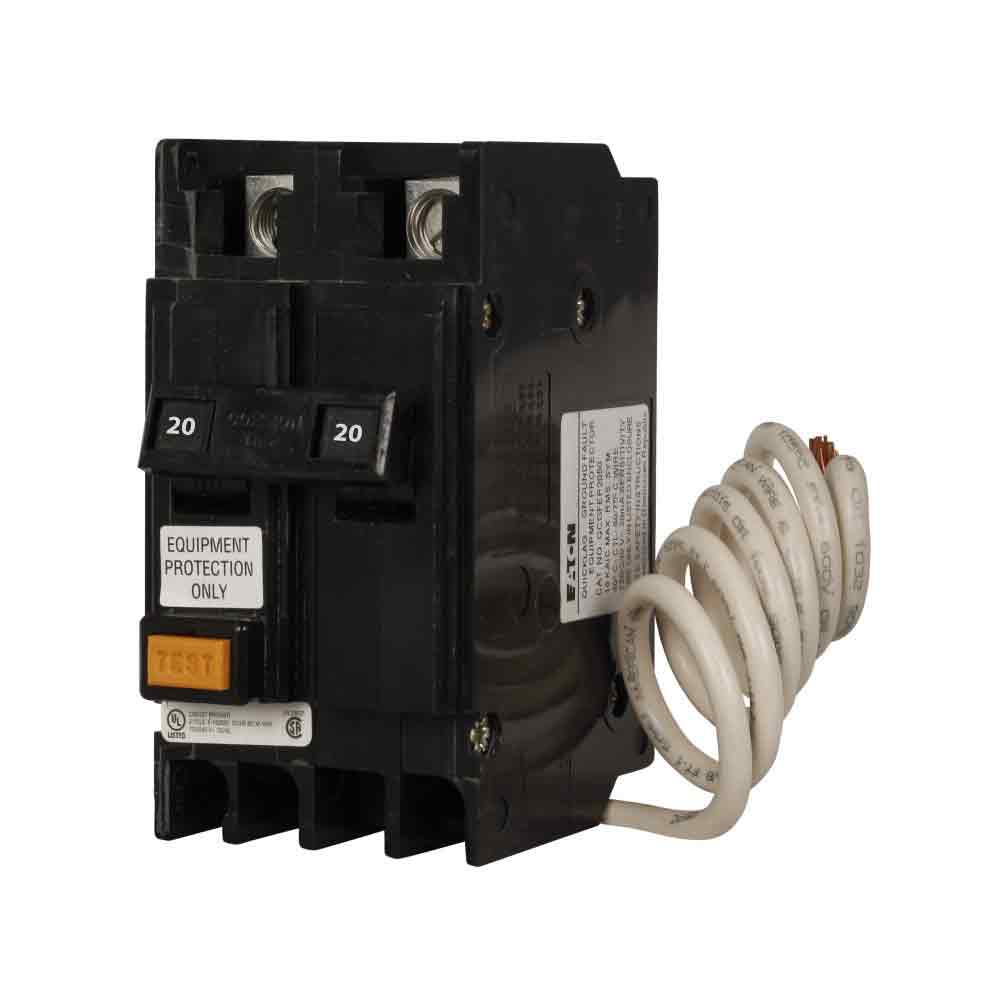

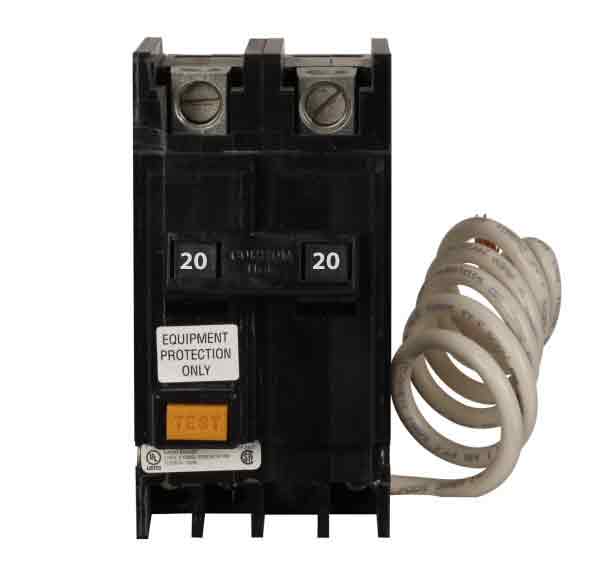

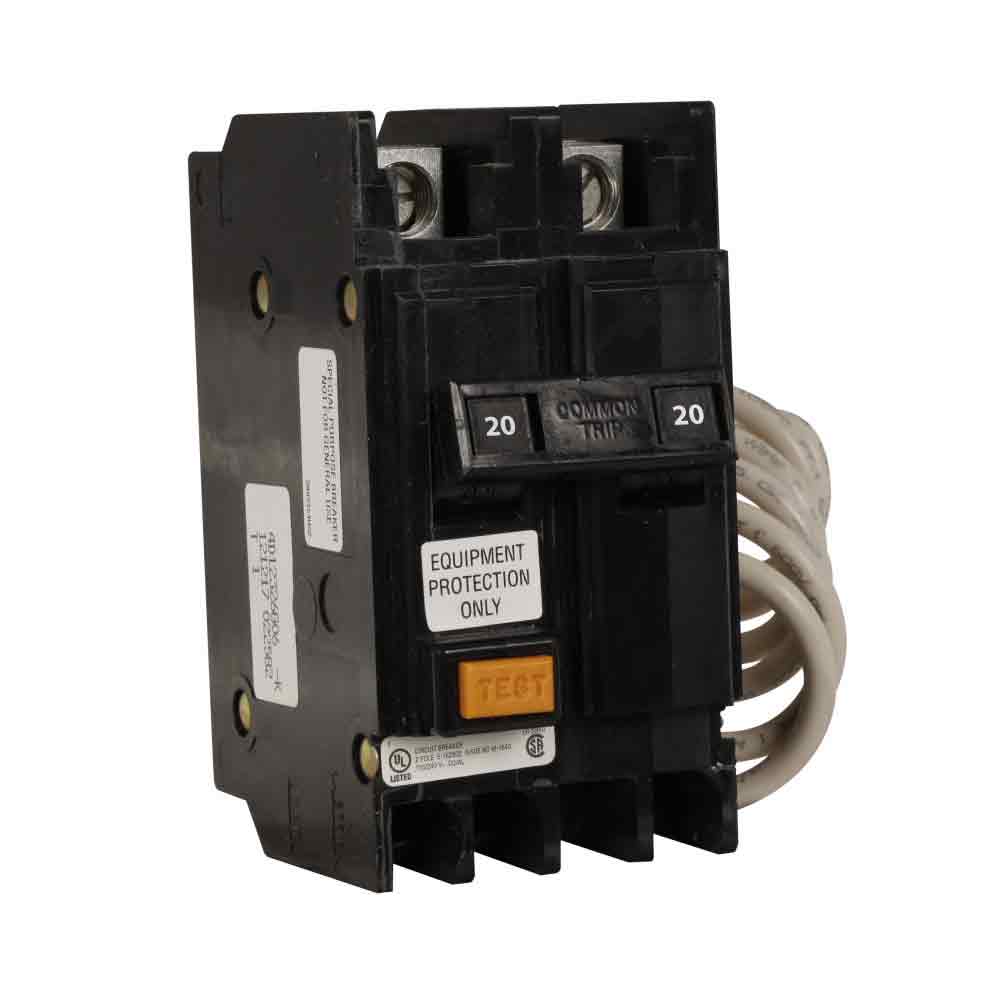

QCGFEP2020 - Cutler Hammer 30A 120/240V 2-Pole Ground Fault Circuit Breaker, Q7 Frame, 10kAIC

QCGFEP2020

QCGFEP2020 is a Cutler Hammer 2-pole ground fault circuit breaker designed for reliable equipment protection.This Eaton QC GFCI circuit breaker features a 30 ampere current rating, 120/240 volt AC operation, and a 10,000 amp interrupting capacity. It includes a 30 mA ground fault trip sensitivity and uses a thermal magnetic trip unit. The breaker is non-interchangeable with cable-in/cable-out connections and fits the Q7 frame series with plug-on mounting.

Key Specifications
• Manufacturer: Cutler Hammer (Eaton)
• Part Number: QCGFEP2020
• Amperage: 30 Amps
• Voltage: 120/240 VAC
• Poles: 2
• Interrupting Rating: 10,000 AIC
• Trip Unit: Thermal Magnetic with 30 mA GFCI sensitivity
• Mounting Type: Plug-On
• Frame/Series: Q7
• Non-Interchangeable Cable-In/Cable-Out
• Certifications: UL Listed
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.


Specifications

• Part Number: QCGFEP2020
• Manufacturer : Cutler Hammer
• Brand : Cutler Hammer
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : QUICKLAG
• Type : QCGF
• Voltage : 240
• Amperage : 20
• Phase : 1
• Poles : 2
• AIC rating : 10kA@240V
• Connection : Feed-Thru
• Functions : Long Time and Instantaneous Trip
• Temp Rating : -13–158 °F (-25–70 °C)
• Protection : Thermal Magnetic



Product Data

• UPC : 78667957422
• GTIN : 00786679574225
• Country of Origin : Dominican Republic
• Dimensions : 3 in x 2 in x 2 in (Length/Depth x Height x Width)
• Weight : 1
• Certification : CSA Certified,UL Listed
• Wire Size : 14 to 4 AWG
