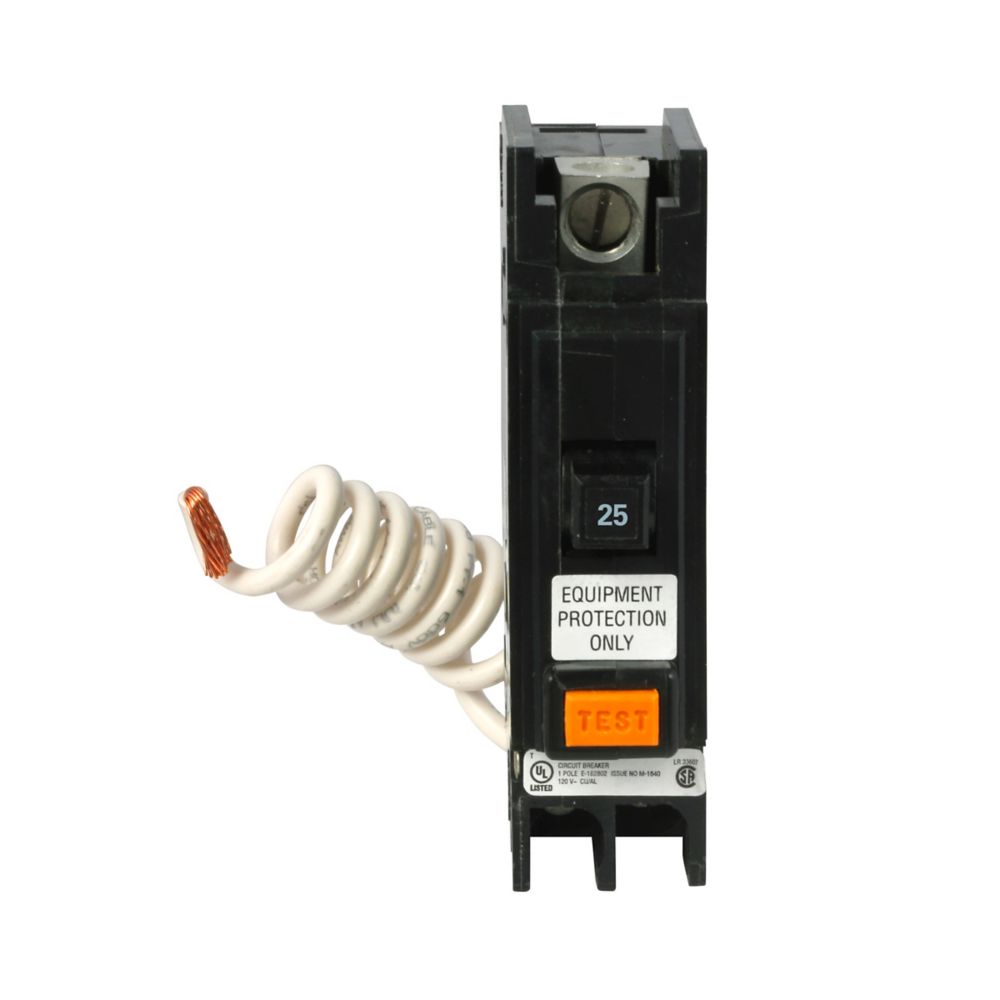

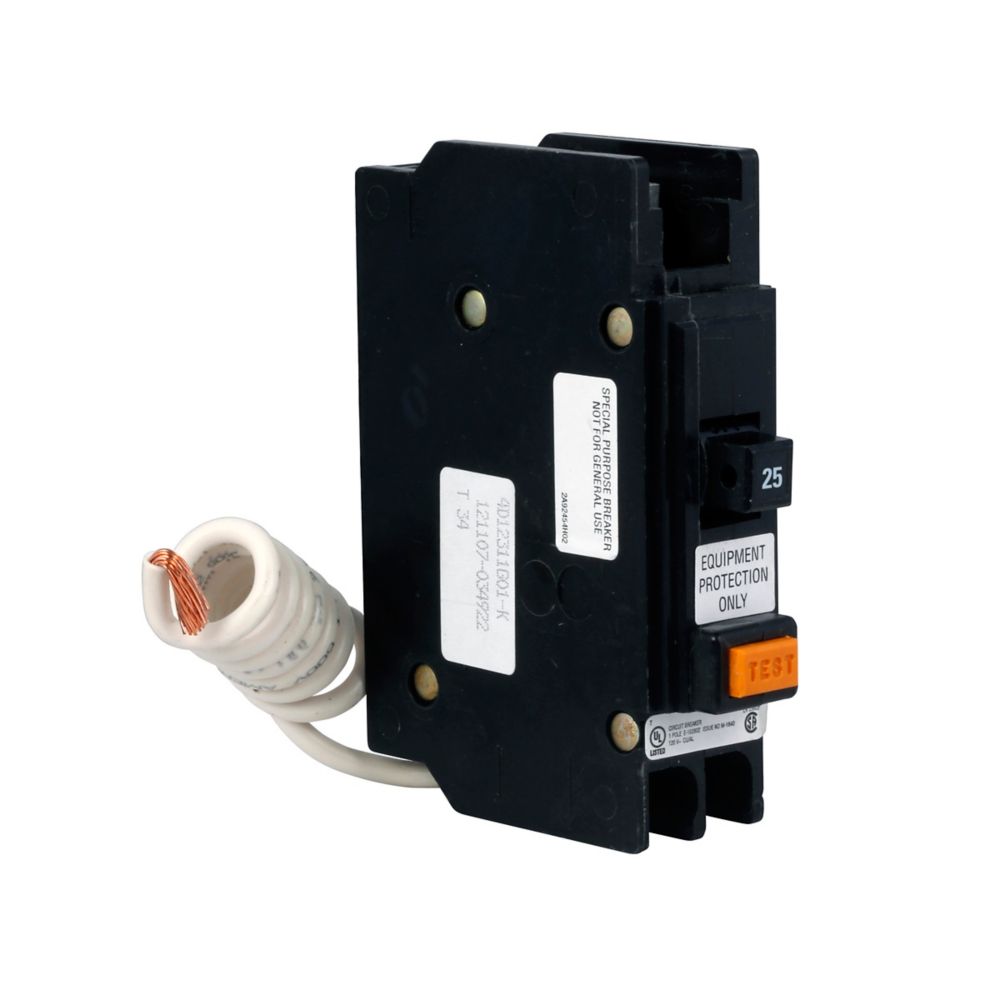

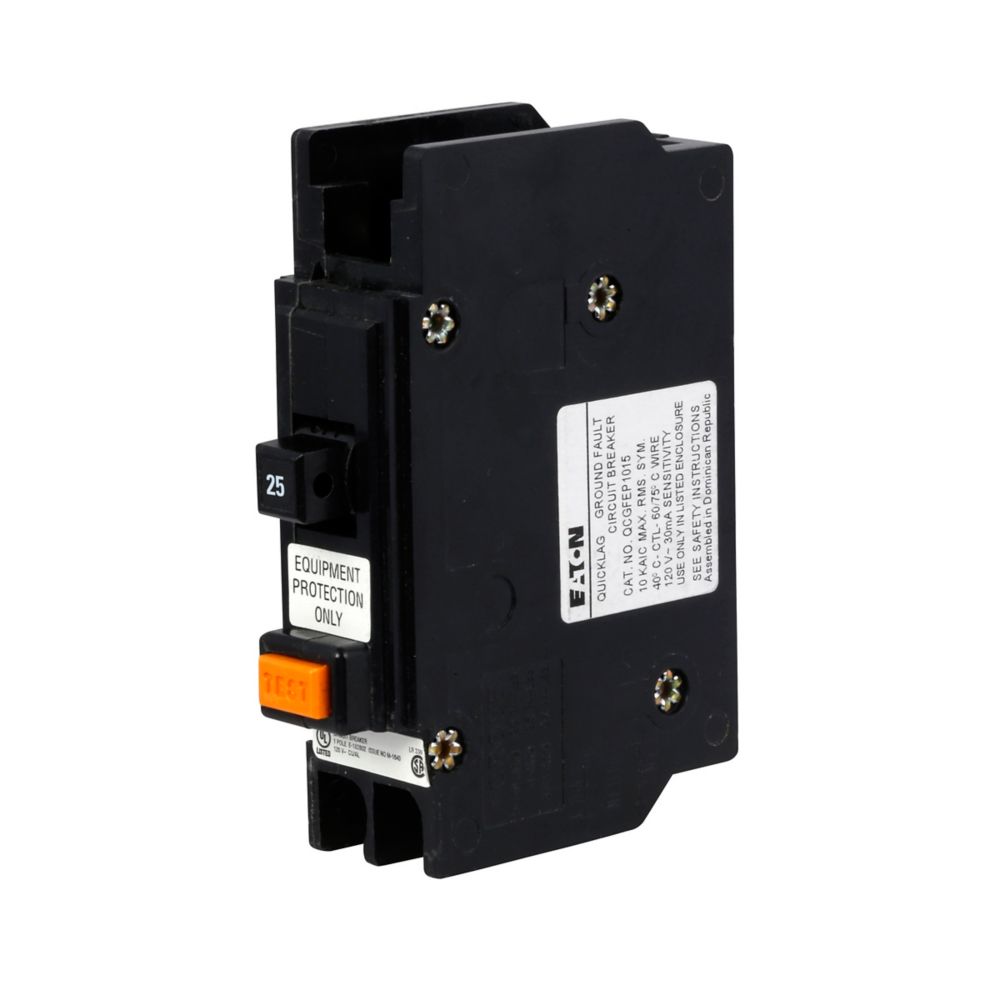

QCGFEP1025 - Cutler Hammer 25A 120V 1 Pole QC Series GFCI Equipment Protector Circuit Breaker, 10kAIC, Bolt-On Mount, 30mA Trip

QCGFEP1025

QCGFEP1025 is a Cutler Hammer (Eaton) single-pole ground fault circuit breaker designed for equipment protection in commercial and industrial applications.

This QC series circuit breaker features a 25A current rating, 120VAC voltage, and a 10kA interrupting rating. It is a non-interchangeable, cable-in/cable-out type with a 30mA ground fault trip sensitivity, providing reliable protection against electrical faults. The bolt-on mounting ensures secure installation in compatible panels.

Key Specifications
• Part Number: QCGFEP1025
• Manufacturer: Cutler Hammer (Eaton)
• Amperage: 25A
• Voltage: 120VAC
• Poles: 1
• Mounting Type: Bolt-On
• Interrupt Rating: 10kAIC
• Series/Frame: QC
• Trip Unit: Ground Fault Equipment Protector (GFEP), 30mA sensitivity
• Certifications: UL Listed (assumed, not explicitly stated in sources)
• Type: Non-interchangeable, cable-in/cable-out
• Application: Equipment protection

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: QCGFEP1025
• Manufacturer : Cutler Hammer
• Brand : Cutler Hammer
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Quicklag
• Voltage : 120
• Amperage : 25
• Phase : 1
• Poles : 1
• AIC rating : 10kA@120V
• Connection : Feed-Thru
• Functions : LI - Long Time and Instantaneous
• Protection : Thermal Magnetic

Product Data

• UPC : 78667914660
• GTIN : 00786679146606
• Dimensions : 5.1 in x 1.2 in x 3.3 in (Length/Depth x Height x Width)
• Weight : 0.45 lb
• Wire Size : AWG 14 to AWG 10, AWG 14 to AWG 4, Aluminum/Copper
