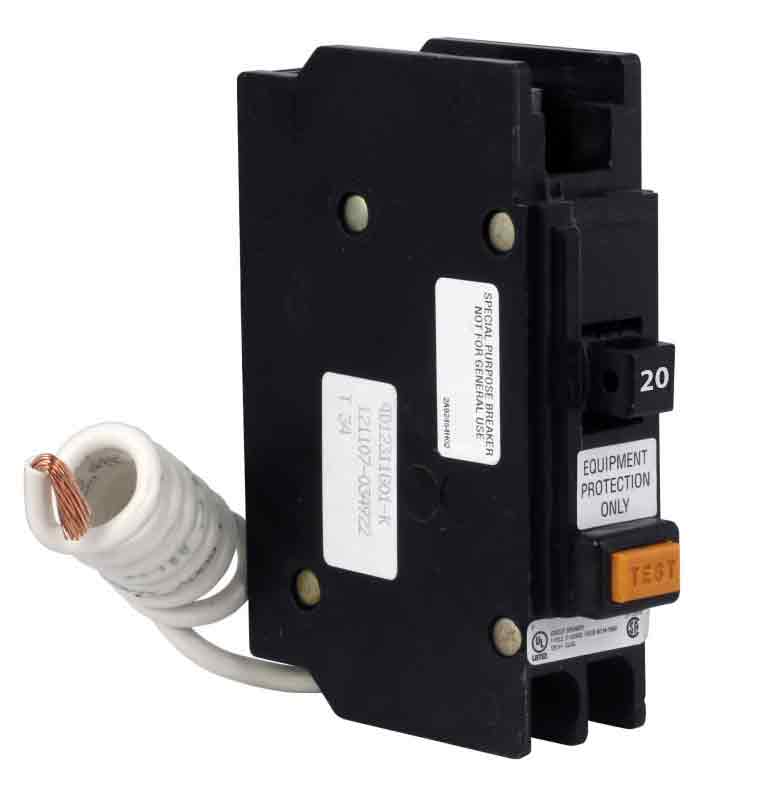

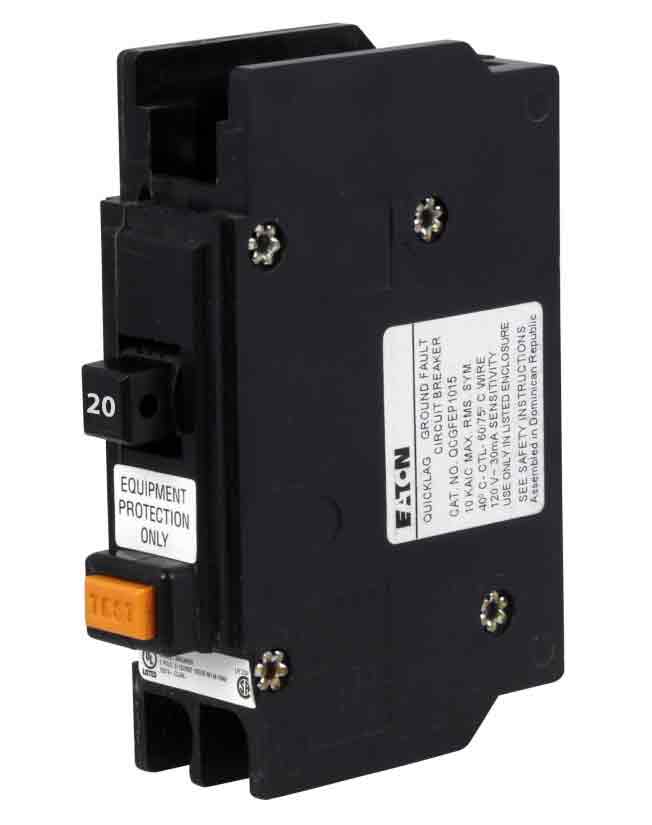

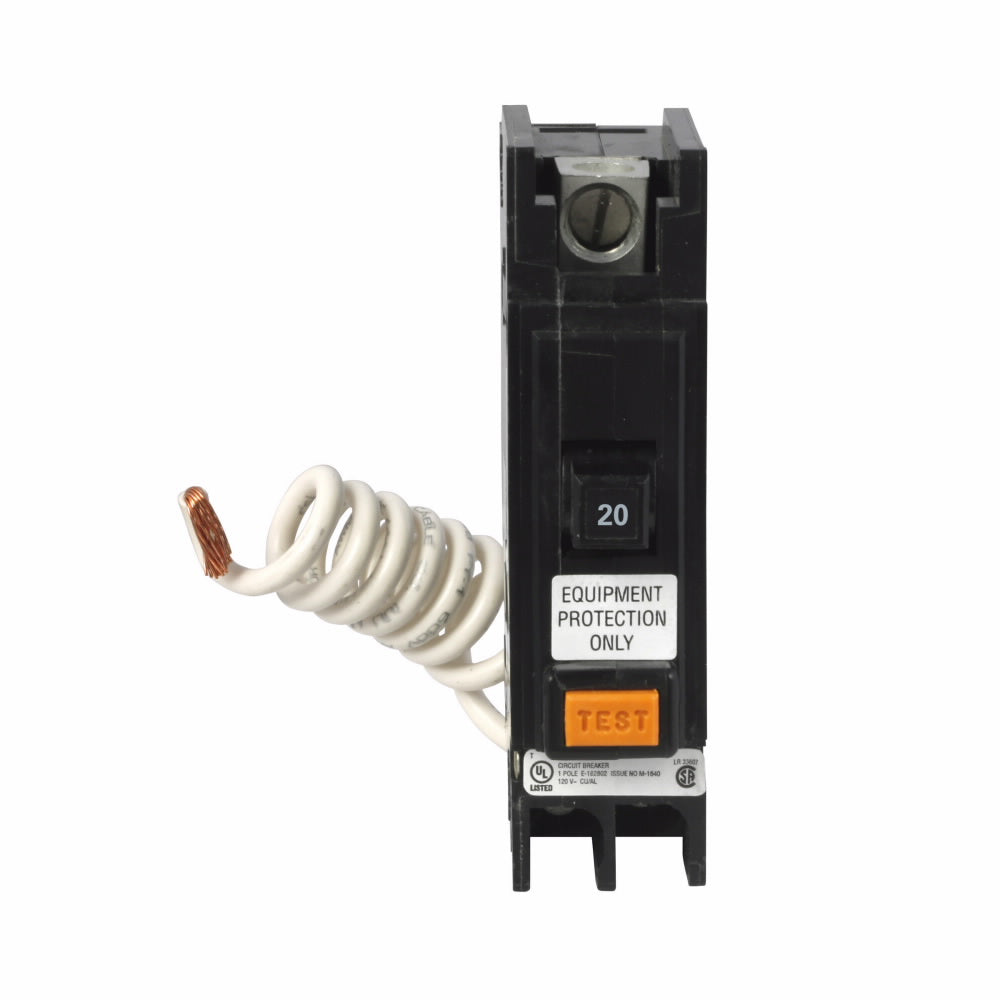

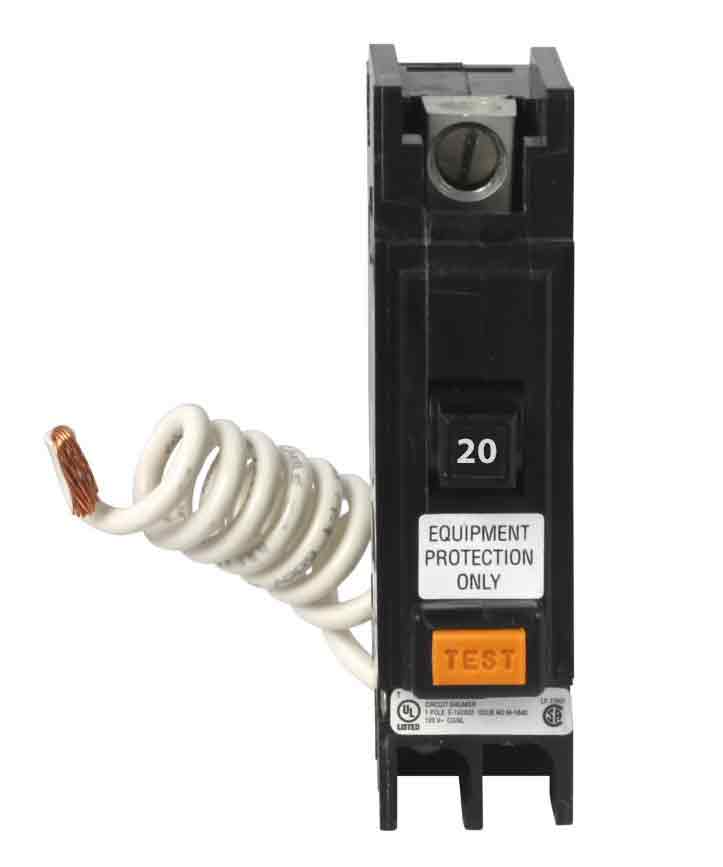

QCGFEP1020 - Cutler Hammer 20A 120V 1-Pole GFCI Circuit Breaker Feed-Thru 10kAIC

QCGFEP1020

QCGFEP1020 is a 1-pole, 20 amp, 120 volt GFCI circuit breaker with feed-thru connection, designed for equipment protection with a 10kA interrupt rating.QCGFEP1020 features a thermal magnetic trip unit with long-time and instantaneous trip functions and 30 mA ground fault trip sensitivity. It is UL Listed and CSA Certified, suitable for single-phase applications with cable-in/cable-out connections and bolt-on mounting.

• Manufacturer: Cutler Hammer (Eaton)
• Amperage: 20 A
• Voltage: 120 V AC
• Poles: 1
• Interrupt Rating: 10 kAIC at 120 V
• Connection Type: Feed-Thru (Cable-in/cable-out)
• Trip Unit: Thermal Magnetic with 30 mA GFCI sensitivity
• Frame/Series: QC
• Mounting Type: Bolt-On
• Certifications: UL Listed, CSA Certified
• Trip Type: Non-Interchangeable
• Phase: Single-phase

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: QCGFEP1020
• Manufacturer : Cutler Hammer
• Brand : Cutler Hammer
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : QUICKLAG
• Type : QCGF
• Voltage : 120
• Amperage : 20
• Phase : 1
• Poles : 1
• AIC rating : 10kA@120V
• Connection : Feed-Thru
• Functions : LI - Long-Time and Instantaneous Trip
• Temp Rating : -13–158 °F (-25–70 °C)
• Protection : Thermal Magnetic

Product Data

• UPC : 786679146552
• GTIN : 00786679146552
• Country of Origin : Dominican Republic
• Dimensions : 5.2 in x 1.3 in x 3.3 in (Length/Depth x Height x Width)
• Weight : 0.55
• Certification : CSA Certified,UL Listed
• Wire Size : 14 TO 10 AWG Aluminum/Copper (Line); 14 TO 4 AWG Aluminum/Copper (Load)
