Product Info
- Manufacturer:Schneider Electric
- Sub-Category:Molded Case
Description
QBP32125

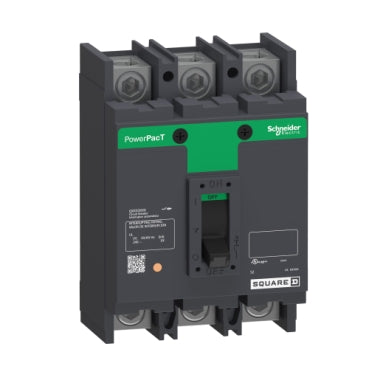

QBP32125 is a Schneider Electric PowerPact Q circuit breaker rated for 125 amps, 3 poles, and 240 volts AC with thermal magnetic trip protection.
This molded case circuit breaker provides reliable overcurrent protection and switching for AC systems. It features a 10kA interrupting rating at 240VAC and supports 80% continuous current rating. The breaker is designed for bolt-on mounting and is part of the PowerPact Q frame series, ensuring compatibility with a wide range of electrical distribution equipment. It is UL 489 listed and certified for industrial use.
- Key Specifications
- Amperage: 125A
- Voltage: 240V AC
- Poles: 3
- Interrupt Rating: 10kA at 240VAC
- Trip Unit: Thermal Magnetic
- Mounting Type: Bolt-On
- Series/Frame: PowerPact Q
- Continuous Current Rating: 80%
- Certifications: UL 489 Listed
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.
Specifications
- Part Number: QBP32125
- Manufacturer : Schneider Electric
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Powerpact
- Type : QBP
- Voltage : 240
- Amperage : 125
- Phase : 3
- Poles : 3
- AIC rating : 10kA@240V
- Connection : Bolt-On
- Functions : LI - Long-Time and Instantaneous
- Frame Size : Q Frame
- Protection : Thermal Magnetic
Product Data
- Weight : 4
