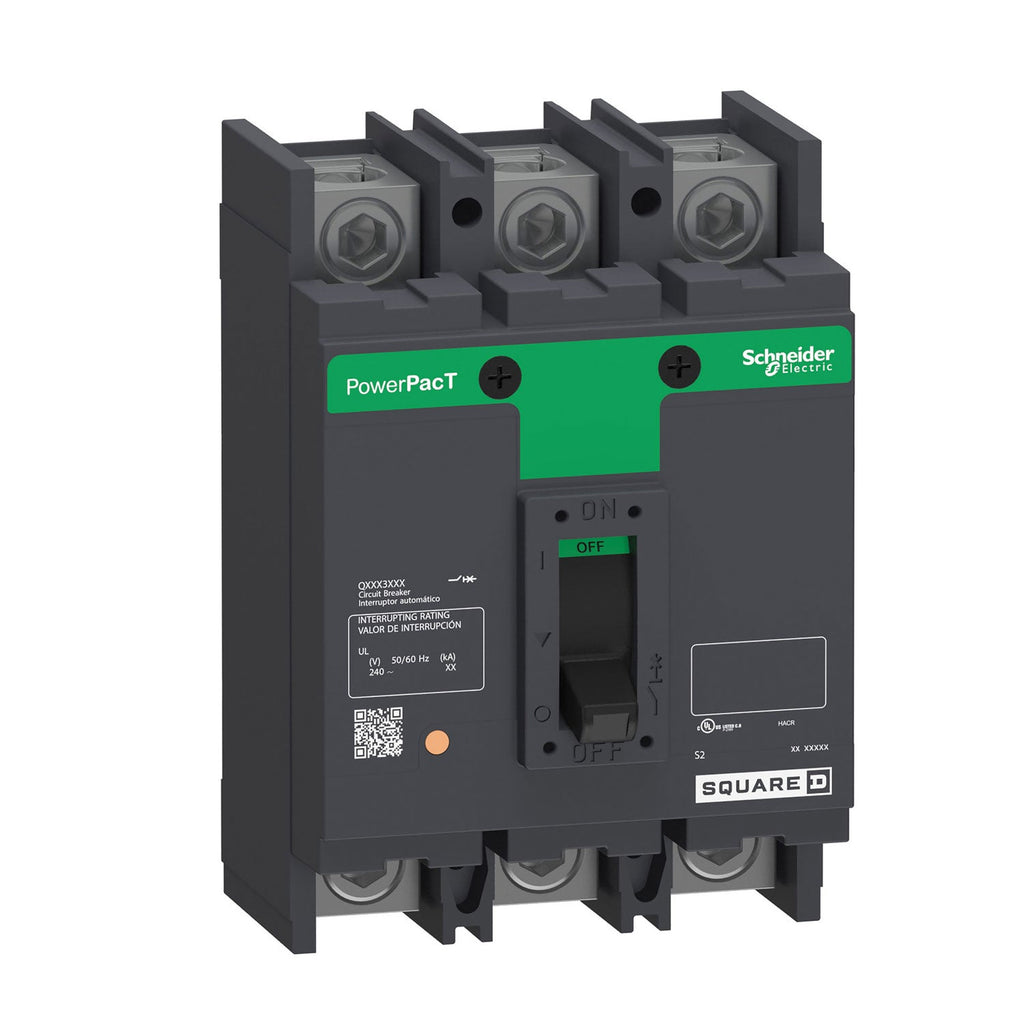

QBP32070TM - Square D 70 Amp 3 Pole 240VAC Bolt-On Molded Case Circuit Breaker, PowerPacT Q Frame, 10kAIC, Thermal Magnetic Trip, UL/CSA/IEC

QBP32070TM

QBP32070TM is a Square D 70 Amp, 3-pole, 240VAC bolt-on molded case circuit breaker designed for reliable overcurrent protection in commercial and industrial applications.

This thermal magnetic circuit breaker features a PowerPacT Q frame, non-interchangeable trip unit, and is rated for 10kA interrupting capacity at 240V. It is unit mounted, suitable for use with 225A MPL Lever Bypass METER-PAK metering equipment, and accepts 4 AWG to 300 kcmil conductors. The QBP32070TM is certified to UL, CSA, and IEC standards, ensuring compliance and safety.

Key Specifications
• Amperage: 70A
• Voltage: 240VAC
• Poles: 3
• Mounting Type: Unit (bolt-on)
• Interrupt Rating: 10kAIC @ 240V
• Series/Frame: PowerPacT Q (QBP)
• Trip Unit: Thermal magnetic, long time and instantaneous trip, non-interchangeable
• Certifications: UL Listed, CSA, IEC
• Connection: Load side lug terminals
• For Use With: 225A MPL Lever Bypass METER-PAK Metering Equipment
• Conductor Range: 4 AWG to 300 kcmil
• Environmental: RoHS compliant

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: QBP32070TM
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Meter-Pak
• Type : QBP
• Voltage : 240
• Amperage : 70
• Phase : 3
• Poles : 3
• AIC rating : 10kA@240V
• Connection : Bolt-On
• Functions : Long Time and Instantaneous Trip
• Terminal Connection : Lug, Terminal Nut
• Frame Size : Q
• Protection : Thermal Magnetic

Product Data

• UPC : 785901584339
• GTIN : 00785901584339
• Country of Origin : Mexico
• Dimensions : 6.47 in (164.34 mm) x 4.5 in (114.3 mm) x 3.93 in (99.82 mm) (Height x Width x Depth)
• Weight : 4.531
• Standards : UL, CSA, NEMA, NOM-003-SCFI-2000
• Certification : UL, CSA, NOM
