Product Info
- Manufacturer:Schneider Electric
- Sub-Category:Molded Case
Description
QBP32080

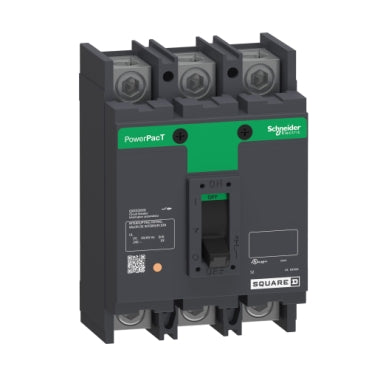

QBP32080 is a Schneider Electric PowerPact Q circuit breaker rated for 80 amps, 3 poles, and 240 volts AC with a 10kA interrupt rating and bolt-on mounting type.QBP32080 provides reliable overcurrent protection with thermal magnetic trip units designed for AC systems. It features a bolt-on connection for secure installation and complies with UL, CSA, NOM, and IEC certifications.
- Amperage: 80 Amp
- Voltage: 240 VAC
- Poles: Three Pole
- Interrupt Rating: 10 kA
- Mounting Type: Bolt-On
- Trip Unit: Thermal Magnetic
- Series/Frame: PowerPact Q
- Certifications: UL, CSA, NOM, IEC
Specifications
- Part Number: QBP32080
- Manufacturer : Schneider Electric
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Powerpact
- Type : QBP
- Voltage : 240
- Amperage : 80
- Phase : 3
- Poles : 3
- AIC rating : 10kA@240V
- Connection : Bolt-On
- Functions : LI - Long-Time and Instantaneous
- Frame Size : Q Frame
- Protection : Thermal Magnetic
Product Data
- Weight : 4
