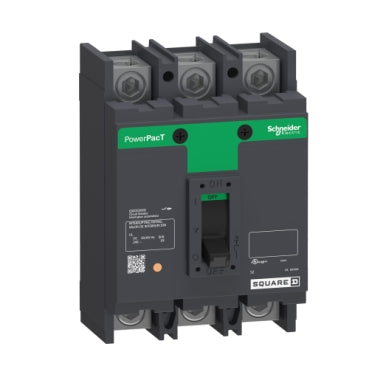

QBP32090TM - Square D 90A 240V 3 Pole Thermal Magnetic Circuit Breaker QBP Frame

QBP32090TM

QBP32090TM is a Square D 3 pole thermal magnetic molded case circuit breaker rated for 90 amps and 240 volts AC. It features a bolt-on unit mounting type and is designed for reliable branch circuit protection.This circuit breaker belongs to the QBP series/frame and offers a 10kA interrupting rating at 240V. It includes long time and instantaneous trip functions (LI) and is compatible with MPL Lever Bypass Meter-Pak metering equipment. The breaker meets UL, CSA, NOM, NEMA, IEC, and RoHS standards and operates within a temperature range of 40 to 70°C.

Key Specifications
• Manufacturer: Square D
• Part Number: QBP32090TM
• Amperage: 90A
• Voltage: 240VAC
• Poles: 3
• Mounting Type: Unit Bolt-On
• Interrupting Rating: 10kA @ 240V
• Trip Unit: Thermal Magnetic with Long Time and Instantaneous (LI) functions
• Connection Type: Bolt-On
• Standards: UL, CSA, NOM, NEMA, IEC, RoHS
• Compatible with MPL Lever Bypass Meter-Pak
• Operating Temperature: 40 to 70°C (104 to 158°F)

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: QBP32090TM
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Meter-Pak
• Type : QBP
• Voltage : 240
• Amperage : 90
• Phase : 3
• Poles : 3
• AIC rating : 10kA@240V
• Connection : Bolt-On
• Functions : LI - Long Time and Instantaneous
• Terminal Connection : Lug, Terminal Nut
• Frame Size : Q
• Temp Rating : -13–158 °F (-25–70 °C)
• Protection : Thermal Magnetic

Product Data

• UPC : 785901455998
• GTIN : 00785901455998
• Country of Origin : Mexico
• Dimensions : 6.47 in (164.34 mm) x 4.5 in (114.3 mm) x 3.93 in (99.82 mm) (Height x Width x Depth)
• Weight : 4.531
• Standards : UL, CSA, NEMA, NOM-003-SCFI-2000
• Certification : UL, CSA, NOM
